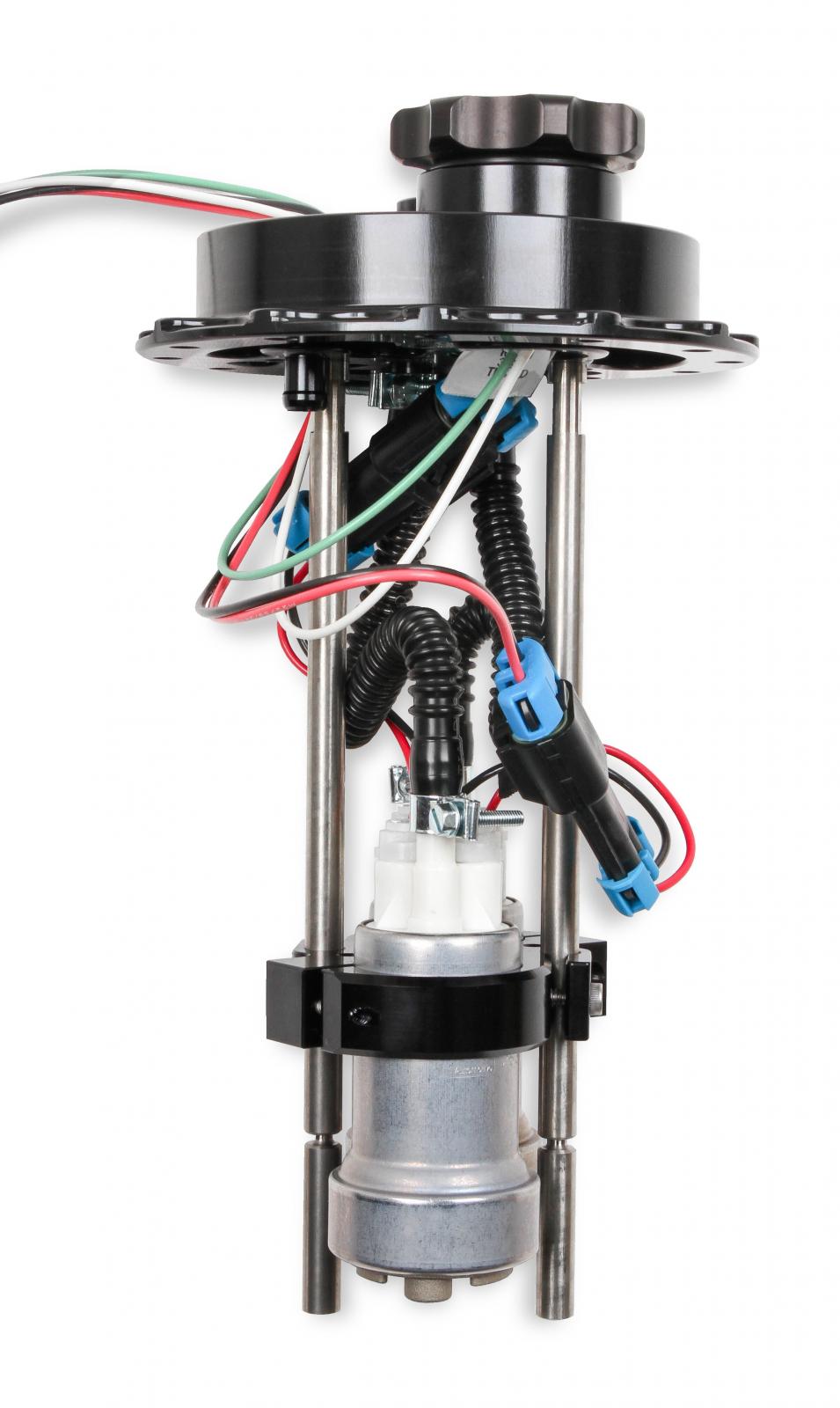

Holley 12-147 Fuel Cell EFI Pump Module Assembly 12-Bolt Flange Dual 450 LPH Drop-In EFI
Product Availability Request
Fill the form and our team will contact you.
Updating your racing fuel system to EFI is so simple! Holley is excited to introduce our Holley Fuel Cell EFI Pump Modules.
While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator. The modules were designed to drop in as a direct replacement for your existing 12 bolt flange fuel cell cap assembly.

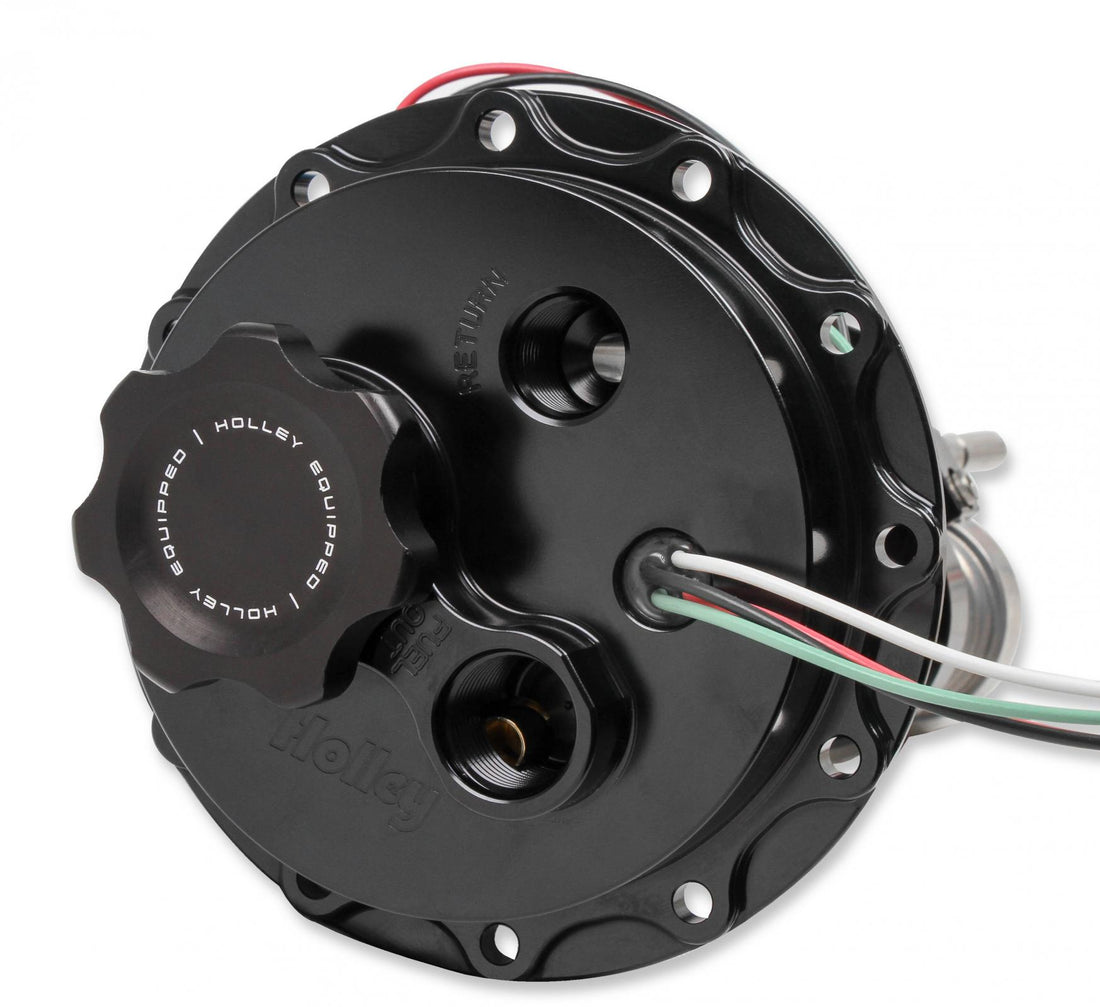

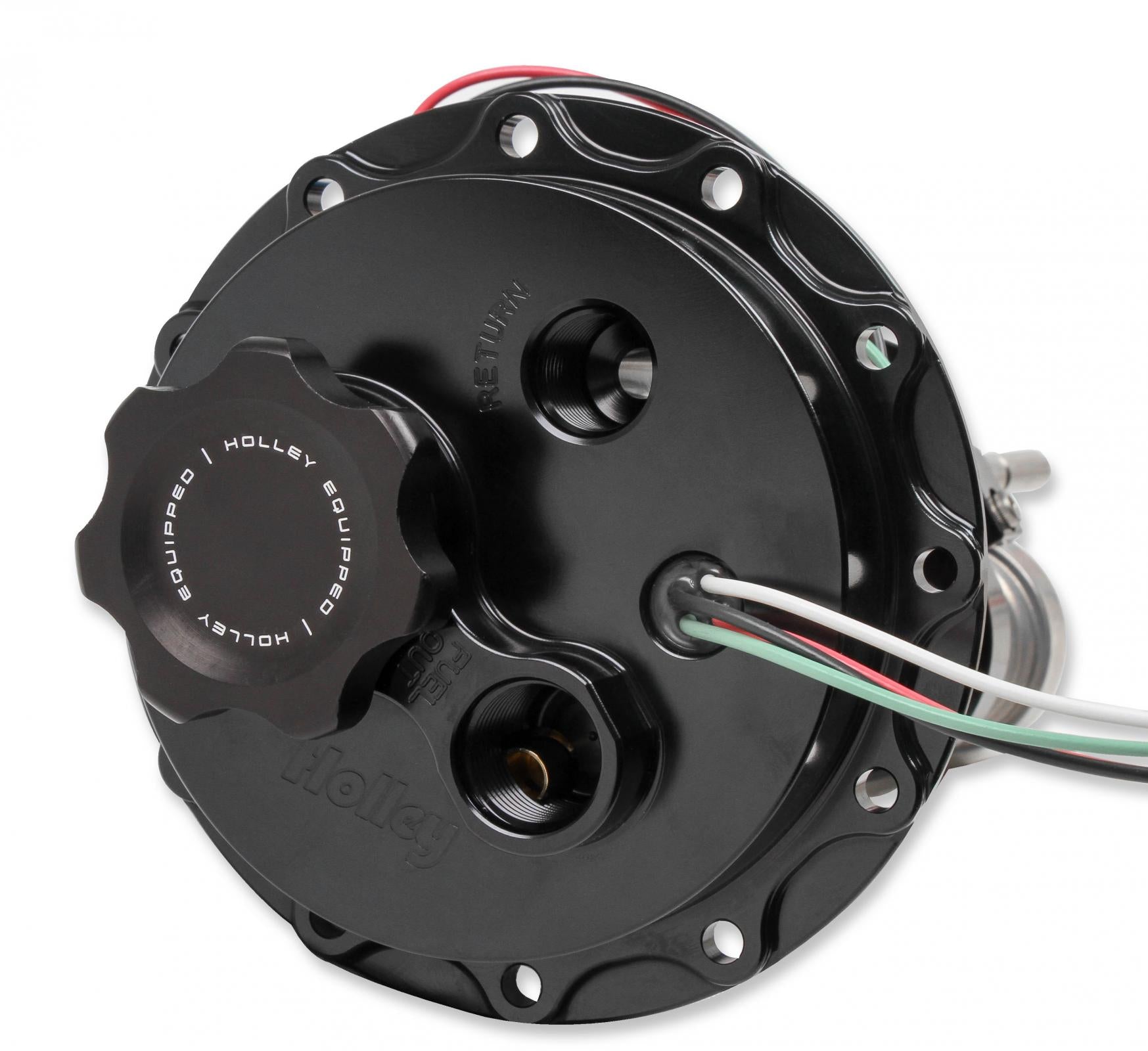

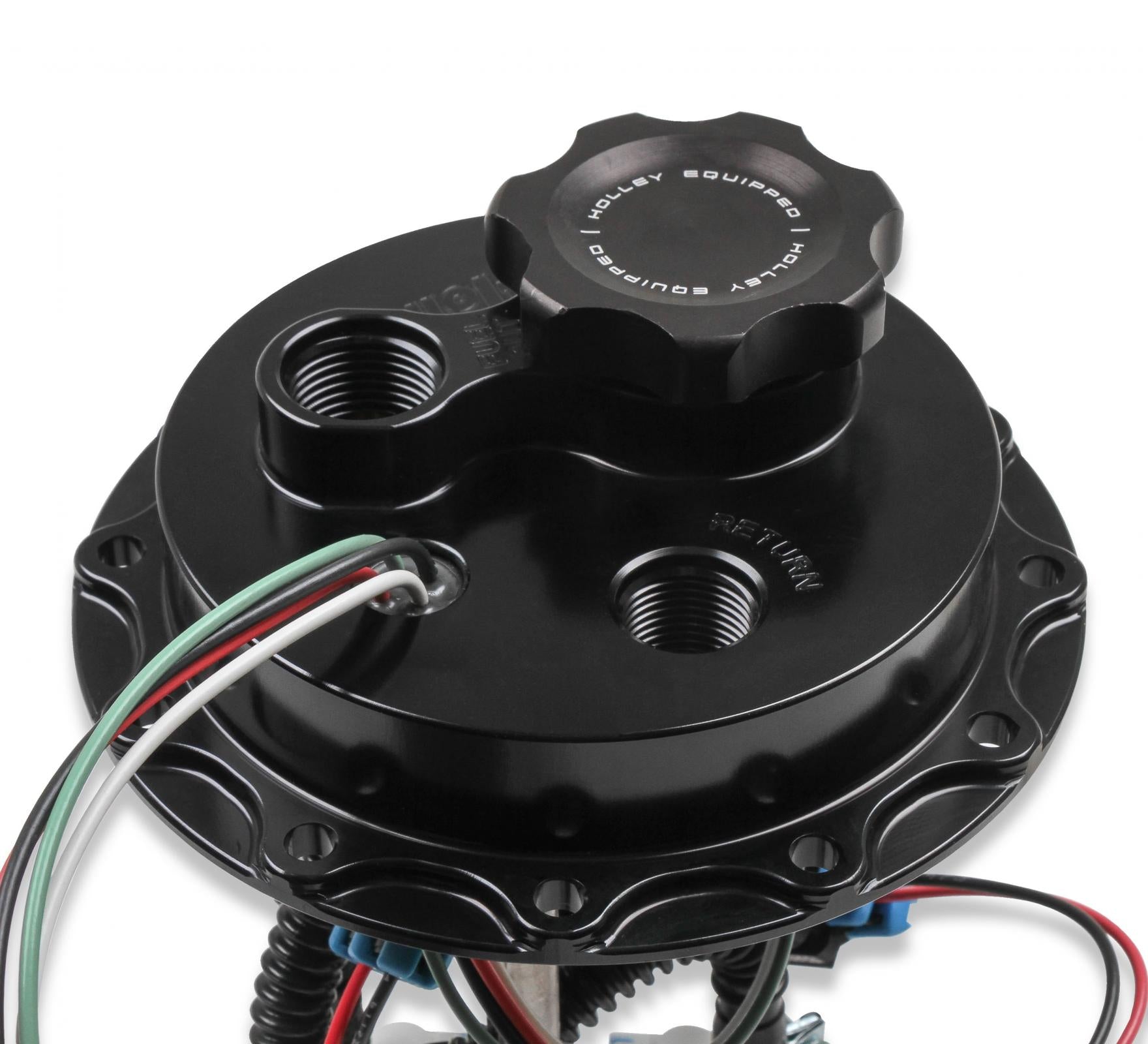

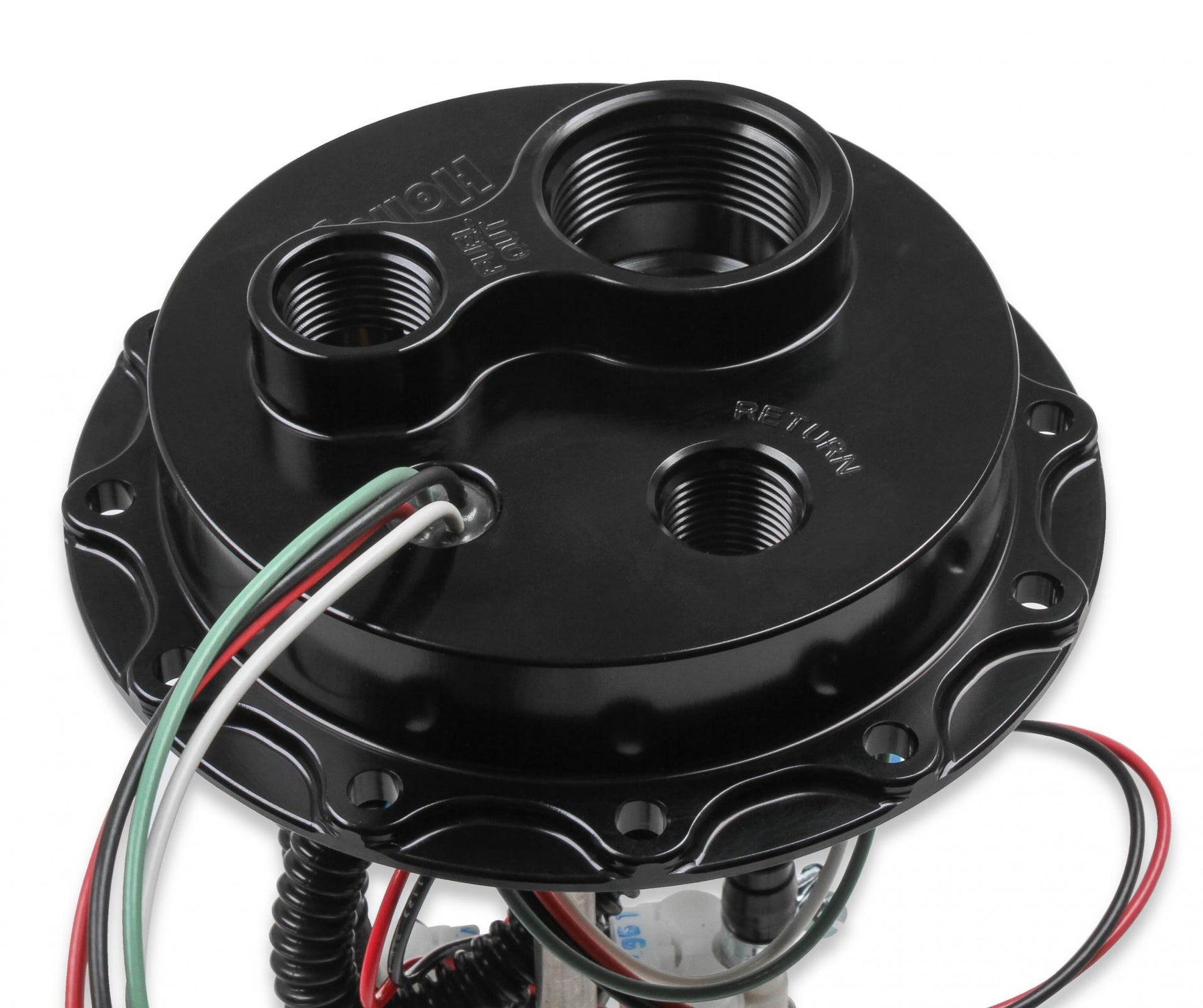

The billet top flange includes an 8AN inlet port, a 10AN outlet port, and a fuel filler cap. The fuel pump depth is fully adjustable from 7.5 inch to 12 inch deep.

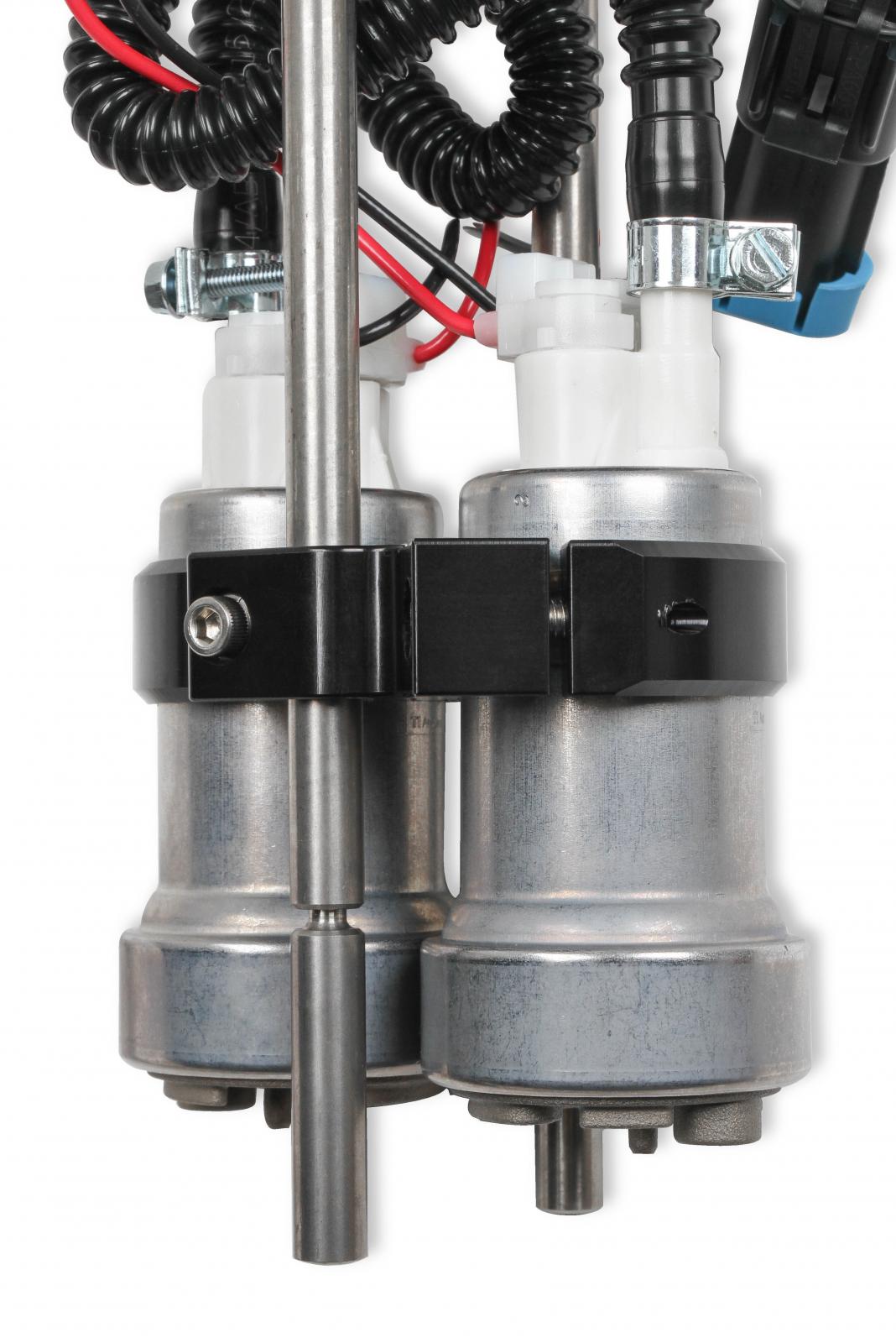

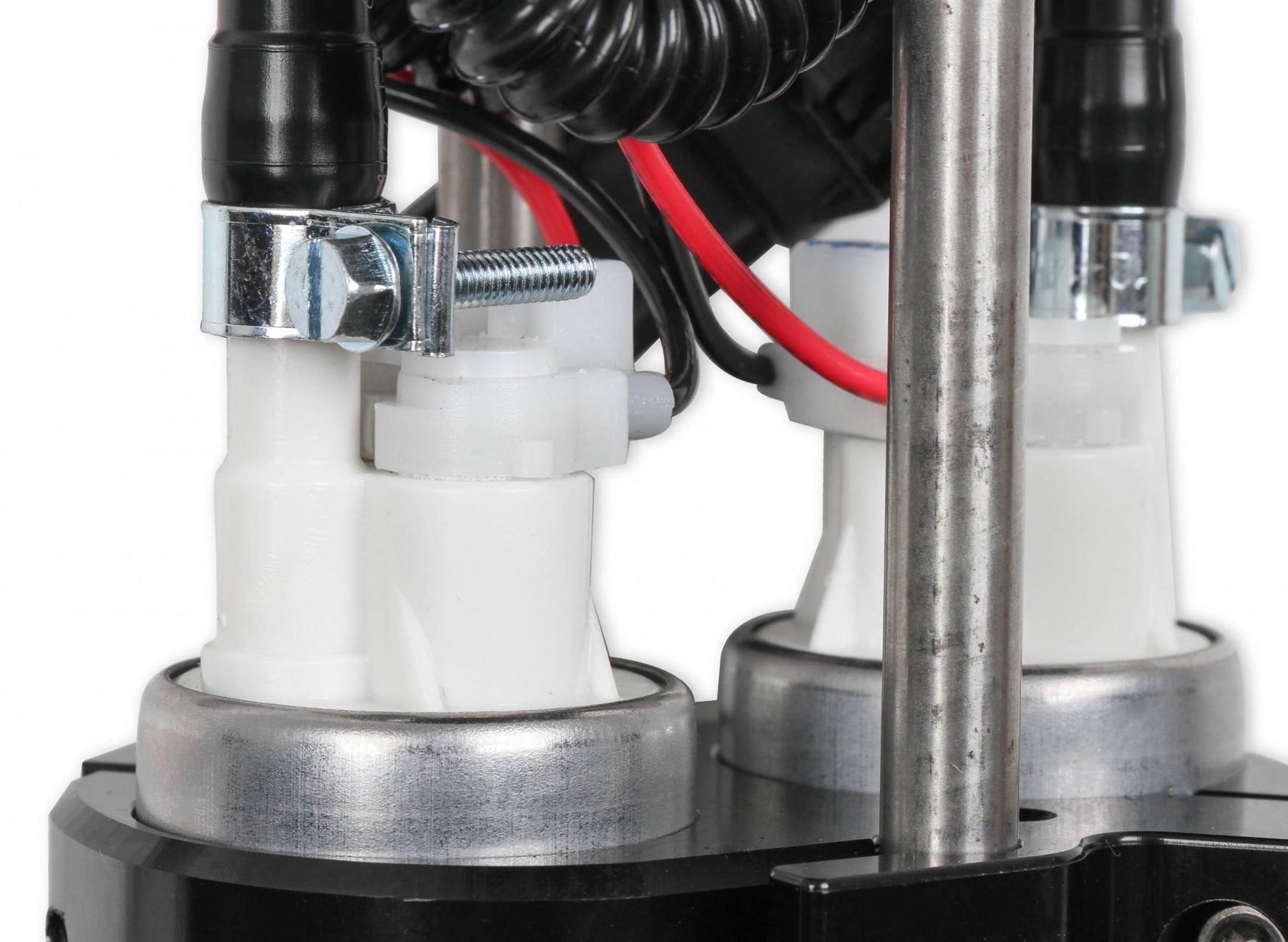

The EFI modules are available with single and dual 255 LPH and 450 LPH fuel pumps. The module kits include all the hardware to install into your existing fuel cell.
All that you need to add is your fuel line. Assembly fits common Rjs, Jaz, Summit, Jegs, Rci, Speedmaster and Speedway fuel cells.
Supports up to 1750 EFI or 2200 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
Features and Benefits:
- Update your fuel cell to EFI the easy way! Designed to drop right into your existing 12 bolt flange fuel cell Billet top flange housing includes an 8AN inlet and 10AN outlet port and a fuel filler cap Module with Dual 450 LPH fuel pumps configurations The pump depth is fully adjustable for fitment in the most popular cell sizes 7.5 inch-12 inch deep
- Supports up to 1750 EFI or 2200 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
Associated Comments:
- Fill cap thread is 1 1/2 inch-12
Details:
- Application: Universal
- Average Current Draw: 16.9 Ampere
- Average Flow Rating: 900 Liters per Hour
- Connector Color: Black
- Flange Style: 12 Bolt
- Free Flow GPH: 230
- Free Flow LPH: Dual 450
- Fuel Type: E85 | Gasoline
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: No
- Fuel Tank Pressure Sensor Included: No

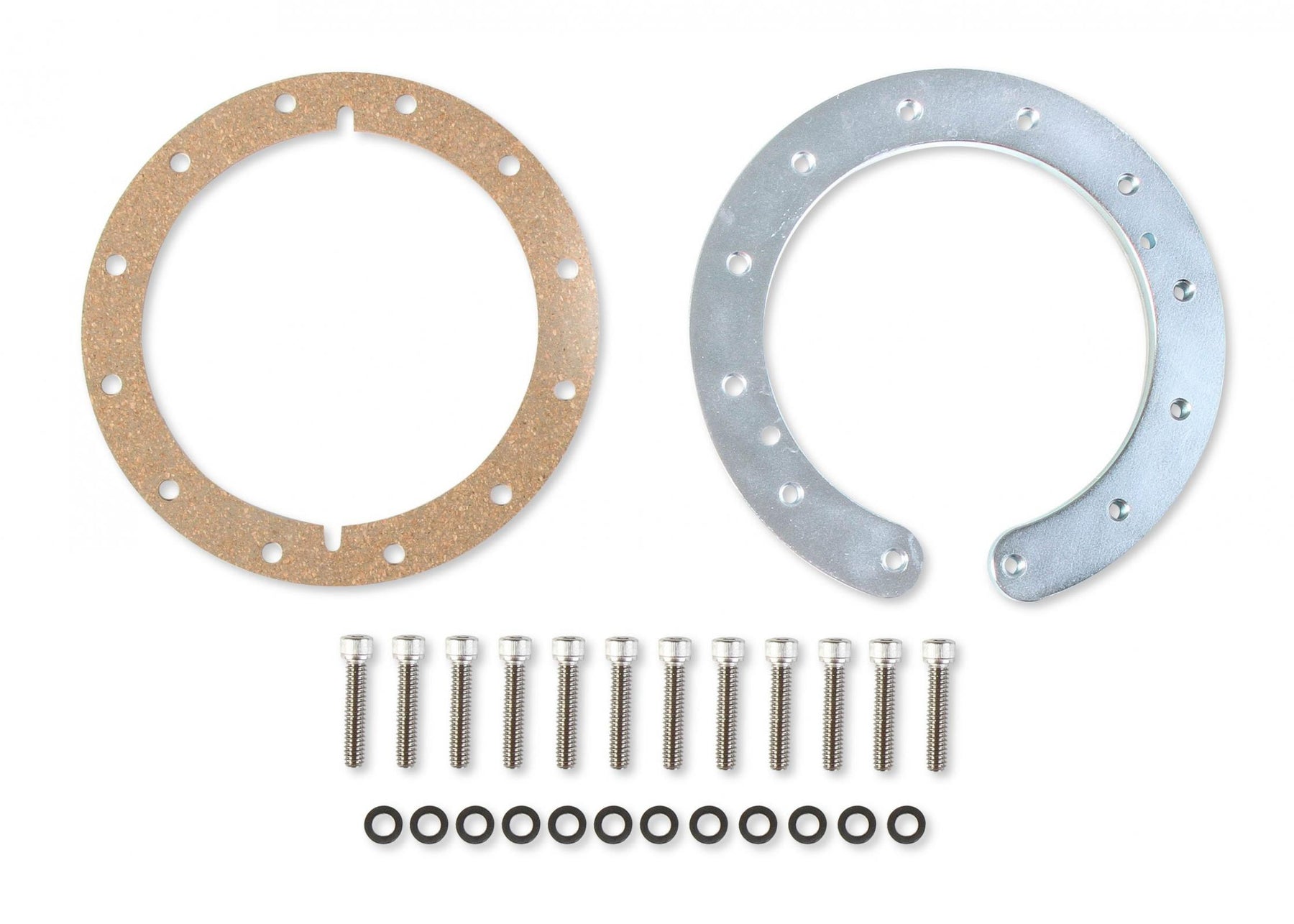

- Gasket Or Seal Included: Yes
- Gasket Or Seal Material: Cork
- Grade Type: Performance
- Height: Adjustable
- Housing Material: Aluminum
- In Tank or External: In Tank
- Inlet Quantity: One
- Inlet Size: 8 An
- Inlet Type: 8 An Orb
- Internal Or External Strainer: External
- Lock Ring Included: Yes
- Max PSI: 87 PSI
- Maximum Pressure: 60 Pounds per Square Inch
- Mounting Hardware Included: Yes
- Negative Ground: Yes
- Outlet Quantity: One
- Outlet Size: 10 An
- Outlet Type: 10 An Orb
- Pump Type: Electric
- Regulator Included: No
- Single Or Dual Pump: Dual
- Universal Or Specific Fit: Universal
- Voltage: 12 Volts DC
- Warranty: Manufacturer's Limited 90 Day Warranty
- Wire Harness Included: Yes
- Wire Quantity: 2.0
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
