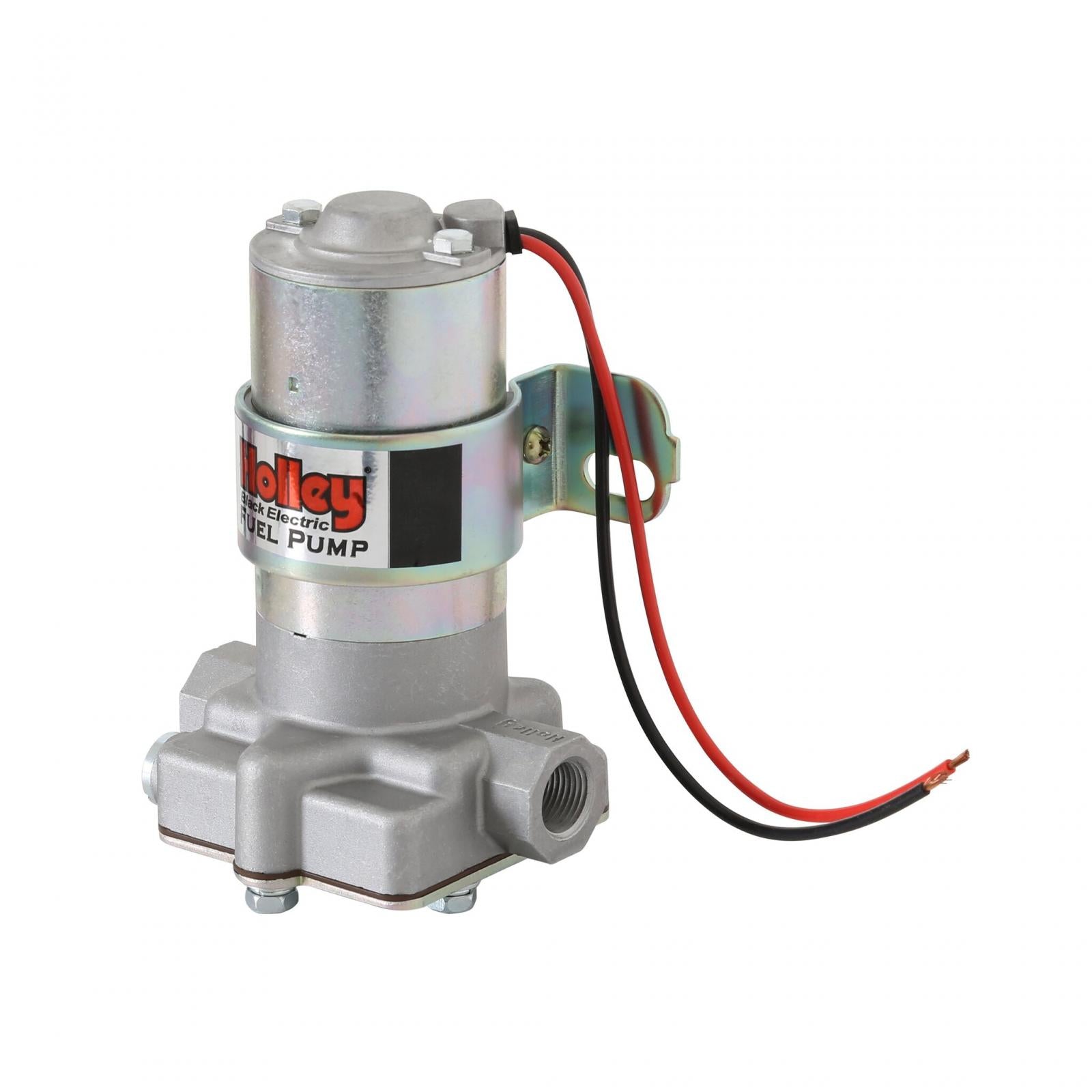

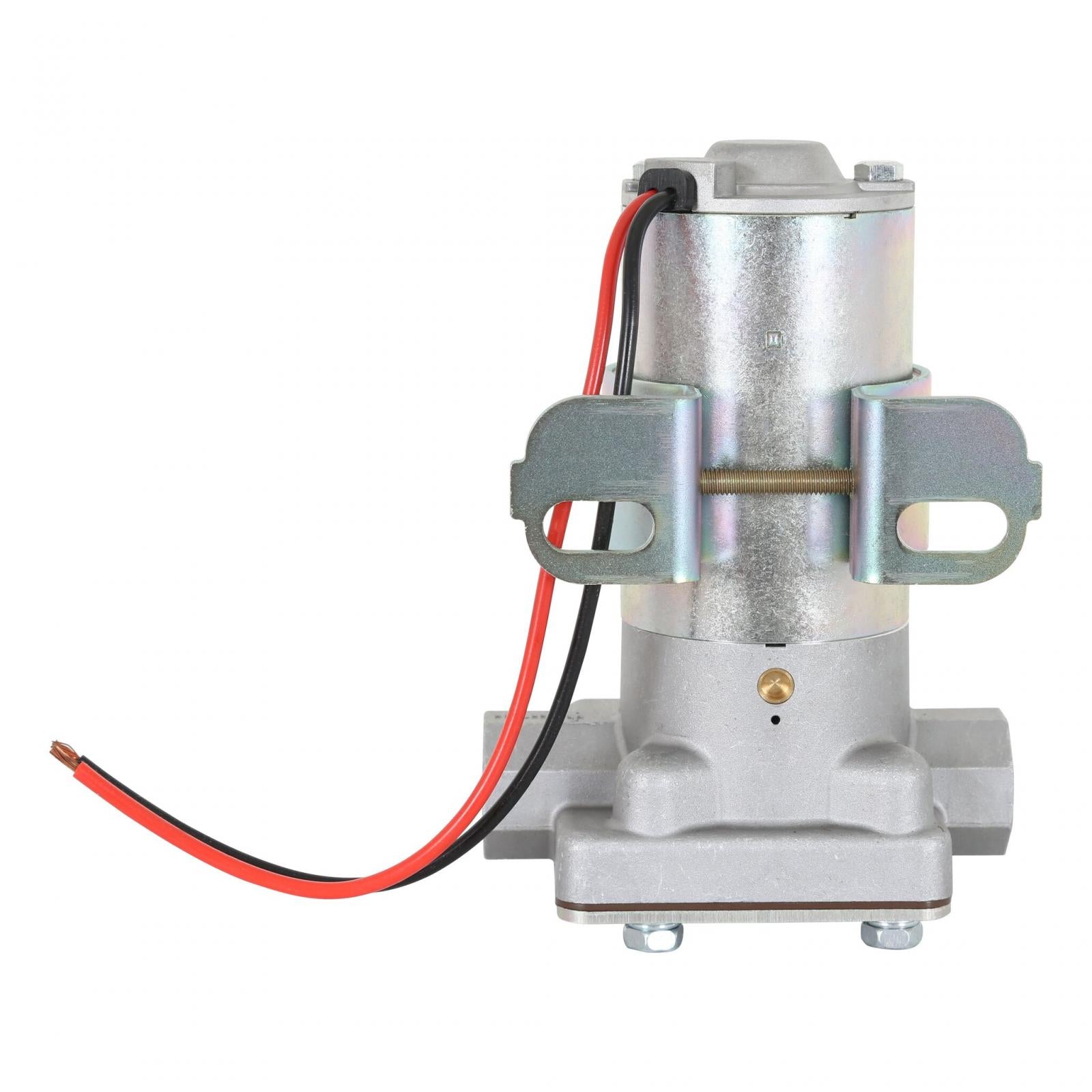

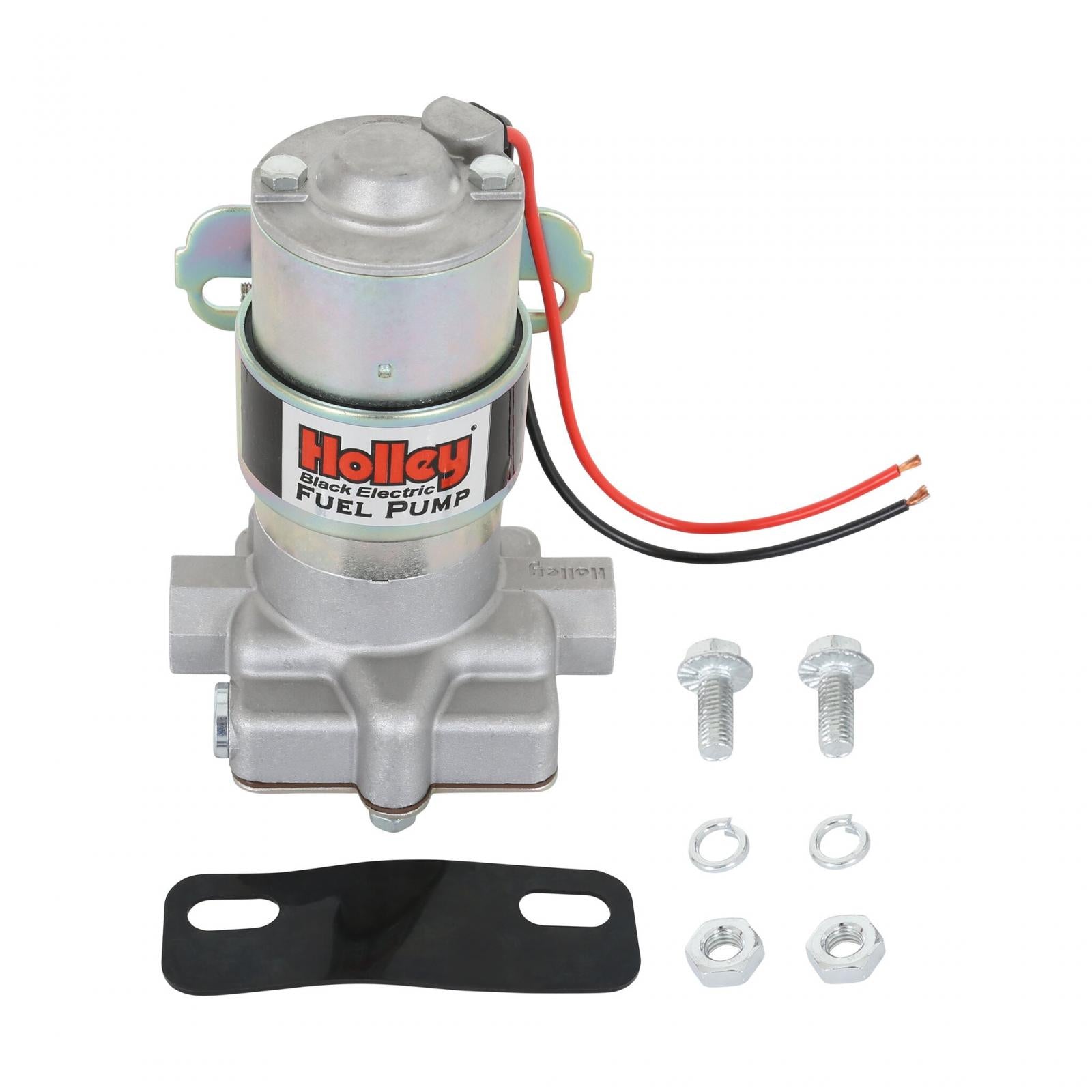

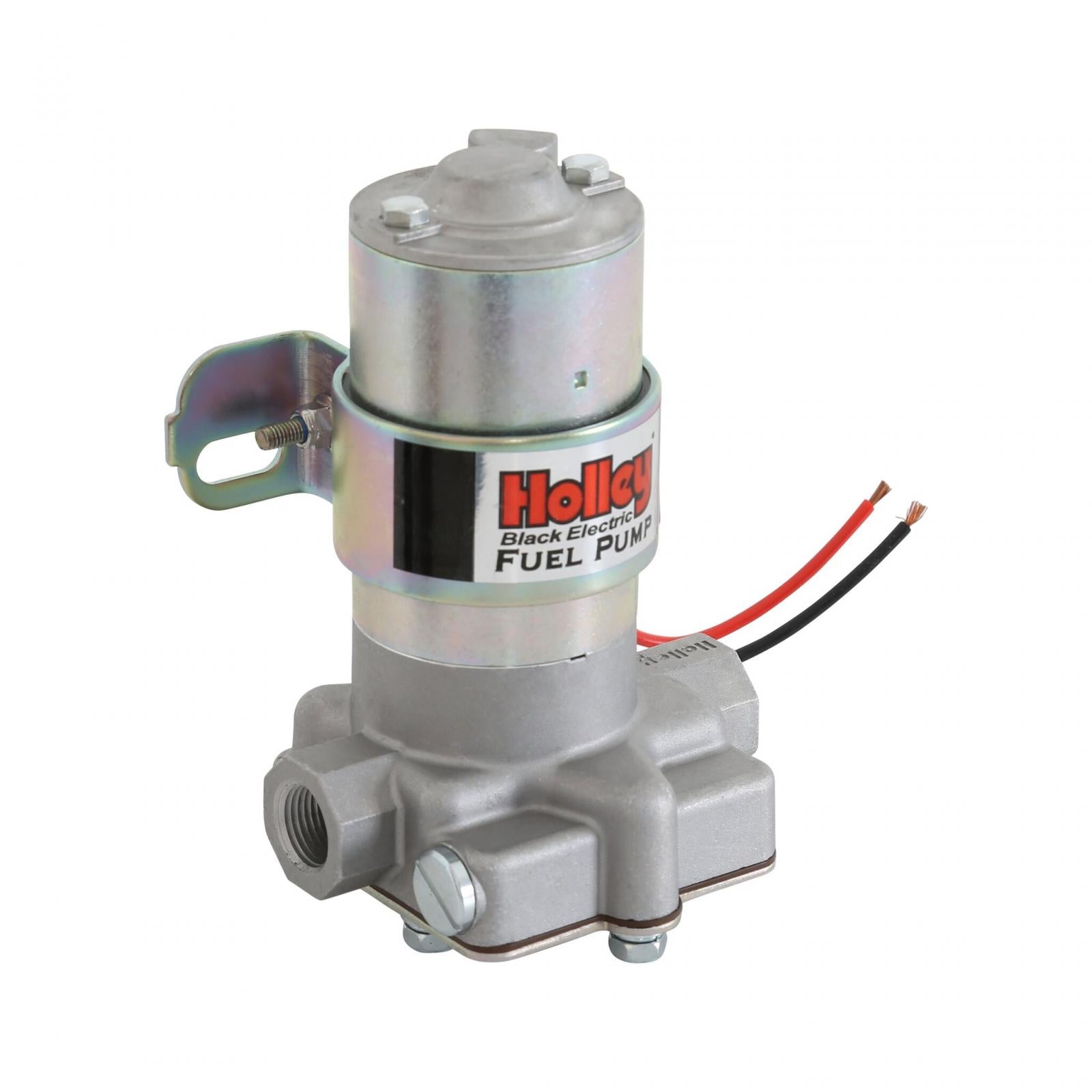

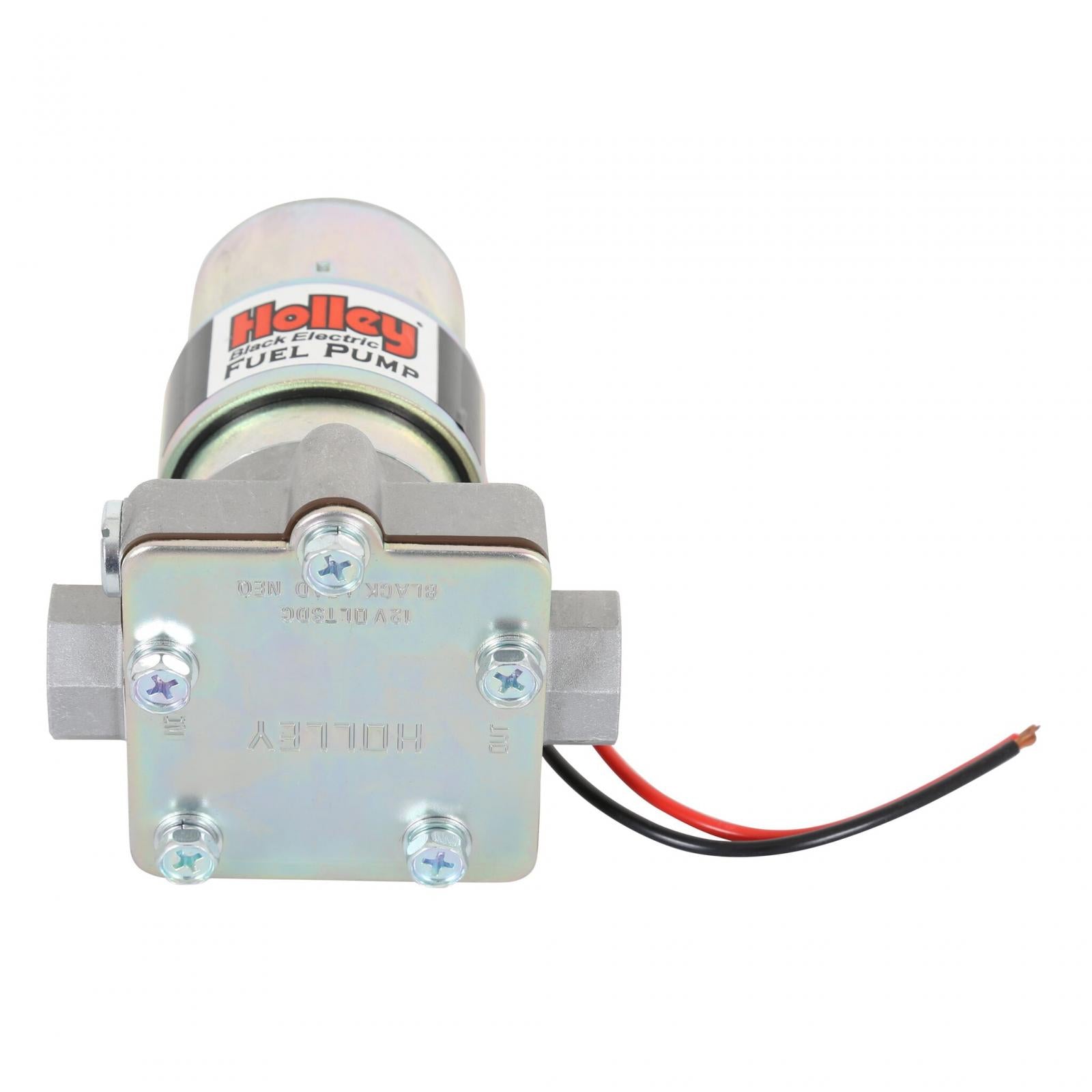

Holley 12-815-1 140 GPH Black Electric Fuel Pump Street/strip Carbureted Applications Compatible with Gasoline Only
Product Availability Request
Fill the form and our team will contact you.
The world famous Red, Blue and Black fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's.
Their time proven rotor/vane design is known to get the job done in an affordable package.
Features and Benefits:
- Tumble polished billet look Lower housing casting designed for enhanced fuel flow Improved design for street/strip applications Distinctive Black logo Not designed for use on aircraft of any type

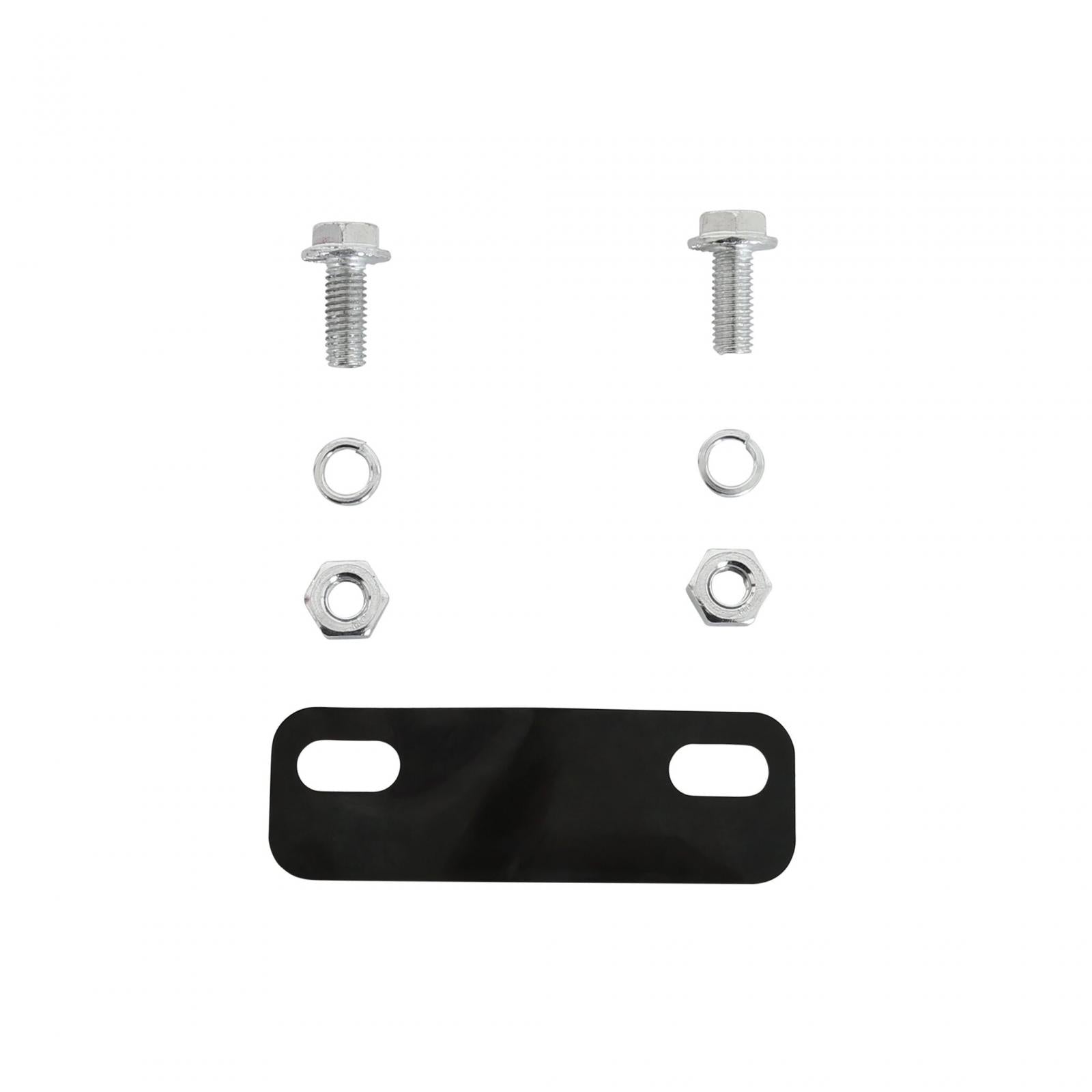

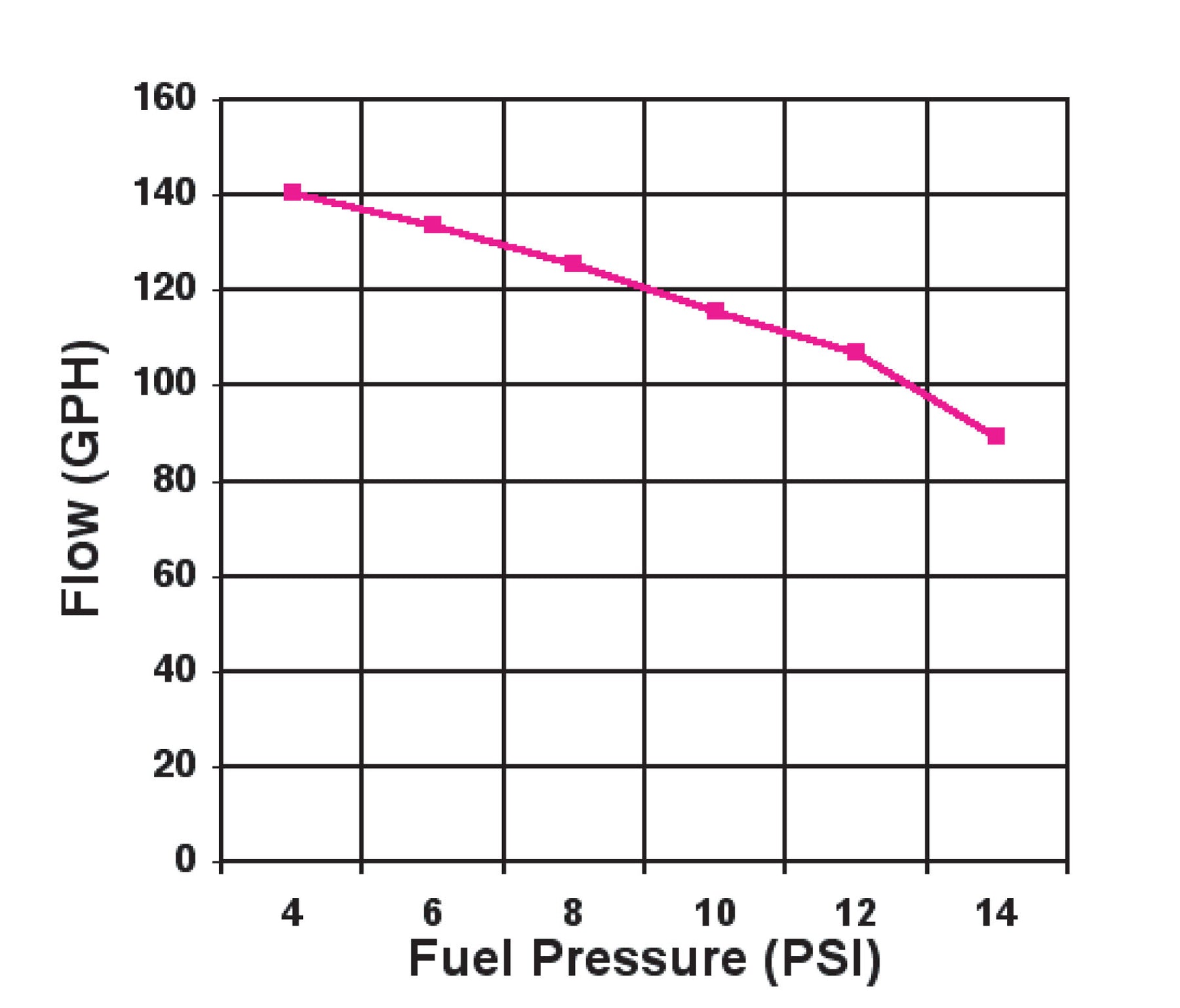

- Flows 140 GPH (free flow) Flows 120 GPH at 9 psi Maximum pressure is 14 psi 3/8 inch NPT inlet and outlet ports Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline) Motor draws only 4 amps current Relay kit P/N 12-753 & 7 1/2 amp fuse recommended Provides constant fuel flow with no pulsation Has externally accessible pressure relief valve (max 14 psi) Rotor/vane pump design is more tolerant of contaminated fuels Weighs only 3 lbs Includes mounting bracket Repair kits are readily available Can be serviced from the pump end Use of safety shut-off switch, P/N 12-810, strongly recommended Not designed or recommended for use with fuel injection systems
Associated Comments:
- Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended.
- These should be used with 12 volt systems only.
Details:
- Application: Universal
- Bracket Color: Silver
- Free Flow GPH: 140
- Free Flow LPH: 530
- Fuel Type: Gasoline
- Fuel Delivery Type: Carburetor
- Fuel Sending Unit Included: No
- Fuel System: Carbureted
- Gasket Or Seal Included: No
- Grade Type: Performance
- Inlet Fitting Thread Size: 3/8 Inch
- Inlet Size: 3/8 inch NPT
- Inlet Type: NPT
- Internal Or External: External
- Material: Aluminum
- Maximum Amperage Draw: 4 Ampere
- Maximum Flow Rating: 140 U.S. Gallons per hour
- Maximum Pressure: 14 Pounds per Square Inch
- Motor Finish: Silver
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Fitting Thread Size: 3/8 Inch
- Outlet Quantity: 1
- Outlet Size: 3/8 inch NPT
- Outlet Type: NPT
- Pump Body Color: Silver
- Regulator Included: No
- Strainer Included: No
- Universal Or Specific Fit: Universal
- Voltage: 12 Volts DC
- Warranty: Manufacturer's Limited 90 Day Warranty
- Wire Quantity: 2.0
- Wiring Harness Included: No
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
