Holley 12-920 80 GPH In-Line Universal Electric Fuel Pump Street/strip EFI Applications Compatible with Gasoline Only
Product Availability Request
Fill the form and our team will contact you.

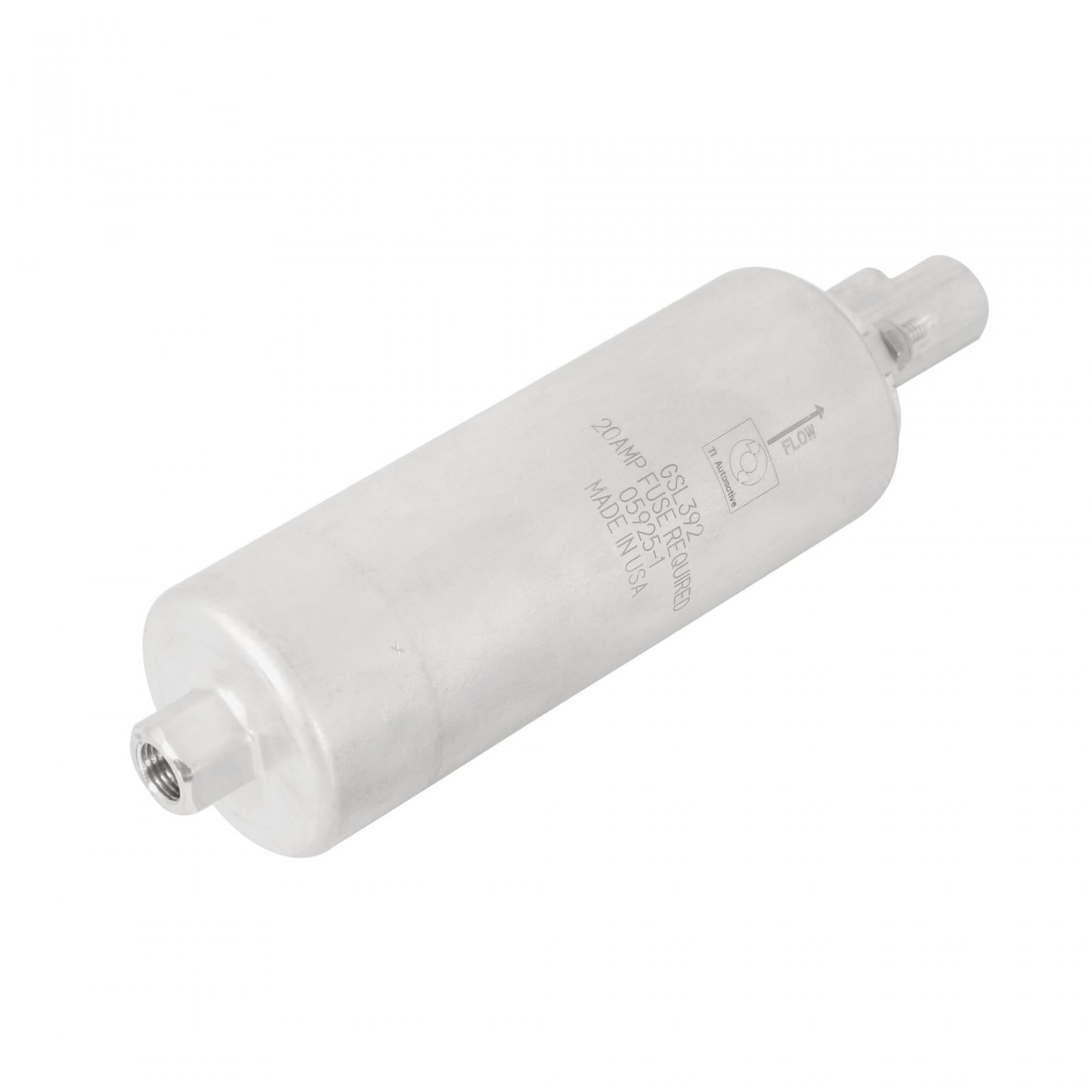

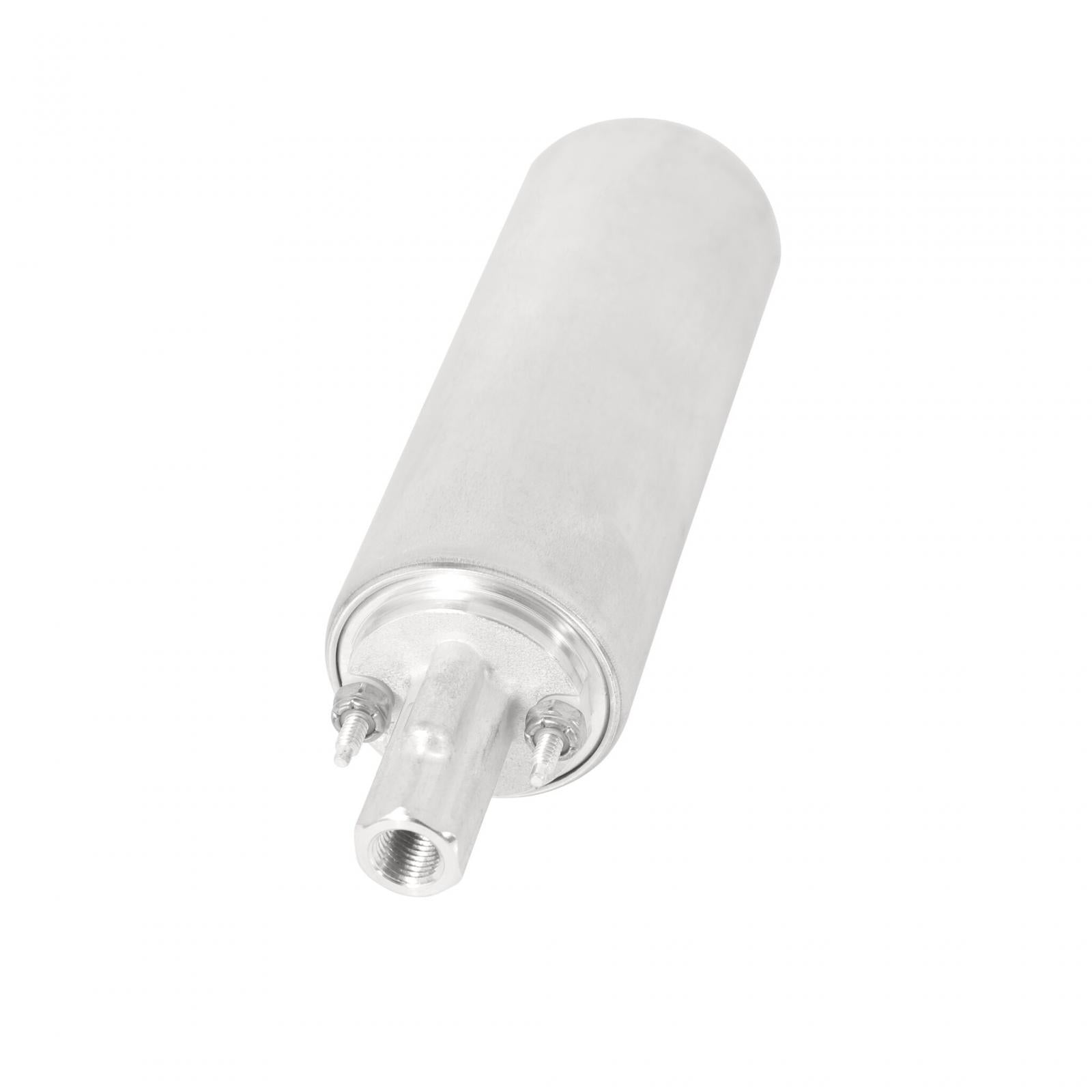

The 12-920 universal in-line fuel pump is intended for Throttle Body EFI, Multipoint EFI and Forced Induction Multipoint EFI systems. It is designed to work in-line, not inside the tank, so installation is a snap.
The 12-920 is rated for continuous duty service and have been tested up to 2,500 hours.
Features and Benefits:

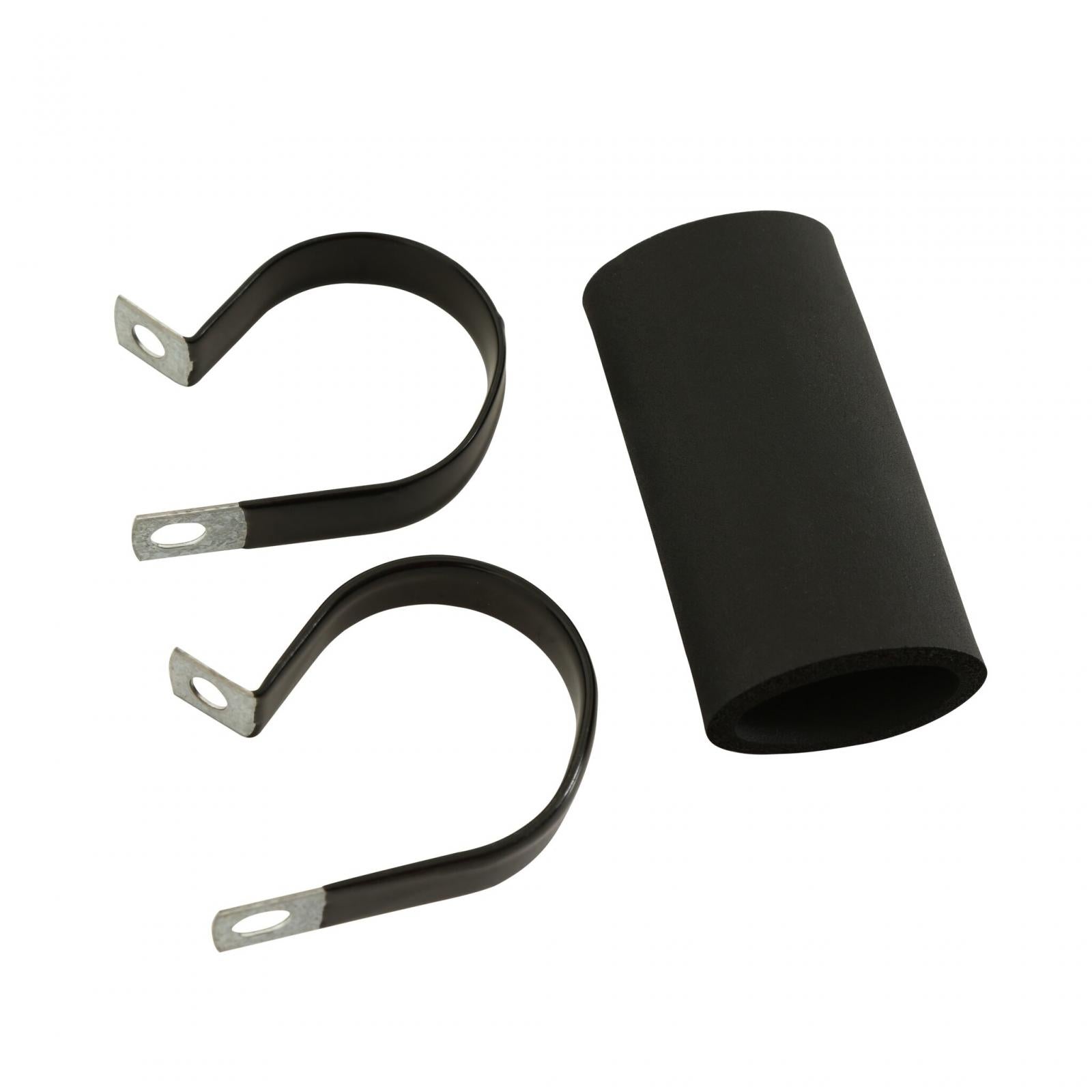

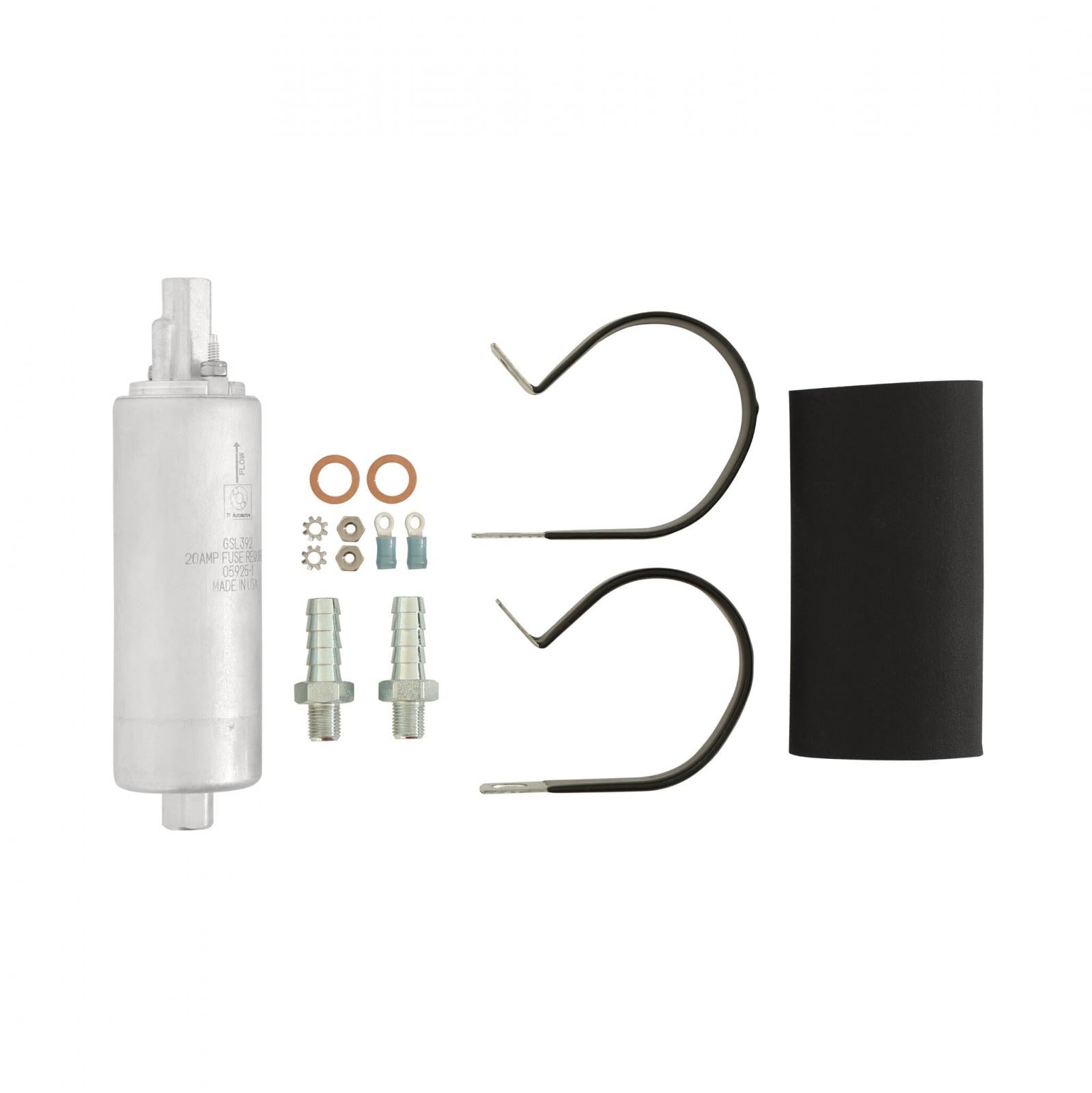

- Draws 5 amps at 15 psi Will feed up to 800 horsepower throttle body EFI units Will feed up to 700 horsepower multipoint units Will feed up to 600 horsepower forced induction multipoint units OE proven design Lightweight and compact Rubber isolator, mounting clamps and electrical hardware included 3/8 inch barbed fittings included Not designed for use on aircraft of any type.
Associated Comments:
- Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. 10mm x 1.0 inlet and outlets.

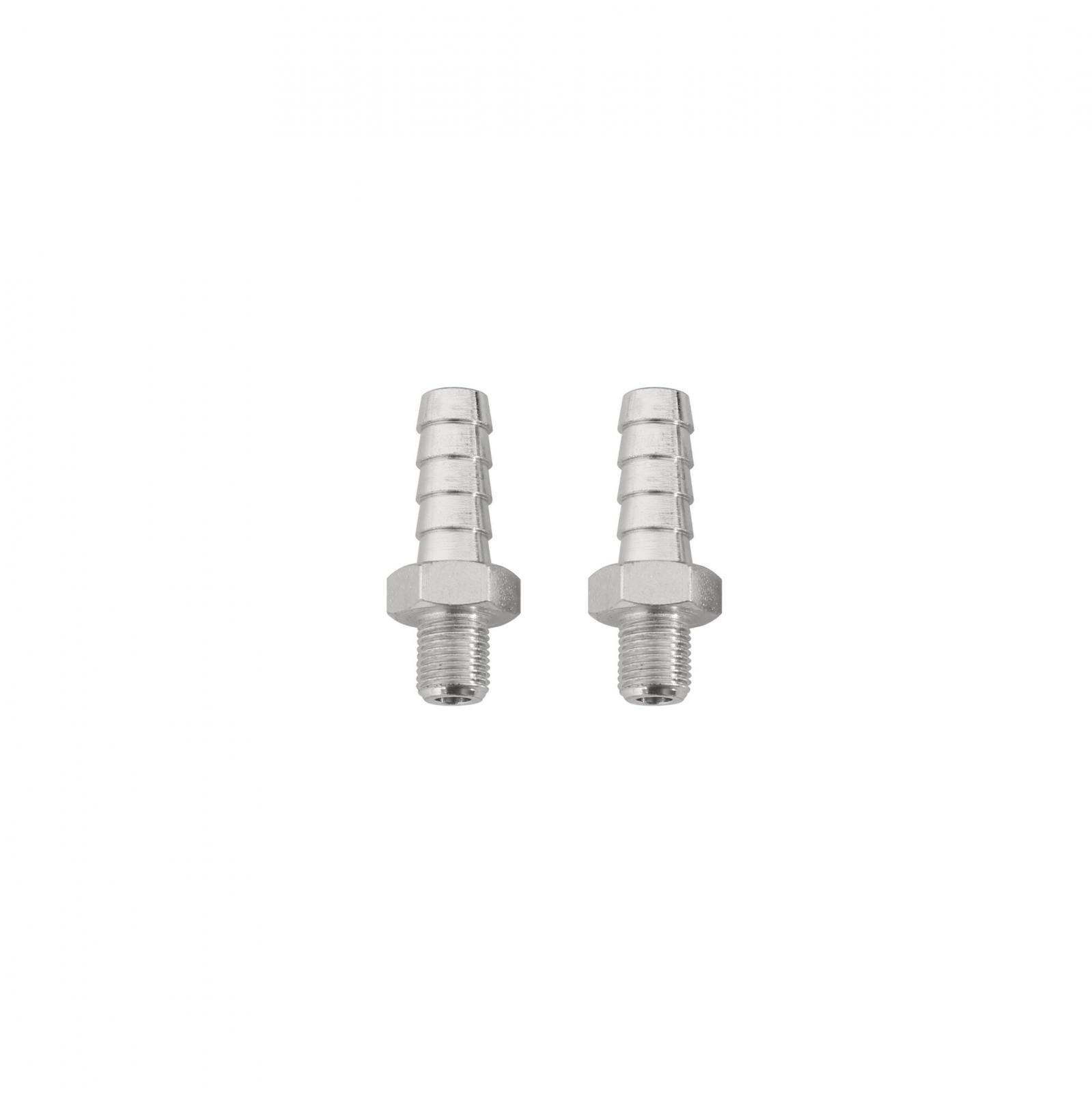

- Includes 10mm x 1.0 gasket sealed 3/8 inch Outside diameter hose barbs. A/N adapters are available: -6 An, Part number 26-160.
- -8 An, Part number 26-180
Details:
- Application: Universal
- Bracket Color: Black
- Coast Guard Approved: Yes
- Forced Induction HP at 43PSI: 600.0
- Fuel Type: Gasoline
- Fuel Delivery Type: Carburetor | Fuel Injection
- Fuel Sending Unit Included: No
- Fuel System: Carbureted | EFI

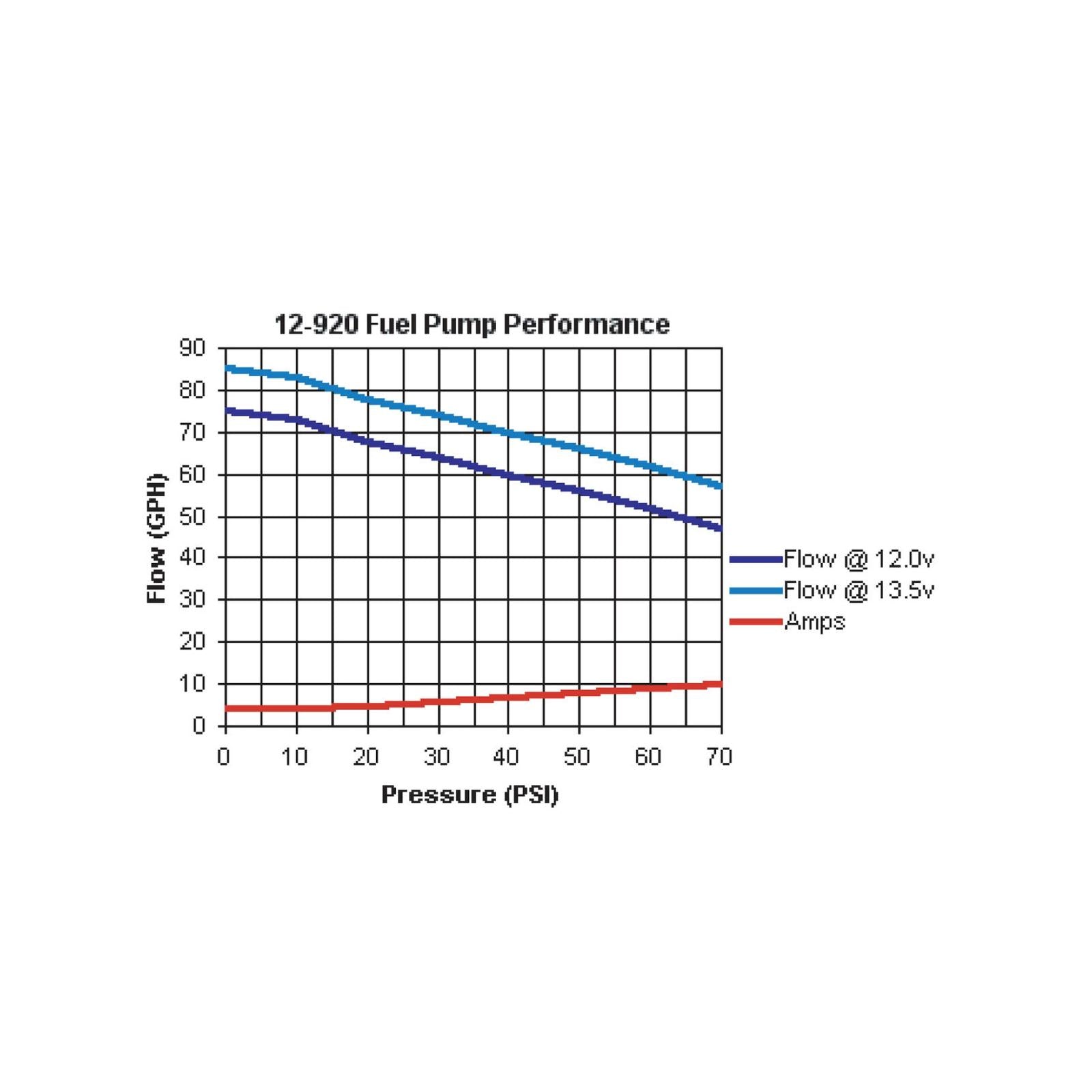

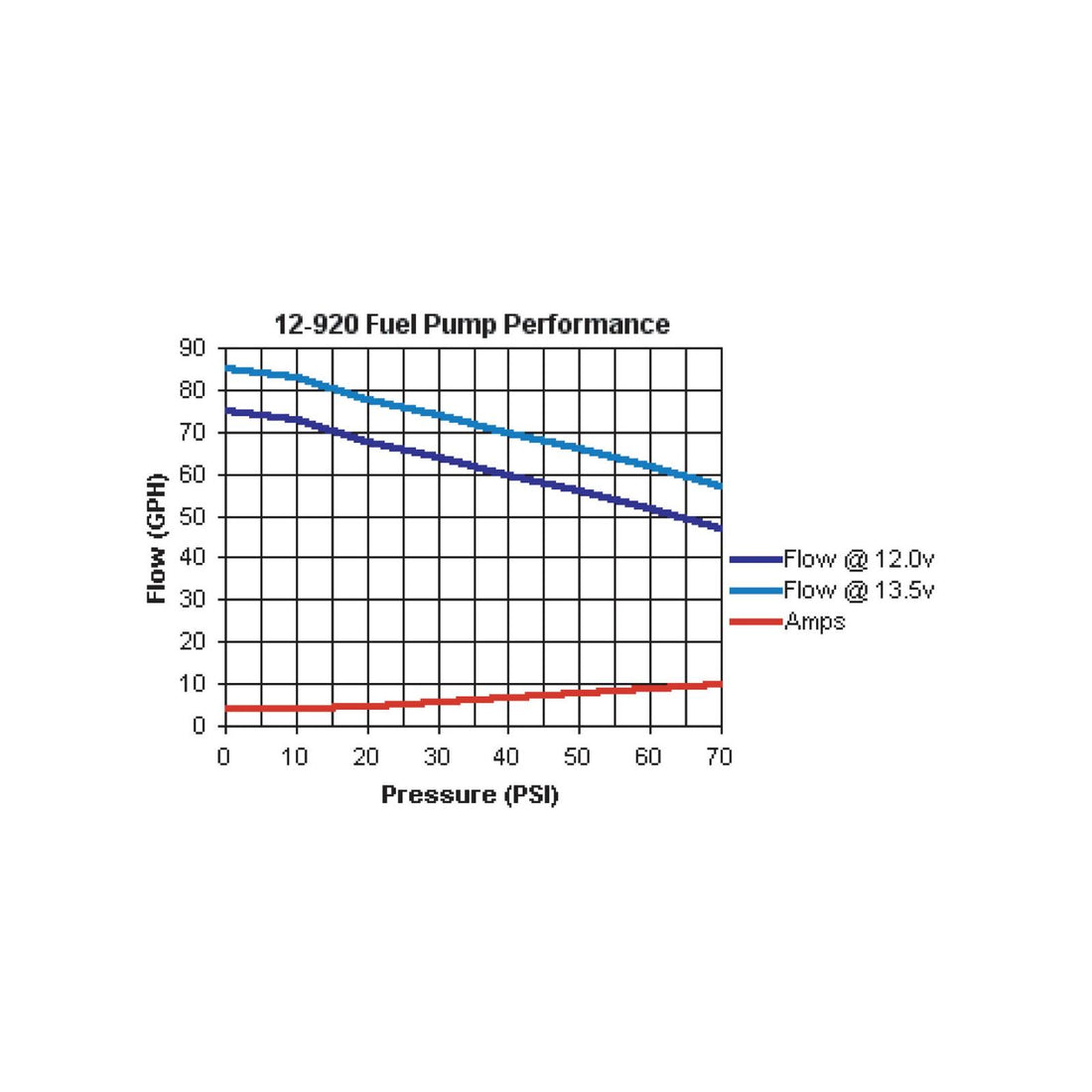

- GPH at 15PSI: 80.0
- GPH at 43PSI: 67.0
- GPH at 60PSI: 62.0
- GPH at 8PSI: 85.0
- Gasket Or Seal Included: No
- Grade Type: Performance
- Inlet Fitting Thread Size: 10x1.0 Millimeter
- Inlet Size: 10mm x 1.0
- Internal Or External: External
- LPH at 15PSI: 302.0
- LPH at 43PSI: 254
- LPH at 60PSI: 235
- LPH at 8PSI: 322.0
- Material: Steel
- Maximum Flow Rating: 85 U.S. Gallons per hour
- Maximum Pressure: 60 Pounds per Square Inch
- Mounting Hardware Included: Yes
- Naturally Aspirated HP at 15PSI: 800.0
- Naturally Aspirated HP at 43PSI: 700.0
- Naturally Aspirated HP at 8PSI: 850.0
- Negative Ground: Yes
- Outlet Fitting Thread Size: 10x1.0 Millimeter
- Outlet Quantity: 1
- Outlet Size: 10mm x 1.0
- Pump Body Color: Silver
- Regulator Included: No
- Strainer Included: No
- Universal Or Specific Fit: Universal
- Voltage: 12 Volts DC
- Warranty: Manufacturer's Limited 90 Day Warranty
- Wire Quantity: 2.0
- Wiring Harness Included: No
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
