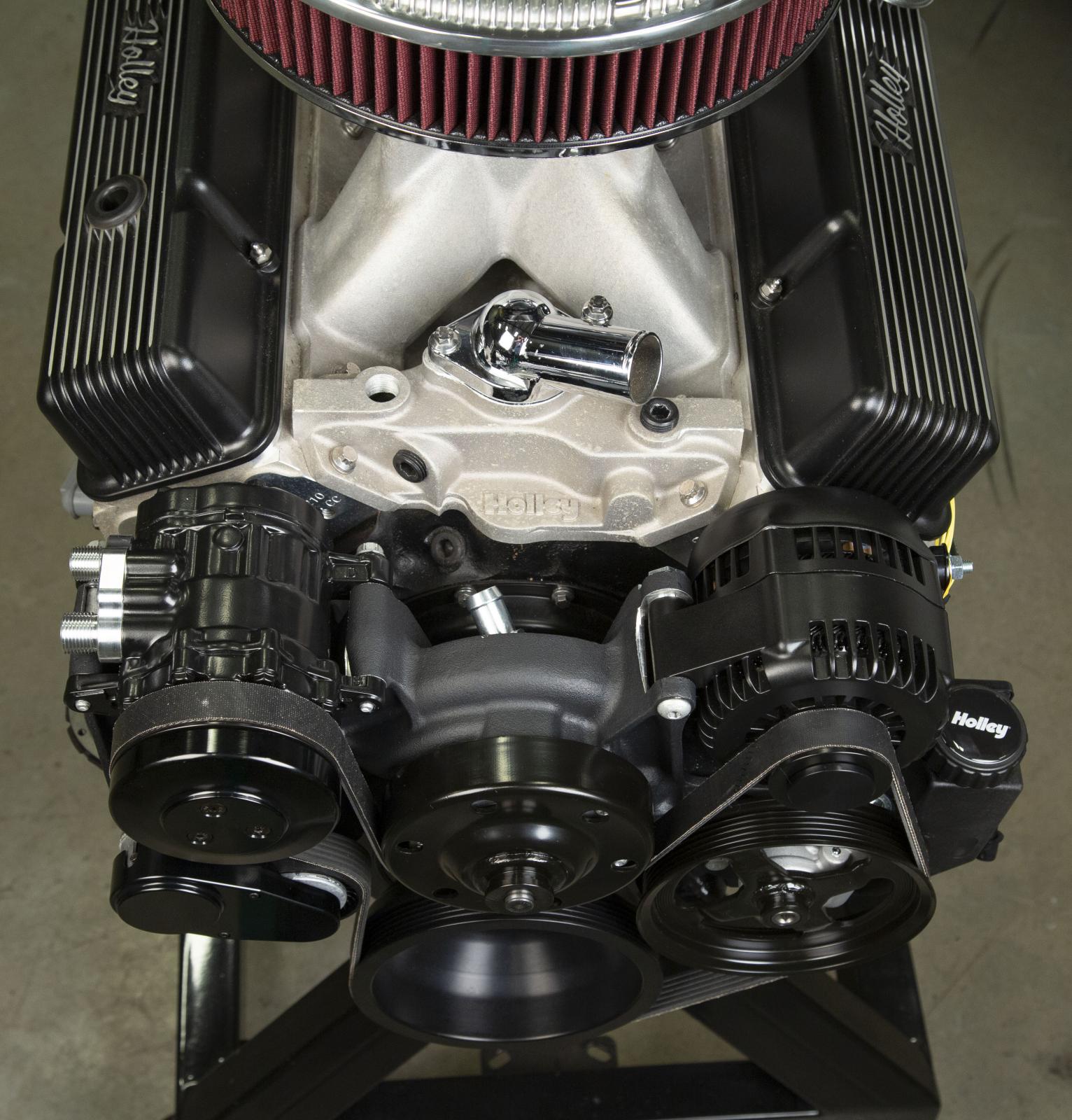

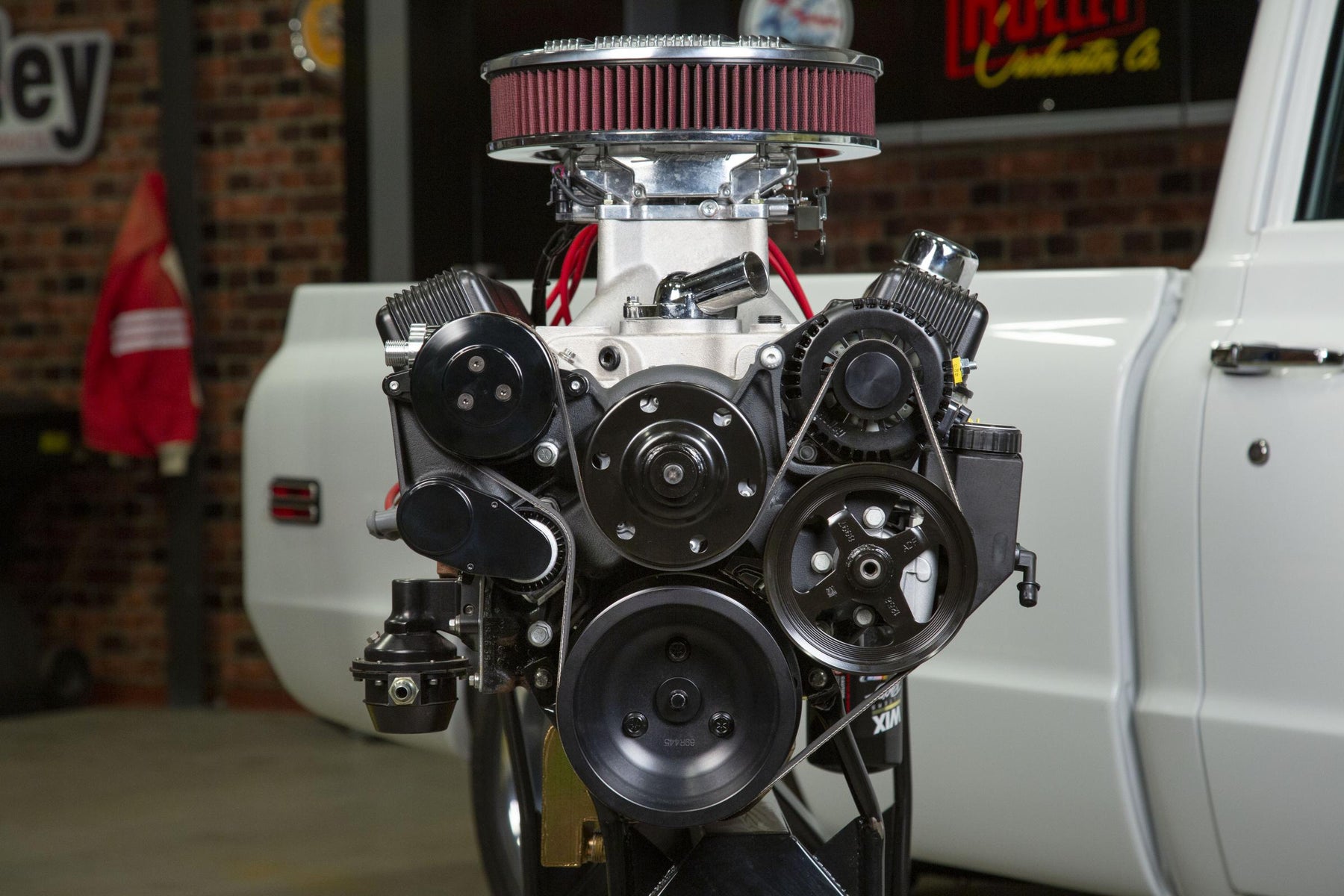

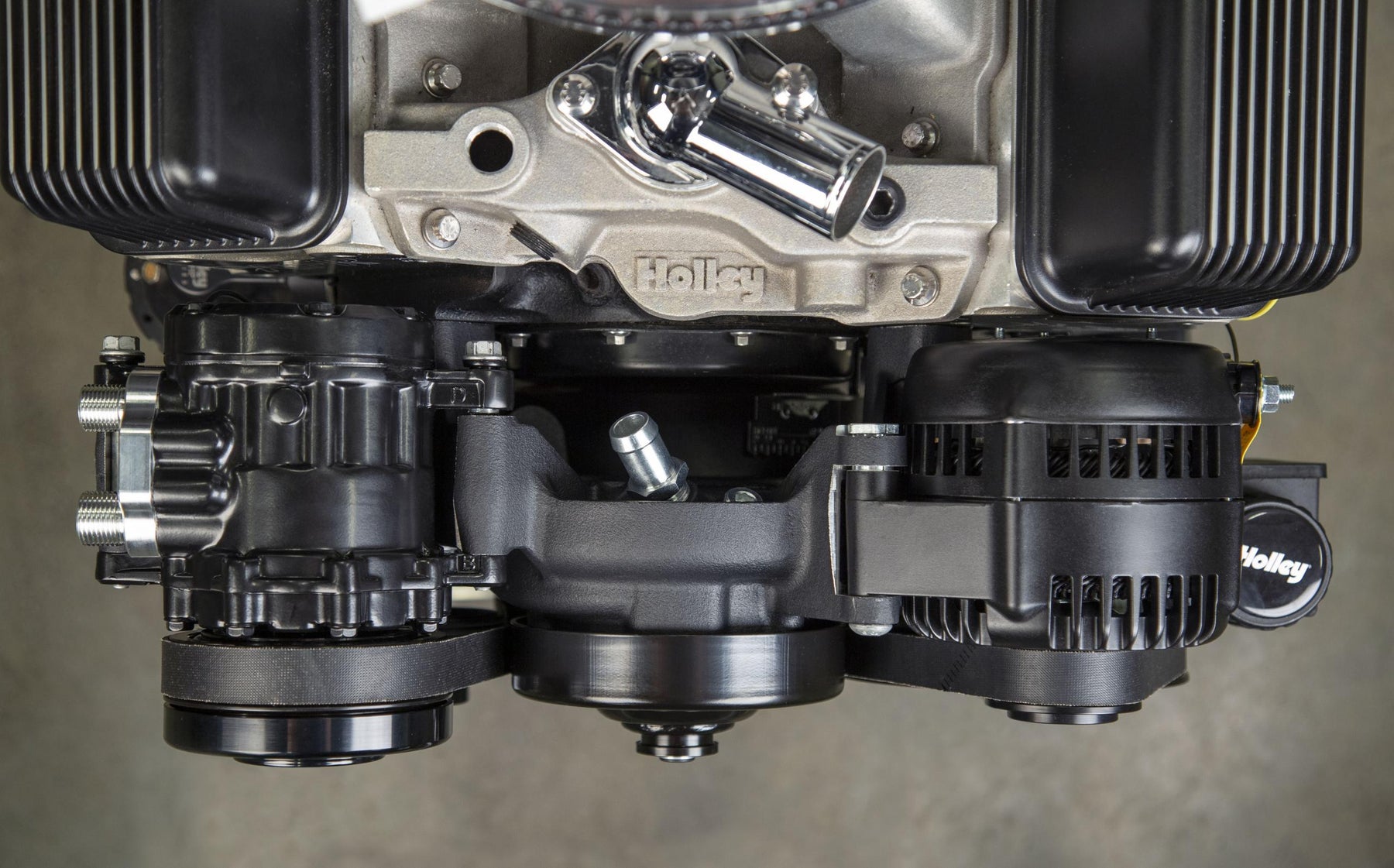

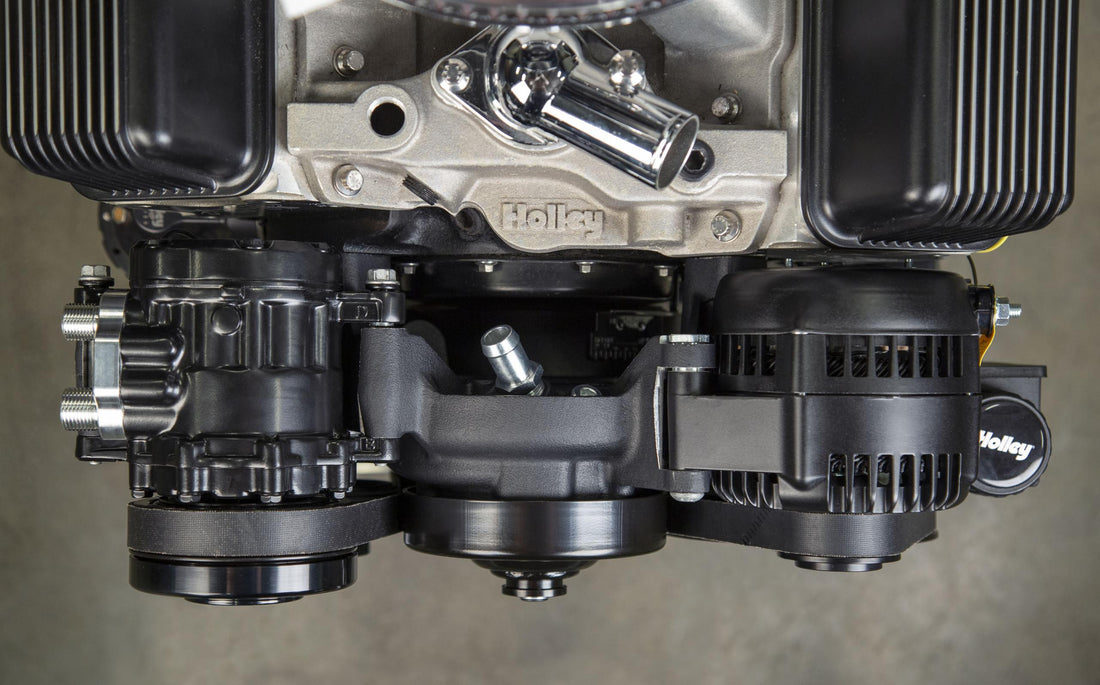

Holley 20-240BK Small Block Chevy Mid Mount Complete Accessory System Small Block Chevy Mid Mount Complete Accessory System

Holley's Mid-Mount accessory drives are now available for your small block Chevrolet engines. The revolutionary system does what no other accessory bracket system has done...

It Gets Rid Of The Brackets! The Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives.

At the heart of the system is a bracketless design, where the accessories bolt directly to the water pump for a clean, integrated form. The design offers superb engine visibility to show off your horsepower, not your accessories.

The Holley designed alternator is just as innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette.

The water pump also shares its design efficiencies with that of the C7 Corvette. The compact and reliable SD7 A/C compressor and Type II P/S pump with baffled reservoir are also integrated.

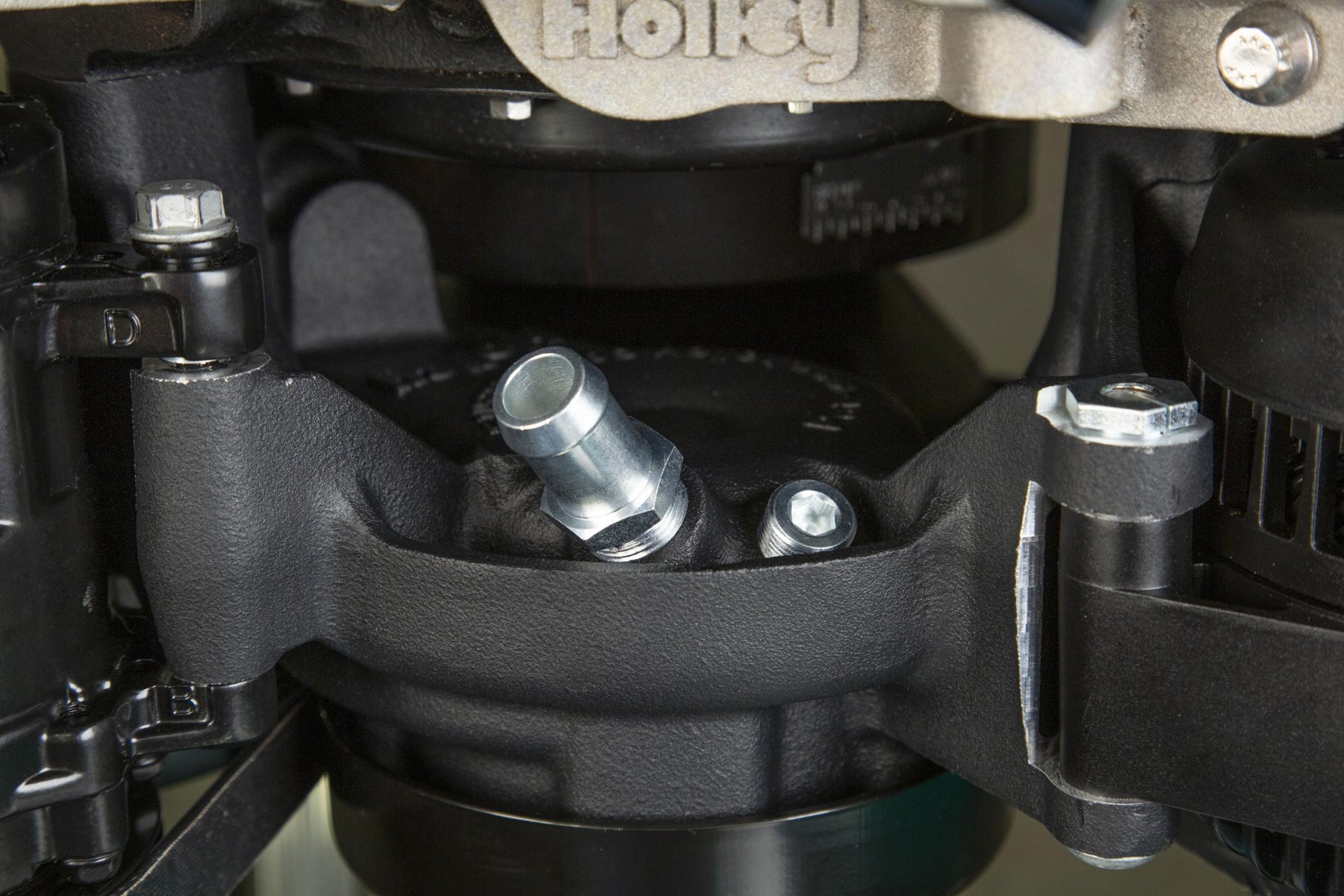

The water pump design incorporates optional side or top heater ports. The top thermostat bypass and heater ports are recessed into the manifold, so if you don't need them, you don't see them.

When we say complete, we mean complete. The Mid-mount system comes with everything you need.

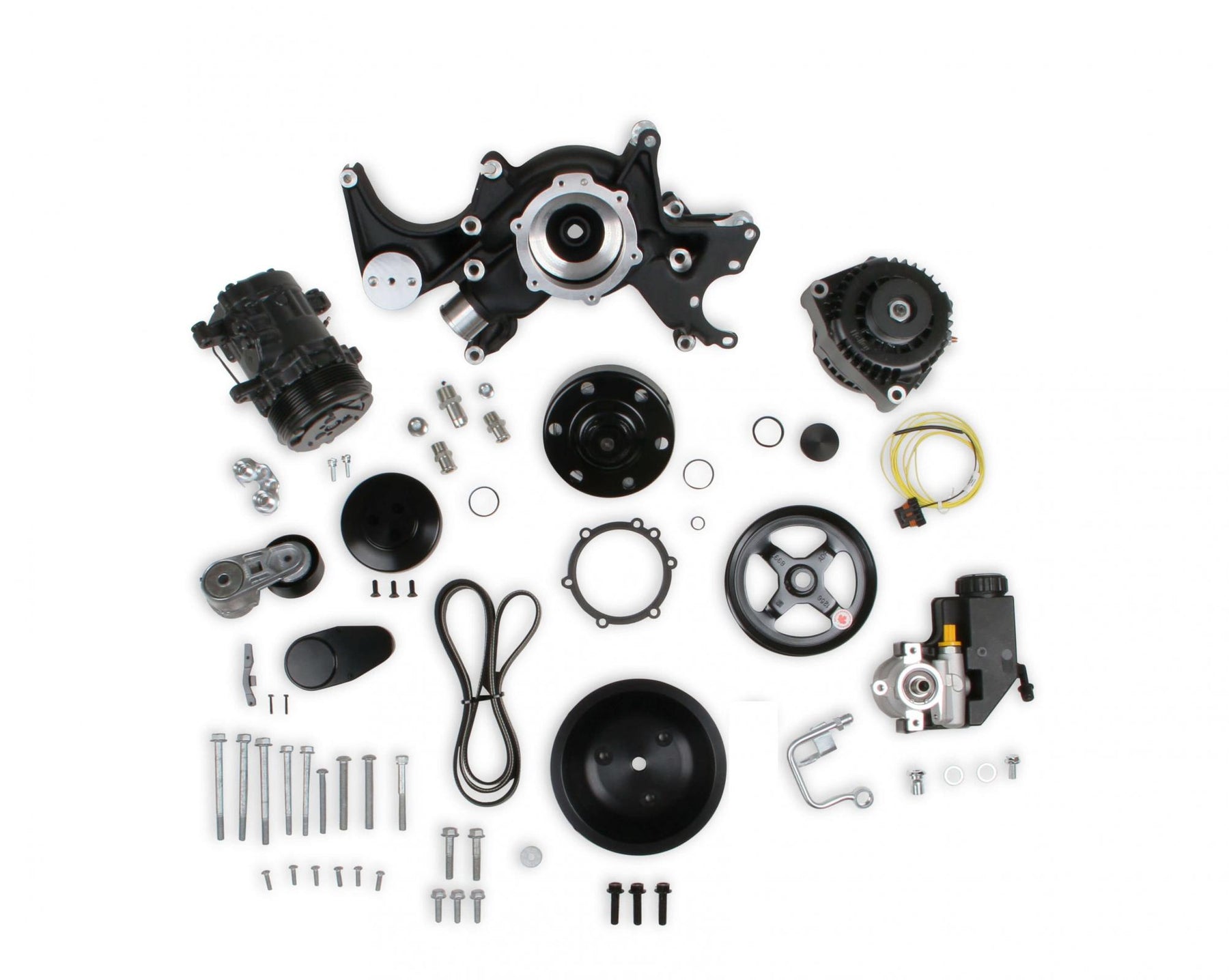

All accessories are included; the water pump, A/C compressor, alternator, and P/S pump with reservoir. All pulleys and the belt are supplied.

Even A/C line adapter, heater hose adapters, power steering to -6 An hardline, and the alternator plug/harness are included. Easy assembly was a priority during the entire development of this accessory solution.

Color graphical instructions walk you through every step of the ultra-easy installation. Patent -

Features and Benefits:

• The Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives Bracketless accessory mounting with ultra-easy assembly O-ring seal to engine Hidden thermostat bypass and heater hose ports with NPT line adapters included LT1 style premium alternator LT1 style water pump design Compact SD7 A/C compressor with line adapter included Type II power steering pump with baffled reservoir P/S adapter hardline to An -6 adapter included OE pulley ratios for optimal accessory performance Available in natural and black finishes Billet alternator, tensioner, and compressor pulley covers

Associated Comments:

• The power steering pump included can be used Hydroboost systems. Please refer to the flow specs on part number 198-101

Details:

• A/C Compressor Included: Yes
• A/C Compressor Type: SD7
• Accessory Drive Style: Mid-Mount
• Alternator Amperage: 150
• Alternator Included: Yes
• Application: Chevrolet Small Block
• Belt Included: Yes
• Damper Included: No
• Damper Style: Factory
• Engine: Chevrolet Small Block Gen I
• Finish: Black
• Inlet Inside Diameter: 35.4mm / 1.4 Inch
• Inlet Outside Diameter: 48mm / 1.9 Inch
• Inlet Size: 35.4mm/1.4 Inch
• Material: Cast Aluminum
• Output: 150 Amps
• Power Steering Hardline Included: Yes
• Power Steering Pulley Included: Yes
• Power Steering Pump Included: Yes
• Power Steering Reservoir Included: Yes
• Pulley Style: Serpentine
• Tensioner Included: Yes
• Thermostat Included: No
• Warranty: Manufacturer's Limited 90 Day Warranty
• Water Neck Included: Yes
• Water Pump Included: Yes
• Water Pump Pulley Included: Yes

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube
