Holley 241-172 2-Piece Vintage Series Valve Cover Gen III/iv LS Satin Black Machined Chevrolet Gen III/iv LS Cast Aluminum

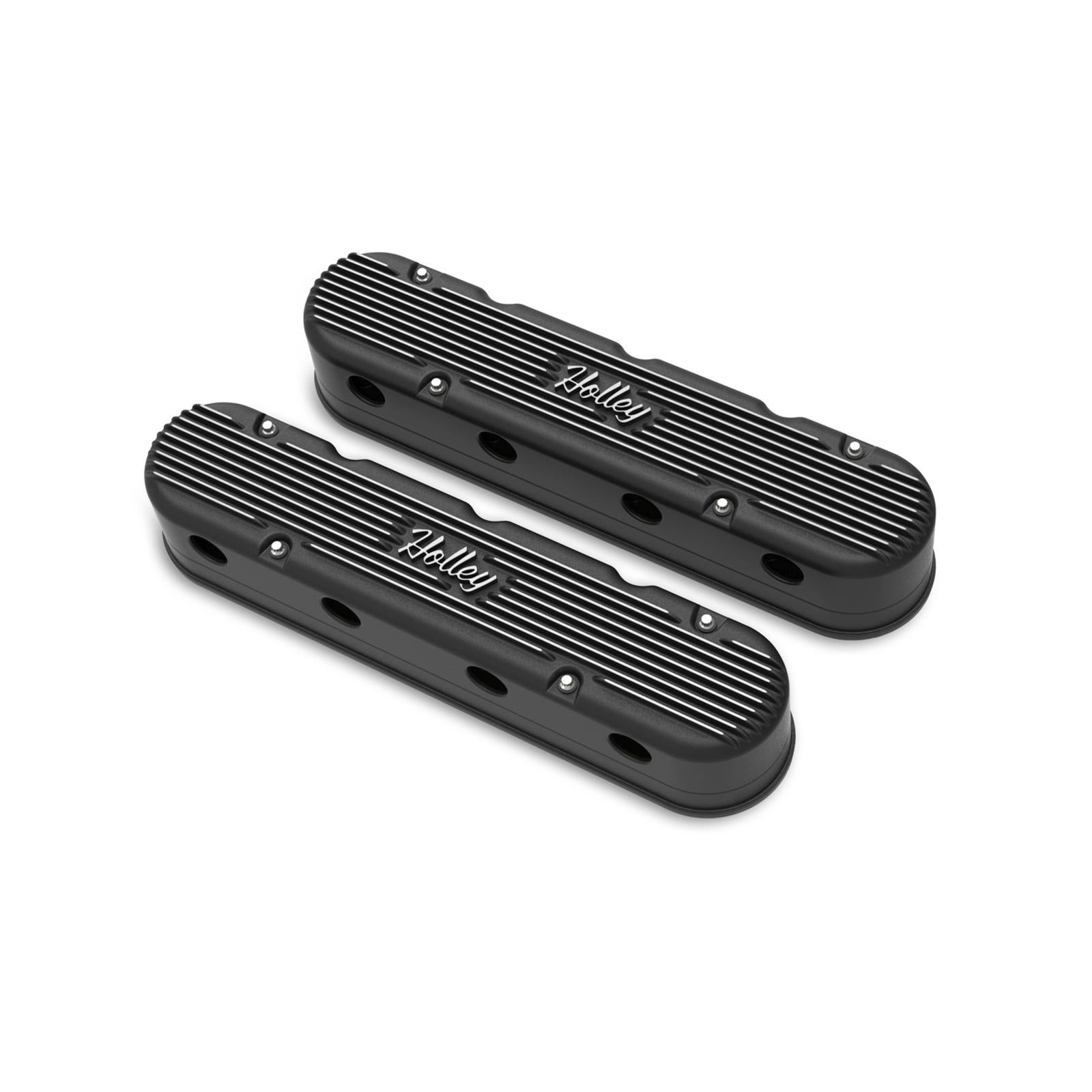

Holley's new 2-Piece LS valve covers are a great way to update the look of your LS engine without the use of complicated adapter systems or the hassle of remote coil relocation. These modular LS valve covers feature an OE height, internally baffled LS valve cover base with integrated coil mounts for popular Gen I and Gen V style LS coil bodies (coils not included), and a vintage finned overcover that hides the unsightly LS coils and messy wiring harness - allowing the full performance benefits of coil-on-cover ignition setups without the robotic styling.

Each modular coil cover features our Vintage Series style fins with a script Holley logo that seamlessly blends with other finned Holley dress-up accessories such as our LS valley covers and 14 inch round air cleaners. The coil cover also features cast-in provisions for the spark plug boots and coil wiring harness so no extensions or custom wiring is required.

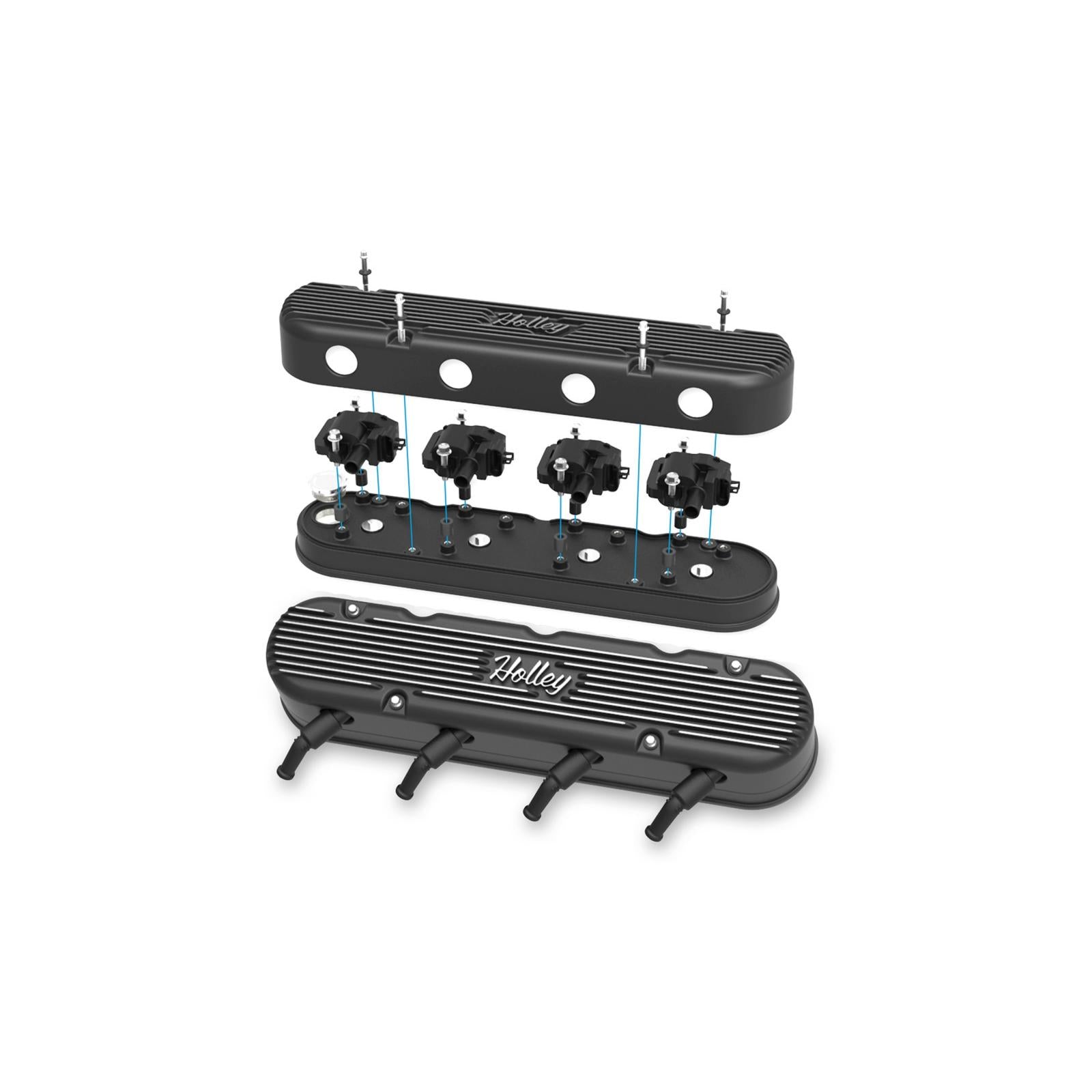

Each 2-Piece LS valve cover set includes a low-profile billet oil fill cap, hardware and spacers for mounting both versions of LS coil bodies, and 12-point dress up hardware and grommets for the coil covers. These modular LS valve covers are available in 5 unique finishes: natural cast, polished, satin black, factory orange, and gloss red (black, factory orange and gloss red sets feature machined fins and logo details).

Features and Benefits:

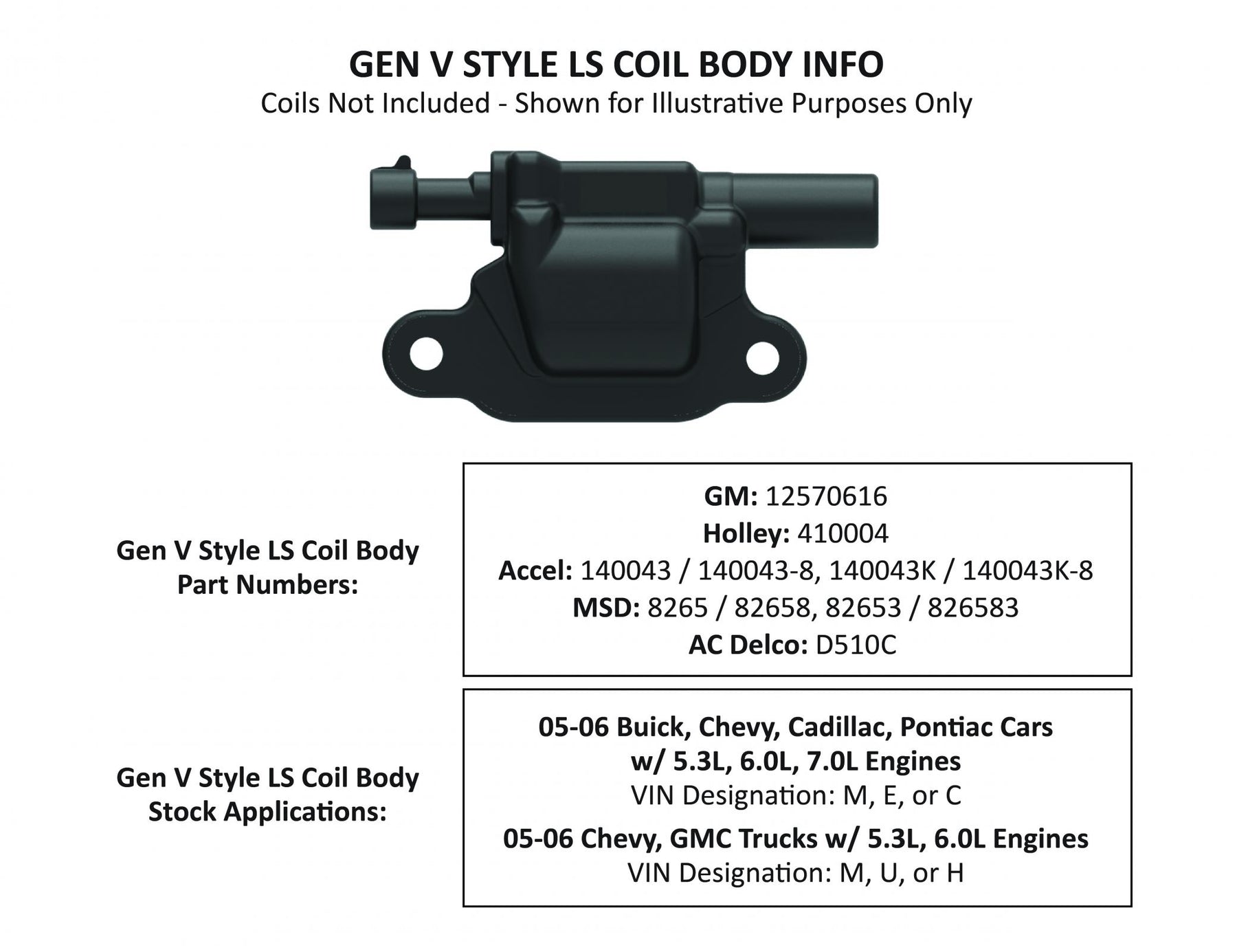

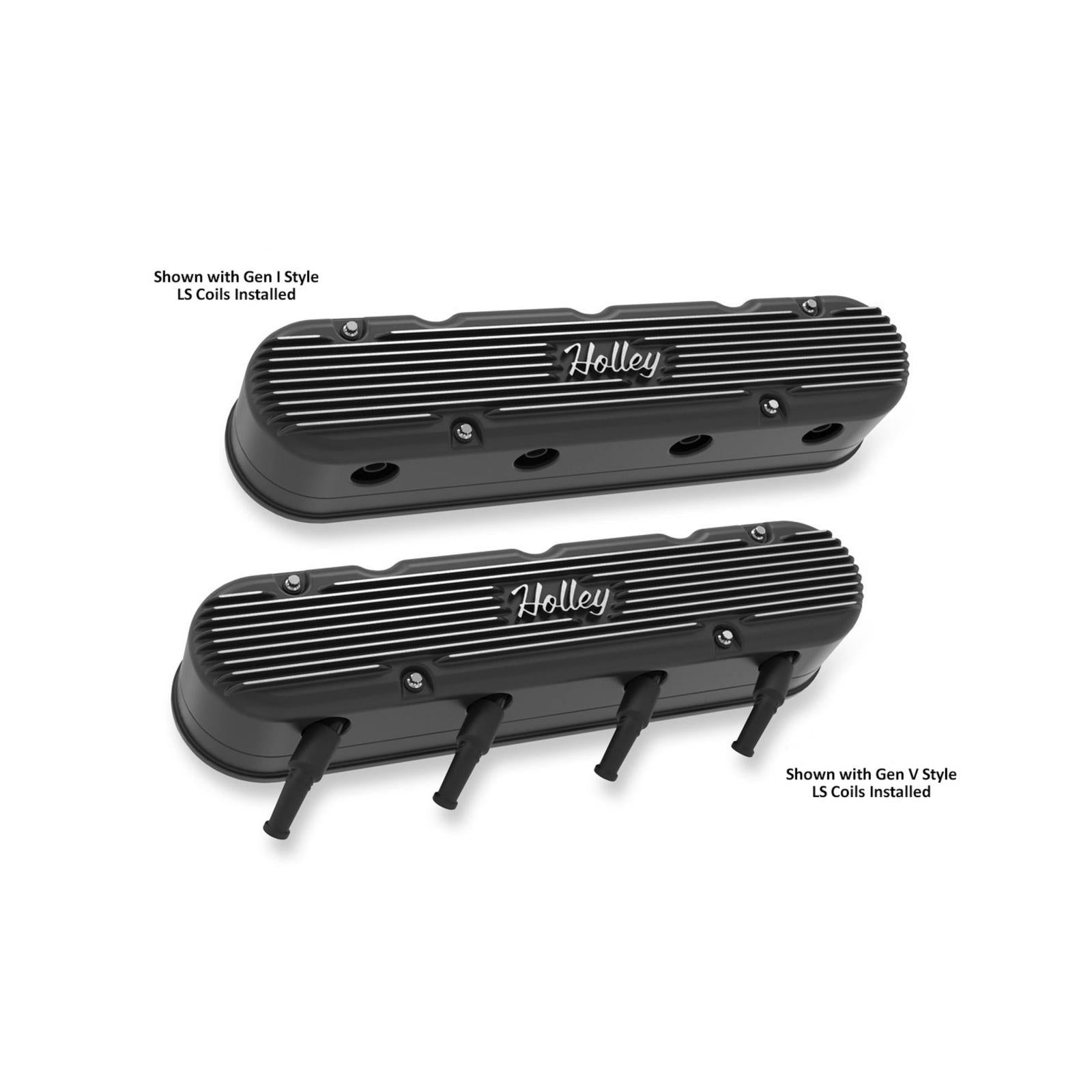

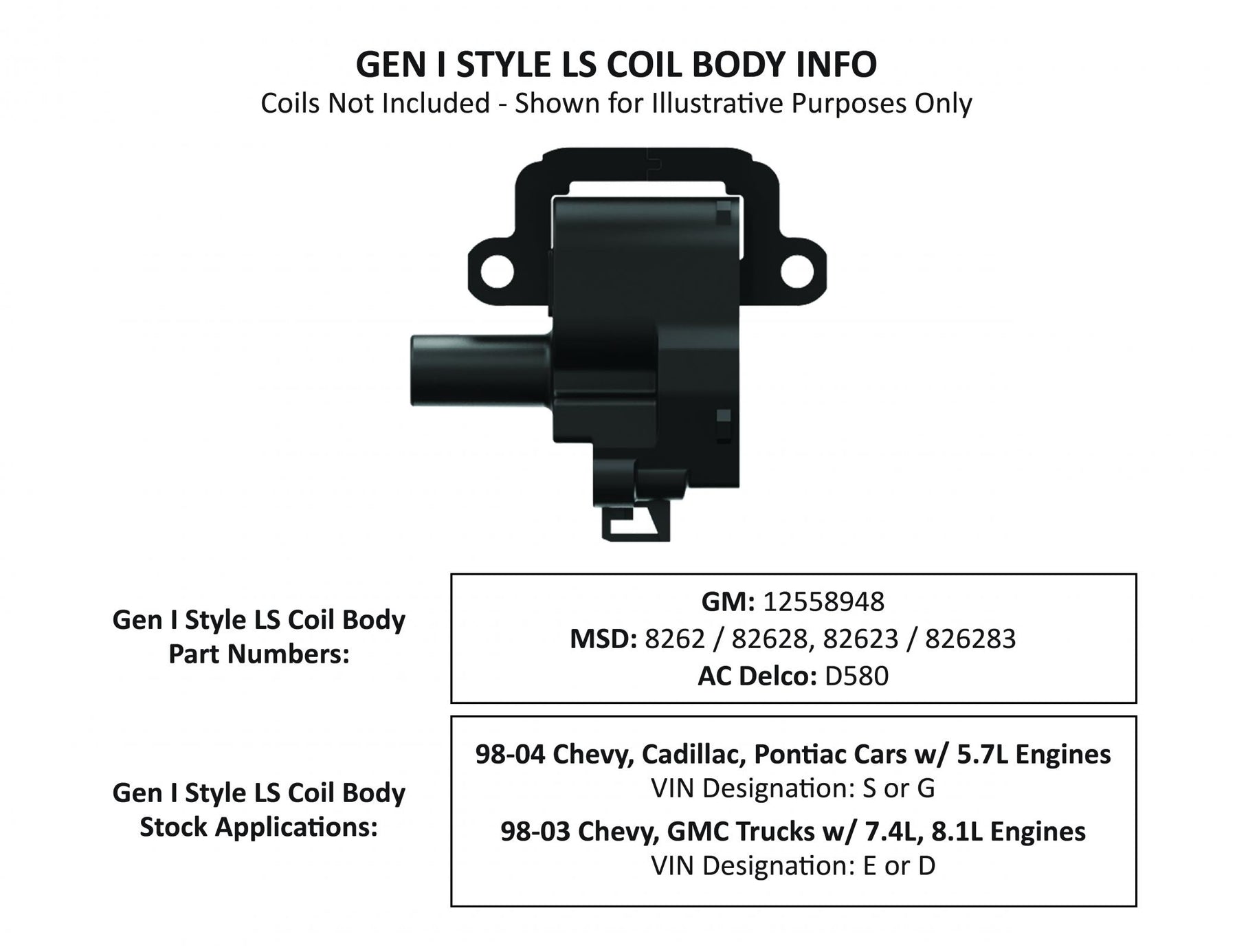

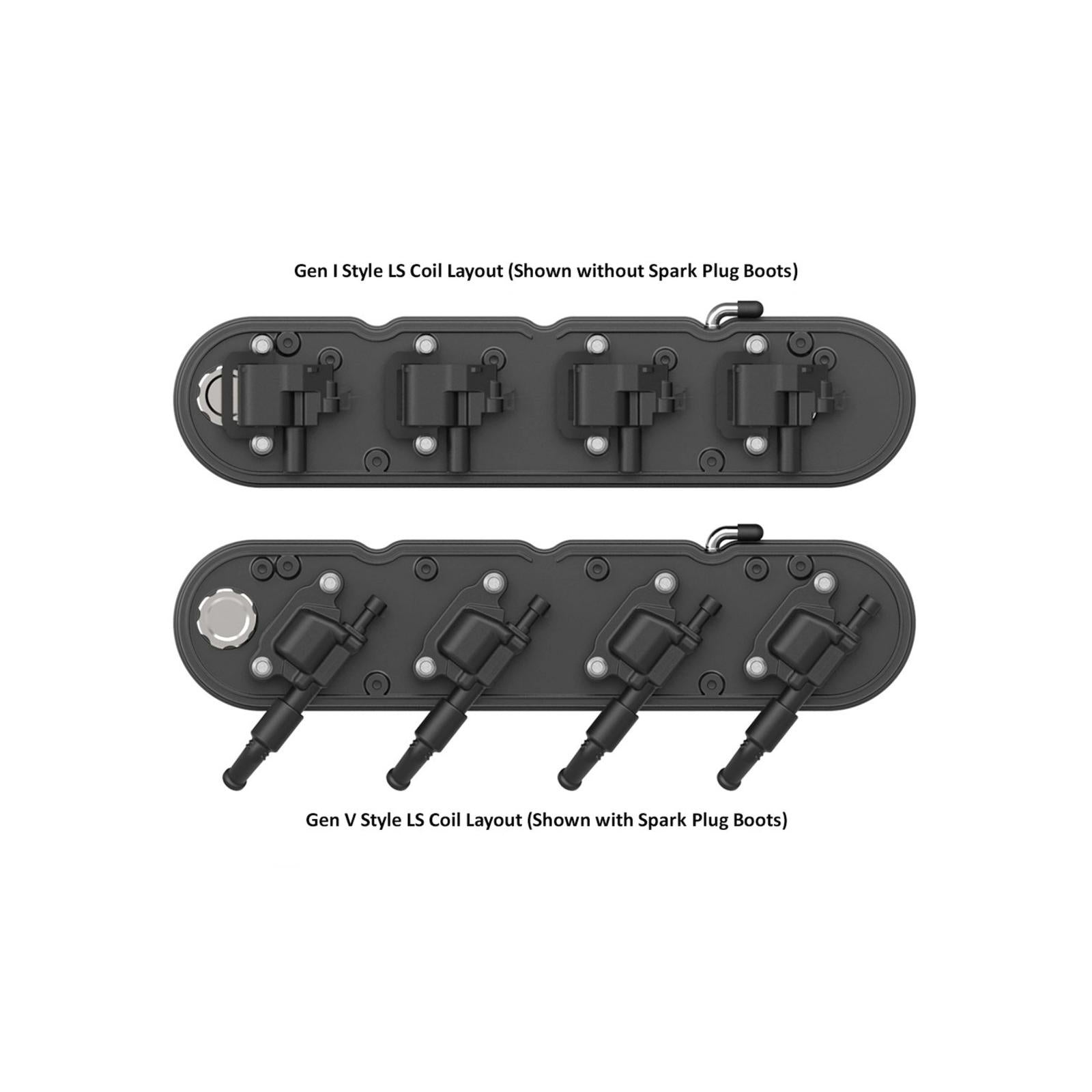

• Cast aluminum 2-Piece LS valve covers designed to mount and hide both Gen I and Gen V style LS coil bodies Retain the performance of factory coil-on-cover ignition without the unsightly styling Base fits LS1, LS2, LS3, LS6 and LS7 engines Clearance for .750 inch lift cam with stock style rocker arms Base features internally baffled ventilation system Coil cover features Holley Vintage Series style fins & script logo with cast-in wiring provisions No coil relocation, wire harness extensions, or custom spark plug wires required Includes low-profile billet oil fill cap Includes all necessary coil mounting and dress-up hardware

Associated Comments:

• The OE Camaro and Corvette accessory brackets may need to be clearanced when installing Holley 2-Piece LS and Tall LS valve covers and coils.

Details:

• Application: GM LS Engines
• Baffle Included: Yes
• Bolt Pattern: Center Bolt
• Breather Cap Included: No
• Breather(s) Included: No
• Coil Mounting Studs: Yes, on Baseplate
• Coil Options: with Coil Stands
• Color: Satin Black Machined
• Construction: Die Cast Aluminum
• Design Type: 2-Piece LS
• Features: Finned
• Finish: Satin Black Machined
• Gasket Included: No
• Gaskets Included: No
• Grade Type: Performance
• Grommets Included: No

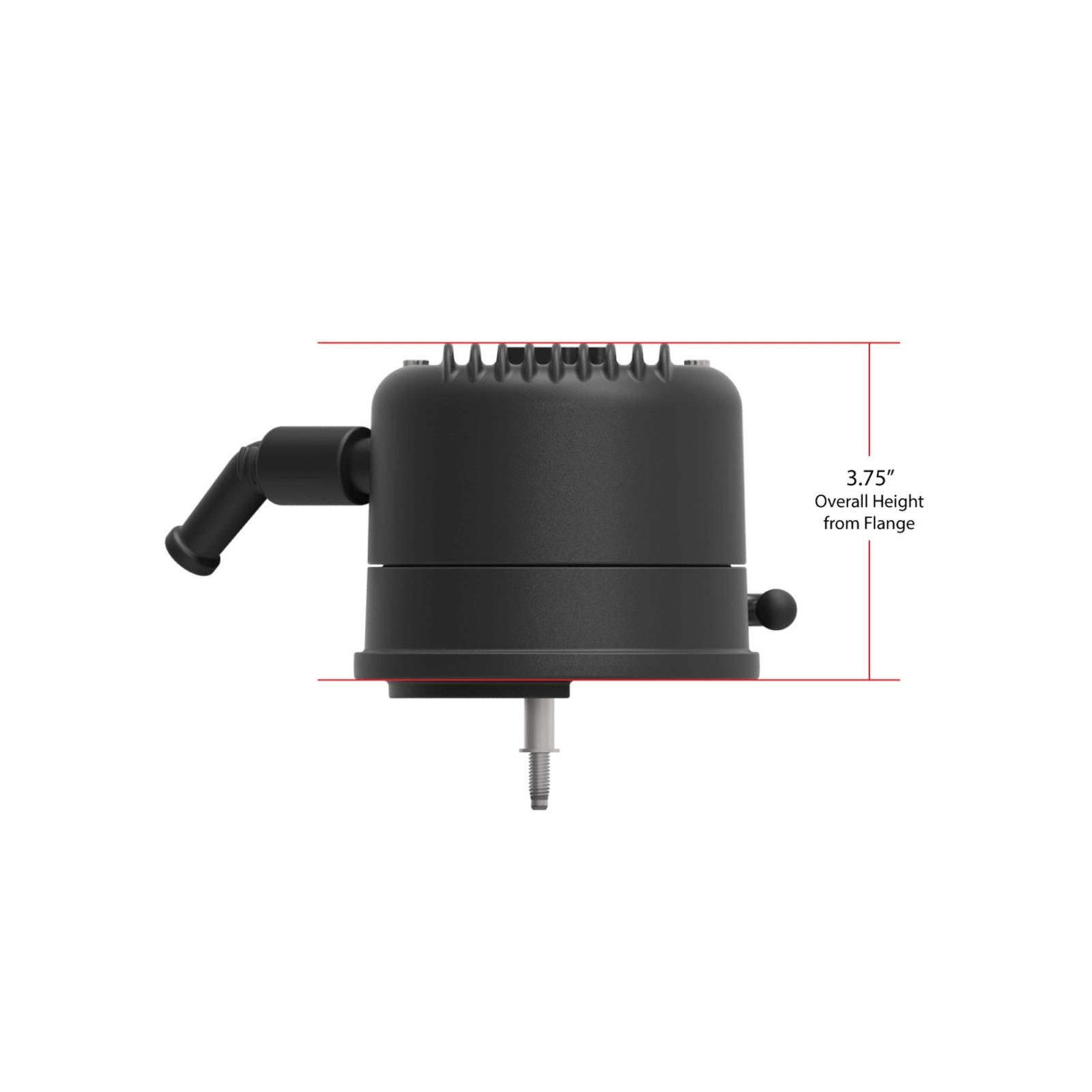

• Height: 3.75 Inch
• Hold Down Tabs Included: No
• Logo: Holley Script
• Material: Cast Aluminum
• Mounting Hardware Included: Yes
• Oil Fill: Yes
• Oil Fill Cap Included: Yes
• Oil Filler Cap Included: Yes
• Overall Height: 3.75 Inch
• Quantity: Pair
• Style: Holley Vintage Series
• Type of Component: Valve Cover
• Valve Cover Gasket Included: No
• Valvetrain Clearance: .750 Inch lift cam with stock style rocker arms
• Warranty: Manufacturer's Limited 90 Day Warranty

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube
