ICON Vehicle Dynamics 158505 Leaf Spring

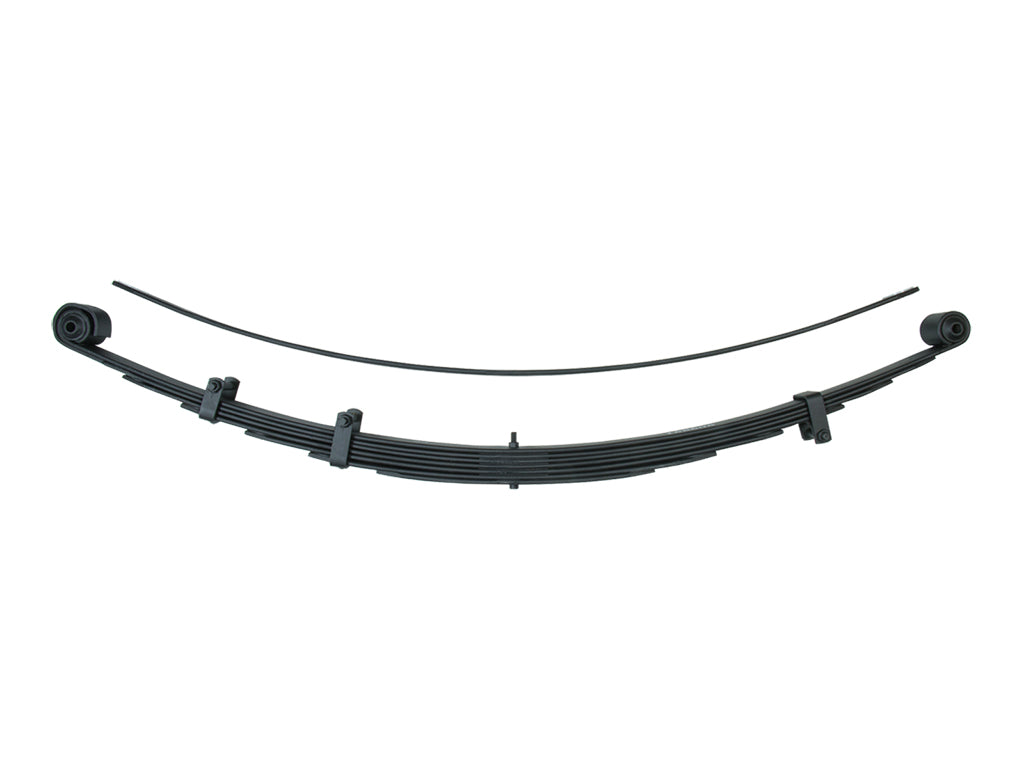

This ICON user-adjustable multi-rate leaf pack features tip inserts and leaf separators to reduce friction and increase ride comfort, while a military wrapped front eyelet improves durability and strength.

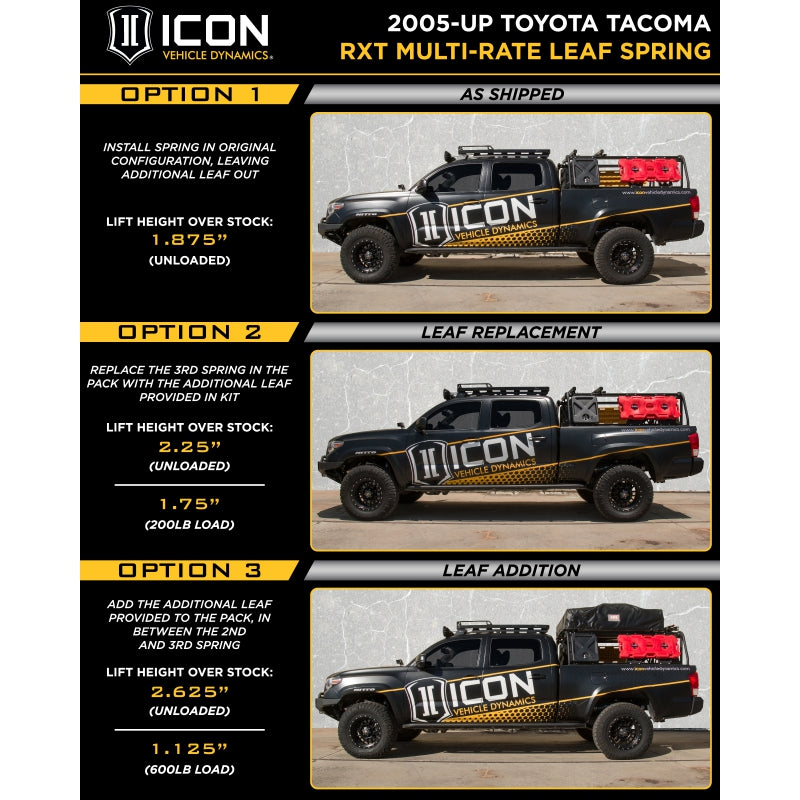

To take advantage of the additional travel that the RXT Rear Suspension System offers, ICON engineers had to scrap the OE leaf springs and develop a replacement that addressed issues found in the R&D process. The result is a user-adjustable multi-rate leaf pack that offers a major performance gain for almost every Tacoma setup imaginable. Features like tip inserts and leaf separators reduce friction and increase ride comfort, while a military wrapped front eyelet improves the durability and strength of the leaf spring. A slight reduction in spring rate increases ride quality while gaining additional droop travel. While many Tacoma owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires and parts or other additions. Understanding this, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack yielding an additional 10% or 20% spring rate that will handle more "outfitted" vehicles.
Features
- 3 user-adjustable spring rates for unique vehicle configurations
- Military wrap front eyelet for increased durability
- Galvanized leaf separators reduce friction and aid in corrosion resistance
- Leaf tip inserts reduce noise and increase ride comfort
- Includes additional leaf with 15% or 25% increase in spring rate for more laden "outfitted" vehicles
- Potential for increased wheel travel (when used with RXT shock) without sacrificing up-travel
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Direct bolt-in to OEM spring location makes for an easy install
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 52050 - TOYOTA REAR 8.0" U-BOLT KIT |
| Axle Modification Needed | No |
| Bushing Color | Black |
| Bushings Included | Yes |
| Axle Orientation | Rear |
| Maximum Lift | 2.625 IN |
| Leaf Quantity | 8 |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| California Prop 65 Warning | Yes |
| Color | Black |
| Helper Spring | No |
| U Bolts Included | No |
| Suspension Grade Type | Performance |
| Grade Type | Performance |
| Material | Steel |

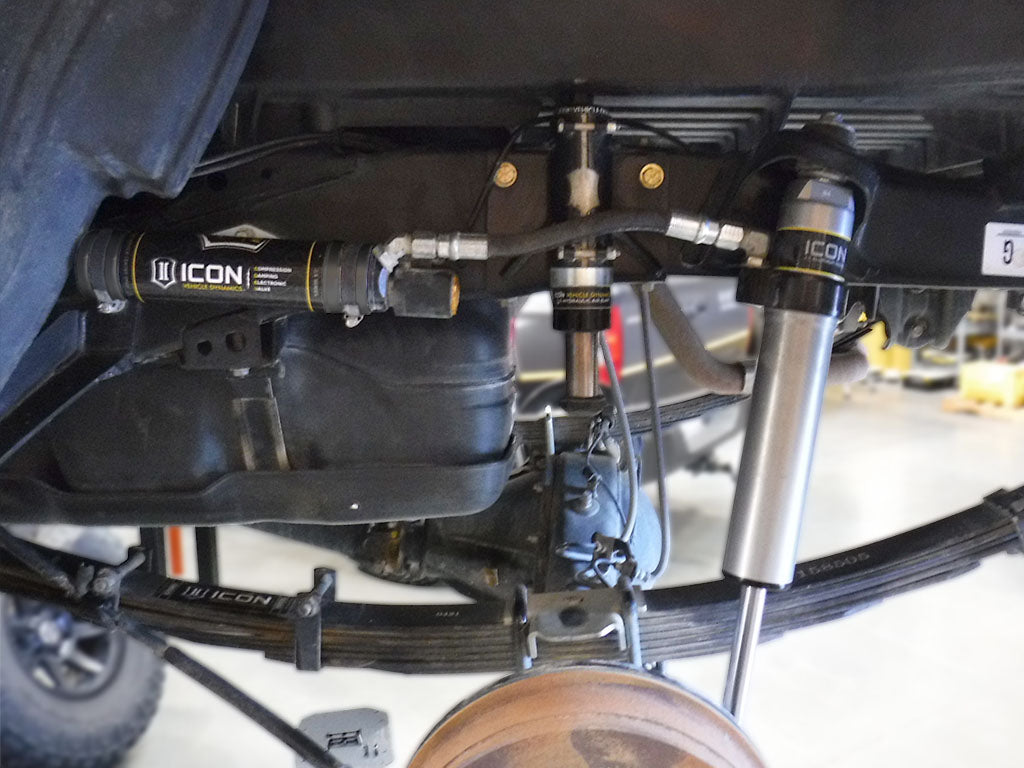

Note: TECH NOTE: For best results (and increased wheel travel), use in conjunction with ICON RXT rear shocks part numbers 57826P, 57826CP, or 59926P. TECH NOTE: These leaf springs are sold individually. A quantity of 2 are required per vehicle TECH NOTE: U-Bolt kit part # 52050 required for installation (sold separately)
Short Description: LEAF SPRING
Invoice Description: 158505
Installation Guide: Download PDF
Warranty: Lifetime
