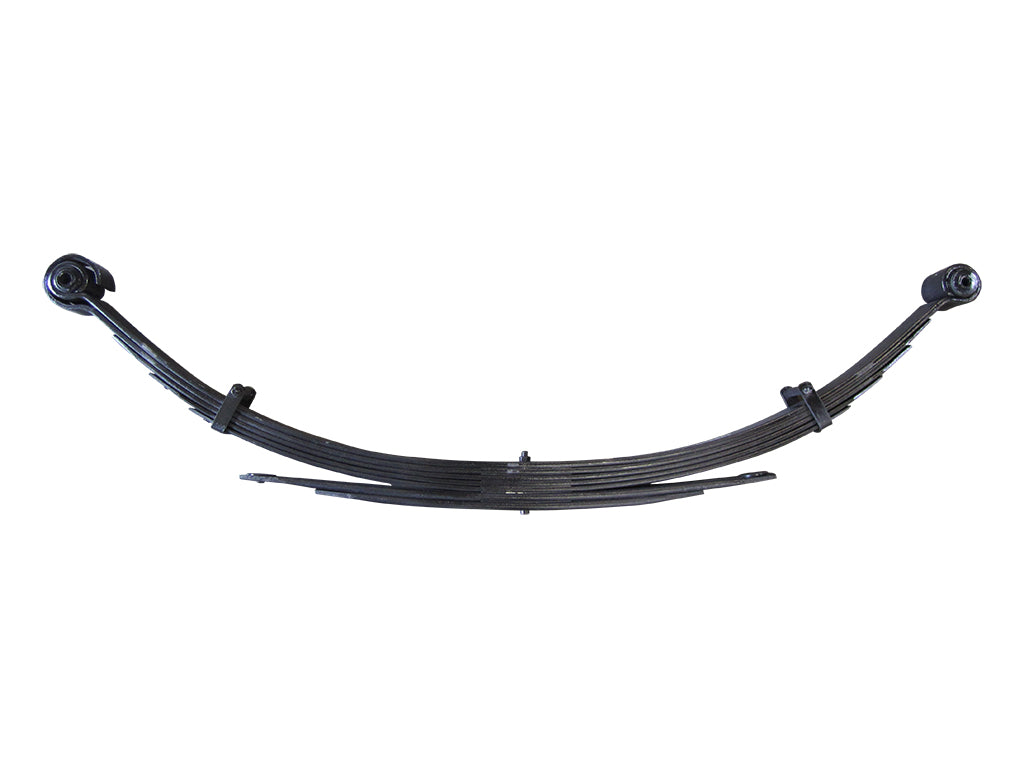

ICON Vehicle Dynamics 168506 - 17-25 FSD 5" REAR LEAF SPRING PACK
Product Availability Request
Fill the form and our team will contact you.
These 5" lift rear leaf springs for the 2017-2026 Ford F-250/F-350 Super Duty are progressively rated to improve the ride quality of your Ford Super Duty pickup, as well as increased performance.
These 5" lift rear leaf springs for the 2017-2026 Ford F-250/F-350 Super Duty are progressively rated to improve the ride quality of your Ford Super Duty pickup, as well as increased performance. The multi-leaf construction ensures a smooth ride with less chance of spring fatigue under load, minimizing sagging. The bottom leaves of the pack are flat to provide a secondary overload rate preventing harsh bottom outs and smooth transition through the suspension travel. ICON 2.0 Aluminum Series or 2.5 Aluminum Series Vehicle Specific tuned shocks recommended for best ride quality and performance on- or off-road.
Features
- Provides 5” of rear lift over stock when used with OE rear blocks
- ICON Limited Lifetime Warranty against sagging or breaking
- Reduced spring rate improves ride quality and suspension performance
- Moves overload transition point further away for better small bump compliance
- Overload leaves help maintain payload capacity
- Military wrap front eyelet for increased durability
- Replaceable bonded rubber bushings offer noise free operation and vibration isolation
- Galvanized leaf separators reduce friction and aid in corrosion resistance
- Leaf tip inserts reduce noise and increase ride comfort
- Direct bolt-in to OE spring location makes for an easy install
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Axle Orientation | Rear |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Grade Type | Performance |
| Leaf Quantity | 8 |
| Axle Modification Needed | No |
| Axle Spring Perches Included | No |
| Bushing Color | Black |
| Bushings Included | Yes |
| Color | Black |
| Finish | Painted |
| Helper Spring | yes |
| Add-On Part | 65501 - 11-25 FSD U-BOLT PLATE KIT |
| Add-On Part | 67003 - 11-25 FSD REAR 15" U-BOLT KIT |
| Add-On Part | 65505H - 17-25 5" LEAF SPRING HARDWARE KIT |
| Leaf Width | 3 IN |
| Long Travel Shackles Included | No |
| Material | Steel |
| Maximum Lift | 5 IN |
| Modification Required | No |
| Mounting Hardware Included | No |
| Spring Color | Black |
| Spring Material | Steel |
| Suspension Grade Type | Performance |
| U Bolts Included | No |
| U-Bolt Spring Plates Included | No |
Note: Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #301: These leaf springs are sold individually. A quantity of 2 are required per vehicle. APPLICATION NOTE #490: Each vehicle also requires U-bolt plate kit part number 65501, U-bolt kit part number 67003, and hardware kit part number 65505H
Short Description: LEAF SPRING
Invoice Description: 168506
Warranty: Lifetime
