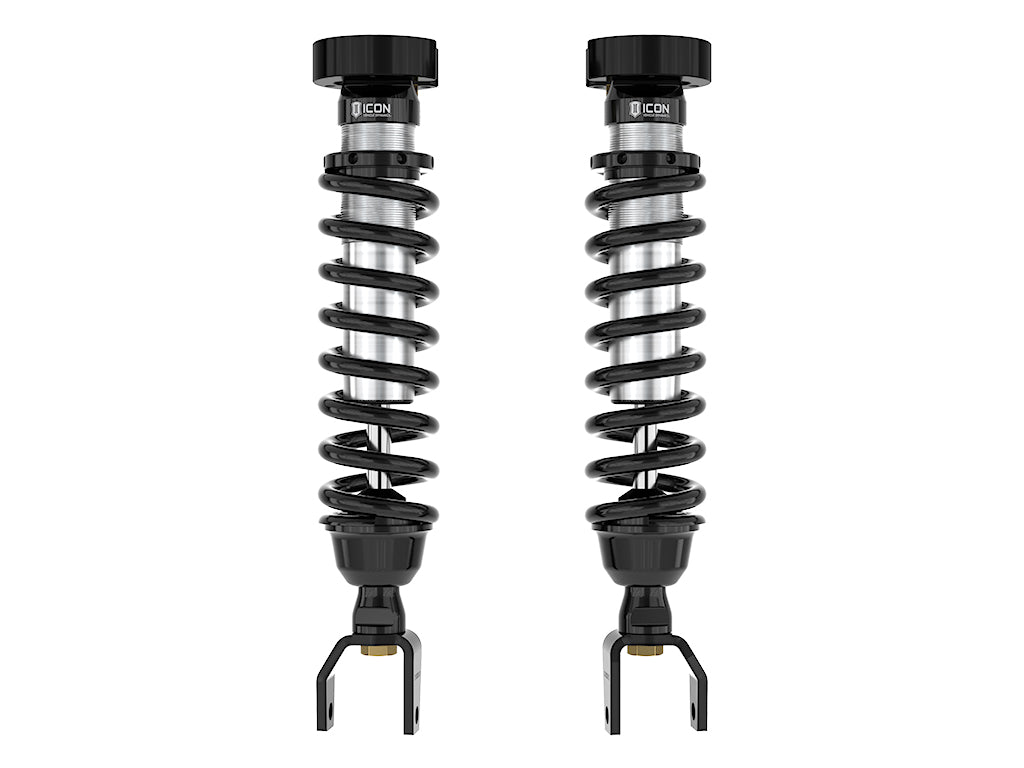

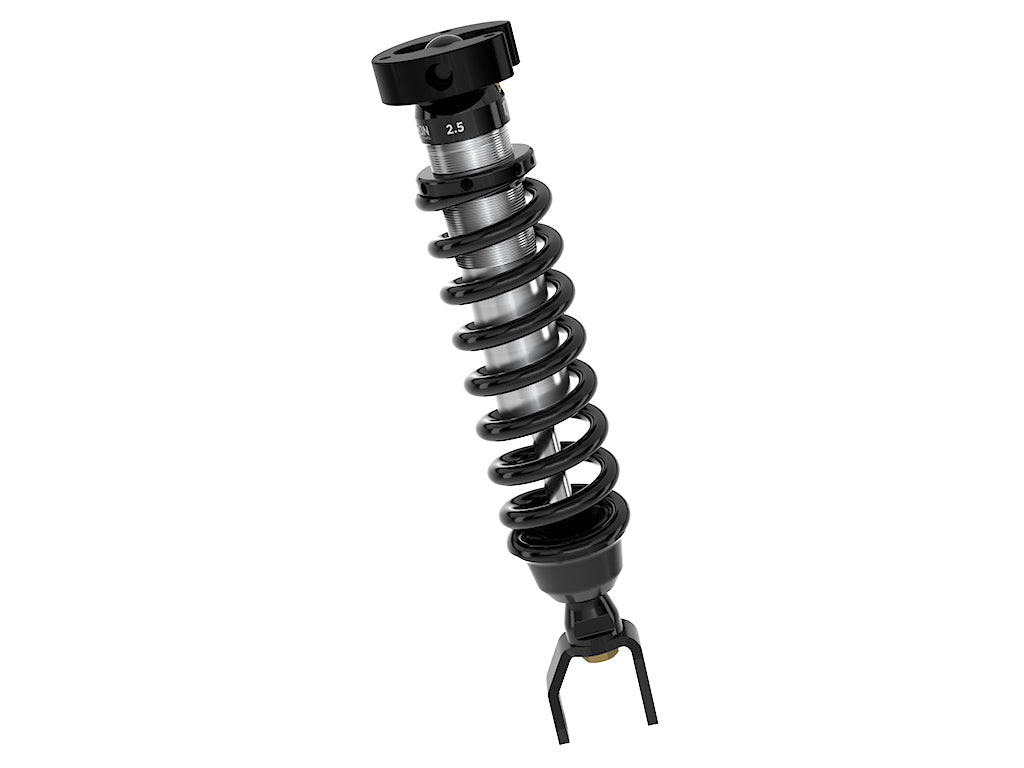

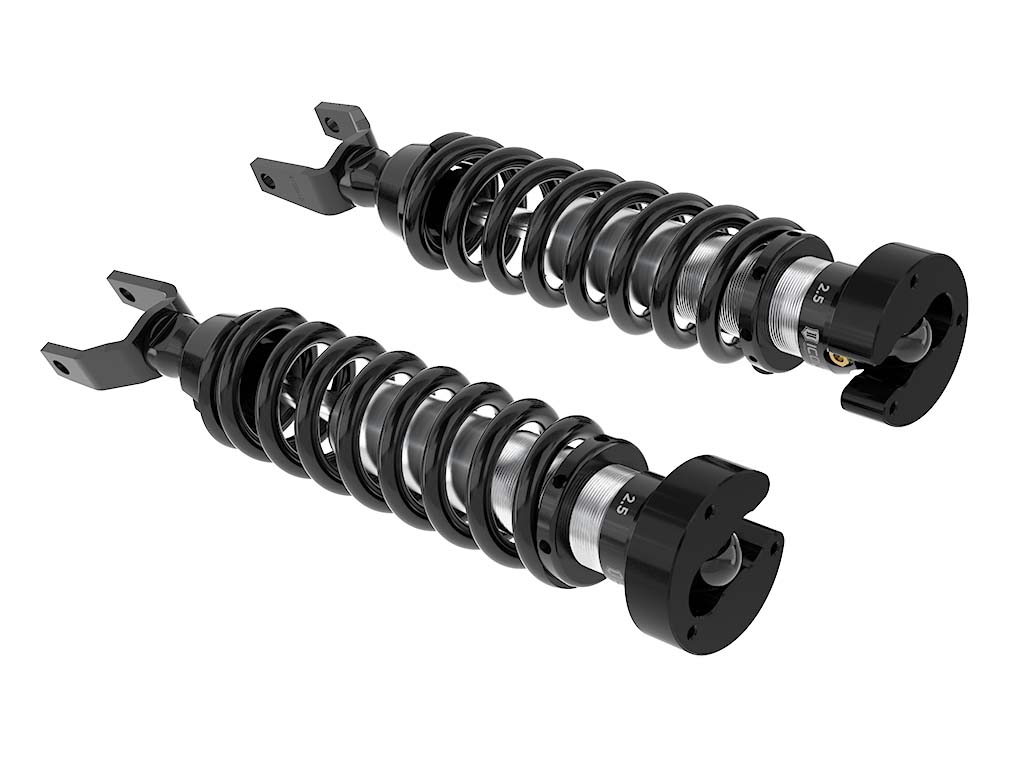

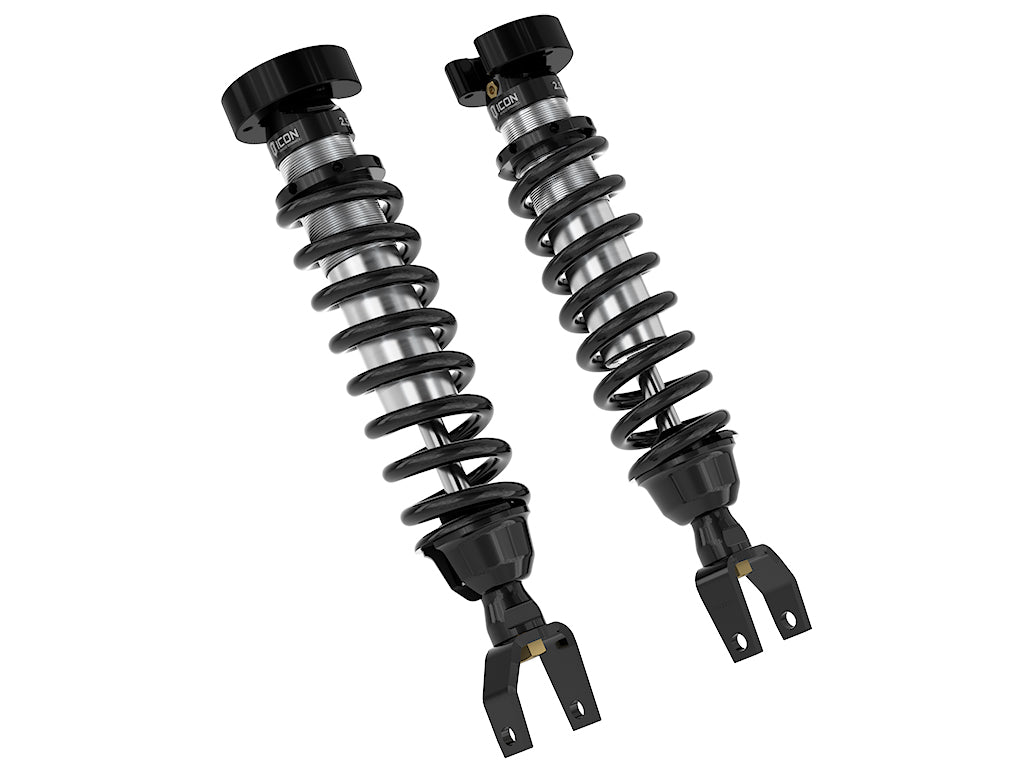

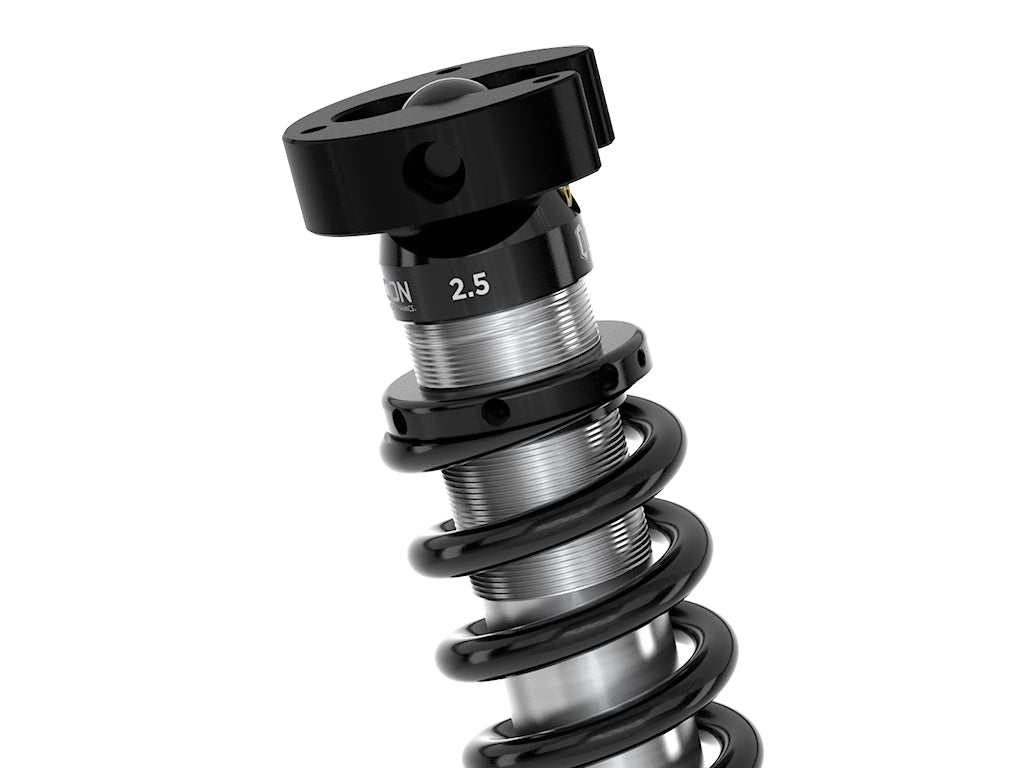

ICON Vehicle Dynamics 211010 Coilover Set
ICON 2.5 Series coilovers are an incredible upgrade for the front of 2019-2023 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel while 2-3” of lift allows the use of larger, more aggressive wheel and tire combos.
ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2023 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
Features
- Increased wheel travel and ride quality over stock
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on - no drilling, cutting or welding necessary for installation
- Unique valving developed for the lighter weight and chassis dynamics of the 2019-2023 Ram 1500
- Vehicle specific tuned for superior shock damping and control
- Adjustable from 2-3" of front lift height over stock
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" diameter shaft
- High strength alloy CNC machined lower mounting clevis
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Active or Passive Suspension | Passive |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 218550DJ - 09-23 RAM 1500 TUBULAR UCA DJ KIT |
| Add-On Part | 218560DJ - 19-23 RAM 1500 BILLET UCA DJ KIT |
| Cylinder Finish | Cadmium Plated |
| Damping Type | Oil |
| Cylinder Material | Steel |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 18.04 IN |
| Cylinder Color | Silver |
| Dust Shield Included | No |
| Extended Length | 23.77 IN |
| Front Spring Rate | 700 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Clevis |
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | 2 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35" x 12.50" (fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Remote Reservoir | No |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Clevis Holes |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.73 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Note: OEM Wheels & Tires Fitment: Yes TECH NOTE: 2019-2023 Ram 1500 Rebel will have lift height range of 1.25-2.25" over stock TECH NOTE: Will not fit Ram 1500 TRX Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.) APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks APPLICATION NOTE #105: Not for vehicles with rear factory air ride APPLICATION NOTE #131: Will not fit 2019-UP Ram 1500 Classic models
Short Description: COILOVER KIT
Invoice Description: 211010
Definition: Coilover Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs
Shipping Information
Free shipping is available for eligible orders.
Shipping: 2+ weeks.
Orders are processed during normal business days. Delivery dates may vary by carrier and destination.
Questions & Answers
Questions
Have a question? Ask people who own it.
Start typing your question and we'll check if it was already asked and answered.
Ask a Question
Guaranteed
Shipping
Returns
Support
Frequently Paired With

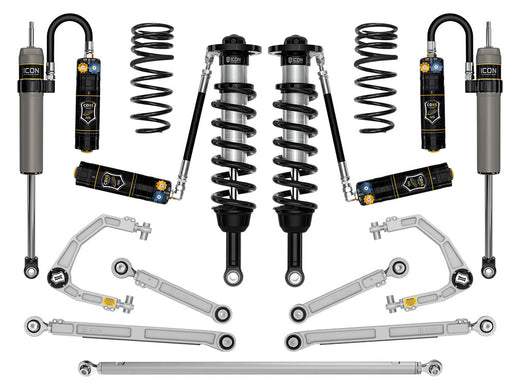

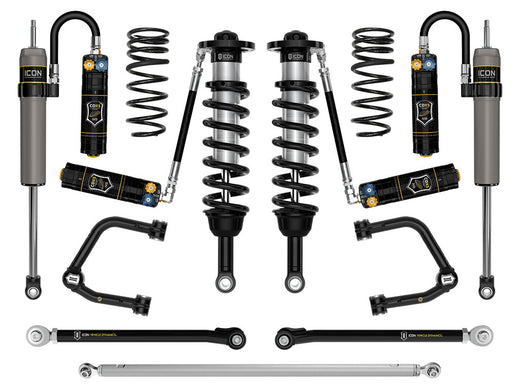

ICON Vehicle Dynamics K53431 Suspension Lift Kit
