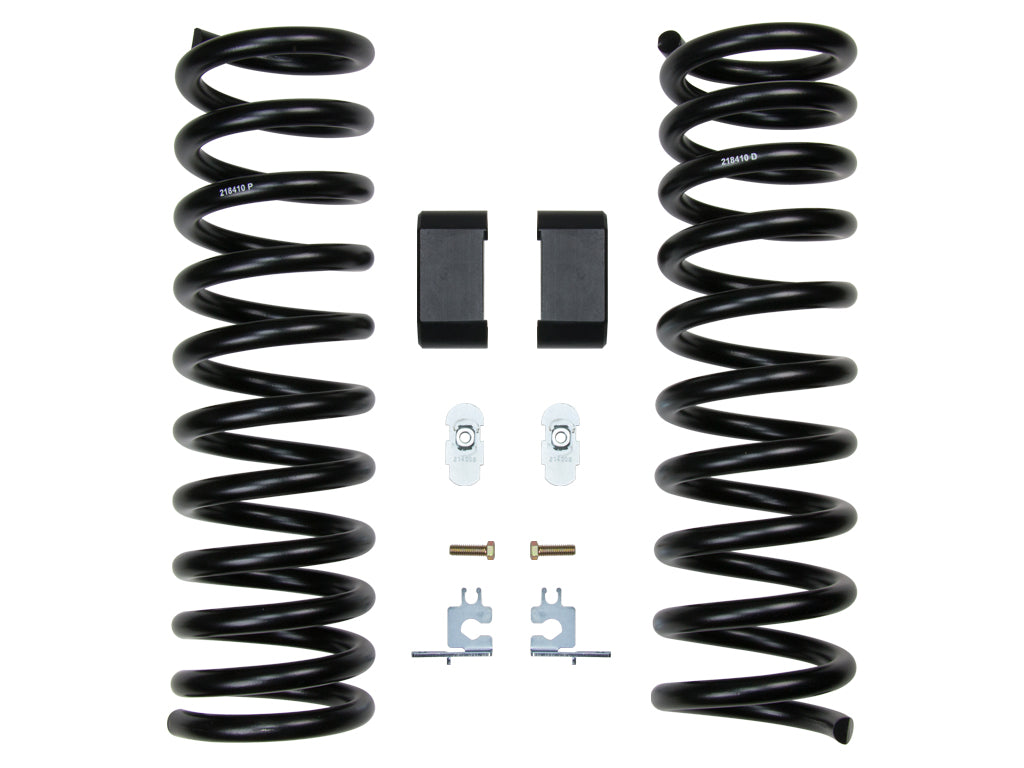

ICON Vehicle Dynamics 214201 - 14-UP RAM 2500 4.5" FRONT DUAL RATE SPRING KIT
Product Availability Request
Fill the form and our team will contact you.
Lift your truck and enjoy both incredible ride quality and rugged performance. These coils offer an initial soft ride zone for the street with an aggressive second rate to help prevent bottoming out on the trail.
The ICON Vehicle Dynamics 4.5" Dual Rate Spring System for ('14+) Ram 2500 / ('13+) 3500 4WD offers you both incredible ride quality and performance. This 4.5" dual rate spring system offers an initial soft ride zone with an aggressive 2nd rate to help prevent bottoming out. These ICON springs have a dual stage powder coat process to help prevent corrosion and are shot peened and pre-set to prevent sagging. All ICON shocks are engineered and tuned to work hand in hand with these springs for the best available on and off-road performance.
Features
- ICON engineered dual rate coil springs
- Increased wheel travel and ride quality over stock
- Less body roll than stock
- No drive shaft modifications needed
- No change in towing capacity
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 214214 - 14-26 RAM 2500 FRONT ADJUSTABLE TRACK BAR KIT |
| Add-On Part | 214205 - 14-26 RAM 2500 4.5" BOX KIT |
| Add-On Part | 212511 - 19-24 RAM 2500/3500 0-6" LIFT FRONT DRIVE SHAFT |
| Add-On Part | 212512 - 25-26 RAM 2500/3500 0-6" LIFT FRONT DRIVE SHAFT |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Finish | Powdercoated |
| Front Spring Rate | 550 PPI |
| Front Spring Rate | 412 PPI |
| Front Spring Rate Type | Progressive Dual Rate |
| Front Spring Seat Included | No |
| Grade Type | Performance |
| Maximum Lift Height | 4.5 IN |
| Spring Color | Black |
| Spring Material | Steel |
Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #645: Provides 4.5" of front lift on most Ram 2500 submodels. Provides 2.5" of front lift on Ram 2500 Rebel. Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25β Backspace / 13mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #6: Springs are rated for diesel engines APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #607: 2019-2026 Ram 2500/3500 models require an aftermarket, high-angle front driveshaft to prevent bind. ICON part numbers 212511 or 212512 are recommended.
Short Description: COIL SPRING KIT
Invoice Description: 214201
Definition: Coil Spring Set
Installation Guide: Download PDF
Warranty: Lifetime
