ICON Vehicle Dynamics 214205 - 14-18 RAM 2500 4.5" BOX KIT

The ICON Vehicle Dynamics 2014-2026 Ram 2500 4.5" Lift Box kit contains many of the miscellaneous parts required to lift the vehicle when using an ICON 4.5” lift suspension system.

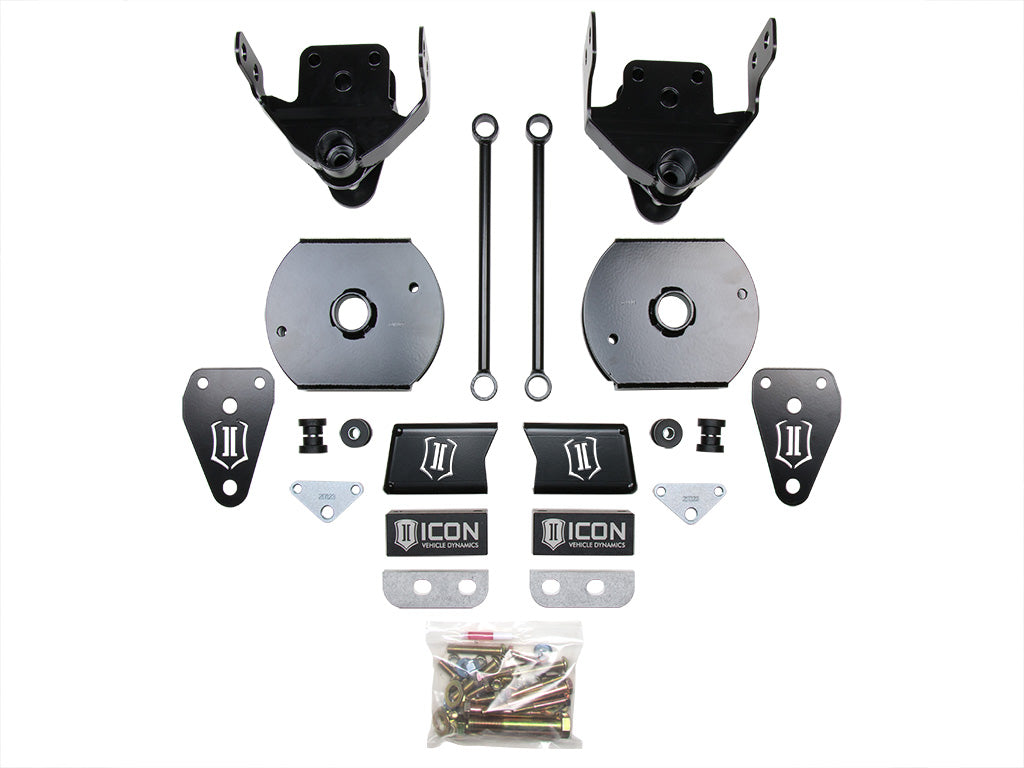

The ICON Vehicle Dynamics 2014-2026 Ram 2500 4.5" Lift Box kit contains many of the miscellaneous parts required to lift the vehicle when using an ICON 4.5” lift suspension system. This kit includes fabricated radius arm drop brackets made from CNC laser cut and brake-formed steel plate for strength and corrected radius arm angle for proper front end alignment. Front sway bar drop brackets and rear sway bar links reduce sway bar angle and prevent bind through the full range of suspension travel. Fabricated rear coil spacers provide 2" of rear lift over stock when paired with the stock rear coil or air springs, yielding a level stance from front to rear. Billet aluminum rear bump stop spacers properly limit compression travel to protect suspension components during spirited off-road driving. All fabricated components are coated with a semi-gloss black powder coat finish for corrosion resistance and backed up with ICON's Limited Lifetime Warranty.

Features

• Essential components for install of ICON 4.5" lift suspension systems
• Fabricated radius arm drop brackets
• 2" lift rear fabricated coil spacers work with stock coil springs or air bags
• Front sway bar drop brackets and extended rear sway bar links prevent sway bar bind
• Polyurethane sway bar link bushings
• Billet aluminum rear bump stop spacers
• Semi-gloss black powder coat finish for all fabricated components
• Fully bolt on installation with all hardware included
• Protected by ICON's Limited Lifetime Warranty

Specifications

Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #607: 2019-2026 Ram 2500/3500 models require an aftermarket, high-angle front driveshaft to prevent bind. ICON part numbers 212511 or 212512 are recommended.

Short Description: RAM 4.5" BOX KIT

Invoice Description: 214205

Definition: Suspension Installation Kit

Installation Guide: Download PDF

Warranty: Lifetime
