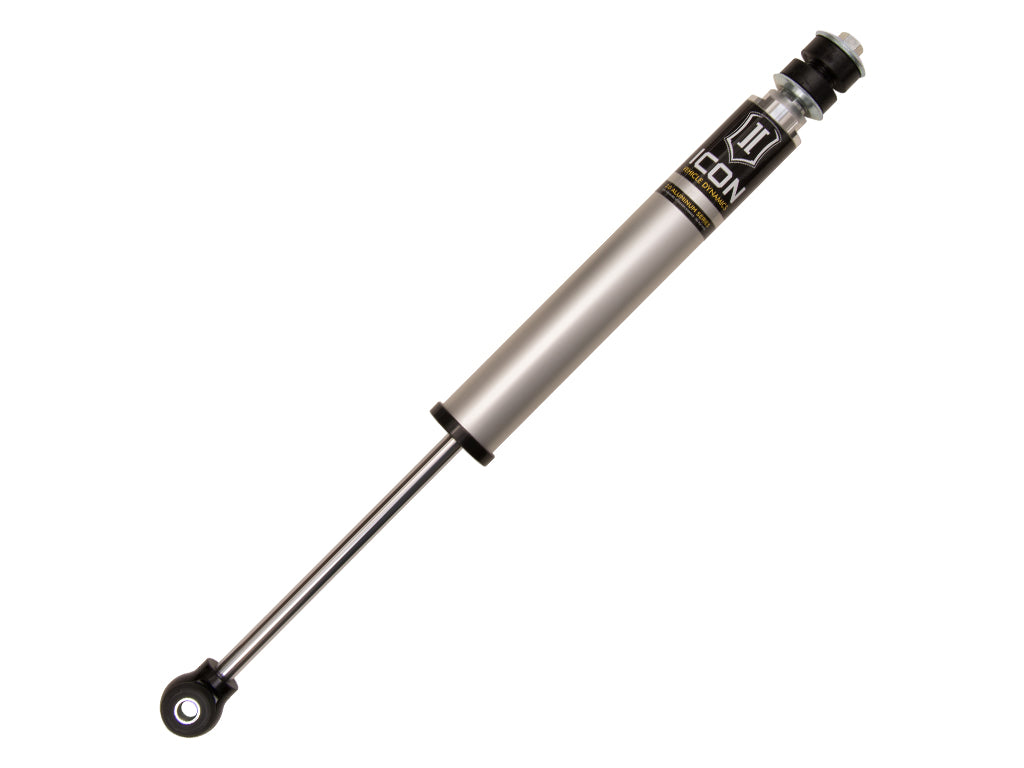

ICON Vehicle Dynamics 216528 - 14-UP RAM 2500 2.5" FRONT LIFT 2.0 VS IR
Product Availability Request
Fill the form and our team will contact you.
ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features & Benefits
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 100% revalveable
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8β chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
Specifications
| AAP_UDA_12 | EA |
| Attributed Description | ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Shoulder of Stem; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Stem; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 15.050 IN; Fully Open Length: 24.50 IN; Shock Stroke: 9.45 IN; Travel Length: 9.45 IN |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Included | NO |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 614700 - 2.0 SHOCK BOOT KIT (EACH) |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Adjustable Damping | No |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Rod Diameter | .625 IN |
| Finish | Anodized |
| Cylinder Finish | Anodized |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Valving Type | Digressive |
| Lower Mount Type | EYELET |
| Cylinder Color | Gray |
| Valving Type | Linear |
| Self-Leveling | No |
| Dust Shield Included | No |
| Internal Rebound Spring | No |
| Coil Spring Insulator(s) Included | No |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Coil Over Springs Included | NO |
| Dust Boot Included | No |
| Dust Shield | NO |
| Shaft Diameter | 0.625 IN |
| Quantity | 1 |
| Shock Absorber Bore Size | 1.75 IN |
| Title | 14-UP RAM 2500 2.5" FRONT LIFT 2.0 VS IR |
| Cylinder Outside Diameter | 2 IN |
| Maximum Ride Height Raising Distance | 2.5 IN |
| Material | Aluminum |
| External Reservoir | No |
| Suspension Type | Spring |
| Material | Steel |
| Upper Mount Type | Stem |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| Internal Rebound Bumper | Yes |
| Remote Reservoir | NO |
| Damping Type | Oil |
| Grade Type | Performance |
| Configuration | Performance |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Color | Silver |
| Internal Construction Type | Single Tube |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Cylinder Material | Aluminum |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Shaft Material | Chrome |
Installation Guide: Download PDF
