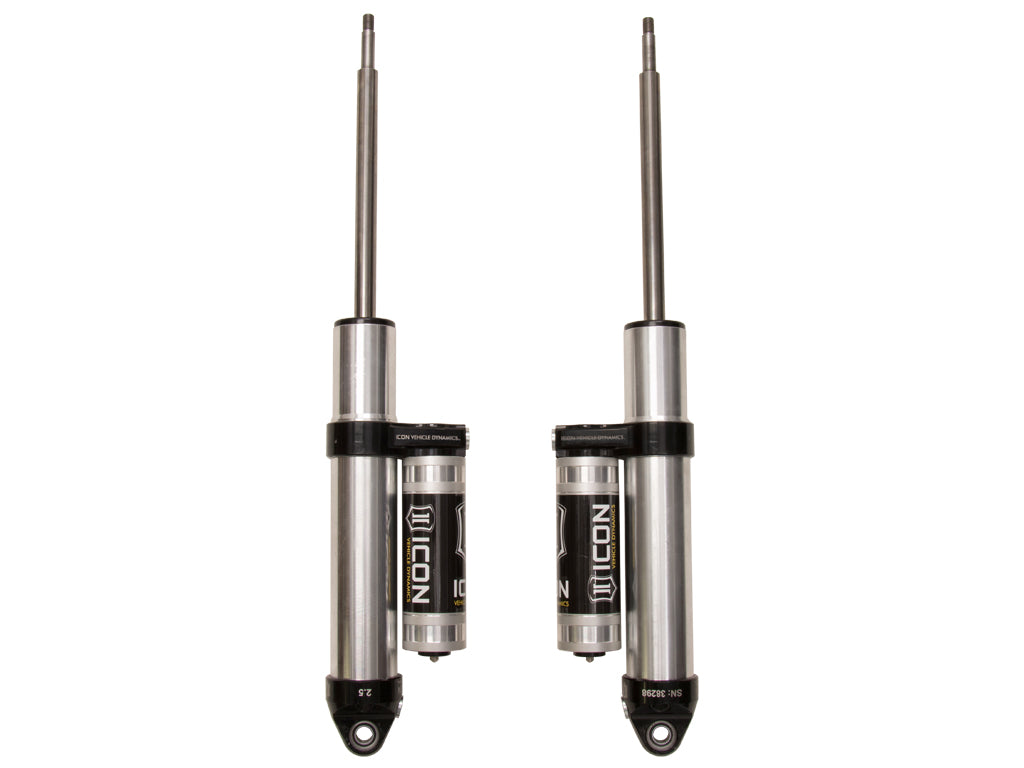

ICON Vehicle Dynamics 217704P - 14-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.5 VS PB PAIR
Product Availability Request
Fill the form and our team will contact you.
ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature piggyback reservoirs and are 100% rebuildable/revalveable.
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
Features
- ICONβs internal βBump Zoneβ increases damping by 20% to provide more control as the shock approaches full compression
- 100% Rebuildable
- 100% Revalveable
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8β diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Adjustable | NO |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Attributed Description | ICON Vehicle Dynamics; Shock Absorber Set; Adjustable: No; Boot Included: No; Bore Diameter: 2.25 IN; Compressed Length: 16.13 IN; Fully Open Length: 25.16 IN; Gas Charged: Yes; Lower Mount Type: Eyelet; Mounting Hardware Included: Yes; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Shoulder of Stem; Stroke Length Rear: 9.0 IN; Tube Outside Diameter: 2.50 IN; Upper Mount Type: Stem; External Reservoir: Yes |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Compressed Length | 16.15 IN |
| Cylinder Color | Gray |
| Cylinder Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Damping Type | Oil |
| Extended Length | 25.18 IN |
| External Reservoir | Yes |
| Gas Charged | Yes |
| Grade Type | Performance |
| Lower Mount Type | EYELET |
| Mounting Hardware Included | Yes |
| Reservoir Type | Piggyback |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 611006 - 9/16 HD STEM BUSHING KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 257341STEM - 7/8 SHAFT 17.58 OAL, 11.00 TRAVEL |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | CENTER OF EYELET |
| Shock Absorber Rod End Measuring Point | Shoulder of Stem |
| Stroke Length Rear | 9.03 IN |
| Tube Outside Diameter | 2.5 IN |
| Upper Mount Type | Stem |
| Valving Type | Digressive |
Note: APPLICATION NOTE #564: Compatible with 0-1" rear lift on Ram 2500 equipped with rear coil springs APPLICATION NOTE #565: Compatible with 3" rear lift on Ram 2500 equipped with factory rear air springs
Short Description: REAR SHOCK ABSORBERS
Invoice Description: 217704P
Definition: Suspension Shock Absorber Set
Installation Guide: Download PDF
Warranty: 1 Year
