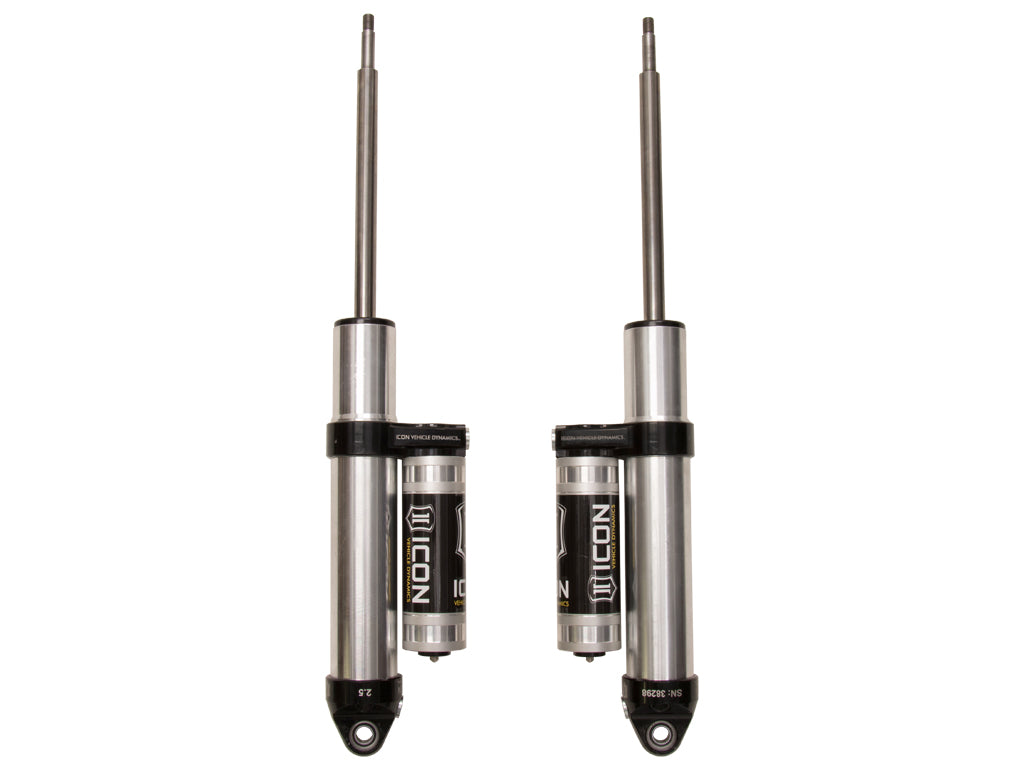

ICON Vehicle Dynamics 217706P - 14-UP RAM 2500 2" PERFORMANCE REAR 2.5 VS PB PAIR
Product Availability Request
Fill the form and our team will contact you.
ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature piggyback reservoirs and are 100% rebuildable/revalveable.
ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
Features
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- Double-sealed Schrader caps reduce risk of damage
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 214202 - 14-UP RAM 2500 2" REAR PERFORMANCE SPRING KIT |
| Adjustable | NO |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Compressed Length | 16.15 IN |
| Cylinder Color | Silver |
| Cylinder Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Damping Type | Oil |
| Reservoir Type | Piggyback |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 257341STEM - 7/8 SHAFT 17.58 OAL, 11.00 TRAVEL |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 611006 - 9/16 HD STEM BUSHING KIT |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | CENTER OF EYELET |
| Shock Absorber Rod End Measuring Point | Shoulder of Stem |
| Stroke Length Rear | 11.33 IN |
| Tube Outside Diameter | 2.5 IN |
| Upper Mount Type | Stem |
| Valving Type | Digressive |
| Mounting Hardware Included | Yes |
| Lower Mount Type | EYELET |
| Includes Bump Stop | No |
| Grade Type | Performance |
| Gas Charged | Yes |
| External Reservoir | Yes |
| Extended Length | 27.48 IN |
Note: APPLICATION NOTE #105: Not for vehicles with rear factory air ride APPLICATION NOTE #585: Tuning and length optimized for use with ICON 2" Lift Performance Rear Coil Springs, part number 214202
Short Description: REAR SHOCK ABSORBERS
Invoice Description: 217706P
Definition: Suspension Shock Absorber Set
Installation Guide: Download PDF
Warranty: 1 Year
