ICON Vehicle Dynamics 217802P - 14-UP RAM 2500 2.5" FRONT 2.5 VS RR PAIR
Couldn't load pickup availability

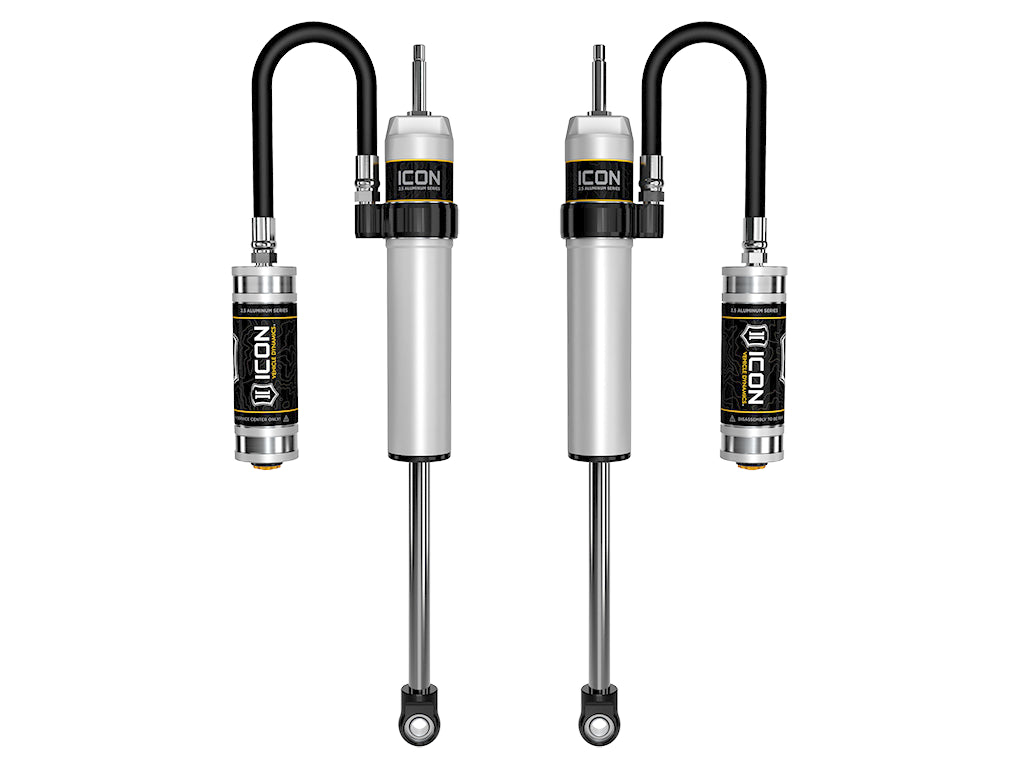

2014-UP RAM 2500 2.5" LIFT FRONT 2.5 VS REMOTE RESERVOIR SHOCK PAIR
ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
Features & Benefits
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- Double-sealed Schrader caps reduce risk of damage
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable | NO |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| Shaft Diameter | 0.875 IN |
| Title | 14-UP RAM 2500 2.5" FRONT 2.5 VS RR PAIR |
| Tube Outside Diameter | 2.5 IN |
| Fully Open Length | 24.18 IN |
| Cylinder Material | Aluminum |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Shaft Material | Chrome |
| Lower Mount Type | EYELET |
| Damping Type | Oil |
| Grade Type | Performance |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Cylinder Color | Silver |
| Upper Mount Type | Stem |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| External Reservoir | Yes |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 611006 - 9/16 HD STEM BUSHING KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
Installation Guide: Download PDF
