ICON Vehicle Dynamics 218550DJ - 09-23 RAM 1500 TUBULAR UCA DJ KIT
Product Availability Request
Fill the form and our team will contact you.
These upper control arms feature ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.

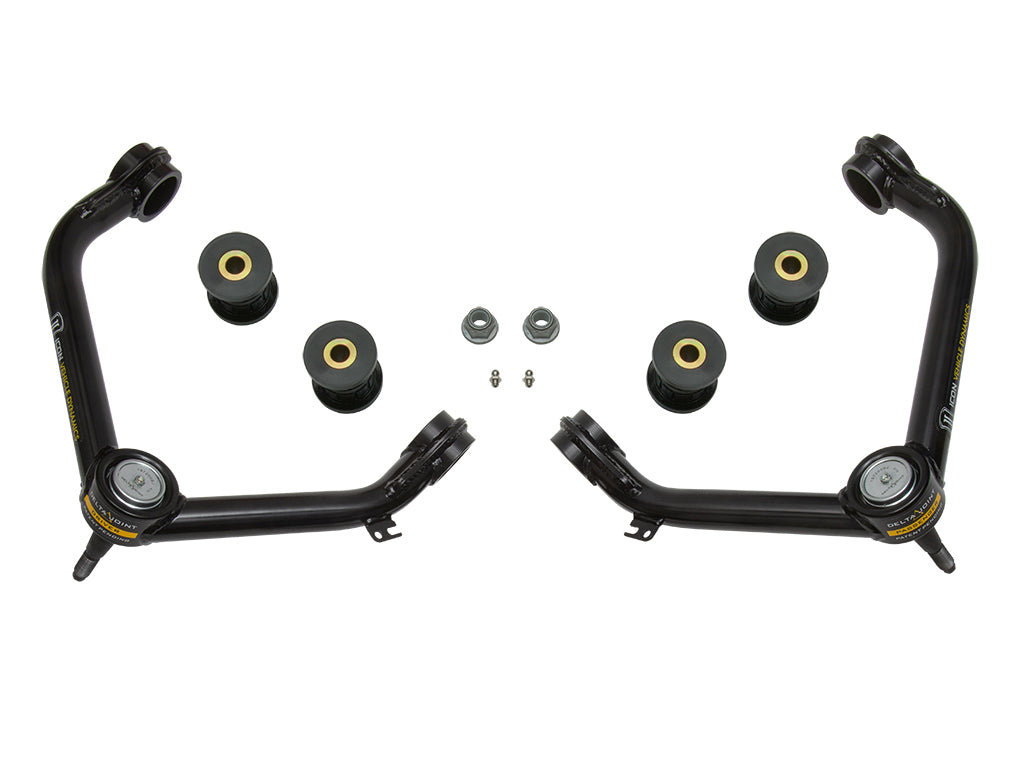

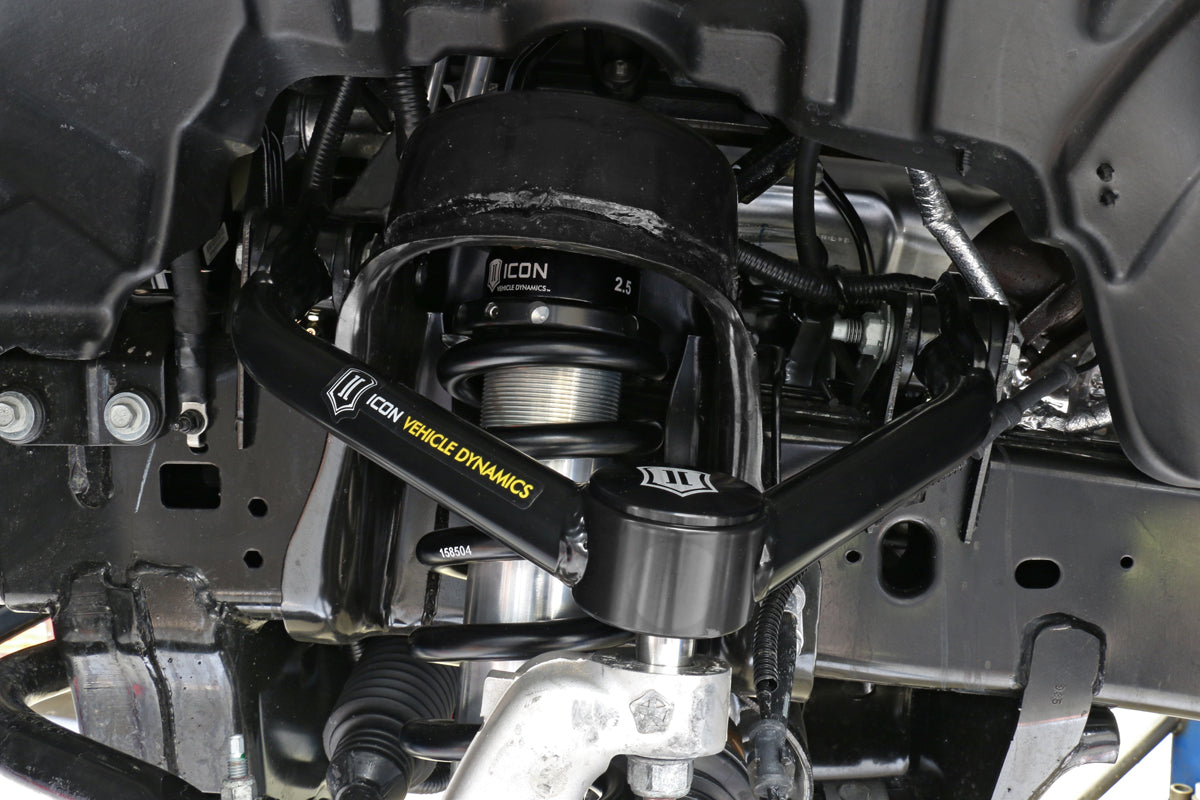

Take the performance of your 2009-2026 Dodge/Ram 1500 to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.5 series coilovers, this translates into superior performance and ride quality for your 2009-2026 Ram 1500. These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Features
- ICON Delta Joint
- 1026 DOM Steel Construction
- CNC Bent Tubing
- Serviceable Dual Stage Bushings
- CNC Machined Bushing Housings and Sleeves
- Built-In Caster Correction
- Black Semi-Gloss Powder Coat Finish
Specifications
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable | No |
| AAP_UDA_12 | EA |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Bushing Color | Black |
| Adjustable Control Arm | No |
| End 2 Type | BALL JOINT |
| Control Arm Construction | Tubular |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Grease Fitting Included | Yes |
| California Prop 65 Warning | Yes |
| Control Arm Color | Black |
| Color | Black |
| End 1 Type | Bushing |
| Control Arm Material | DOM Steel |
| Grade Type | Performance |
| Finish | Powdercoated |
| Construction | Tubular |
| Add-On Part | 191011 - TUBULAR UCA BILLET CAP SET |
| Attachments Included | No |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Greaseable | yes |
| Material | DOM Steel |
| Mounting Bracket Included | No |
| Mounting Hardware Included | Yes |
| Pre-Assembled | Yes |
| Pre-Greased | No |
| Quantity | Pair |
| Reinforced | Yes |
| Service Parts | 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE |
| Service Parts | 614502 - 218550 REPLACEMENT BUSHING AND SLEEVE KIT |
| Set | Yes |
| Suspension Grade Type | Performance |
| Suspension Type | Spring |
| Tubing Color | Black |
| Tubing Material | Steel |
| Grease Fittings Included | Yes |
Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #655: Also Fits 2019-2023 Ram 1500 Classic models Recommended Aftermarket Wheels (2009-2018): ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset Recommended Aftermarket Wheels (2019-2023): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Wheels (2019-2023): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Tires (2009-2018): 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) Recommended Aftermarket Tires (2019-2023): 35" x 12.50" (Fender trimming and modifications will be required.) APPLICATION NOTE #105: Not for vehicles with rear factory air ride APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO APPLICATION NOTE #239: Only compatible with OE steering knuckles. DO NOT install in combination with any aftermarket steering knuckles.
Short Description: DELTA JOINT UCA KIT
Invoice Description: 218550DJ
Definition: Suspension Control Arm Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: Lifetime
