ICON Vehicle Dynamics 22064 - 20-23 JEEP JT/19-23 RAM 1500 BILLET REAR ADJUSTABLE UPPER LINK KIT
Couldn't load pickup availability
ICON’s billet aluminum rear upper link arms for the 2020-2023 Jeep Gladiator and 2019-2023 Ram 1500 are a significant upgrade over the factory units due to increases in strength, adjustability, and performance.

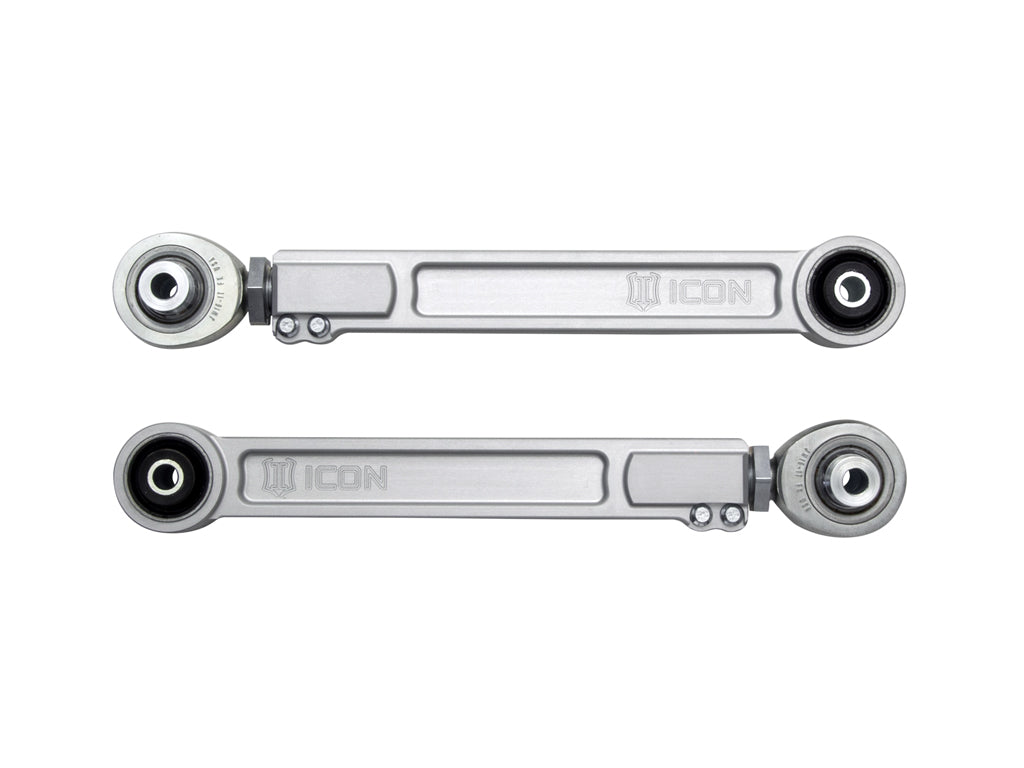

ICON’s billet aluminum rear upper link arms for the 2020-2023 Jeep Gladiator and 2019-2023 Ram 1500 are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units. This rear upper link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.
Features & Benefits
- CNC machined 6061 aluminum construction
- Multi durometer bushing for noise free operation and maximum angularity
- No grease required for life of bushings
- Quality JM16T PTFE-lined FK Rod Ends
- Adjustable while installed on vehicle for various lift heights & driveline angles
- ICON1K tested in extreme off-road conditions
- Covered by ICON's lifetime warranty
Specifications
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| Ball Joint Stud Type | Threaded |
| Bushings Included | Yes |
| Add-On Part | 22063 - 20-23 JEEP JT/19-23 RAM 1500 BILLET REAR ADJUSTABLE LOWER LINK KIT |
| Add-On Part | 22068 - 20-23 JEEP JT/19-23 RAM 1500 REAR ADJ TRACK BAR KIT |
| Adjustable | Yes |
| Ball Joint Included | Yes |
| Adjustable Control Arm | Yes |
| Ball Joint Mounting Type | Thread in |
| Bushing Color | Black |
| Material | Aluminum |
| Control Arm Material | Aluminum |
| Finish | Anodized |
| Construction | Billet |
| Control Arm Construction | Billet |
| End 1 Type | Bushing |
| Color | Gray |
| Title | ICON 2020-2023 Jeep Gladiator/2019-2023 Ram 1500, Adjustable Billet Upper Link Kit, Rear |
| Pre-Greased | No |
| Grease Fitting Included | No |
| Mounting Bracket Included | No |
| Quantity | Pair |
| Suspension Grade Type | Performance |
| Grade Type | Performance |
| End 2 Type | Rod End Bearing |
| Control Arm Color | Silver |
| Suspension Type | Spring |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Pre-Assembled | Yes |
| Reinforced | Yes |
| Mounting Hardware Included | Yes |
| Bushing Material | Polyurethane |
| Bushing Material | Rod End Bearing |
| Attachments Included | No |
| Set | Yes |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
