ICON Vehicle Dynamics 22064T - 20-23 JEEP JT/19-23 RAM 1500 TUBULAR REAR UPPER LINK KIT
Product Availability Request
Fill the form and our team will contact you.

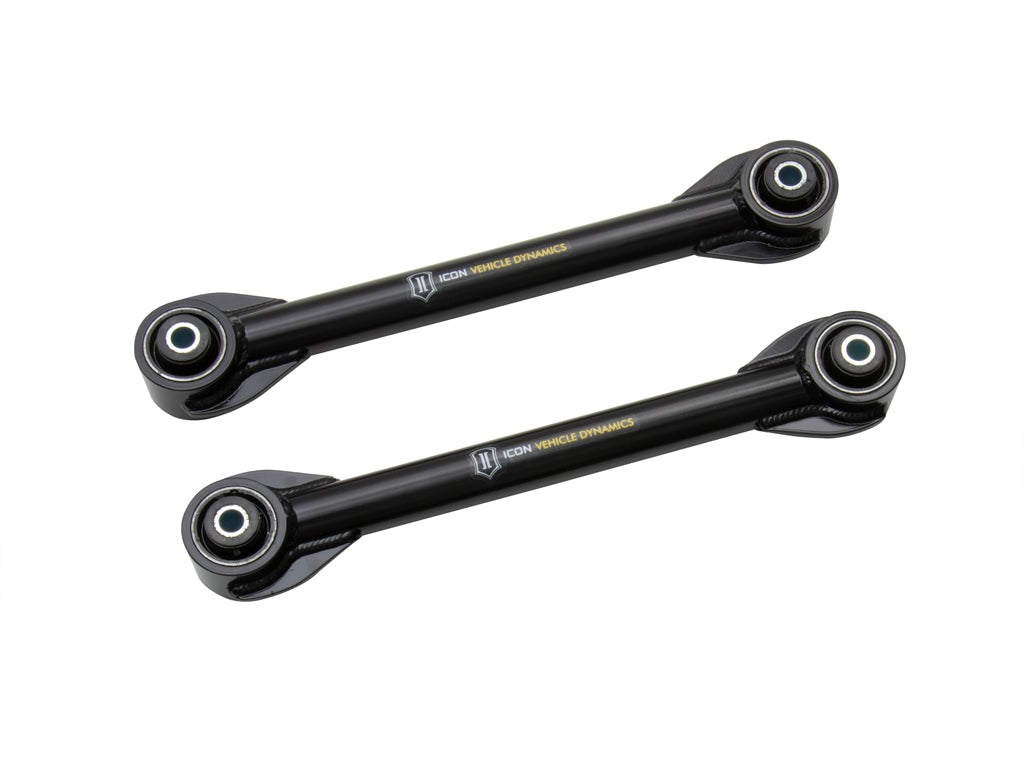

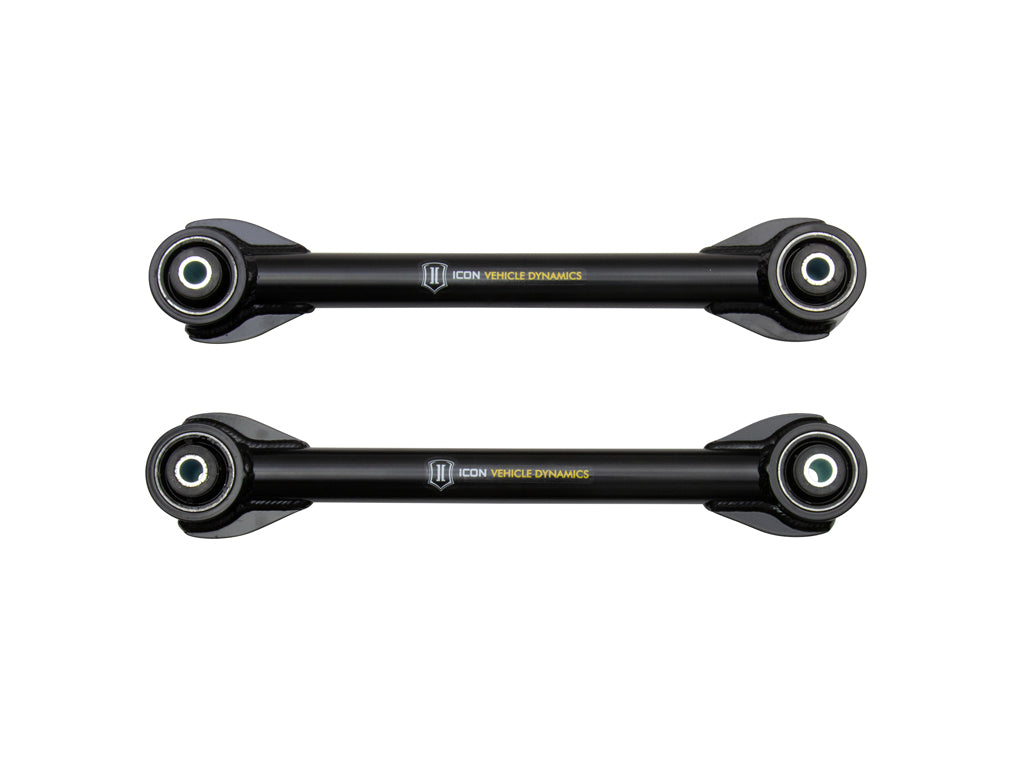

ICON’s tubular rear upper link arms for the 2020-2023 Jeep Gladiator and 2019-2026 Ram 1500 are a significant upgrade over the factory units due to increases in strength and performance.
ICON’s tubular steel rear upper link arms for the 2020-2023 Jeep Gladiator and 2019-2026 Ram 1500 are a significant upgrade over the factory units due to increases in strength and suspension performance. These components are made from CNC machined and notched 1026 DOM steel and welded in-house, providing a major improvement over the construction of the stock units. This rear upper link arm kit features multi durometer bushings that allow for noise free operation, reduced deflection, and maximum angularity without the need for periodic greasing and/or other maintenance.The quality bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.
Features
- CNC machined & notched 1026 DOM steel construction
- Multi durometer bushing for noise free operation and maximum angularity
- No grease required for life of bushings
- ICON1K tested in extreme off-road conditions
- Fabricated components covered under ICON's lifetime warranty
Specifications
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Adjustable | No |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Adjustable Control Arm | No |
| Bushing Color | Black |
| Control Arm Color | Black |
| Suspension Grade Type | Performance |
| Grade Type | Performance |
| Finish | Powdercoated |
| Suspension Type | Spring |
| Material | Steel |
| Control Arm Material | Steel |
| Construction | Tubular |
| Control Arm Construction | Tubular |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Pre-Assembled | Yes |
| Reinforced | Yes |
| Mounting Hardware Included | Yes |
| California Prop 65 Warning | Yes |
| Color | Black |
| End 1 Type | Bushing |
| End 2 Type | Bushing |
| Pre-Greased | No |
| Grease Fitting Included | No |
| Mounting Bracket Included | No |
| Quantity | Pair |
| Attachments Included | No |
| Set | Yes |
| Add-On Part | 22063T - 20-23 JEEP JT/19-23 RAM 1500 TUBULAR REAR ADJUSTABLE LOWER LINK KIT |
| Add-On Part | 22068 - 20-23 JEEP JT/19-23 RAM 1500 REAR ADJ TRACK BAR KIT |
Note: APPLICATION NOTE #105: Not for vehicles with rear factory air ride APPLICATION NOTE #131: Will not fit 2019-2024 Ram 1500 Classic models APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO APPLICATION NOTE #657: Compatible with 0-2.5" of rear lift on 2019-2026 Ram 1500 Rebel APPLICATION NOTE #660: Compatible with 0-2" of rear lift on most Jeep Gladiator submodels APPLICATION NOTE #661: Compatible with 0-3" of rear lift on most Ram 1500 submodels
Short Description: TUBULAR UPPER LINKS
Invoice Description: 22064T
Definition: Suspension Control Arm Kit
Installation Guide: Download PDF
Warranty: Limited Lifetime
