ICON Vehicle Dynamics 22068 - 20-23 JEEP JT/19-23 RAM 1500 REAR ADJ TRACK BAR KIT
Product Availability Request
Fill the form and our team will contact you.

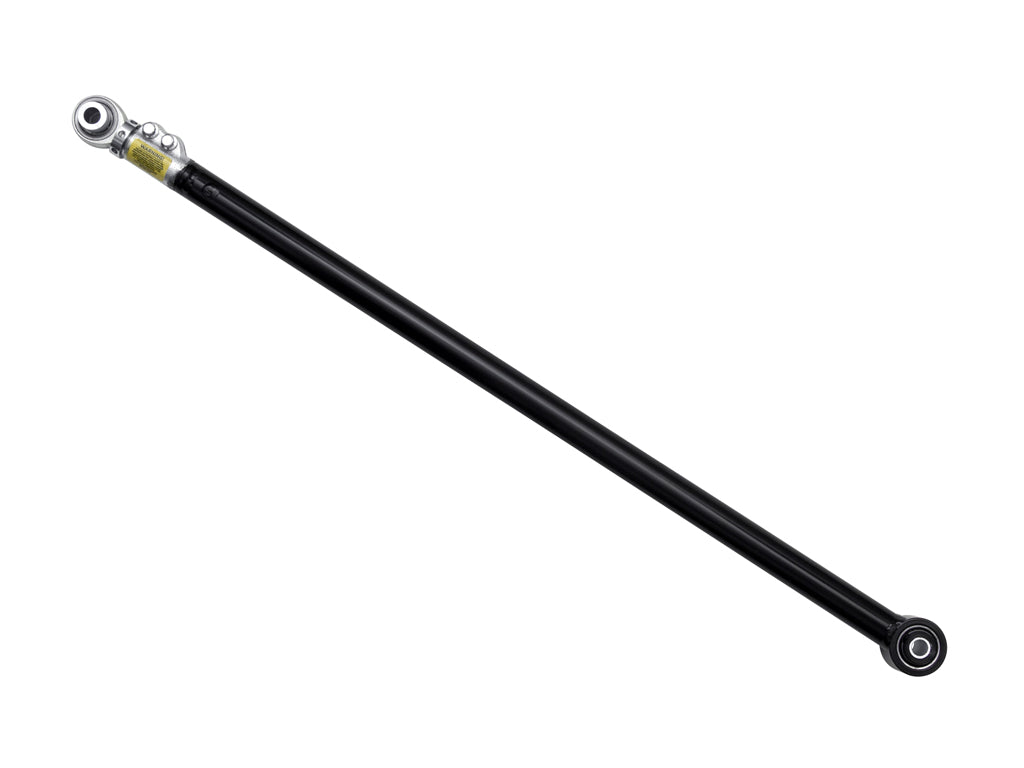

The ICON Tubular Rear Track Bar helps center the axle of your lifted 2020-2023 Jeep Gladiator or 2019-2026 Ram 1500 to allow for increased suspension travel and articulation.
The ICON Tubular Rear Track Bar helps center the axle of your lifted 2020-2023 Jeep Gladiator or 2019-2026 Ram 1500 to allow for increased suspension travel and articulation. A massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. ICON’s exclusive rod end Double Adjuster Sleeve allows for fast, easy “on-vehicle” adjustment of track bar length without requiring removal or disassembly of the track bar. This allows for easy correction of axle location and dialing in precise tracking whenever adjustments are made to ride height. The track bar is made of CNC bent 1¼ x .250 wall 1026 DOM tubing with CNC machined threaded end and bushing housing. It has a multi-stage black powder coat finish. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
Features
- Constructed with CNC machined and bent 1 1/4" x .250 wall 1026 seamless DOM tubing
- On vehicle adjustable for precise track alignment using ICON’s Double Adjuster
- Maintenance free, multi-durometer bushing and JM12T rod end minimize deflection while maximizing responsiveness
- Easy install into OEM mounts w/ application specific hardware
- Allows for full suspension articulation without binding
- Dual stage powder coat finish provides excellent corrosion resistance
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Specifications
| AAP_UDA_4 | 55 |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Adjustable | Yes |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Bushing Color | Black |
| Ball Joint Included | Yes |
| Grade Type | Performance |
| End 2 Terminal Type | Rod End Bearing |
| End 2 Type | Rod End Bearing |
| Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| California Prop 65 Warning | Yes |
| Finish | Powdercoated |
| Color | Black |
| End 1 Type | Bushing |
| Pre-Greased | No |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Greaseable | No |
Note: APPLICATION NOTE #105: Not for vehicles with rear factory air ride APPLICATION NOTE #131: Will not fit 2019-2024 Ram 1500 Classic models APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO APPLICATION NOTE #657: Compatible with 0-2.5" of rear lift on 2019-2026 Ram 1500 Rebel APPLICATION NOTE #660: Compatible with 0-2" of rear lift on most Jeep Gladiator submodels APPLICATION NOTE #661: Compatible with 0-3" of rear lift on most Ram 1500 submodels
Short Description: TRACK BAR KIT
Invoice Description: 22068
Definition: Suspension Track Bar
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: Limited Lifetime
