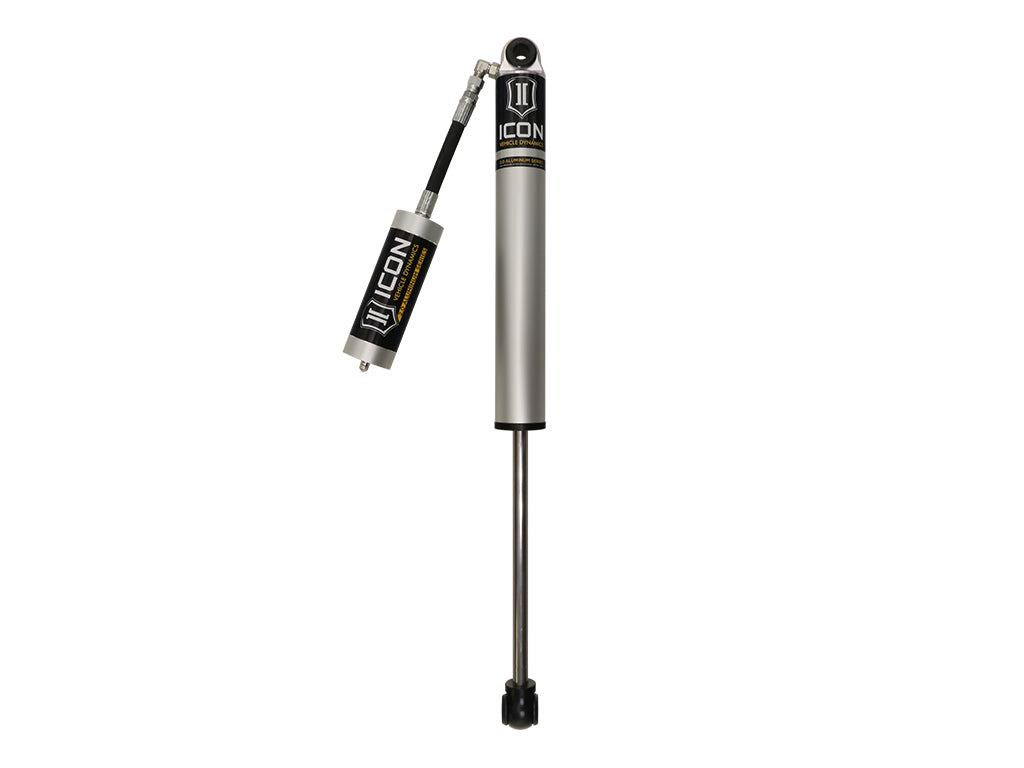

ICON Vehicle Dynamics 26520R - 07-18 JK 2-3" REAR 2.0 VS RR
Product Availability Request
Fill the form and our team will contact you.
ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved performance. They feature remote reservoirs, are vehicle specific, and 100% rebuildable/revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features & Benefits
- Nitrogen charged monotube design with remote reservoir
- 100% revalveable
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- Application-specific reservoir mounting hardware
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
Specifications
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Included | NO |
| Add-On Part | 614700 - 2.0 SHOCK BOOT KIT (EACH) |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Color | Gray |
| Add-On Part | 614600 - 2.0 ICON BILLET RESI CLAMP KIT |
| Adjustable Compression | No |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Bore Diameter | 1.75 IN |
| Adjustable Damping | No |
| Rod Diameter | .625 IN |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Maximum Ride Height Raising Distance | 3 IN |
| Finish | Anodized |
| Cylinder Finish | Anodized |
| Upper Mount Type | Barpin |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Shock Absorber Body End Measuring Point | CENTER OF EYELET |
| Valving Type | Digressive |
| Lower Mount Type | EYELET |
| Cylinder Color | Gray |
| Valving Type | Linear |
| Self-Leveling | No |
| Dust Shield Included | No |
| Internal Rebound Spring | No |
| Coil Spring Insulator(s) Included | No |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Coil Over Springs Included | NO |
| Dust Boot Included | No |
| Dust Shield | NO |
| Damping Type | Oil |
| Grade Type | Performance |
| Configuration | Performance |
| Internal Construction Type | Single Tube |
| Suspension Type | Spring |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Shaft Diameter | 0.625 IN |
| Title | 07-18 JK 2-3" REAR 2.0 VS RR |
| Quantity | 1 |
| Shock Absorber Bore Size | 1.75 IN |
| Cylinder Outside Diameter | 2 IN |
| Fully Open Length | 25.55 IN |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| Remote Reservoir | Yes |
| Internal Rebound Bumper | Yes |
| External Reservoir | Yes |
| Material | Steel |
| Material | Aluminum |
| Color | Silver |
| Cylinder Material | Aluminum |
| Shaft Material | Chrome |
| Color | Black |
| Color | Gray |
Installation Guide: Download PDF
