ICON Vehicle Dynamics 45212 - 21-23 BRONCO XD TIE ROD KIT
Product Availability Request
Fill the form and our team will contact you.

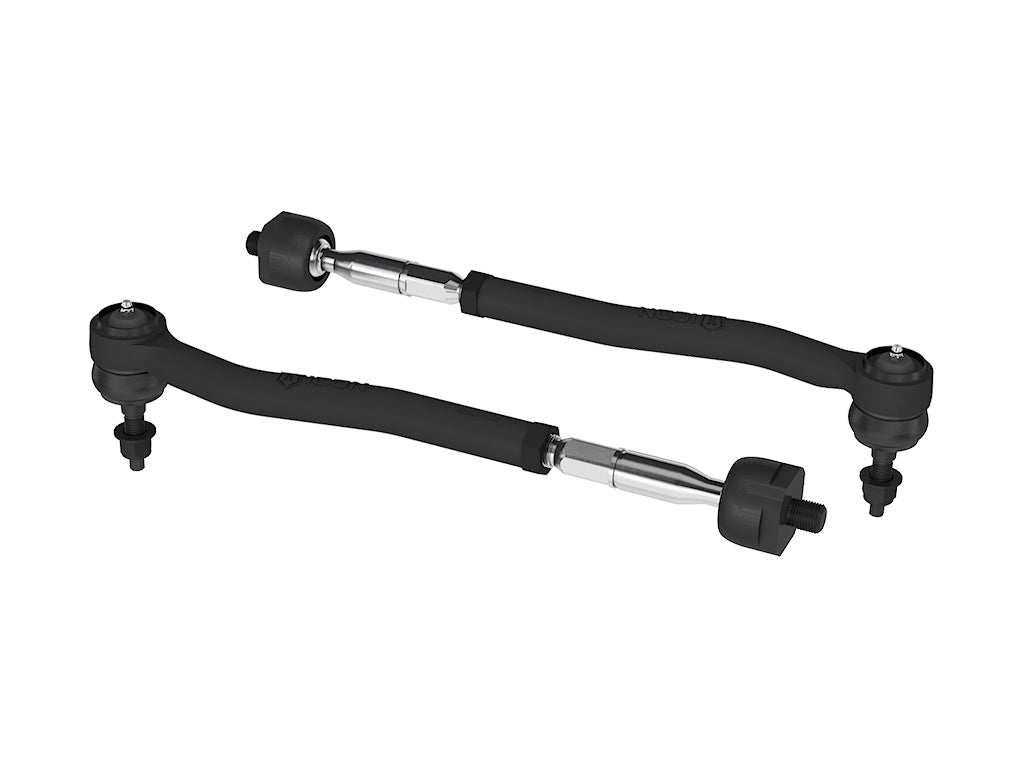

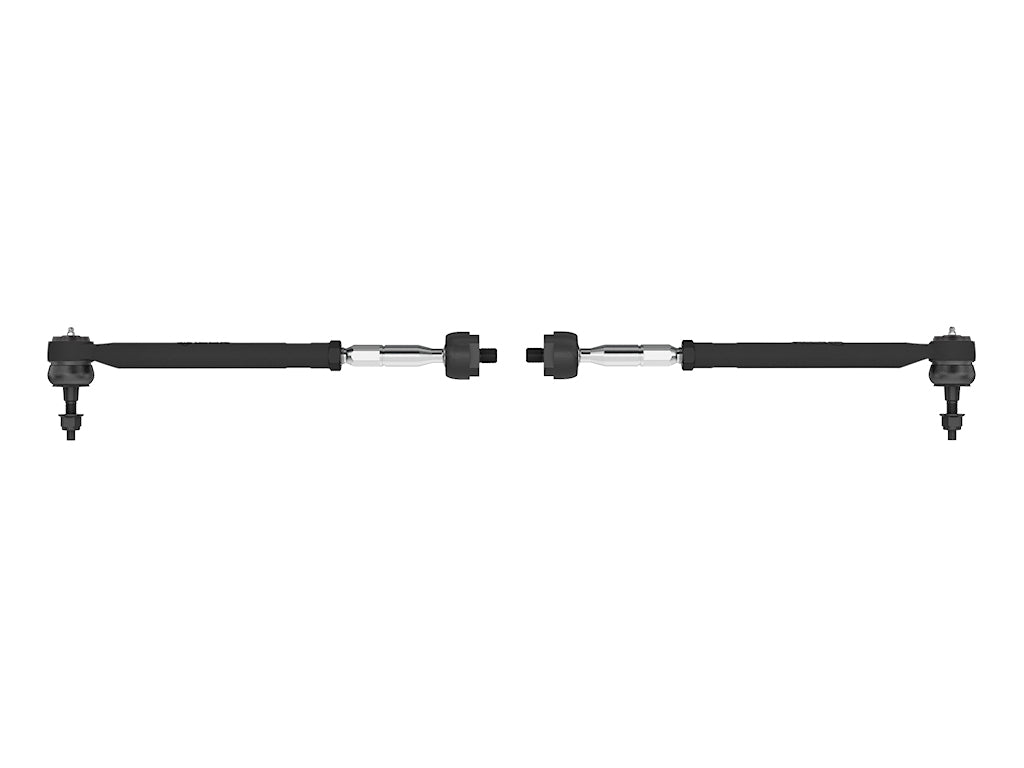

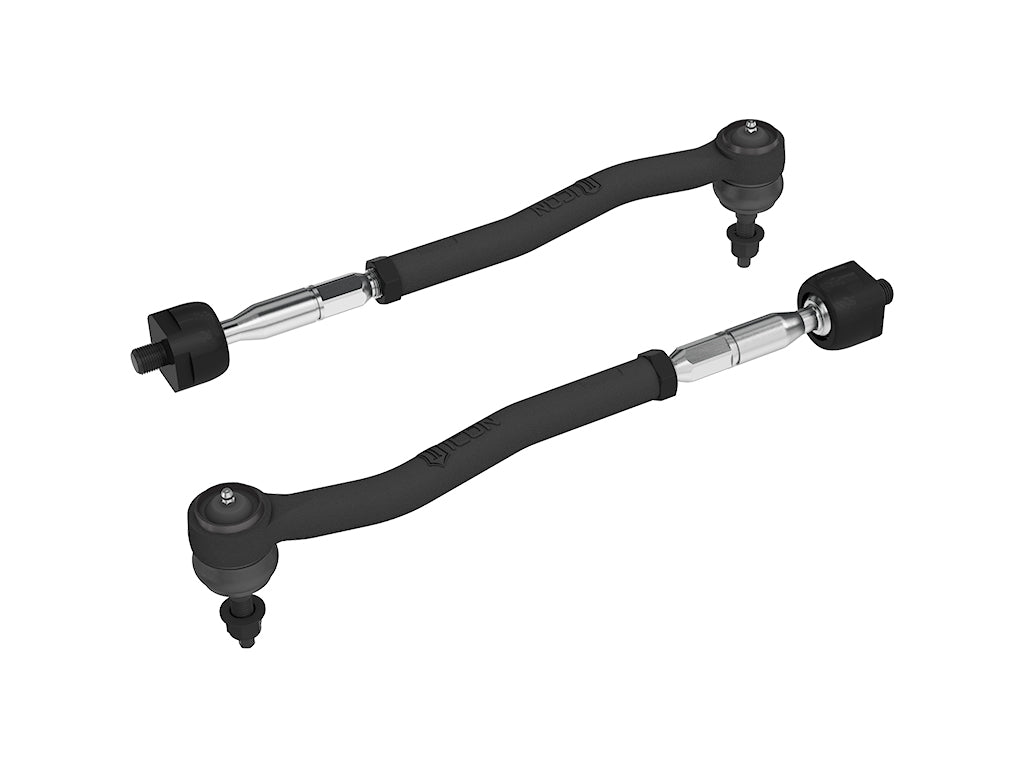

ICON XD Forged Tie Rods offer significant increase in strength with better materials and beefier dimensions than the stock tie rods while also capable of same range of motion and offer same tire fitment as OE units.

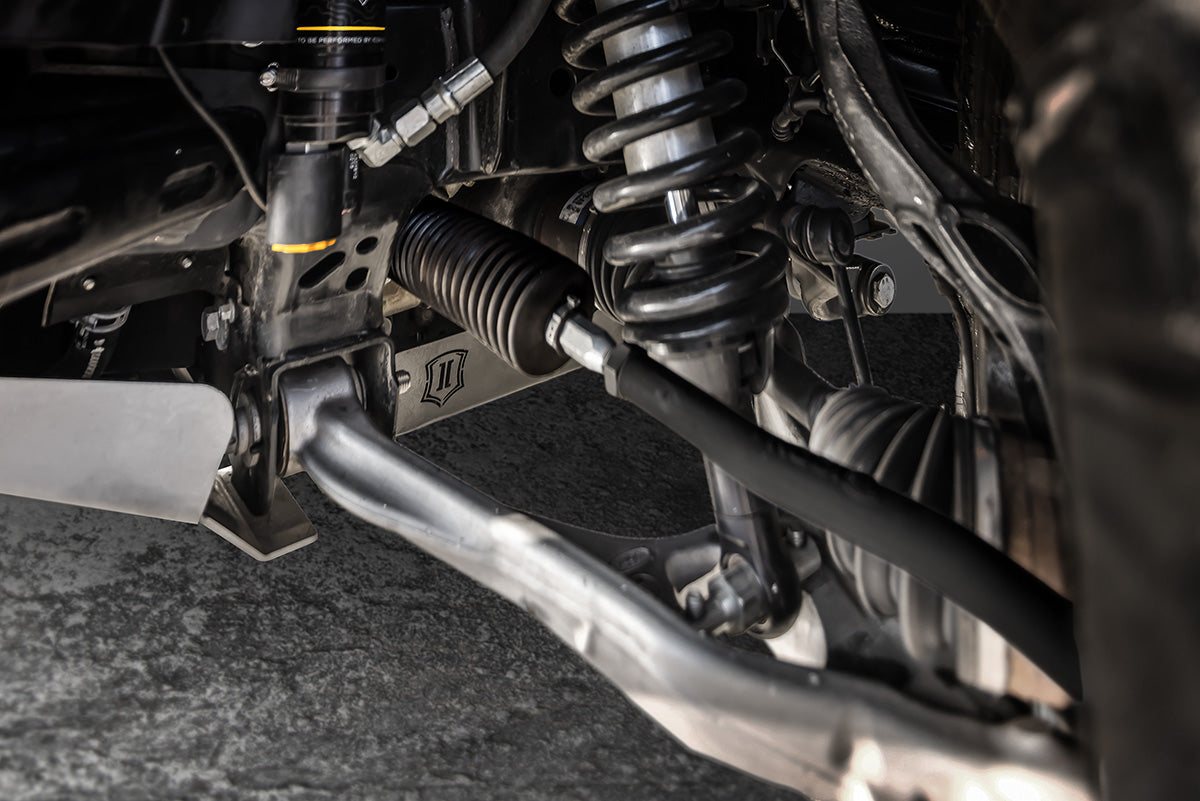

The strength limitations of the Bronco's factory steering tie rods has been well documented, especially by Bronco owners who venture into the big rocks with big tires. These ICON XD Forged Tie Rods remedy this with better materials and beefier dimensions than the stock units. The inner tie rod and ball stud is CNC machined from 4140 chromoly. The adjustment threads, where we've seen most of the failures happen on stock tie rods, are18mm on the XD Forged Tie Rods versus 14mm on stock Bronco tie rods. The outer tie rod is forged steel and has the same bend as the stock tie rods for fitting all of the Bronco's factory wheel diameters and offsets, along with just about any aftermarket wheel. The tie rod end is a beefier, metal on metal joint that is greaseable for extended service life and has the same range of operating angle as the stock tie rod ends. For the most hardcore of off-roaders, the ICON XD Forged Tie Rod kit is recommended as part of a comprehensive steering system upgrade strategy.
Features
- 30% larger diameter than OE tie rods
- 4140 chromoly inner ball studs
- Forged steel outer tie rod ends
- Metal on metal ball joint design with grease zerks
- Design to fit around factory wheel off set

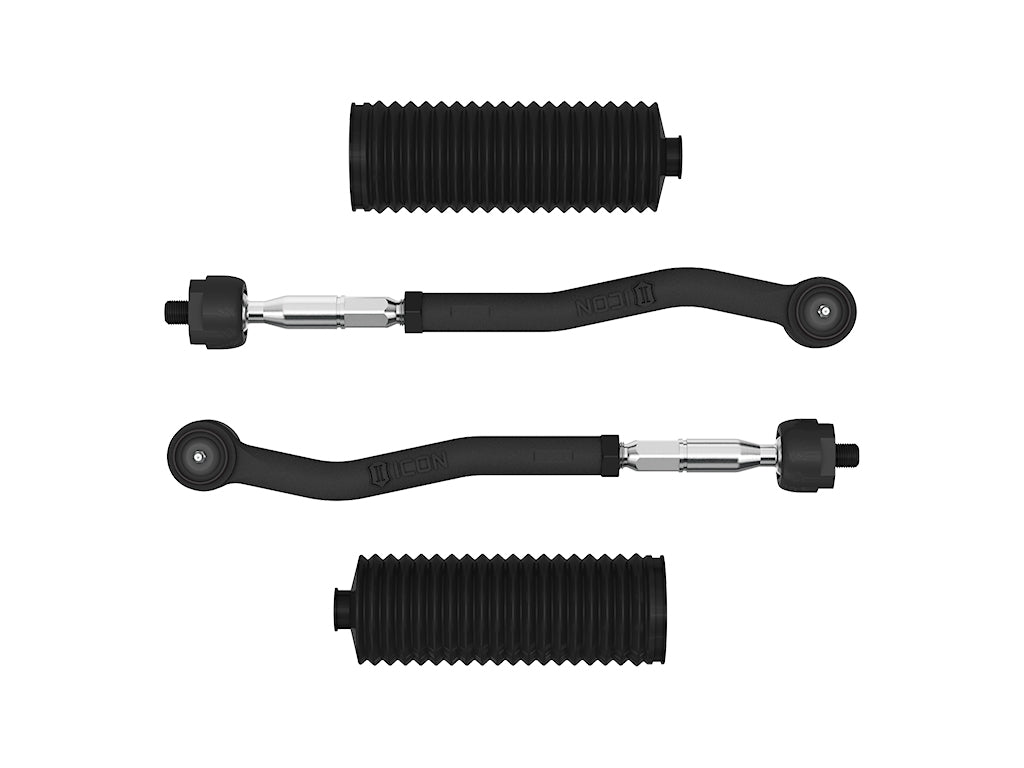

- Includes inner tie rod boots that protect the steering rack from dirt and debris
- Limited lifetime warranty
Specifications
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| Adjustable | Yes |
| AAP_UDA_22 | 1 |
| California Proposition 65 | WARNING: This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. |
| Castle Nut Included | Yes |
| California Prop 65 Warning | Yes |
| Color | Silver |
| Color | Black |
| Dust Boot Included | Yes |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Grade Type | Extreme Duty |
| Grease Fitting Included | Yes |
| Greaseable | Yes |
| Hardware Included | Yes |
| Material | Steel |
| Pre-Greased | Yes |
| Reinforced | Yes |
Note: APPLICATION NOTE #10: Will not fit Bronco Raptor APPLICATION NOTE #261: Compatible with OE HOSS 1.0 & HOSS 2.0 steering racks. Also compatible with HOSS 3.0 steering racks but the dust boot must be stretched to fit over the rack housing. APPLICATION NOTE #262: Not compatible with aftermarket tie rod braces
Short Description: TIE ROD KIT
Invoice Description: 45212
Definition: Steering Tie Rod Assembly
Installation Guide: Download PDF
Warranty: Lifetime
