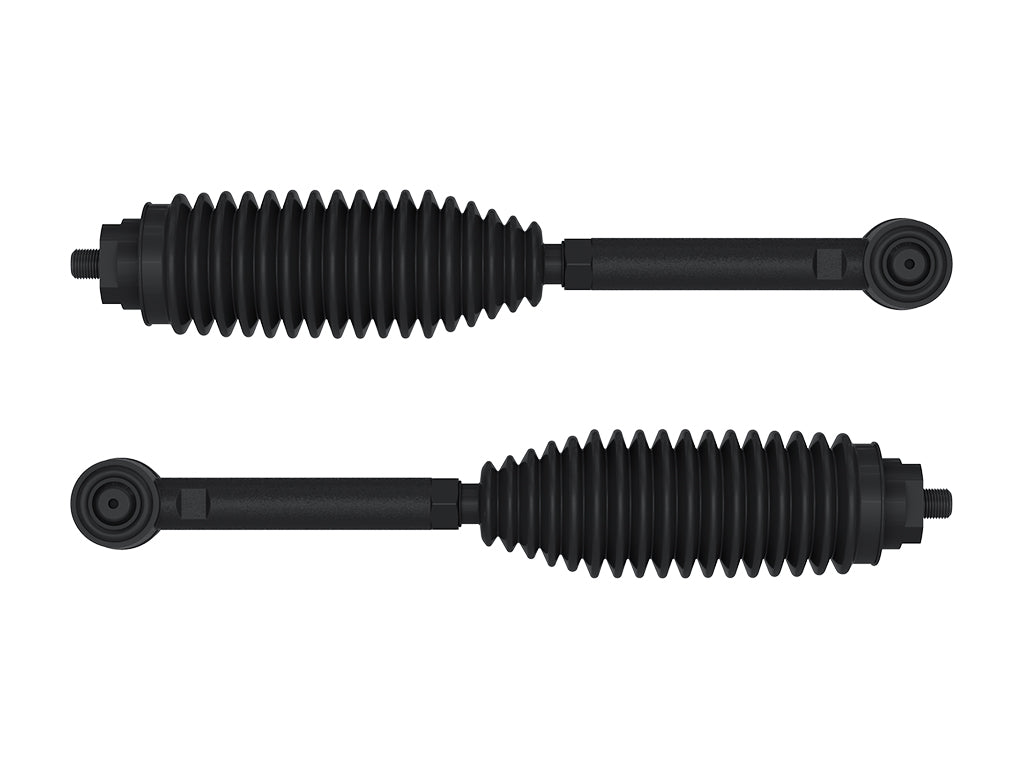

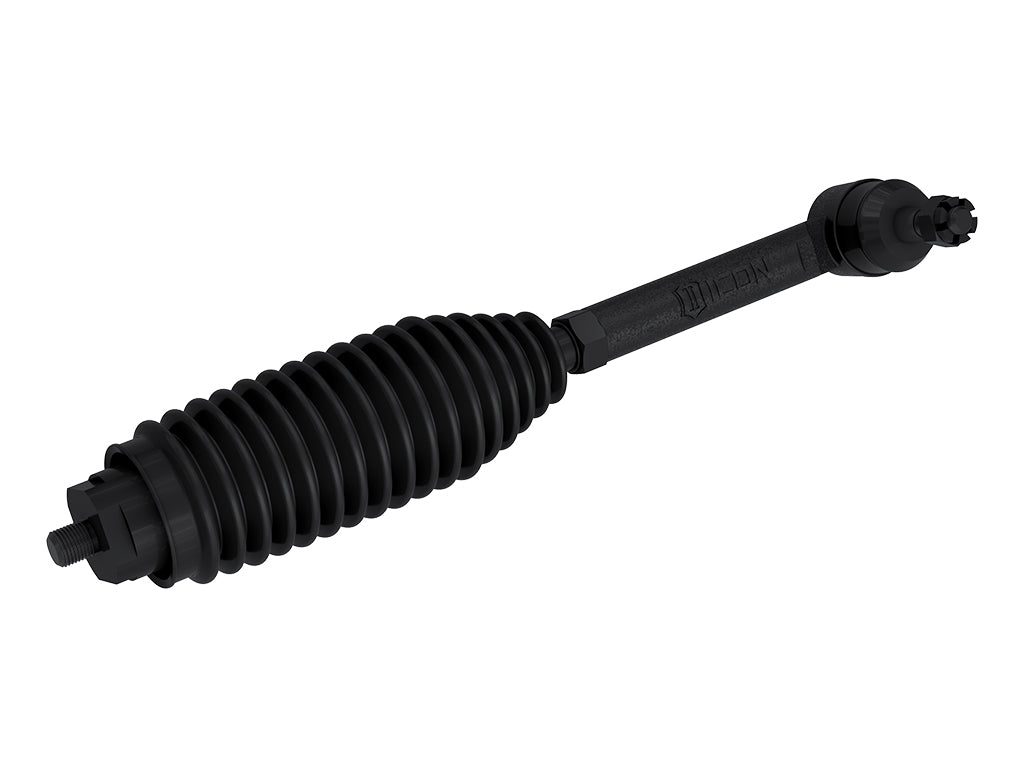

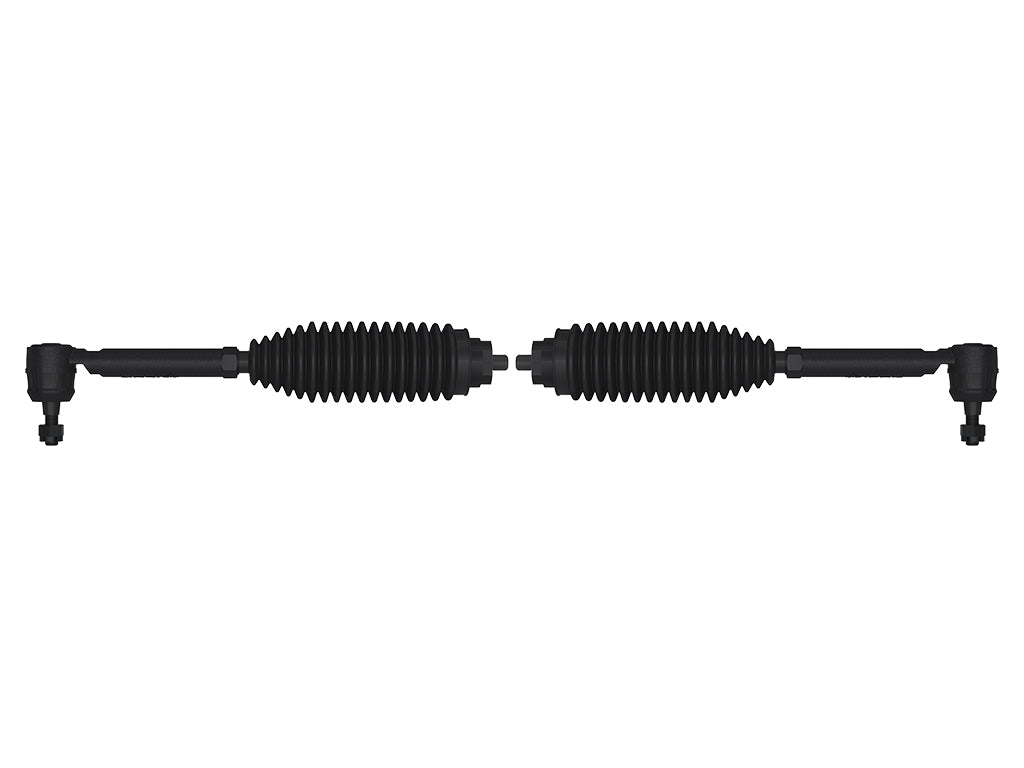

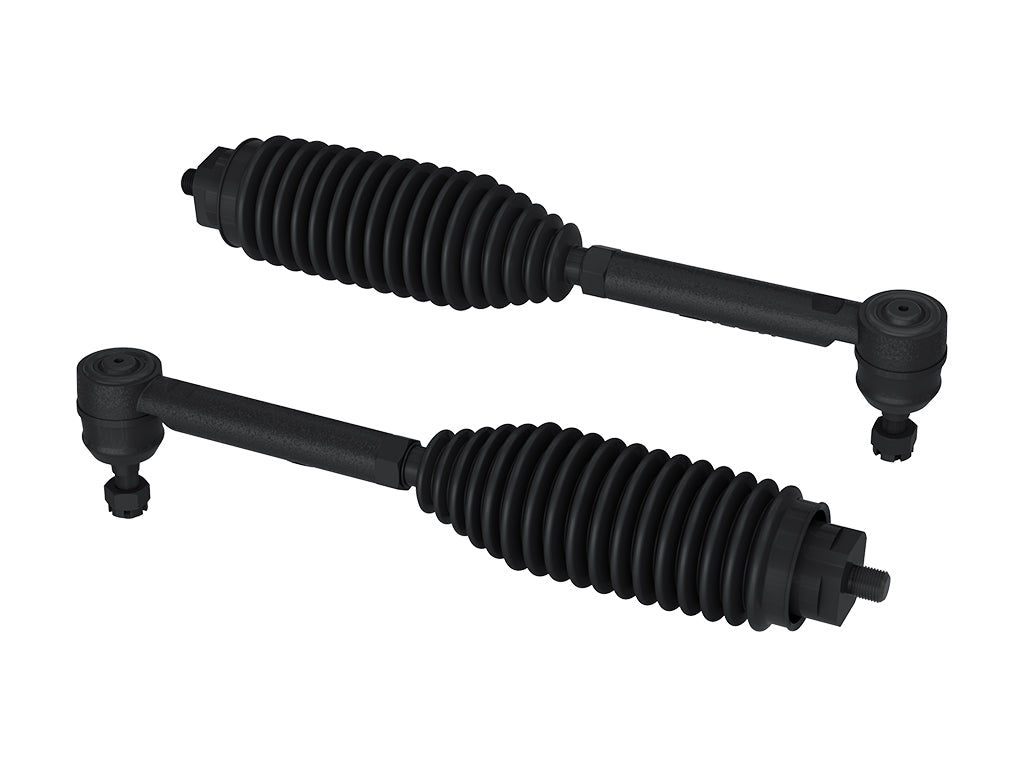

ICON Vehicle Dynamics 55157 Steering Tie Rod Assembly

ICON XD Forged Tie Rods offer significant increase in strength with better materials and beefier dimensions than the stock tie rods while also capable of same range of motion and offer same tire fitment as OE units.

The strength limitations of the 2005-2023 Toyota Tacoma's factory steering tie rods have been well documented over the years, especially by Tacoma owners who venture into the big rocks with big tires. These ICON XD Forged Tie Rods remedy this with better materials and beefier dimensions than the stock units. The inner tie rod and ball stud is CNC machined from 4140 chromoly with metal-on-metal bearing surfaces for durability that far exceeds the plastic inner races of the factory components. The adjustment threads are 12% larger in diameter compared than stock Tacoma tie rods for a further increase in strength. The outer tie rod is forged steel and has the same profile as the stock tie rods for fitting all of the Tacoma's factory wheel diameters and offsets, along with just about any aftermarket wheel. The tie rod end is a beefier, metal-on-metal joint that is greaseable for extended service life and has the same range of operating angle as the stock tie rod ends. For the most hardcore of off-roaders, the ICON XD Forged Tie Rod kit is recommended as part of a comprehensive steering system upgrade strategy.

Features

• 12% larger diameter than OE tie rods
• 4140 chromoly inner ball studs
• Forged steel outer tie rod ends
• Metal on metal ball joint design with grease zerks
• Design to fit around factory wheel off set
• Includes inner tie rod boots that protect the steering rack from dirt and debris
• Limited lifetime warranty

Specifications

Note: TECH NOTE: Will not fit 5-lug RWD Tacoma models, including X-Runner

Short Description: TIE ROD KIT

Invoice Description: 55157

Definition: Steering Tie Rod Assembly

Installation Guide: Download PDF

Warranty: Lifetime
