ICON Vehicle Dynamics 48602 - 21-23 BRONCO HOSS 2.0 PKG 2.5 FRONT EXP COILOVER
Regular price
$535.55 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Couldn't load pickup availability

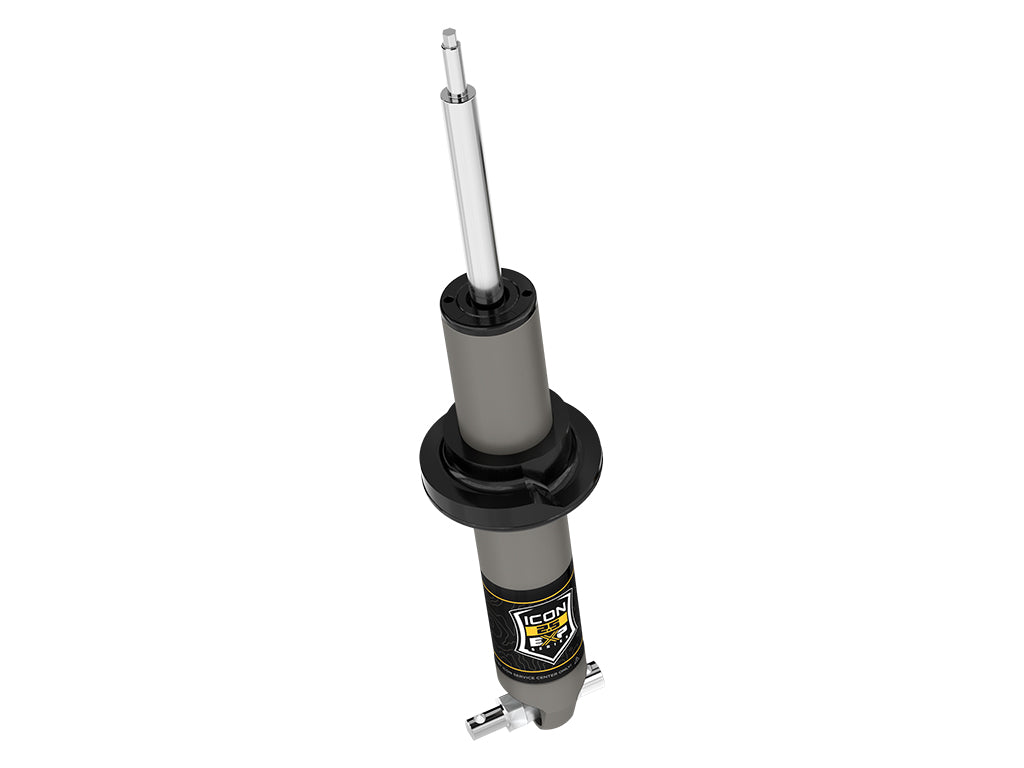

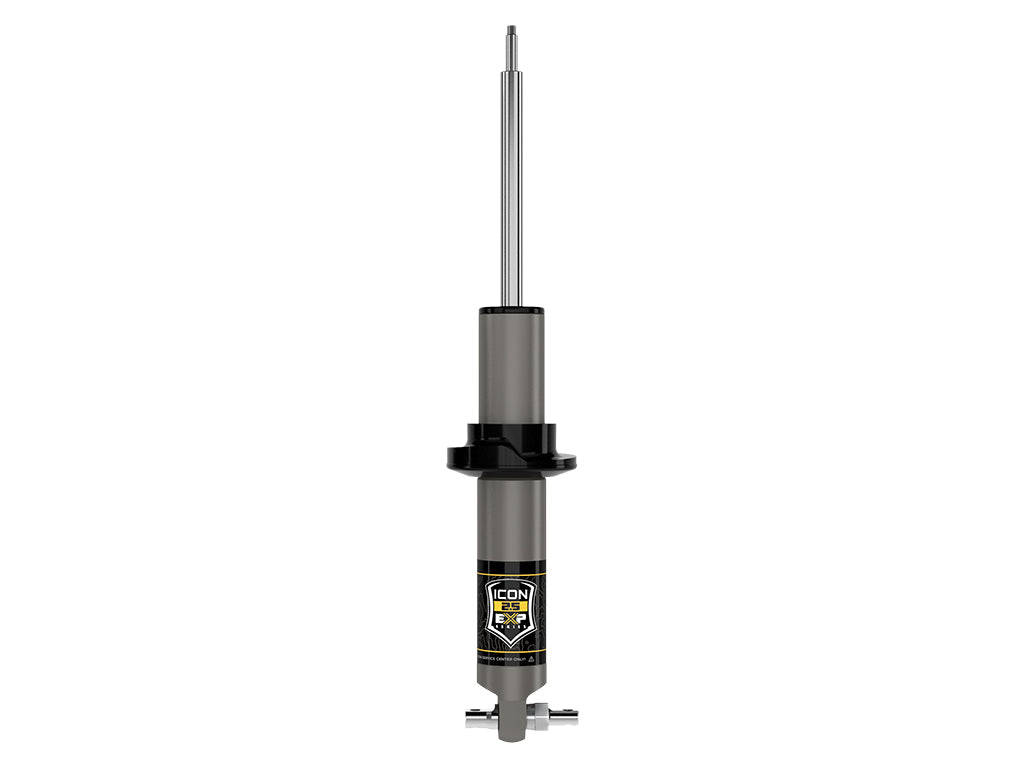

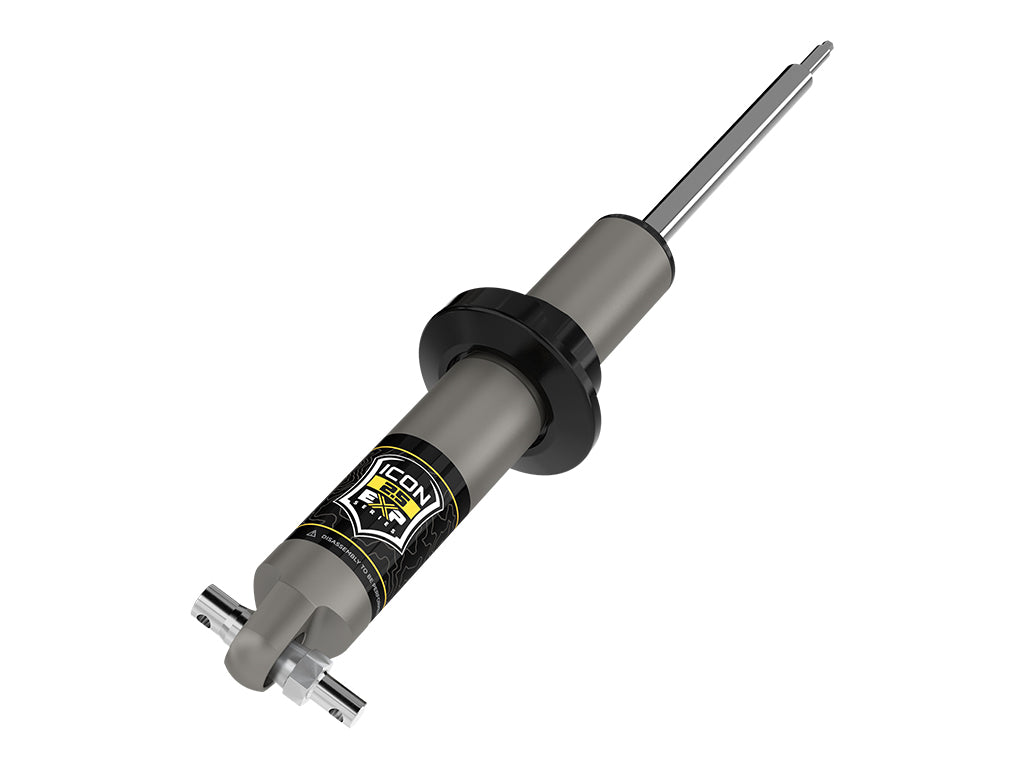

Based on ICON’s 2.5 Series, these EXP shocks bridge the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance, and maximum travel, all in one economical package.
The 2021-2023 Ford Bronco EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.
Features & Benefits
- Vehicle specific design for 2021-2023 Ford Bronco with HOSS. 2.0 Suspension Package
- High strength alloy CNC machined lower bar pin
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
- Vehicle specific tuned for superior shock damping and control
- 2.5 Aluminum Series Shock with Internal Reservoir
- Adjustable ride heights from 0-2” of front lift over stock with the use of snap ring
- Utilizes factory coil and coil hardware
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
- One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearing for extended longevity and minimal deflection
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Coil Over Springs Included | No |
| Active or Passive Suspension | Passive |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Add-On Part | 611082 - EXP 1" SHAFT BUMP EXTENSION |
| Add-On Part | 48500DJ - 21-23 BRONCO BILLET UCA DJ PRO KIT |
| Add-On Part | 42000 - 21-23 BRONCO HIGH CLEARANCE CRASH BAR KIT |
| Add-On Part | 45212 - 21-23 BRONCO XD TIE ROD KIT |
| Add-On Part | 48400DJ - 21-23 BRONCO TUBULAR UCA DJ PRO KIT |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | No |
| Body Diameter | 2.5 IN |
| Coil Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Compressed Length | 16.93 IN |
| Cylinder Color | Gray |
| Cylinder Finish | Hard Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2.5 IN |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 23.5 IN |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | BAR PIN |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 2 IN |
| Maximum Ride Height Raising Distance | 2 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | (Without Sasquatch Package): 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packages require trimming and modifications) |
| Recommended Aftermarket Tires | (With Sasquatch Package): 35" x 12.50" (37" tire packages may require fender trimming and modifications) |
| Recommended Aftermarket Wheels | (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset |
| Recommended Aftermarket Wheels | (With Sasquatch Package): ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | (With Sasquatch Package): ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Flat on Bar Pin |
| Title | ICON 2021-2023 Ford Bronco, Hoss 2.0 Pkg, Front, 0-2” Lift, 2.5 EXP Series Coilover |
| Travel Length | 6.57 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Installation Guide: Download PDF
