ICON Vehicle Dynamics 48612 - 21-23 BRONCO HOSS 2.0 PKG 2.5 REAR EXP COILOVER

Based on ICON’s 2.5 Series, these EXP shocks bridge the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance, and maximum travel, all in one economical package.

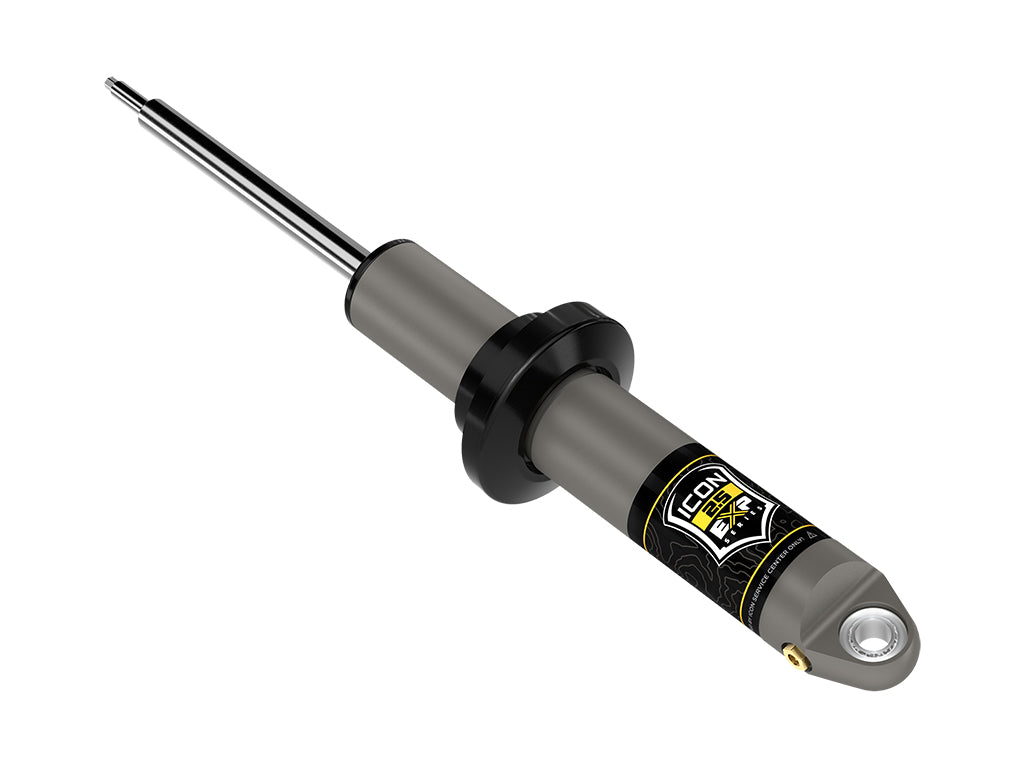

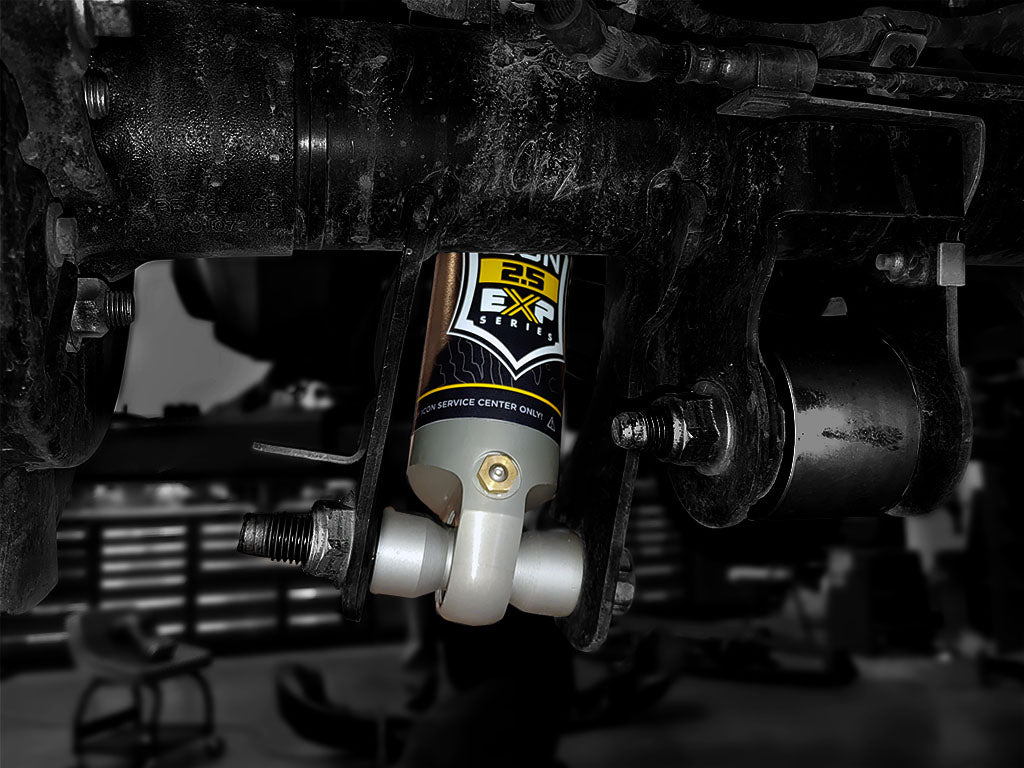

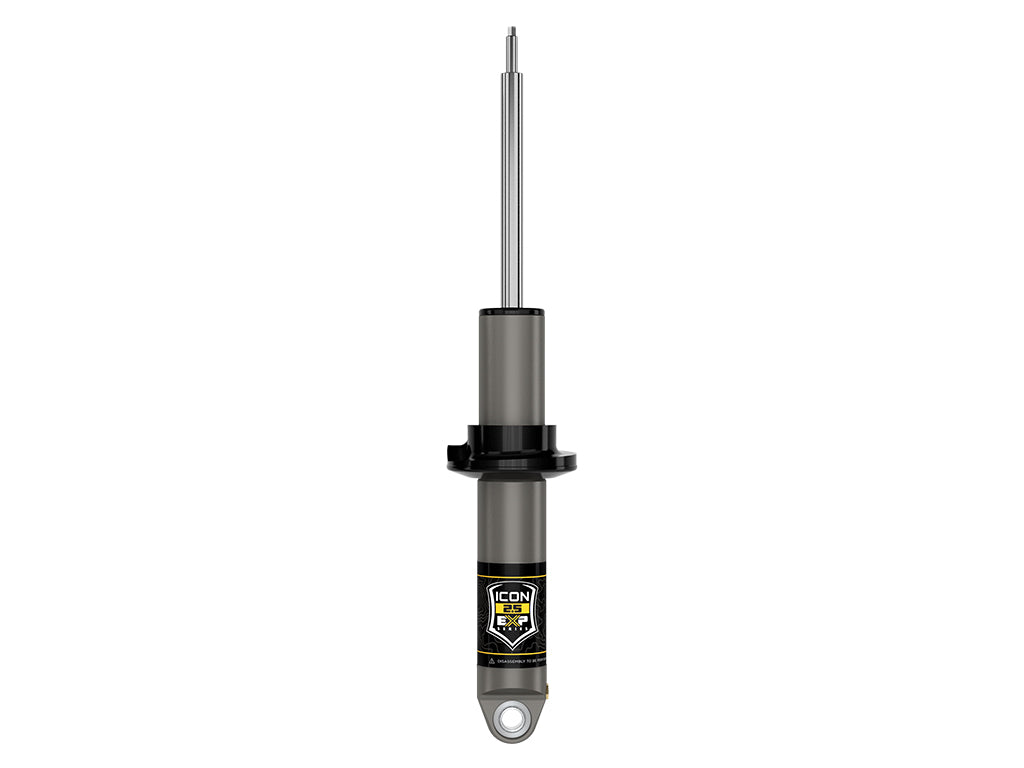

The 2021-2026 Ford Bronco EXP Series rear shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Bronco’s OE upper shock and spring mounts. The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically design for fit each of the Bronco model’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable rear-end ride height adjustment from 0” to 1.75” of lift over stock on Bronco’s equipped with the OE HOSS 2.0 suspension package. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON. HOSS 2.0 is Ford's upgraded suspension system for Broncos of the Base, Big Bend, Outer Banks and Black Diamond trim levels WITH the optional Sasquatch package, and it is also standard on Badlands, Wildtrak, First Edition and Everglades. HOSS 2.0 is most easily identified by the YELLOW shock bodies of the OE shocks.

Features

• Vehicle specific design for 2021-2026 Ford Bronco with HOSS. 2.0 Suspension Package
• 100% Bolt-on - no cutting or welding necessary for installation
• Fully rebuildable and re-tunable
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-1.75” of rear lift over stock with the use of snap ring

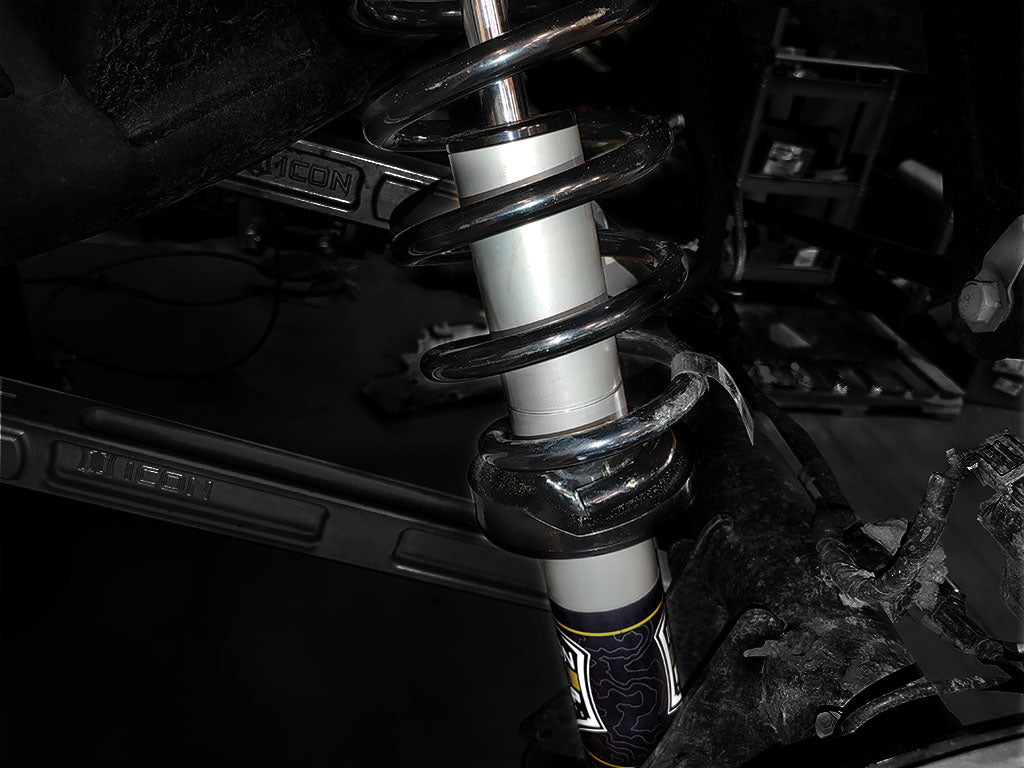

• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection

Specifications

Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset Recommended Aftermarket Tires: 35" x 12.50" (37" tire packages may require fender trimming and modifications) APPLICATION NOTE #10: Will not fit Bronco Raptor APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #270: Only fits Ford Broncos equipped with HOSS 2.0 Suspension Package TECH NOTE: EXP Coilovers are sold individually. A quantity of 2 are required per vehicle.

Short Description: EXP COILOVER

Invoice Description: 48612

Definition: Coilover

Installation Guide: Download PDF

Warranty: 1 Year
