ICON Vehicle Dynamics 48710E - 21-23 BRONCO REAR 2.5 VS RR CDEV COILOVER KIT

These ICON coilovers feature 2.5 Series shocks and coil springs optimized per application. These hardcore units are outfitted with remote reservoirs to stay cooler during intense wheeling and ICON’s CDEV for active compression adjustment

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDEV are the ideal upgrade for the rear end of the 2021-2026 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These rear coilovers feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. Their shaft up orientation requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. ICON 2.5 Series front coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

Features

• Increased wheel travel (up to 14”) and ride quality over stock
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

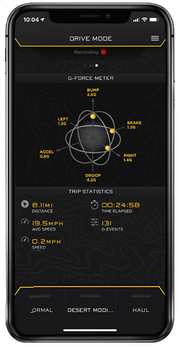

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos
• Unique ICON engineered triple rate coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft

Specifications

Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle APPLICATION NOTE #66: 2 door models will sit taller than 4 door models APPLICATION NOTE #133: When Running 37" Tires Use Up Travel Limiter's Part #611074 For The Rear APPLICATION NOTE #136: When Running ICON Tubular Lower Links Use Part #611073 APPLICATION NOTE #137: When Running Factory Lower Links Use Part #611072 APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #186: Rear reservoir brackets may interfere with some aftermarket step or rock slider mounts. Modifications may be required. APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app APPLICATION NOTE #204: Also requires installation of applicable IIC kit and CDEV front shocks APPLICATION NOTE #271: Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset APPLICATION NOTE #272: Lift height ranges advertised are for 4-door models. 2-door models will net approximately .5" of additional rear lift over stock. Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers) Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers) APPLICATION NOTE #10: Will not fit Bronco Raptor

Short Description: CDEV COILOVER KIT

Invoice Description: 48710E

Definition: Coilover Set

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

Warranty: 1 Year-Shocks, Limited Lifetime-Coil Springs
