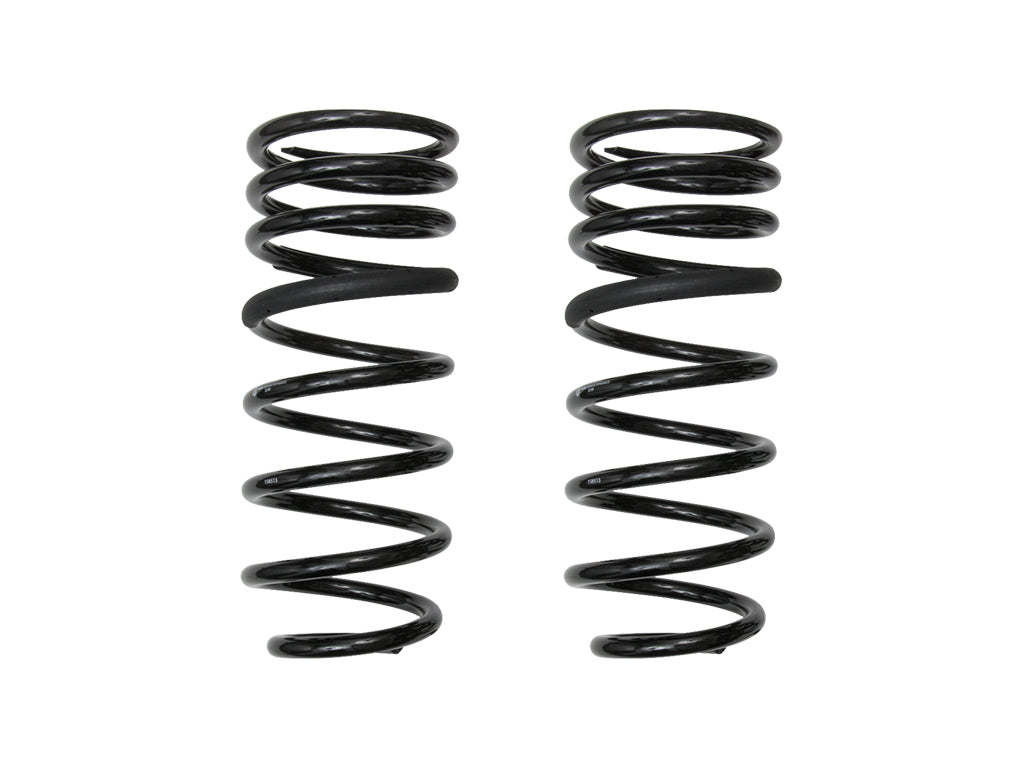

ICON Vehicle Dynamics 51213 Coil Spring Set
Product Availability Request
Fill the form and our team will contact you.
The ICON triple-rate coil springs provide a softer ride and droop rates with firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.
ICON Triple Rate rear coil springs for 2024-2025 Toyota Tacoma provide a modest increase in ground clearance while greatly enhancing on- and off-road performance, especially when used with ICON shocks and suspension components. The triple-rate coil design provides softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance while providing .5" of rear lift over stock. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage allow you to drive with confidence in knowing that you have the best suspension products available for the 2024-2025 Toyota Tacoma.
Features
- .5" rear lift height over stock
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- Significantly improves on- and off-road ride quality and performance over stock
- Dual stage powder coating for corrosion resistance
- Lifetime guarantee against sagging/breakage
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Maximum Lift Height | 0.5 IN |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Spring Color | Black |
| Rear Spring Seat Included | No |
| Bump Stops Included | No |
| Grade Type | Performance |
| Finish | Powdercoated |
| Rear Spring Rate Type | Progressive Triple Rate |
| Spring Material | Steel |
| Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| California Prop 65 Warning | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Add-On Part | 54202 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BAR |
Note: Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5.75" Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 6" Backspace / 25mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range. APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
Short Description: COIL SPRING KIT
Invoice Description: 51213
Definition: Coil Spring Set
Installation Guide: Download PDF
Warranty: Lifetime
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2024-2026 | Toyota | Tacoma | Limited |
| 2024-2026 | Toyota | Tacoma | SR5 |
| 2024-2026 | Toyota | Tacoma | TRD Off-Road |
| 2026 | Toyota | Tacoma | TRD Offroad |
| 2025-2026 | Toyota | Tacoma | TRD Sport Premium |
| 2024-2026 | Toyota | Tacoma | TRD Sport |
6 applications listed.
