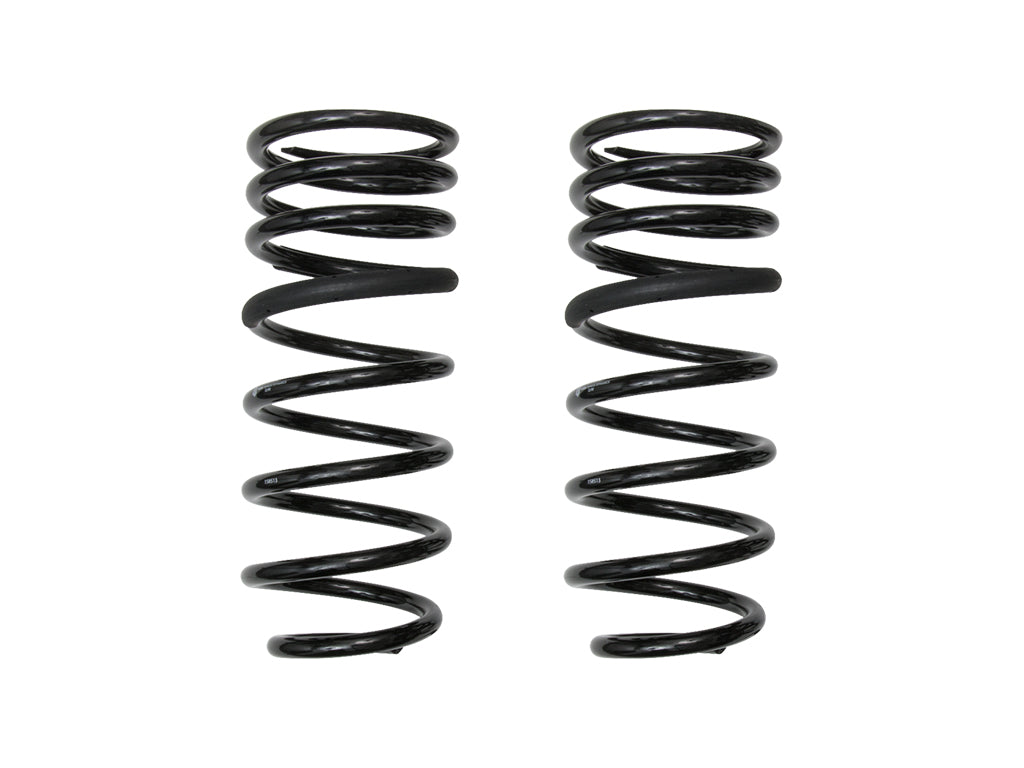

ICON Vehicle Dynamics 51215 Coil Spring Set
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
The ICON triple-rate coil springs provide a softer ride and droop rates with firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.
ICON Dual Rate Overland rear coil springs for 2024-2025 Toyota Tacoma provide a modest increase in ground clearance on heavier Tacoma builds while also greatly enhancing on- and off-road performance, especially when used with ICON shocks and suspension components. Their dual rate coil design provides a softer ride rate with a firmer overload rate that combine to deliver on-road comfort with excellent load support, bottoming resistance, and superior off-road performance. These springs are designed to net .5" of rear lift over stock with approximately 600lbs of additional weight added to the rear, for a more aggressive stance and increased fender clearance for larger wheels and tires on more outfitted vehicles. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage allow you to drive with confidence in knowing that you have the best suspension products available for the 2024-2025 Toyota Tacoma.
Features
- .5" rear lift height over stock with 600lbs of additional weight in the rear
- Dual rate rear coil springs with ICON-engineered ride and overload rates
- Significantly improves on- and off-road ride quality and performance over stock
- Dual stage powder coating for corrosion resistance
- Lifetime guarantee against sagging/breakage
Specifications
| Maximum Lift Height | 0.5 IN |
| AAP_UDA_22 | 1 |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| AAP_UDA_4 | 55 |
| Spring Color | Black |
| Color | Black |
| AAP_UDA_12 | EA |
| Rear Spring Seat Included | No |
| Bump Stops Included | No |
| Grade Type | Performance |
| Finish | Powdercoated |
| Rear Spring Rate Type | Progressive Dual Rate |
| Spring Material | Steel |
| Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| California Prop 65 Warning | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Add-On Part | 54202 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BAR |
Note: Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5.75" Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 6" Backspace / 25mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required. APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs APPLICATION NOTE #191: Advertised lift height ranges are for a vehicle with approx 600lbs of additional weight in rear. Increasing or decreasing weight of vehicle due to accessories will alter lift range.
Short Description: COIL SPRING KIT
Invoice Description: 51215
Definition: Coil Spring Set
Installation Guide: Download PDF
Warranty: Lifetime
