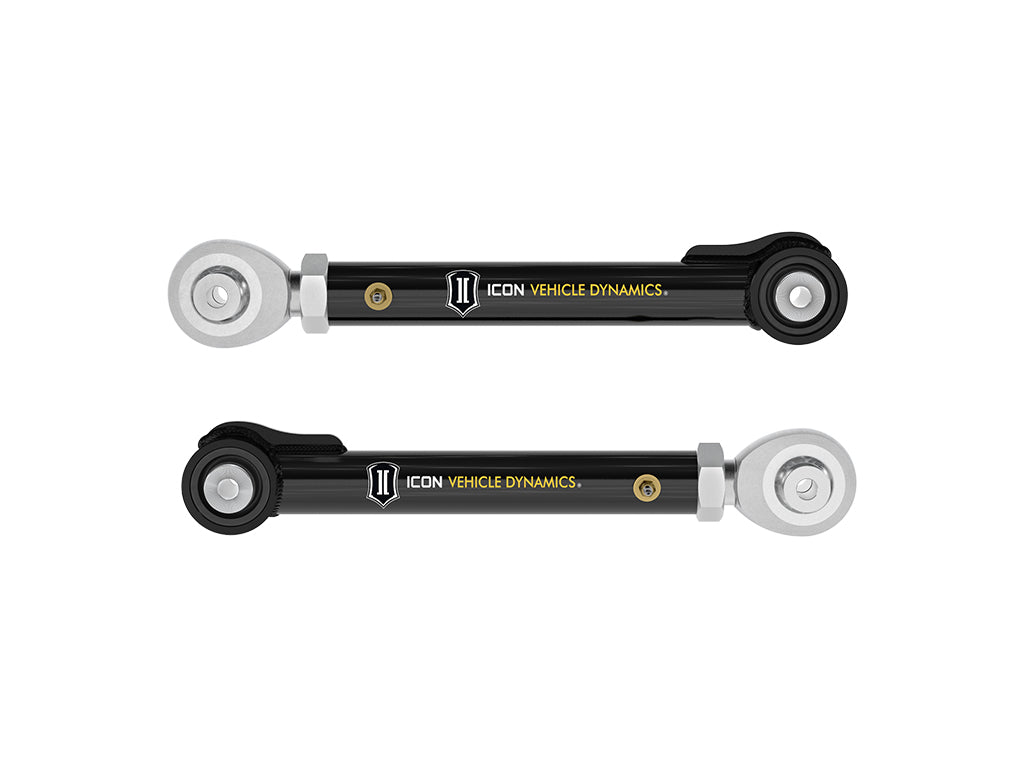

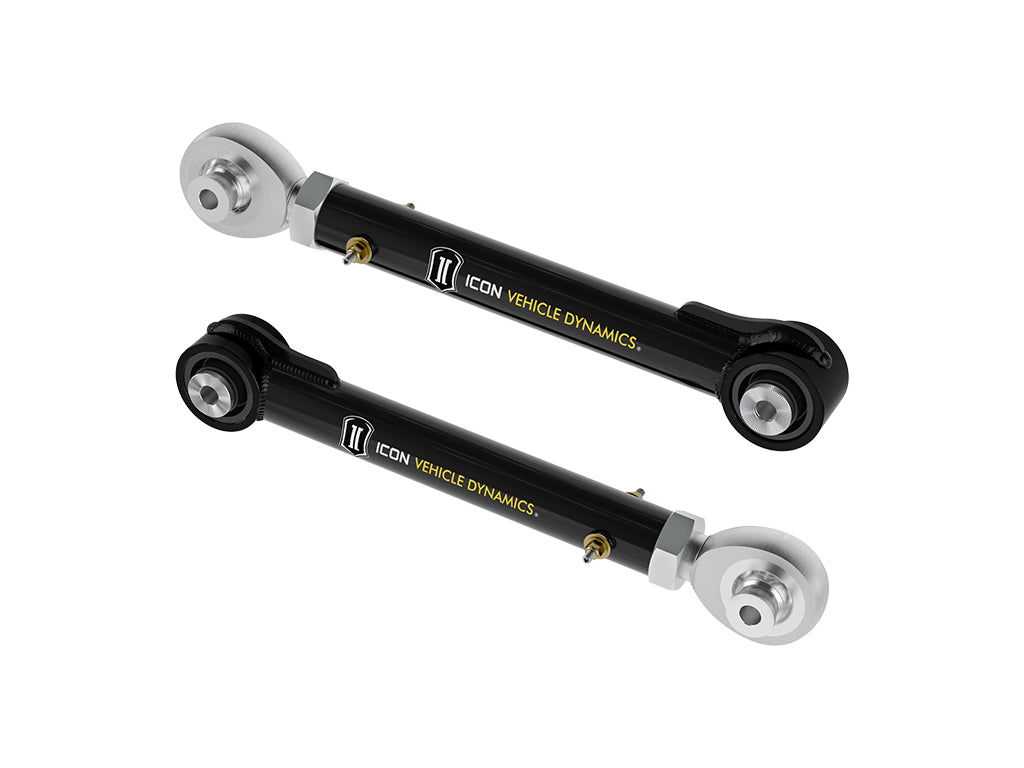

The ICON Tubular Rear Upper Link System helps free up rear axle movement to allow for increased suspension travel and articulation. Formed using DOM steel tubing for high strength, with CNC machined threaded ends and bushing housings.
The ICON Tubular Rear Upper Link System helps free up rear axle movement on the 2022-2025 Toyota Tundra, 2023-2025 Toyota Sequoia, 2024-2025 Toyota Tacoma, 2024-2025 Toyota Land Cruiser 250 Series, 2025 Toyota 4Runner, and the 2024-2025 Lexus GX550 to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These upper links are designed with massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
Features & Benefits
- Adjustable for various lift heights & driveline angles
- Help free rear suspension bind compared to OE links
- CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish
- Multi durometer bushings for noise free operation and maximum angularity
- No grease required for life of bushings
- Quality JM16T PTFE-lined FK Rod Ends
- Fabricated components covered under ICON's Limited Lifetime Warranty
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Control Arm Color | Black |
| Color | Black |
| End 1 Type | Bushing |
| Control Arm Material | DOM Steel |
| Material | DOM Steel |
| Pre-Greased | No |
| Grease Fitting Included | No |
| Mounting Bracket Included | No |
| Attachments Included | No |
| Quantity | Pair |
| Suspension Grade Type | Performance |
| Grade Type | Performance |
| Bushing Material | Polyurethane |
| Finish | Powdercoated |
| Bushing Material | Rod End Bearing |
| End 2 Type | Rod End Bearing |
| Ball Joint Mounting Type | Thread in |
| Ball Joint Stud Type | Threaded |
| Construction | Tubular |
| Control Arm Construction | Tubular |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Pre-Assembled | Yes |
| Reinforced | Yes |
| Bushings Included | Yes |
| Ball Joint Included | Yes |
| Mounting Hardware Included | Yes |
| Adjustable | Yes |
| Adjustable Control Arm | yes |
| Set | Yes |
| Title | ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/Toyota Land Cruiser 250 Series/Lexus GX550/2025 Toyota 4Runner, Rear, Tubular Upper Link Kit |
| Add-On Part | 55161 - 24-25 LC250/24-25 GX550 REAR UPPER LINK SENSOR BRACKET KIT |
| Add-On Part | 54003T - 24-25 LC250/24-25 GX550/25 4RUNNER TUBULAR REAR LOWER LINK KIT |
| Add-On Part | 54002T - 22-25 TUNDRA/23-24 SEQUOIA/24-25 TACOMA TUBULAR REAR LOWER LINK KIT |
| Add-On Part | 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT |
| Bushing Color | Black |
| Bushing Color | Silver |
| Suspension Type | Coil Spring |
| Suspension Type | Air |
