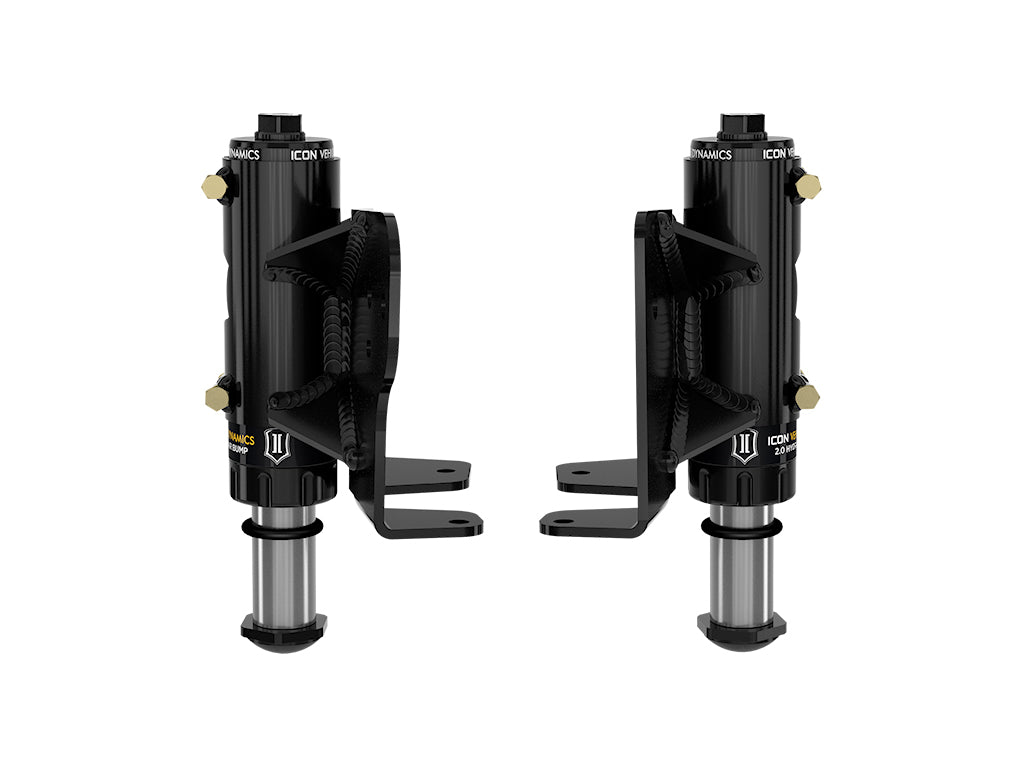

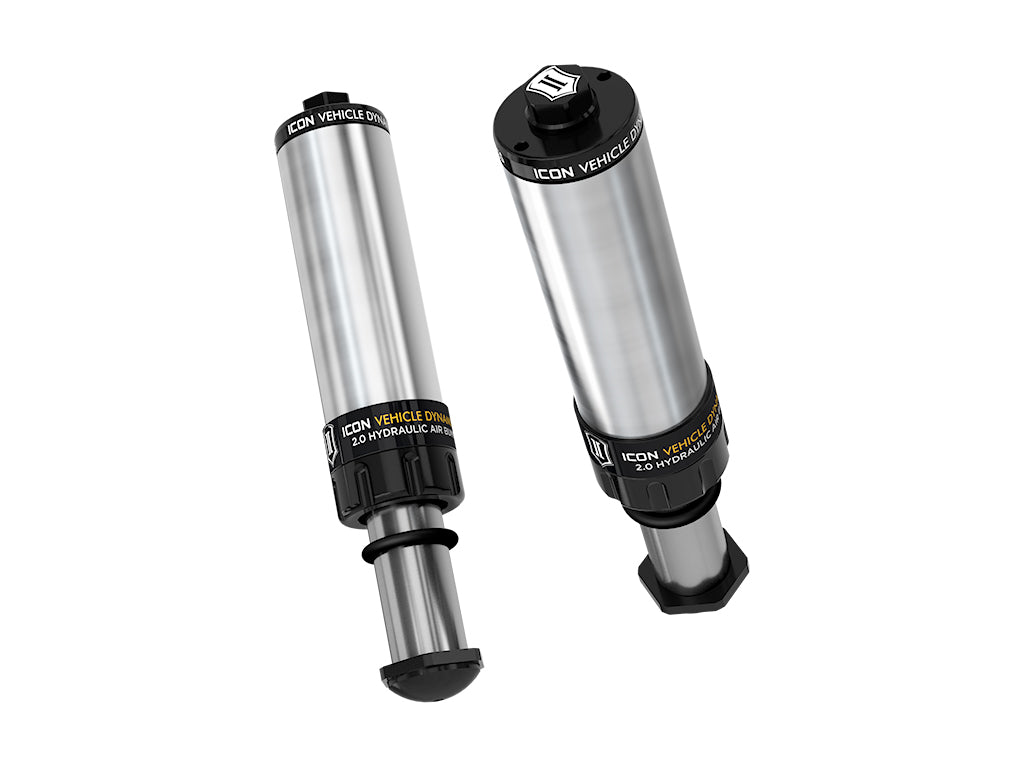

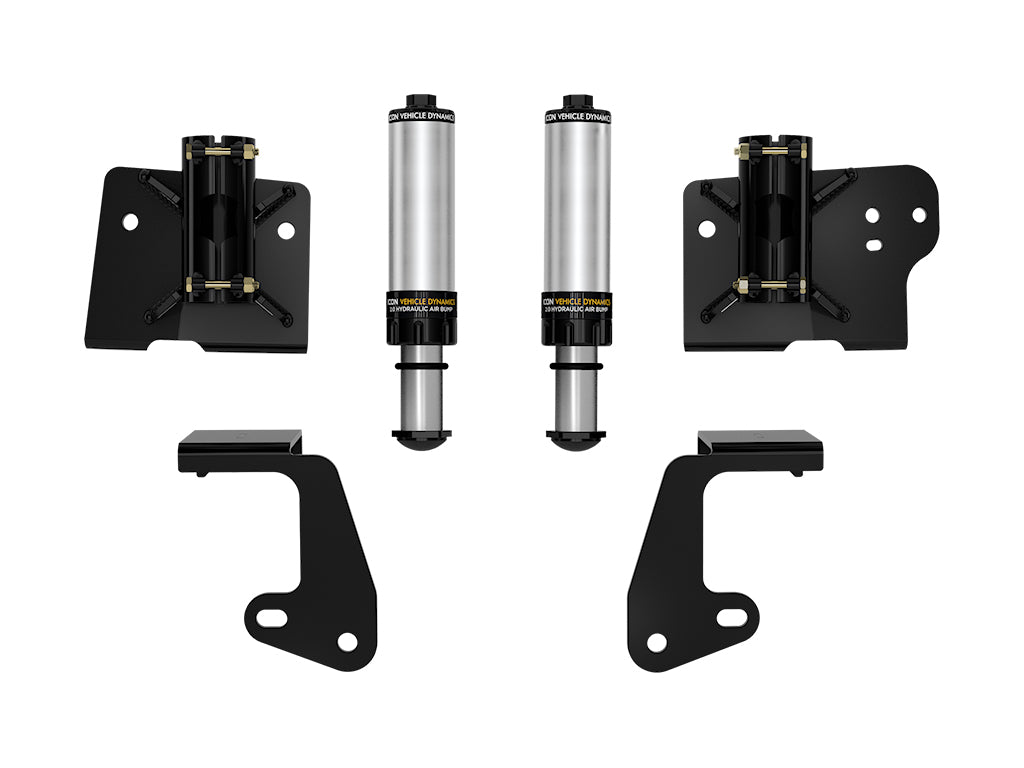

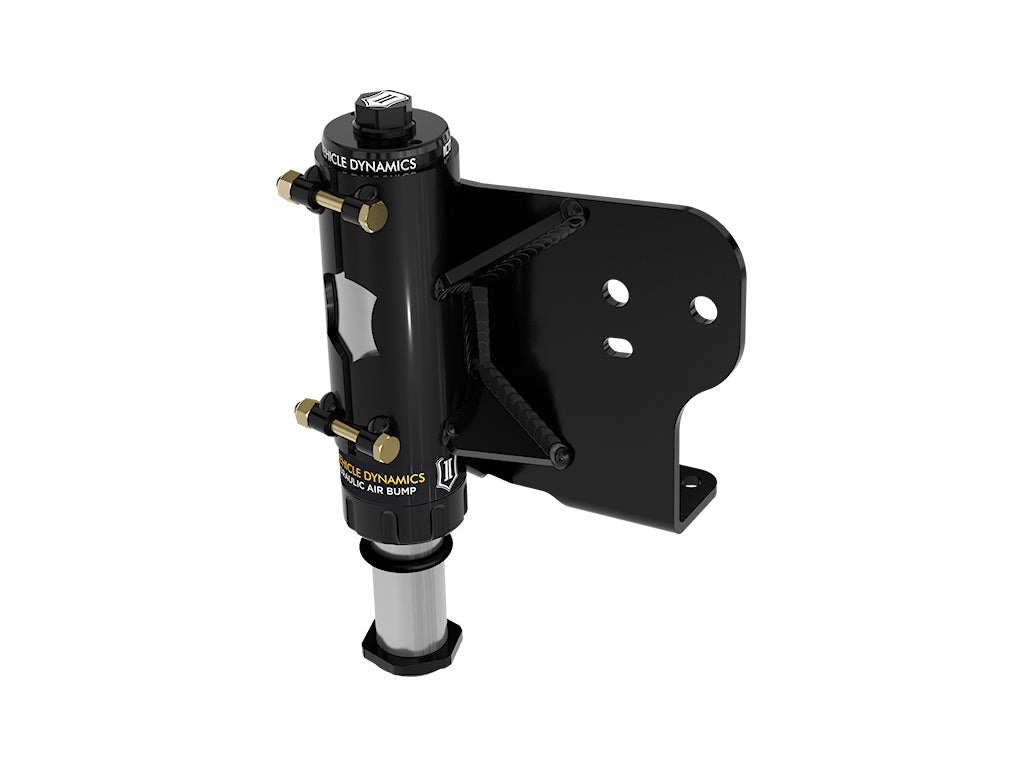

ICON Vehicle Dynamics 56115 - 22-24 TUNDRA 3.5" REAR HYD BUMP STOP KIT

The ICON 2022-2026 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick.

While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2022-2026 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation. This hydraulic bump stop system was developed as an OEM replacement, making installation a simple and straightforward bolt-on affair. With no major cutting, welding, or fabrication required you have the option to return the vehicle back to its stock form. The factory rubber bump stops have a limited energy absorption capacity and a rapid release of this energy upon rebound – This translates into a harsh ride and poor handling in rough terrain. ICON hydraulic bump stops absorb and release this energy in a much more controlled manner due to the digressive rebound piston valving, resulting in predictable handling and vehicle dynamics.

Features

• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• Fully serviceable
• Fully reversible to factory configuration with no bed cutting required
• 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• Position and velocity sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• Heavy duty 1 ¼” CNC machined nitro steel shaft
• Multi stage CAD plated body for maximum corrosion resistance
• Double sealed high pressure Schrader valve
• Replaceable noise reducing striker pad

Specifications

Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension. APPLICATION NOTE #394: Compatible with 3-5" of rear lift on models equipped with rear coil springs without TRD package. APPLICATION NOTE #395: Compatible with 3-4.5" of rear lift on models equipped with rear coil springs with TRD package, or TRD Pro. APPLICATION NOTE #396: Compatible with ICON 6" Lift Performance Suspension System. For shorter lift height compatibility, use part number 56111.

Short Description: BUMP STOP KIT

Invoice Description: 56115

Definition: Suspension Bump Stop Kit

Installation Guide: Download PDF

Warranty: No Warranty
