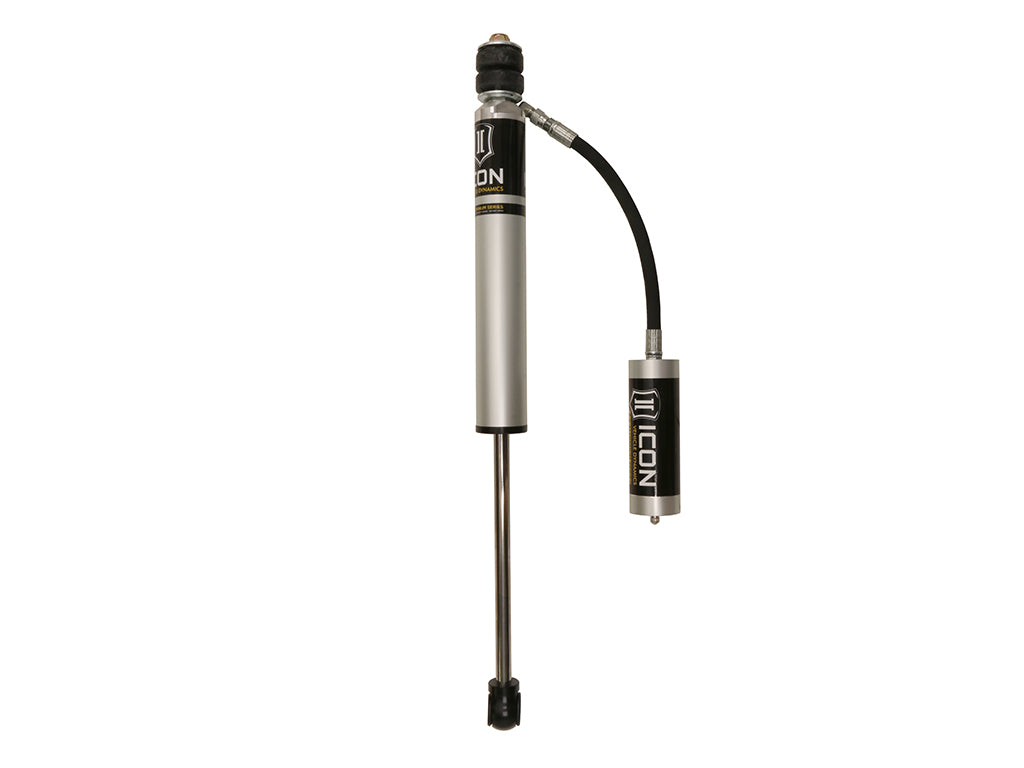

ICON Vehicle Dynamics 56515R - 05-23 TACOMA 4WD 1.5-3" REAR 2.0 RR
Product Availability Request
Fill the form and our team will contact you.
ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved performance. They feature remote reservoirs, are vehicle specific, and 100% rebuildable/revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features & Benefits
- Nitrogen charged monotube design with remote reservoir
- 100% revalveable
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- Application-specific reservoir mounting hardware
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Ride Height | No |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Included | Yes |
| Adjustable | No |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Rubber |
| Bushing Material | Polyurethane |
| Rod Diameter | .625 IN |
| Shaft Diameter | 0.625 IN |
| Cylinder Outside Diameter | 2 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Material | Aluminum |
| Finish | Anodized |
| Cylinder Finish | Anodized |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Lower Mount Type | Eyelet |
| Cylinder Color | Gray |
| Title | ICON 2005-2023 Toyota Tacoma, 1.5-3" Lift, Rear, 2.0 Aluminum Series Remote Reservoir Shock |
| Color | Light Grey |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Damping Type | Oil |
| Grade Type | Performance |
| Dust Shield Material | Rubber |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Internal Construction Type | Single Tube |
| Suspension Type | Spring |
| Upper Mount Type | Stem |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| Dust Shield Included | Yes |
| Remote Reservoir | Yes |
| Internal Rebound Bumper | Yes |
| Dust Boot Included | Yes |
| External Reservoir | Yes |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Valving Type | Linear |
| Valving Type | Digressive |
| Cylinder Material | Aluminum |
| Shaft Material | Chrome |
Installation Guide: Download PDF
