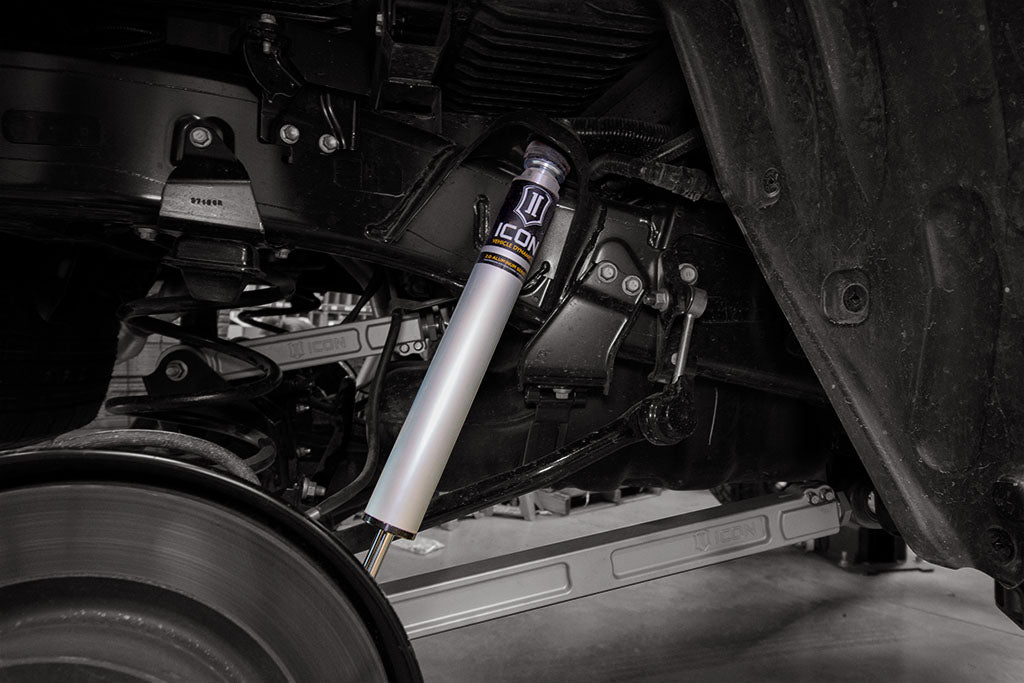

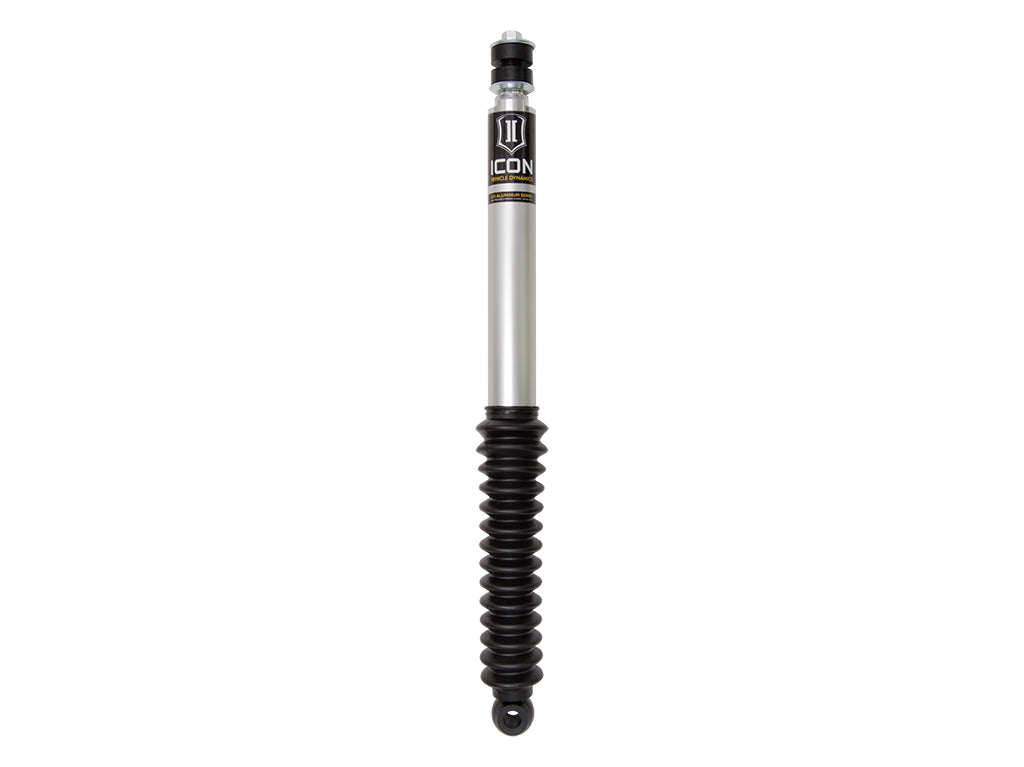

ICON Vehicle Dynamics 56516 - 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 2.0 VS IR
Couldn't load pickup availability
ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features & Benefits
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- Fully rebuildable and re-tunable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Included | Yes |
| Adjustable | No |
| Adjustable Damping | No |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Bushing Material | Rubber |
| Cylinder Outside Diameter | 2 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Finish | Anodized |
| Cylinder Finish | Anodized |
| Lower Mount Type | Eyelet |
| Cylinder Color | Gray |
| Internal Rebound Spring | No |
| Coil Spring Insulator(s) Included | No |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Dust Shield | No |
| External Reservoir | NO |
| Damping Type | Oil |
| Grade Type | Performance |
| Configuration | Performance |
| Dust Shield Material | Rubber |
| Internal Construction Type | Single Tube |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Gas Charged | Yes |
| Dust Shield Included | Yes |
| Internal Rebound Bumper | Yes |
| Dust Boot Included | Yes |
| Color | Gray |
| Material | Steel |
| Material | Aluminum |
| Minimum Ride Height Raising Distance | 0 IN |
| Quantity | 1 |
| Mounting Hardware Included | No |
| Remote Reservoir | No |
| Rod Diameter | .625 IN |
| Shaft Diameter | 0.625 IN |
| Shock Absorber Bore Size | 1.75 IN |
| Service Parts | 202002 - 2.0 IFP REBUILD KIT |
| Suspension Type | Air |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Valving Type | Digressive |
| Title | ICON 2022-2025 Toyota Tundra, 0-1.5" Lift/2023-2025 Sequoia, 0-4" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Internal Reservoir |
| Reservoir Type | Internal |
| Valving Type | Linear |
| Self-Leveling | No |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Suspension Type | Spring |
| Upper Mount Type | Stem |
| Color | Black |
| Color | Silver |
| Cylinder Material | Aluminum |
| Shaft Material | Chrome |
Installation Guide: Download PDF
