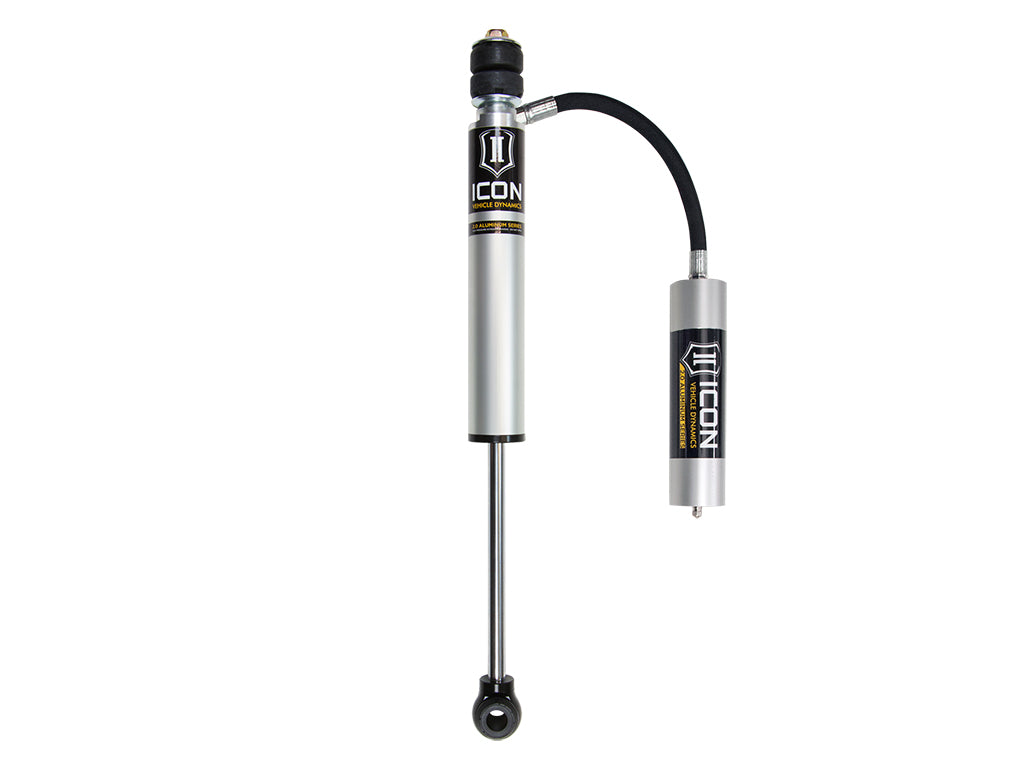

ICON Vehicle Dynamics 56518R - 24-25 TACOMA 0-1" REAR 2.0 VS RR
Product Availability Request
Fill the form and our team will contact you.
ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Aluminum Series shock to handle extra abuse and punishment your suspension will need to endure.
Features
- Nitrogen charged monotube design with remote reservoir
- Rubber dust boot included for added shaft protection
- Fully rebuildable and re-tunable
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- 5/8β chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrile rubber top out bumper for noise free operation
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Color | Gray |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Color | Silver |
| Color | Gray |
| Color | Black |
| Compressed Length | 16.1 IN |
| Cylinder Color | Gray |
| Cylinder Finish | Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2 IN |
| Damping Type | Oil |
| Dust Shield | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Extended Length | 25.5 IN |
| External Reservoir | Yes |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Boot Color | Black |
| Boot Included | Yes |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Rubber |
| Bushing Material | Polyurethane |
| Hydraulic Lockout | No |
| Lower Mount Sleeve Overall Length | 1.825 IN |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Material | Aluminum |
| Material | Steel |
| Maximum Ride Height Raising Distance | 1 IN |
| Minimum Ride Height Raising Distance | 0 IN |
| Mounting Hardware Included | Yes |
| Quantity | 1 |
| Remote Reservoir | Yes |
| Reservoir Diameter | 2 IN |
| Reservoir Hose Inside Diameter | .25 IN |
| Reservoir Hose Length | 21 IN |
| Reservoir Length | 8 IN |
| Reservoir Type | Remote |
| Rod Diameter | .625 IN |
| Self-Leveling | No |
| Service Parts | 202003 - 2.0 REMOTE RESI REBUILD KIT |
| Shaft Diameter | 0.625 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Bore Size | 1.75 IN |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Shock Stroke | 9.4 IN |
| Suspension Type | Spring |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Internal Rebound Spring | No |
| Lower Mount Bushing Inside Diameter | .75 IN |
| Lower Mount Bushing Overall Length | 1.825 IN |
| Lower Mount Sleeve Inside Diameter | .75 IN |
| Travel Length | 9.4 IN |
| Type | Telescopic |
| Upper Mount Stem Overall Length | 2.5 IN |
| Upper Mount Stem Thread Size | M12 - 1.25 |
| Upper Mount Type | Stem |
| Valving Type | Digressive |
| Valving Type | Linear |
Note: APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle. APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs APPLICATION NOTE #295: Shocks sold individually. A quantity of 2 are required per vehicle. APPLICATION NOTE #451: Rear shocks are compatible with 0-1β of rear lift over stock
Short Description: SHOCK ABSORBER
Invoice Description: 56518R
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: 1 Year
Shipping Information
Free shipping is available for eligible orders.
Shipping: For USA - Up to 50lbs.
Orders are processed during normal business days. Delivery dates may vary by carrier and destination.
