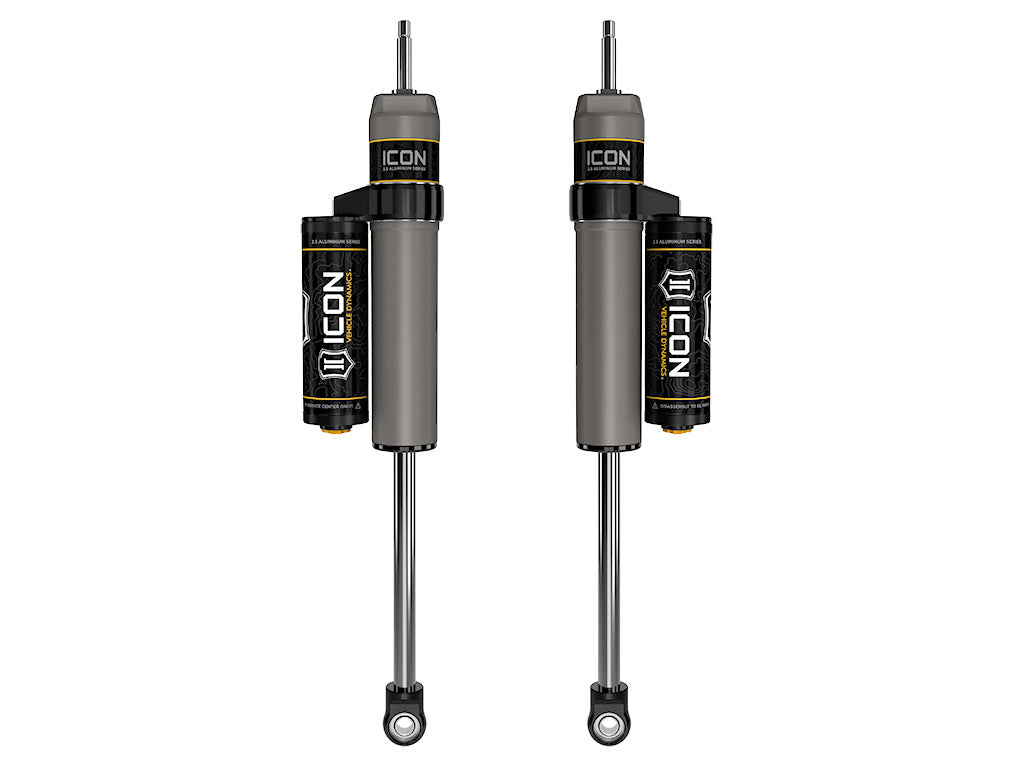

ICON Vehicle Dynamics 57725P - 08-UP LC 200 0-2" REAR 2.5 VS PB PAIR
Couldn't load pickup availability
2008-UP LAND CRUISER 200 SERIES 0-2" LIFT REAR 2.5 VS PIGGYBACK SHOCK PAIR
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.
Features & Benefits
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 100% Rebuildable
- 100% Revalveable
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- Nitrogen charged monotube design with piggyback reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- 6061 aircraft grade aluminum CNC machined components
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Adjustable | NO |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| Shaft Diameter | 0.875 IN |
| Title | 08-UP LC 200 0-2" REAR 2.5 VS PB PAIR |
| Tube Outside Diameter | 2.5 IN |
| Fully Open Length | 24.34 IN |
| Cylinder Material | Aluminum |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Shaft Material | Chrome |
| Lower Mount Type | EYELET |
| Damping Type | Oil |
| Grade Type | Performance |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Cylinder Color | Silver |
| Upper Mount Type | Stem |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| External Reservoir | Yes |
| Service Parts | 611007 - 9/16 MEDIUM DUTY STEM BUSHING KIT |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
