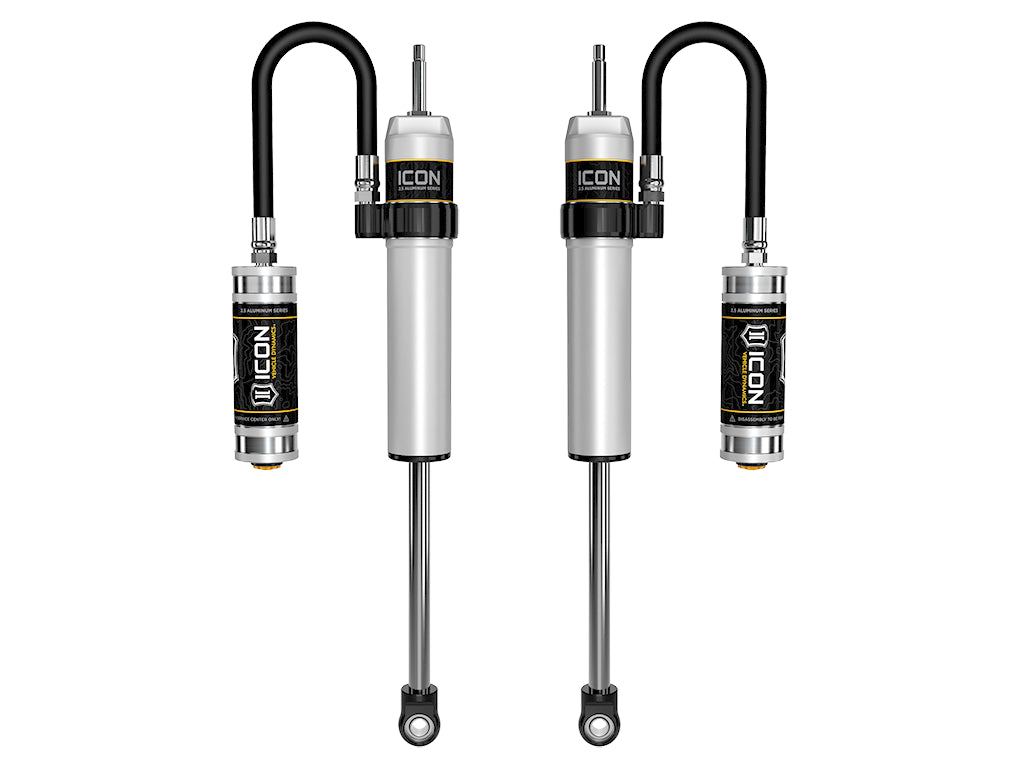

ICON Vehicle Dynamics 57805P - 05-23 TACOMA 0-1.5" REAR 2.5 VS RR PAIR

Name: ICON Vehicle Dynamics 57805P - 05-23 TACOMA 0-1.5" REAR 2.5 VS RR PAIR
Brand: ICON
SKU: 57805P
Price: 1226.20 USD
Availability: InStock

$1,226.20 USD

Backorder Available

Free shipping — For USA - Up to 50lbs.

90-day returns — free, no restocking fees

Check warranty — from description

ICON 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.

Features & Benefits

One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
6061 aircraft grade aluminum CNC machined components
100% Rebuildable
100% Revalveable
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
PTFE lined spherical bearings and application specific mounting hardware
7/8” diameter induction hardened, chrome plated shock shaft
Nitrogen charged monotube design with remote reservoir
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)

Specifications

AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable Damping	No
Boot Included	NO
Bore Diameter	2.25 IN
Shaft Diameter	0.875 IN
Tube Outside Diameter	2.5 IN
Cylinder Diameter	2.5 IN
Cylinder Material	Aluminum
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Shaft Material	Chrome
Lower Mount Type	EYELET
Cylinder Color	Gray
Title	ICON 2005-2023 Toyota Tacoma, 0-1.5” Lift, Rear, 2.5 VS Remote Reservoir Shocks, Pair
Damping Type	Oil
Grade Type	Performance
Shock Absorber Body End Measuring Point	Shoulder of Stem
Upper Mount Type	Stem
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included	Yes
Gas Charged	Yes
External Reservoir	Yes
Add-On Part	252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT
Service Parts	191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts	252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts	257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
Service Parts	252001 - 2.5 FIXED SPANNER WRENCH
Service Parts	252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts	611007 - 9/16 MEDIUM DUTY STEM BUSHING KIT
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
