ICON Vehicle Dynamics 57823P - 07-21 TUNDRA RXT REAR 2.5 VS RR PAIR
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.

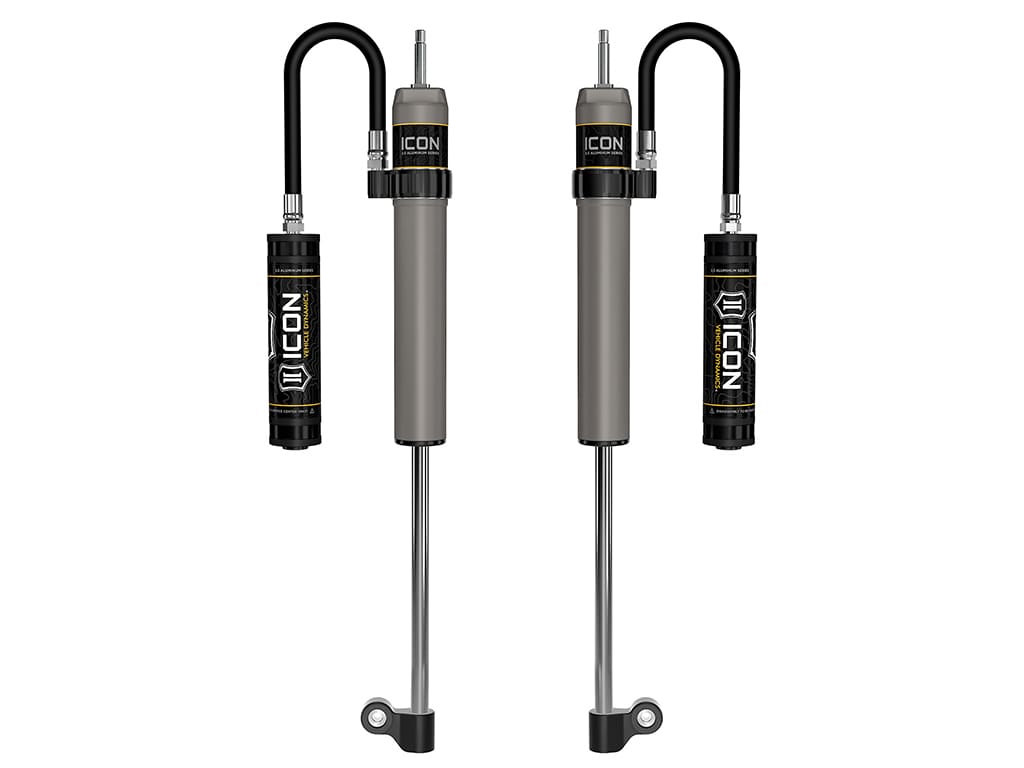

2007-2021 TOYOTA TUNDRA RXT REAR 2.5 VS REMOTE RESERVOIR SHOCK PAIR
ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or Omega Series bypass shocks.
Features & Benefits
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- 7/8” diameter induction hardened, chrome plated shock shaftS
- 100% Rebuildable
- 100% Revalveable
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- Double-sealed Schrader caps reduce risk of damage
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable | NO |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| Title | 07-21 TUNDRA RXT REAR 2.5 VS RR PAIR |
| Tube Outside Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Shock Absorber Body End Measuring Point | Center of Eylet |
| Lower Mount Type | EYELET |
| Upper Mount Type | Stem |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| External Reservoir | Yes |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 611008 - 9/16 RXT HEAVY DUTY STEM BUSHING KIT |
| Service Parts | 191015 - 10" FINNED RESI UPGRADE KIT |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 257342 - 7/8 SHAFT 16.85 OAL, 12.00 TRAVEL |
Installation Guide: Download PDF
