ICON Vehicle Dynamics 57841P - 22-24 TUNDRA 3.5" REAR 2.5 VS RR PAIR
Product Availability Request
Fill the form and our team will contact you.

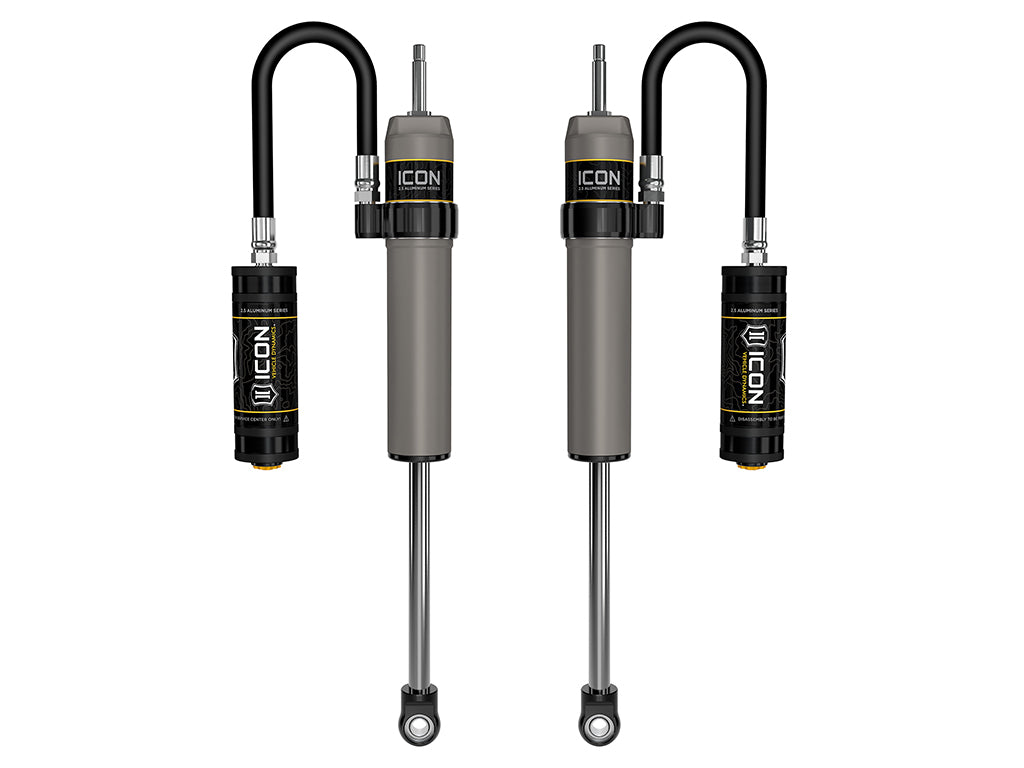

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider ICON compression adjustable shock absorbers equipped with CDCV, CDXS, or CDEV.
Features
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- 6061 aircraft grade aluminum CNC machined components
- Fully rebuildable and re-tunable
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- All ICON 2.5 Aluminum Series Remote Reservoir shocks can be upgraded with an ICON compression adjuster (CDCV, CDXS, or CDEV)
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 56100 - 07-14 FJ/03-26 4RUNNER/22-26 TUNDRA/23-25 SEQUOIA REAR SHIN GUARDS |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable | NO |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Compressed Length | 17.08 IN |
| Cylinder Color | Grey |
| Cylinder Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Damping Type | Oil |
| Extended Length | 27.93 IN |
| External Reservoir | Yes |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Lower Mount Type | Eyelet |
| Mounting Hardware Included | Yes |
| Reservoir Type | Remote |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Stroke Length Rear | 10.86 IN |
| Tube Outside Diameter | 2.5 IN |
| Upper Mount Type | Stem |
| Valving Type | Digressive |
Note: APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle. APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension. APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles. APPLICATION NOTE #397: Compatible with 3-3.5” of rear lift on non-TRD Tundras or 3" rear lift on TRD Tundras equipped with rear coil springs
Short Description: SHOCK ABSORBER PAIR
Invoice Description: 57841P
Definition: Suspension Shock Absorber Set
Installation Guide: Download PDF
Warranty: 1 Year
