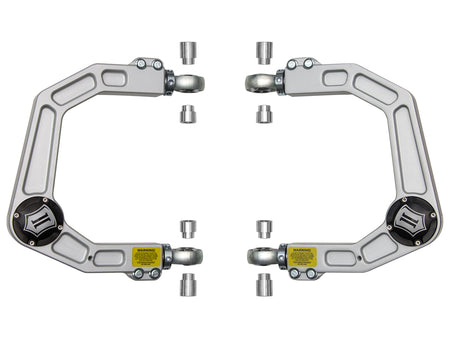

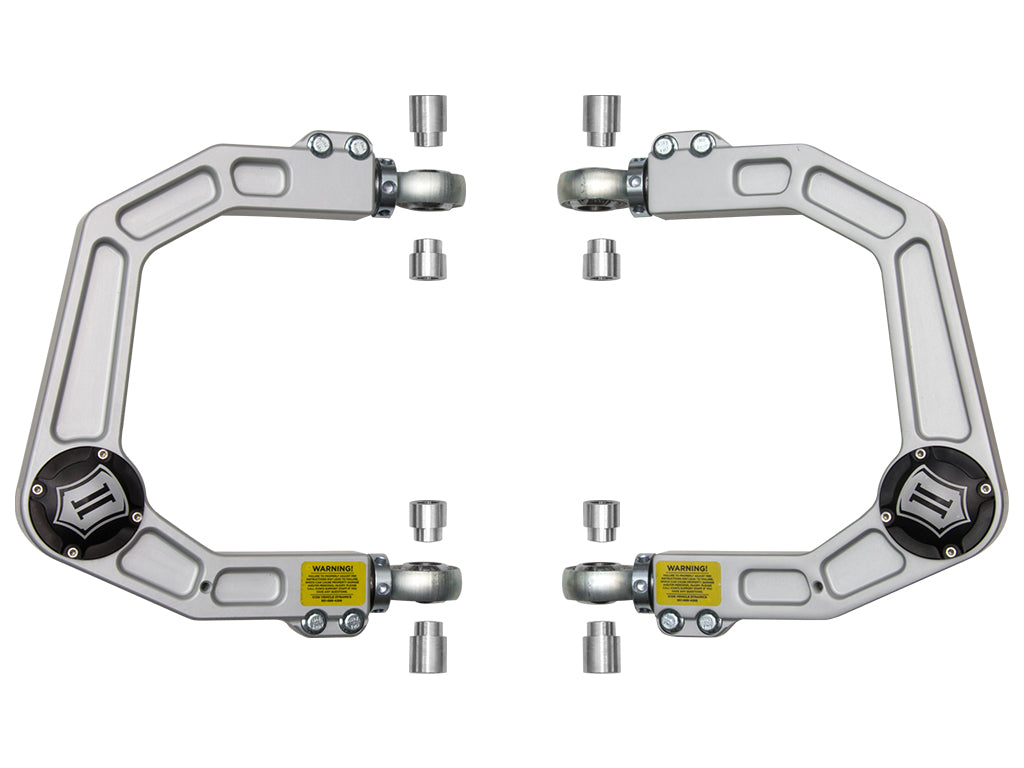

ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.

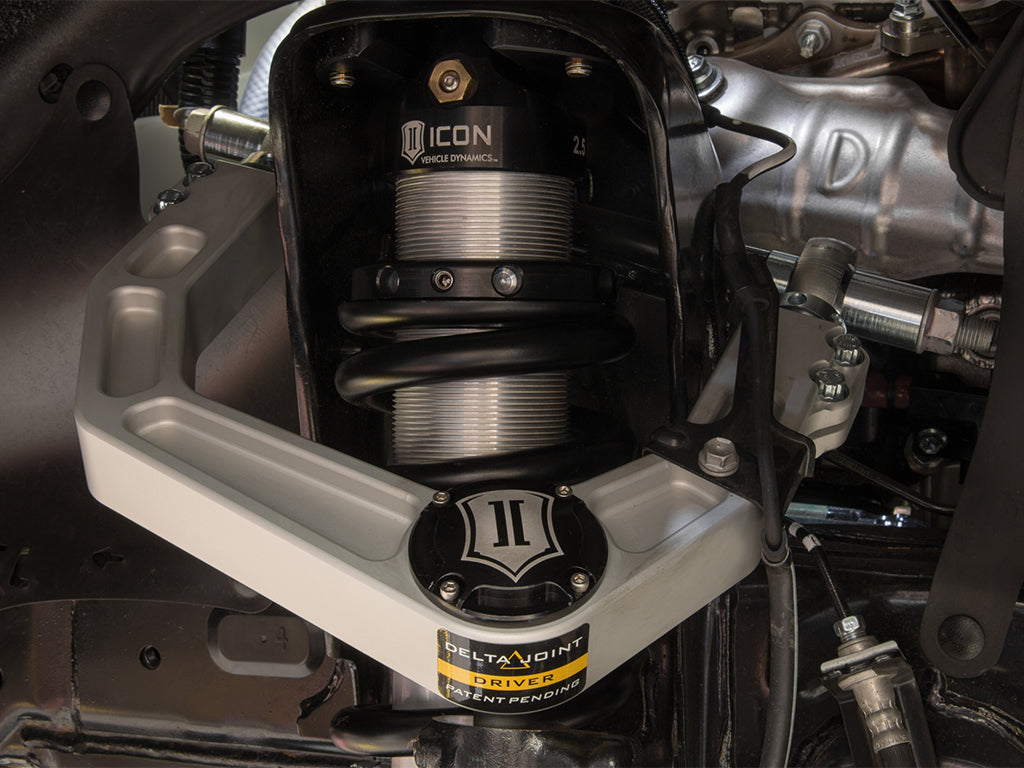

Take the performance of your Toyota 4Runner, FJ Cruiser, or Lexus GX to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit. All ICON billet upper control arms are constructed from CNC machined 6061 aluminum and then finished in a matte anodization process for maximum strength and corrosion resistance. ICON billet aluminum upper control arms feature quality PTFE-lined rod ends and machined adjuster sleeves that allow for on-vehicle alignment adjustment and precision caster and camber tuning. Another major benefit of ICON upper control arms is the potential for increased wheel travel when paired with our extended travel coilovers. The additional droop travel provided by these components translates into superior performance and ride quality for your vehicle. These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Features
- ICON Delta Joint
- CNC Machined 6061 Billet Aluminum Construction

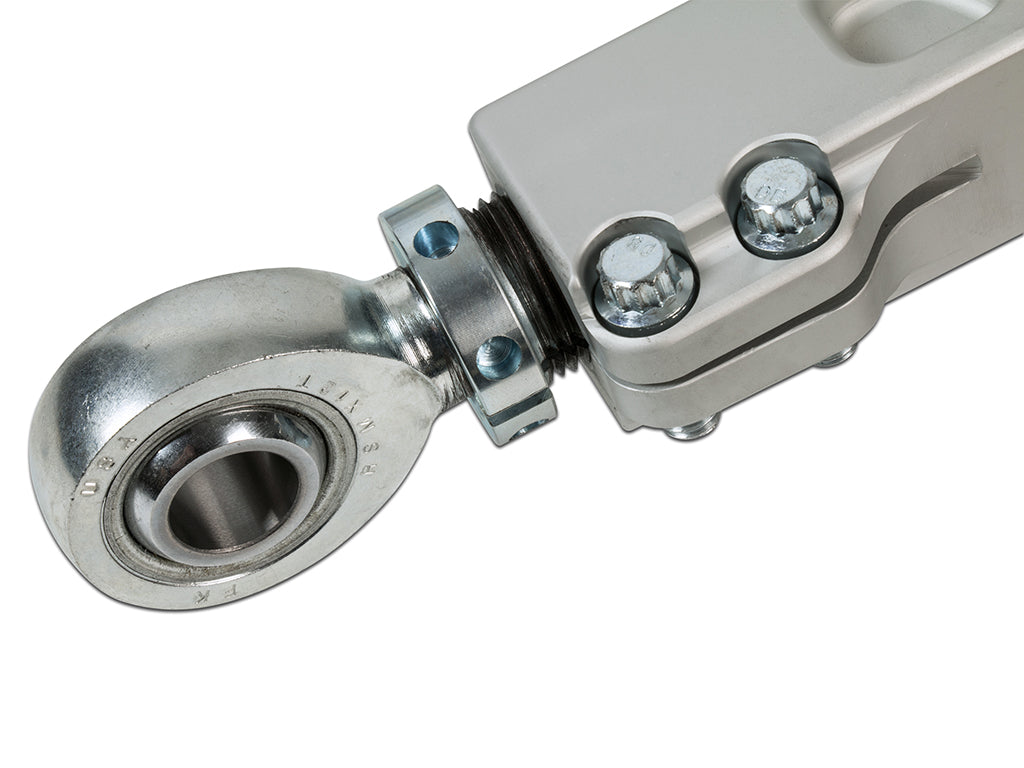

- Quality PTFE-lined ¾” FK Rod Ends
- On-Vehicle Adjustable For Quick And Precise Alignment
- Caster and Camber Adjustability Allows For Fine Tuning Of Vehicle Handling
- Matte Anodized Finish Provides Exceptional Corrosion Resistance
- O-ring Sealed Delta Joint Cover Cap For Additional Protection From The Elements
Specifications
| AAP_UDA_12 | EA |
| Ball Joint Stud Type | Threaded |
| Bushing Material | Rod End Bearing |
| Bushings Included | Yes |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Adjustable | Yes |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Press In |
| Adjustable Control Arm | yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Service Parts | 614520 - DELTA JOINT INSTALL ADAPTER AND SHIM |
| Service Parts | 614551 - 07-14 FJ/03-23 4RNR/08-21 LC 200 DELTA JOINT KIT |
| Material | Aluminum |
| Control Arm Material | Aluminum |
| Finish | Anodized |
| End 2 Type | BALL JOINT |
| Construction | Billet |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Pre-Greased | No |
| Quantity | Pair |
| Suspension Grade Type | Performance |
| Grade Type | Performance |
| End 1 Type | Rod End Bearing |
| Control Arm Color | Silver |
| Color | Silver |
| Suspension Type | Spring |
| Control Arm Construction | Tubular |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Reinforced | Yes |
| Grease Fitting Included | yes |
| Mounting Hardware Included | Yes |
| California Prop 65 Warning | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
Note: Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" TECH NOTE: Compatible with 0-3.5" of front lift over stock
Short Description: DELTA JOINT UCA KIT
Invoice Description: 58551DJ
Definition: Suspension Control Arm Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 5 Years-Delta Joints, Limited Lifetime-Control Arms
