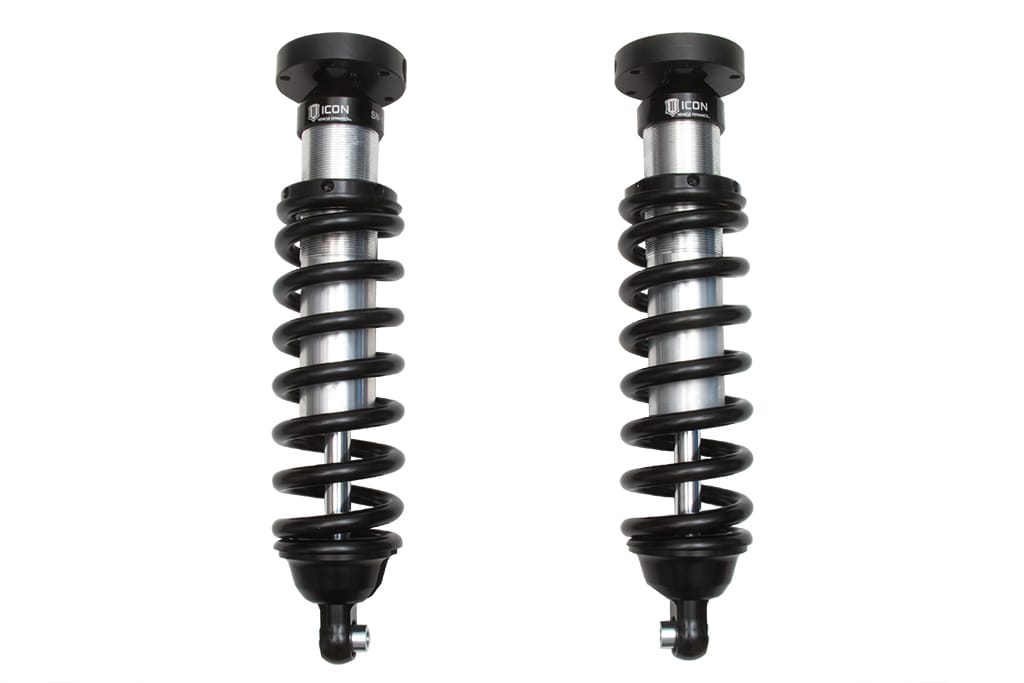

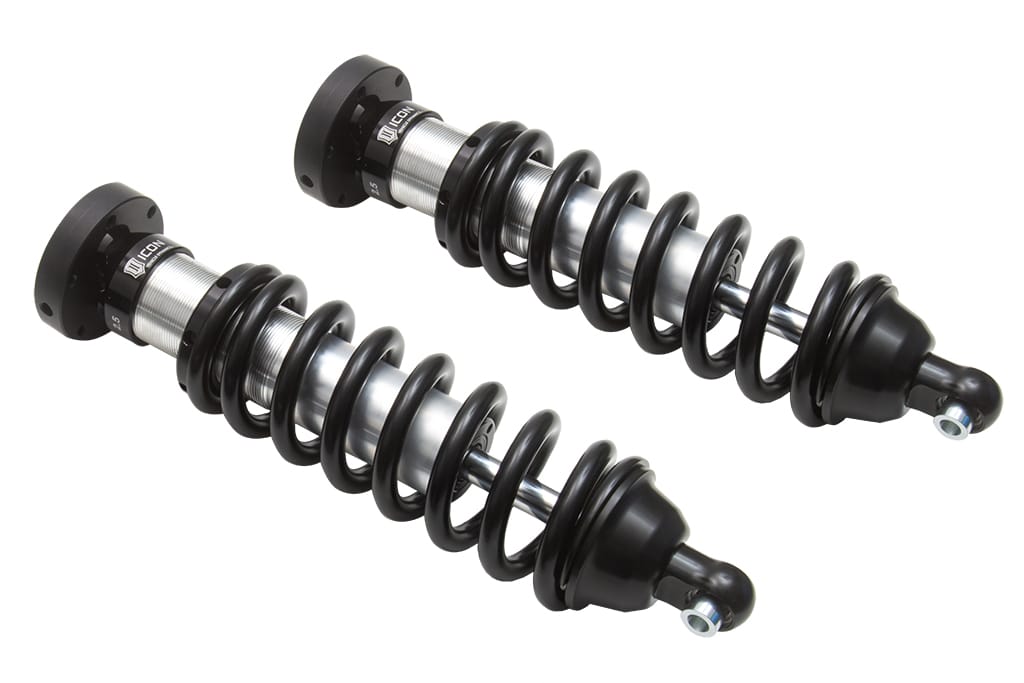

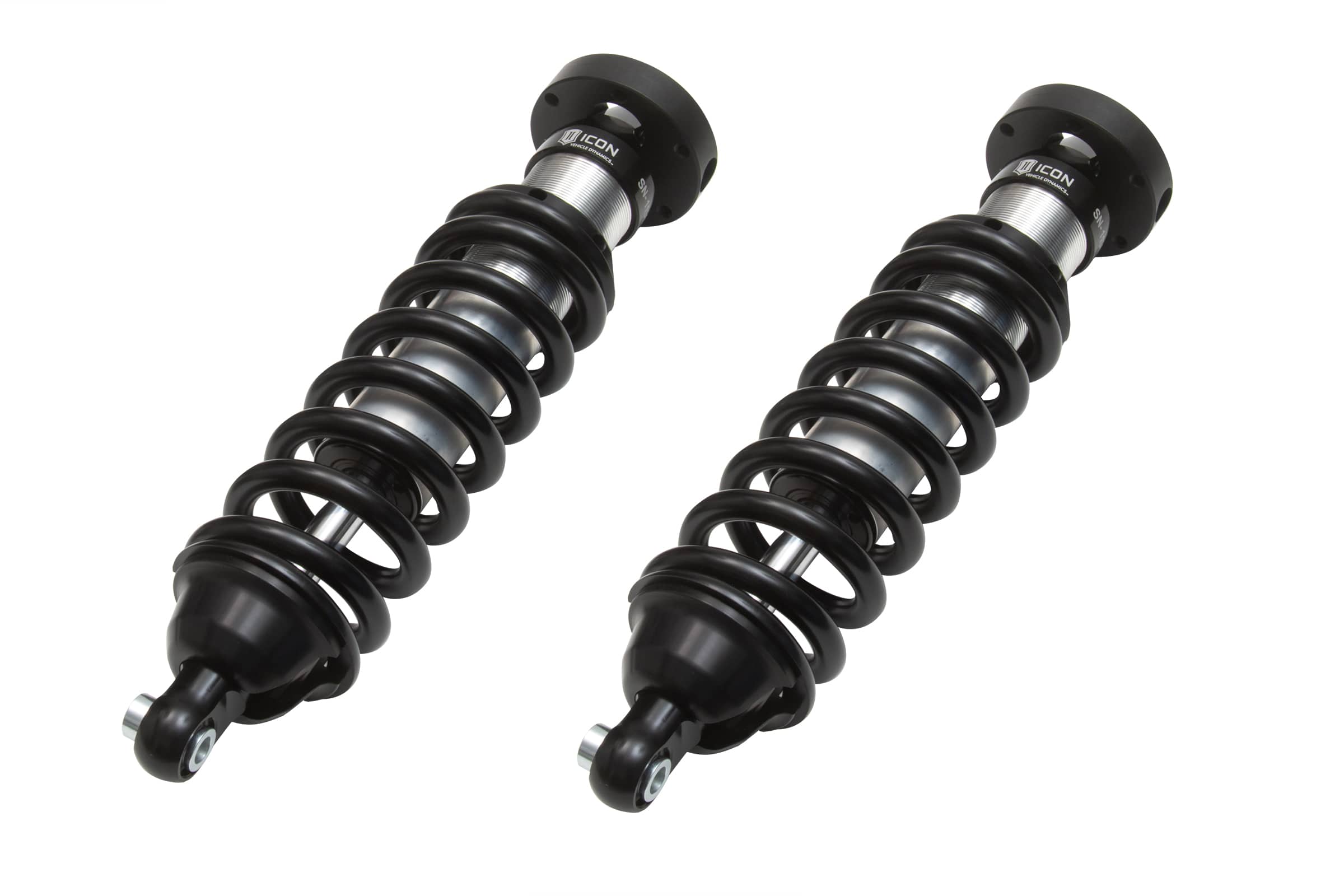

ICON Vehicle Dynamics 58625 - 00-06 TUNDRA/01-07 SEQUOIA EXT TRAVEL 2.5 VS IR COILOVER KIT
Product Availability Request
Fill the form and our team will contact you.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2000-2006 Toyota Tundra and 2001-2007 Toyota Sequoia. These adjustable coilovers allow up 0-2.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, yield increased front wheel travel along with superior ride quality and suspension performance both on- and off-road. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your vehicle.
Features
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- Vehicle specific shock length and pairing with aftermarket front upper control arms yields maximum wheel travel
- Height-adjustable coilovers offer 0-2.5" of lift height adjustment over stock
- 2.5" diameter shock bodies with internal reservoirs for consistent performance
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.36 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 14.51 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 19.86 IN |
| Front Spring Rate | 650 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 2.5 IN |
| Maximum Ride Height Raising Distance | 2.5 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Add-On Part | 51045 - TOYOTA .25” BUMP STOP SPACER KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 158508 - COIL SPRING 1400.0300.0700 BLACK |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
Note: OEM Wheels & Tires Fitment: Yes TECH NOTE: These "Extended Travel" length coilovers require installation of aftermarket front upper control arms. If using stock front upper control arms, consider "Standard Travel" versions, ICON part number 58620. Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms ONLY APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Short Description: COILOVER KIT
Invoice Description: 58625
Definition: Coilover Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs
