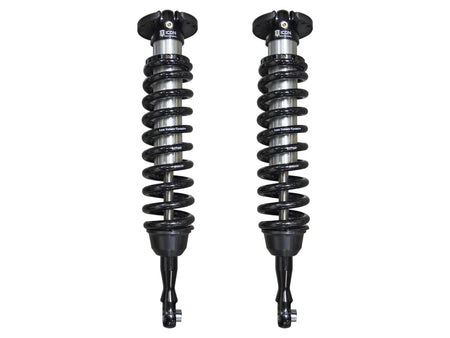

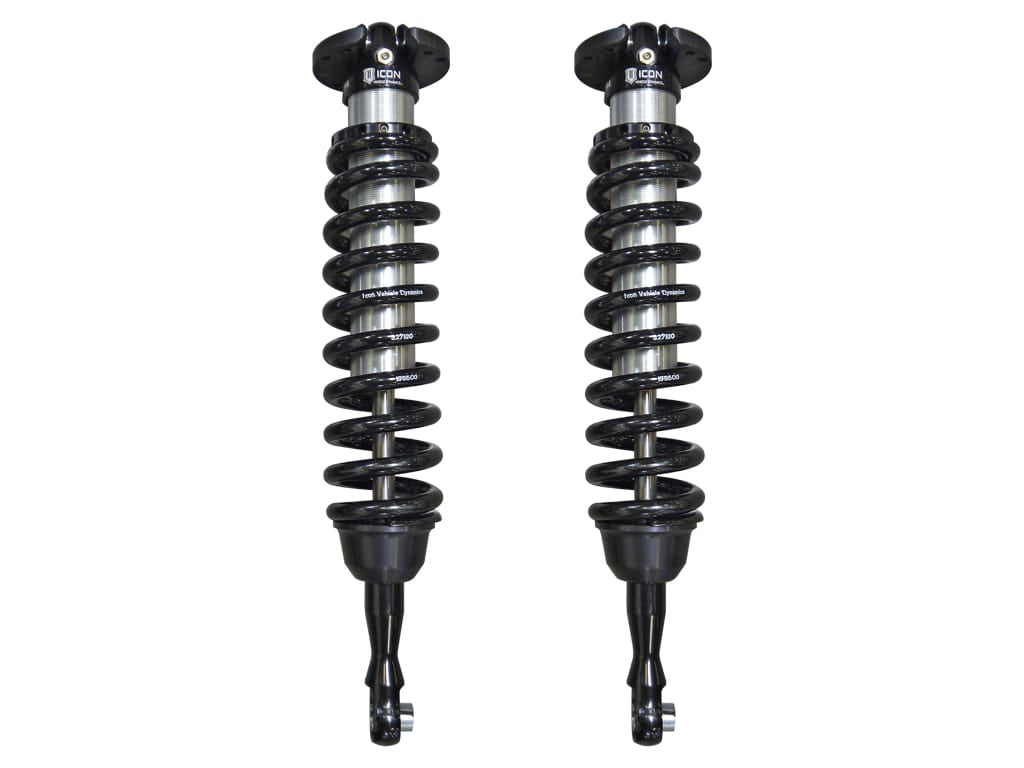

ICON Vehicle Dynamics 58650 - 07-21 TUNDRA/08-22 SEQUOIA 2.5 VS IR COILOVER KIT
Product Availability Request
Fill the form and our team will contact you.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. These adjustable coilovers allow up 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
Features
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- Vehicle specific shock length yields maximum wheel travel
- Height-adjustable coilovers offer 1-3" of lift height adjustment over stock
- 2.5" diameter shock bodies with internal reservoirs for consistent performance
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 18.88 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 25.43 IN |
| Front Spring Rate | 600 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | 1 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Active or Passive Suspension | Passive |
| Remote Reservoir | NO |
| Spring Rate Type | Linear |
| Travel Length | 6.55 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 611025 - 07 TUNDRA CO HARDWARE KIT PAIR |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Add-On Part | 51046 - 07-21 TUNDRA/08-21 LC200/08-22 SEQUOIA BUMP STOP SPACER KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL |
Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #24: Factory UCA's will not align properly past 2.5” of lift. Above 2.5” of lift an aftermarket UCA is recommended. APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle APPLICATION NOTE #110: Trimming required for recommended tire size APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Short Description: COILOVER KIT
Invoice Description: 58650
Definition: Coilover Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Shocks, Limited Lifetime-Coil Springs
