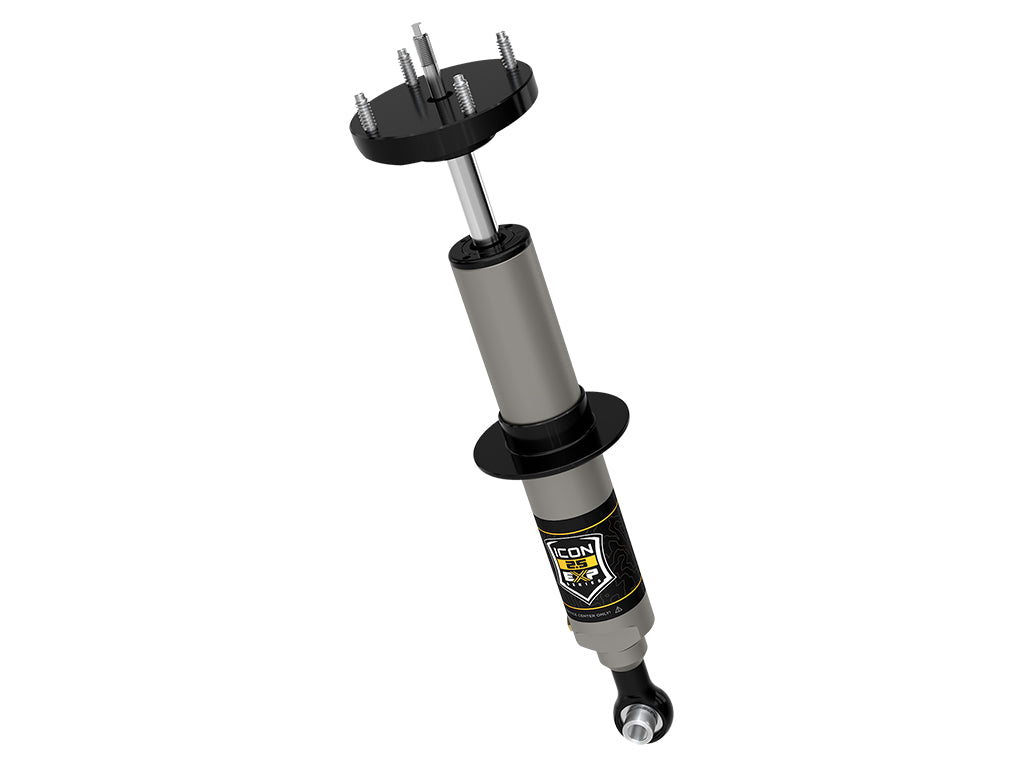

2007-2021 TOYOTA TUNDRA FRONT 2.5 EXP SERIES COILOVER
EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. 2007-2021 Toyota Tundra EXP shocks mount in a shaft-up orientation and include the upper shock mount and spring seat. The 6061-billet aluminum coil spring seat is CNC machined to fit the Tundra's OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 2.25” of lift over stock. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
Features
- Vehicle specific design for 2007-2021 Toyota Tundra
- Fully rebuildable and re-tunable
- Vehicle specific tuned for superior shock damping and control
- 2.5 Aluminum Series Shock with Internal Reservoir
- Adjustable ride heights from 0-2.25” of front lift over stock with the use of snap ring
- Utilizes factory coil and coil hardware
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
- Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearing for extended longevity and minimal deflection
Specifications
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | No |
| Coil Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Compressed Length | 17.11 IN |
| Cylinder Color | Gray |
| Cylinder Finish | Hard Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2.5 IN |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 24.15 IN |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Maximum Lift | 2.25 IN |
| Minimum Lift | 0 IN |
| Remote Reservoir | NO |
| Self-Leveling | No |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Center of Eyelet |
| Shock Absorber Rod End Measuring Point | Shoulder of Stem |
| Travel Length | 7.04 IN |
| Upper Mount Type | Stem |
| Valving Type | Digressive |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Height | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Body Diameter | 2.5 IN |
| Material | Steel |
| Material | Aluminum |
Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.625” Backspace / 16mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming may be required) APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
Short Description: EXP COILOVER
Invoice Description: 07-21 TUNDRA EXP COILOVER
Definition: Coilover
Installation Guide: Download PDF
Warranty: 1 Year
