ICON Vehicle Dynamics 58760 - 08-UP LAND CRUISER 200 2.5 VS RR COILOVER KIT
Product Availability Request
Fill the form and our team will contact you.
2008-UP LAND CRUISER 200 2.5 VS REMOTE RESERVOIR COILOVER KIT

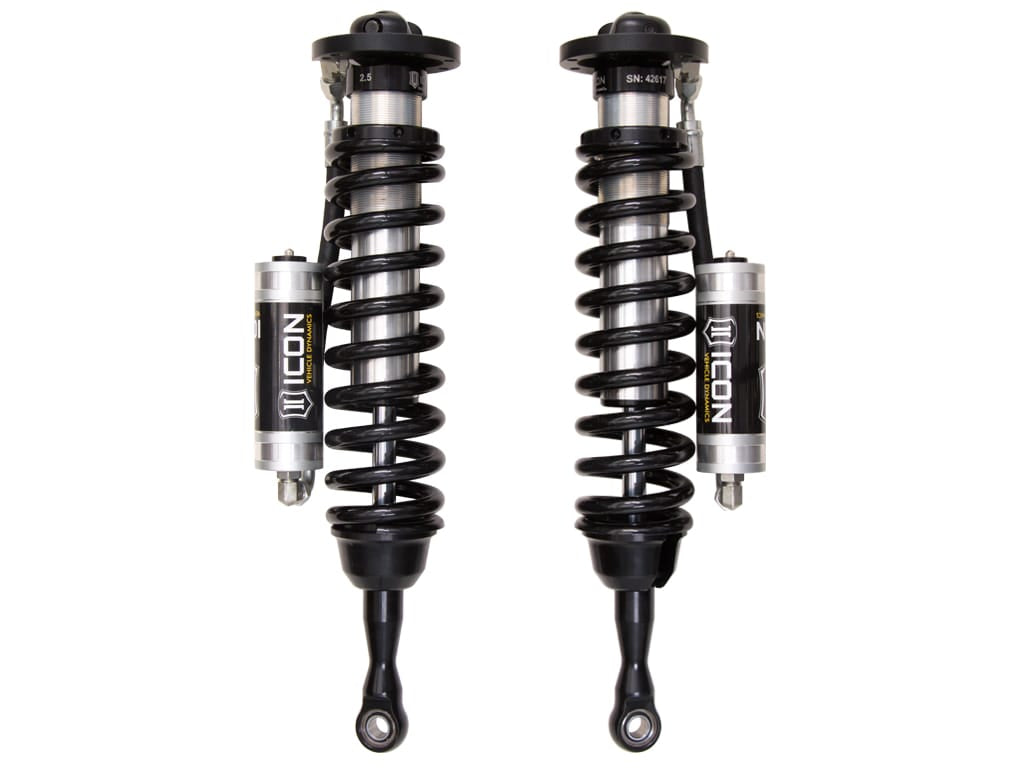

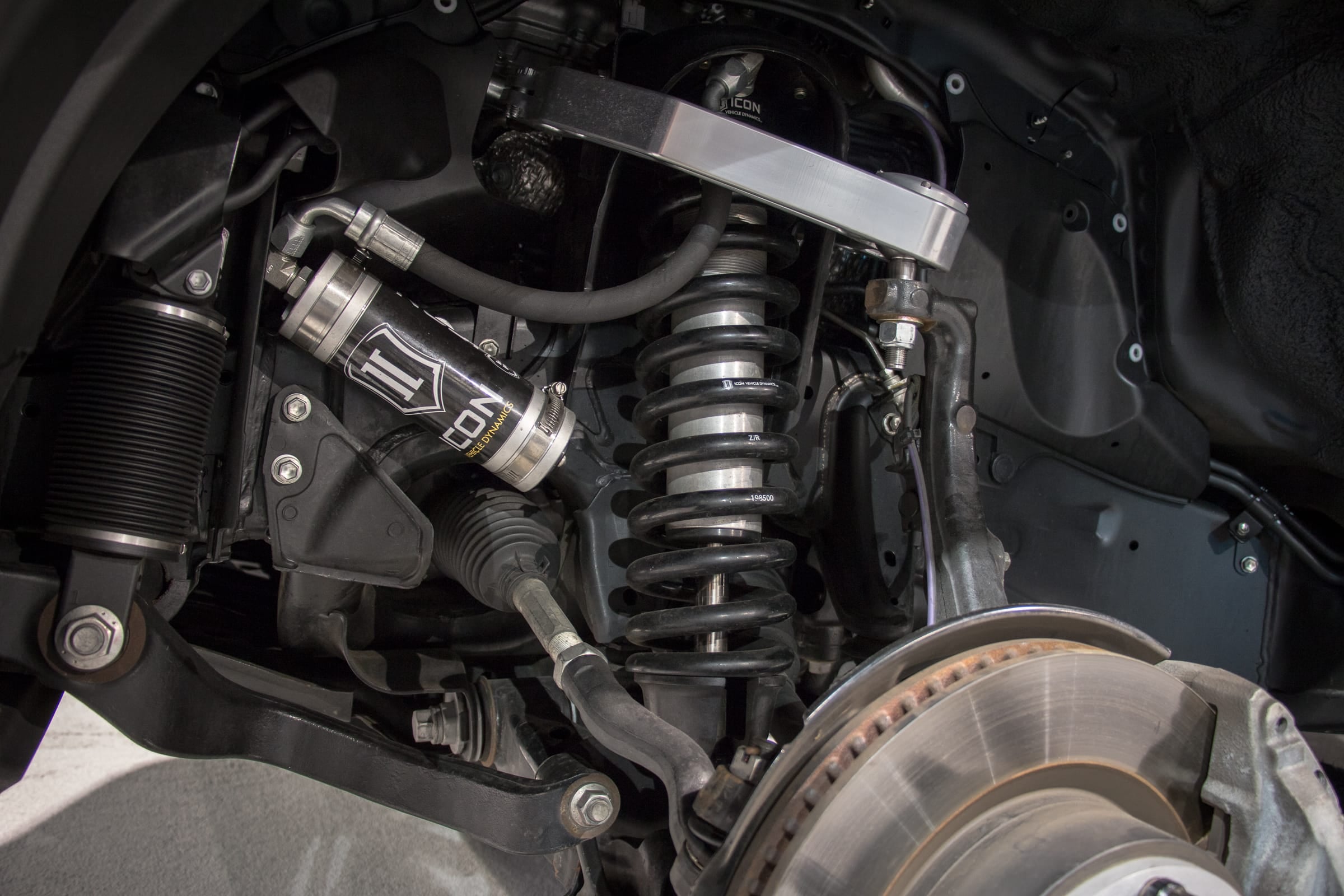

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2008-UP Toyota Land Cruiser 200 Series. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.5-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. The remote reservoir ensures optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Land Cruiser 200 Series.
Features & Benefits
- Increased wheel travel and ride quality over stock
- KDSS compliant
- Vehicle specific tuned for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended offroad use
- Adjustable 1.5-3.5" lift height
- ICON engineered Eibach Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on - no cutting or welding necessary for installation
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Spring Rate | 600 PPI |
| Spring Rate Type | Linear |
| Title | 08-UP LAND CRUISER 200 2.5 VS RR COILOVER KIT |
| Travel Length | 5.95 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Active or Passive Suspension | Passive |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 18.88 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 24.83 IN |
| Front Spring Rate | 600 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Spring Material | Steel |
| Spring Color | Black |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shaft Diameter | 0.875 IN |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 3.5 IN |
| Maximum Ride Height Raising Distance | 3.5 IN |
| Minimum Lift | 1.5 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 34" x 10.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 611025 - 07 TUNDRA CO HARDWARE KIT PAIR |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
Installation Guide: Download PDF
