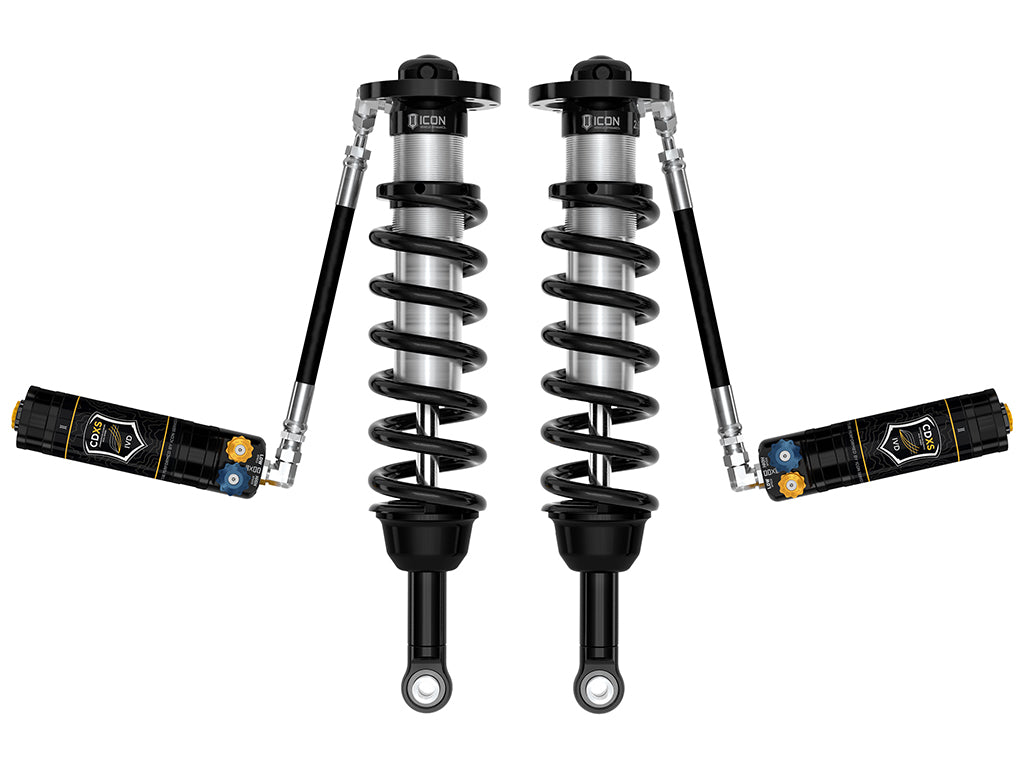

ICON Vehicle Dynamics 58780X Coilover Set
ICON 2.5 Series front coilover shocks are an incredible upgrade for the 4th gen Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance.

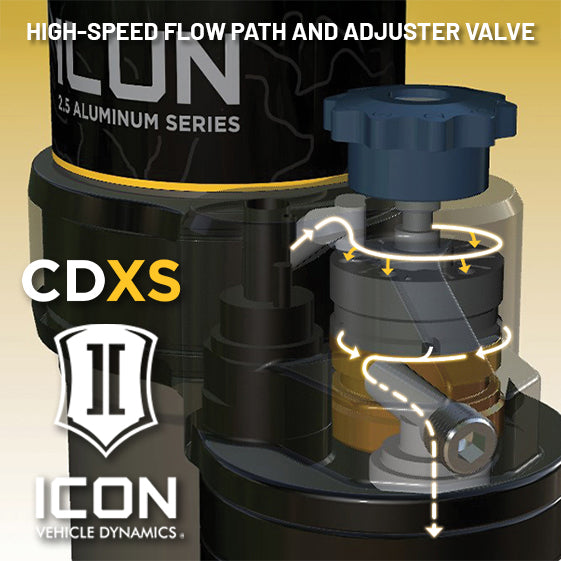

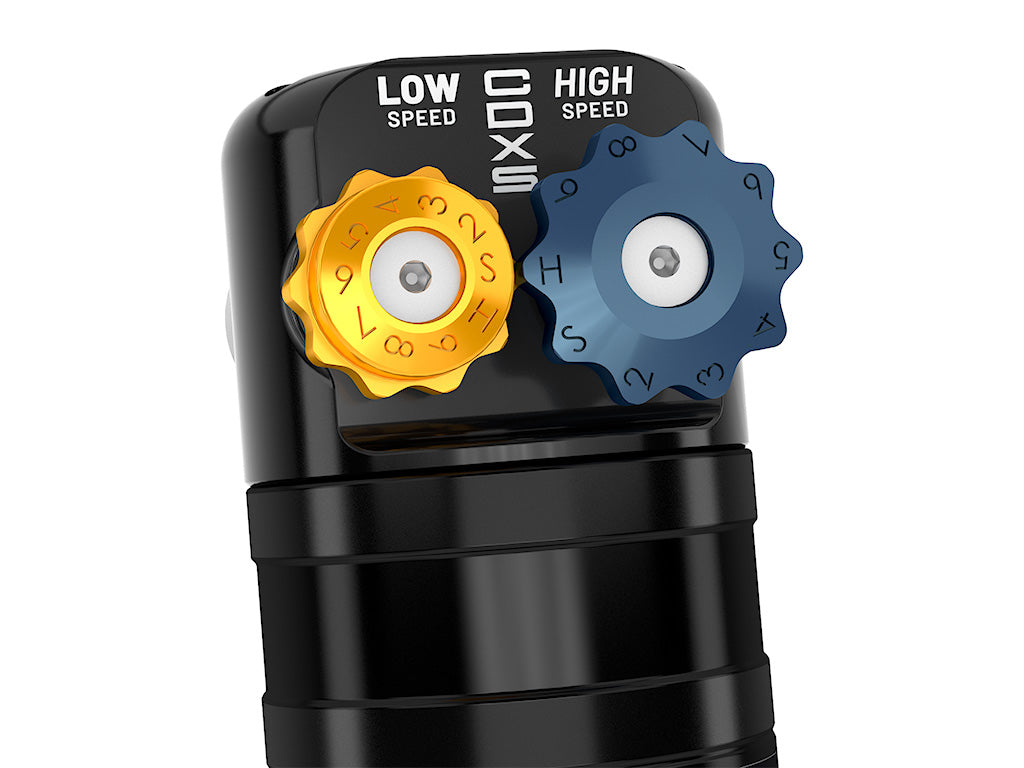

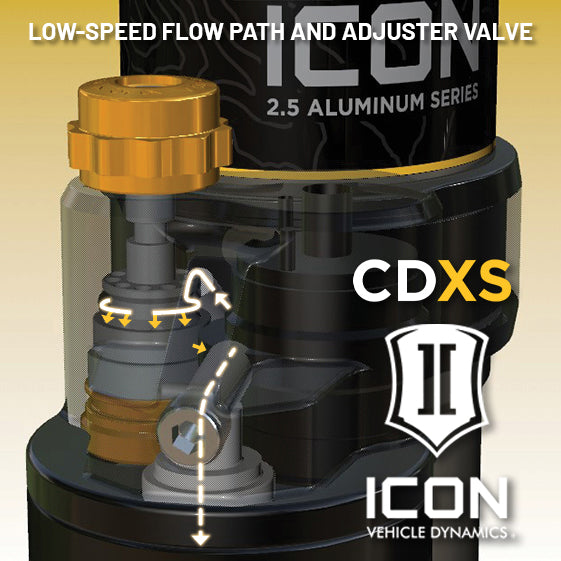

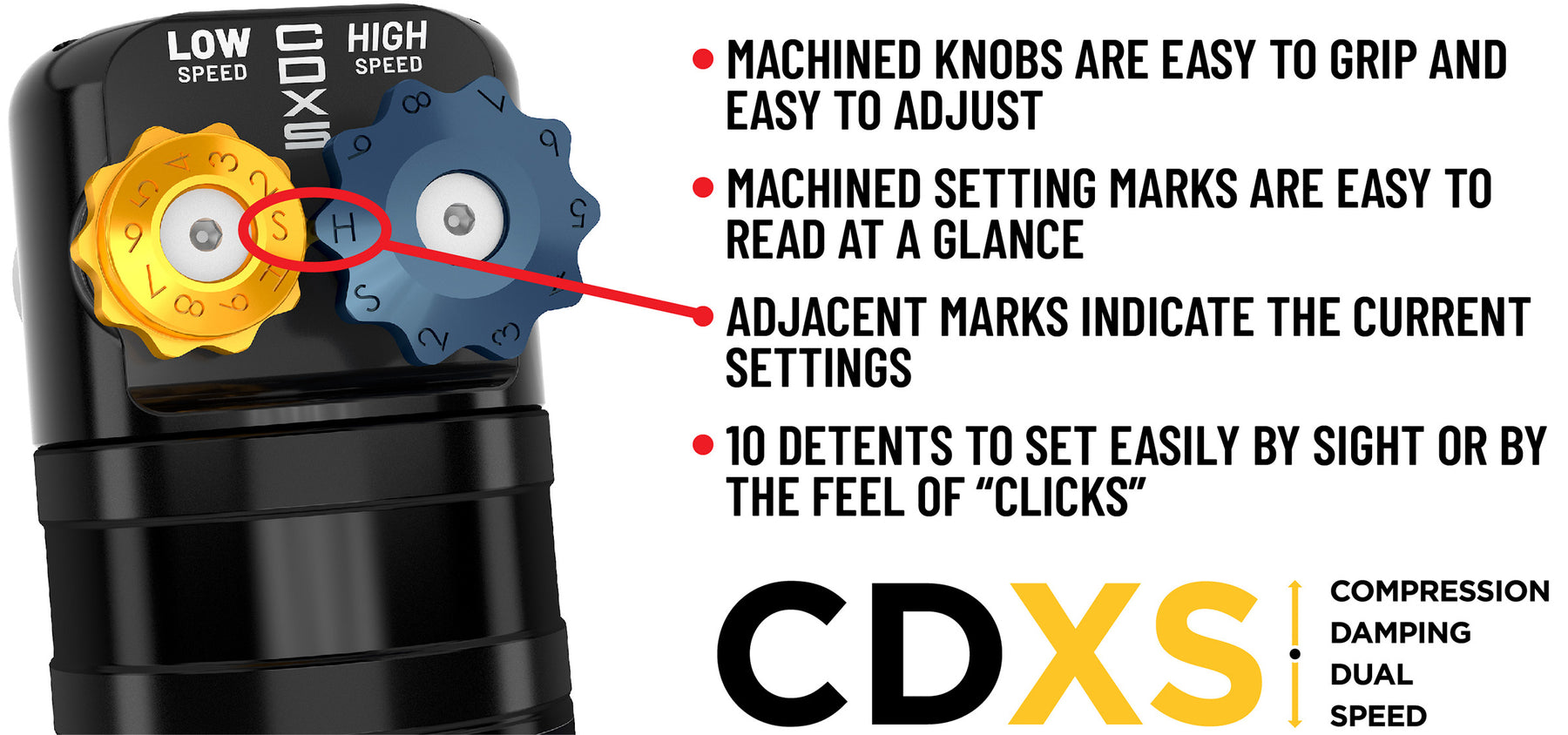

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2025 Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop (4WD only), yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Features
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
- Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock

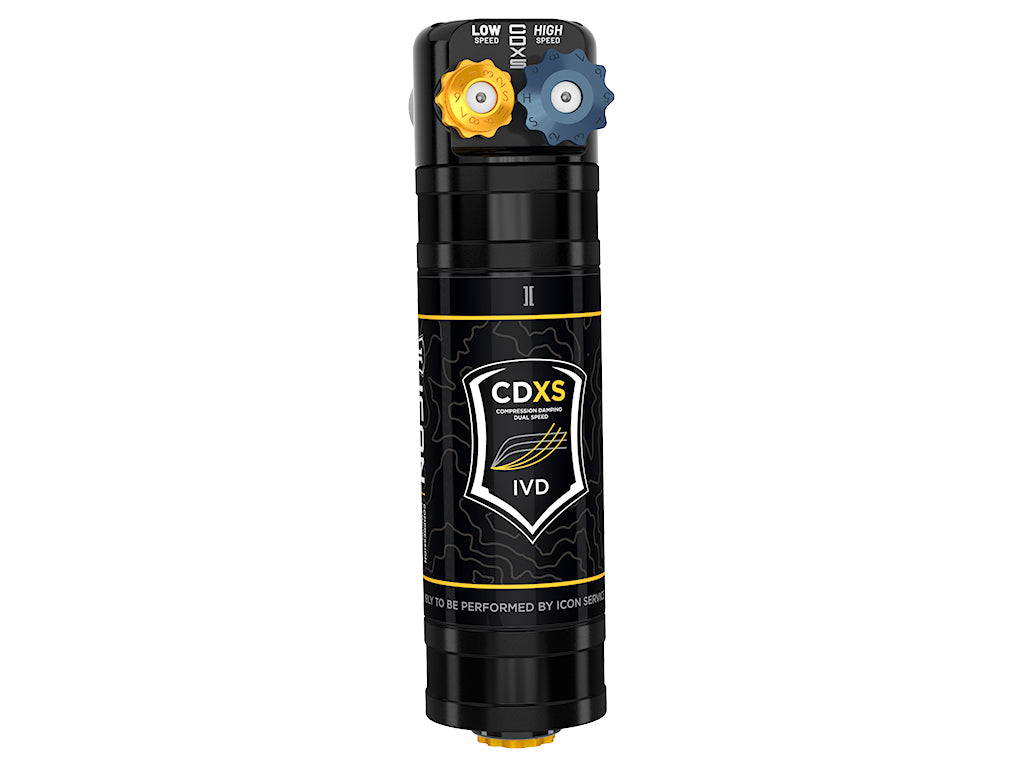

- 2.5" diameter shock bodies with remote reservoirs
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
Specifications
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| Active or Passive Suspension | Passive |
| Adjustable Compression | Yes |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 58452DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R TUBULAR UCA DJ PRO KIT |
| Add-On Part | 58552DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT |
| Add-On Part | 55160 - 24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 25.68 IN |
| Front Spring Rate | 450 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | 1.25 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 6.27 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| Boot Included | No |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 19.42 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Dual Speed/Manual |
Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #202: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range. APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #169: 4WD models require front differential drop part # 55160
Short Description: COILOVER KIT
Invoice Description: 58780X
Definition: Coilover Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs
