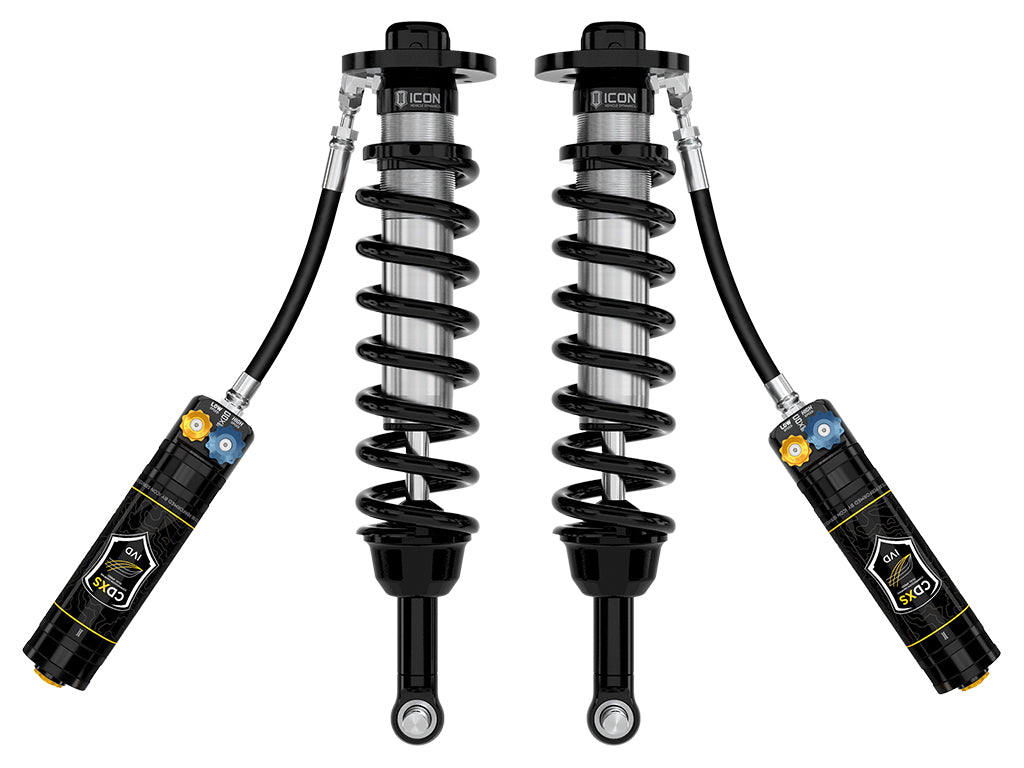

ICON Vehicle Dynamics 58795X Coilover Set

ICON 2.5 Series front coilover shocks are an incredible upgrade for the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance.

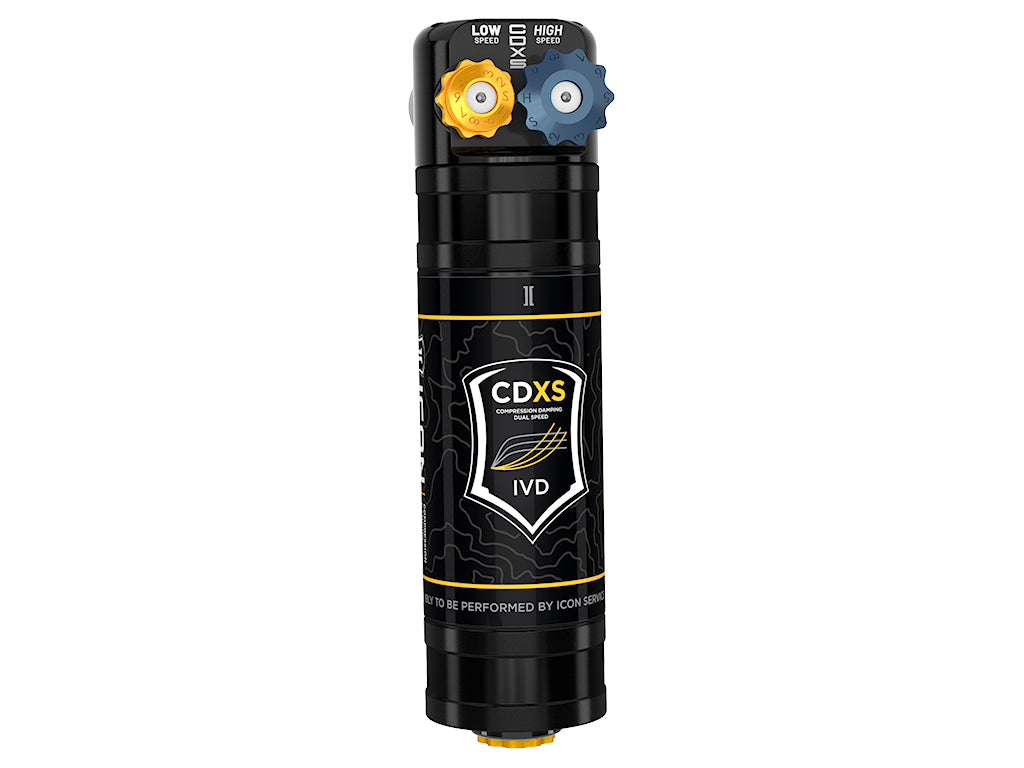

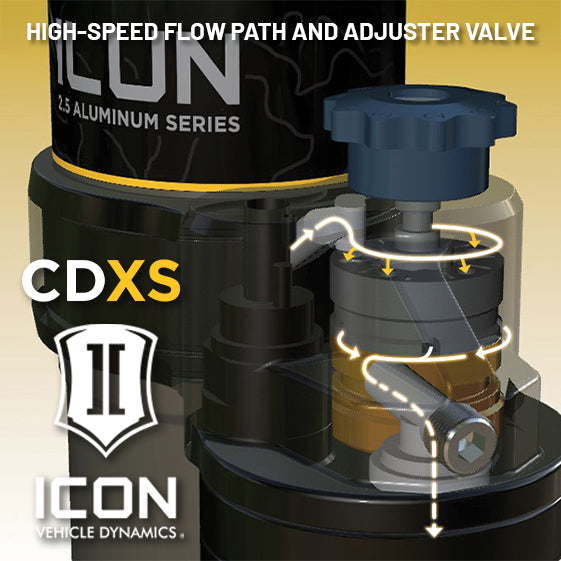

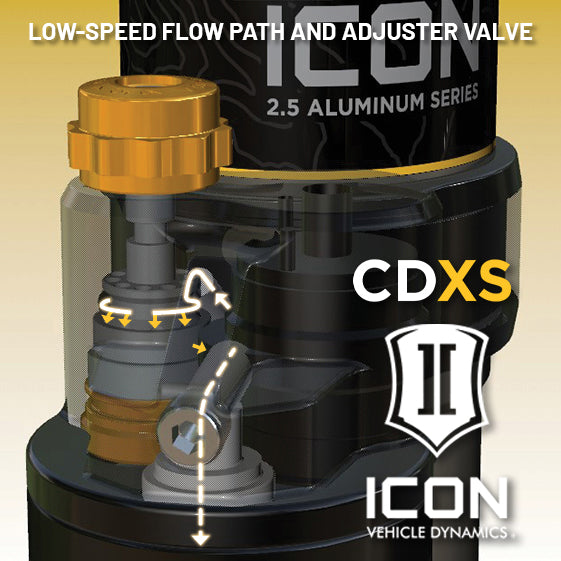

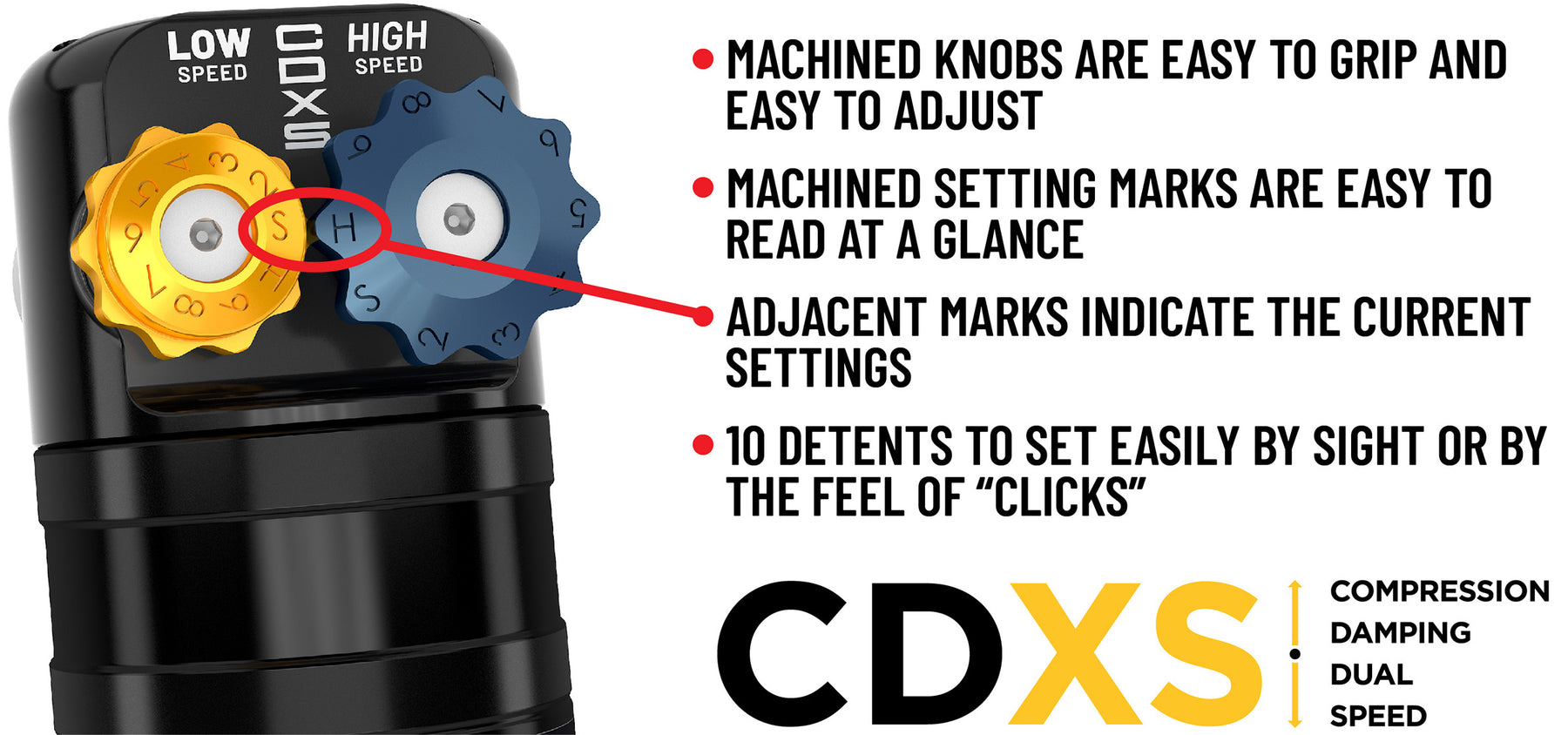

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDXS front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with 2.5 Aluminum Series CDXS rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

Features

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Fully rebuildable and re-tunable
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• 2.5" diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance

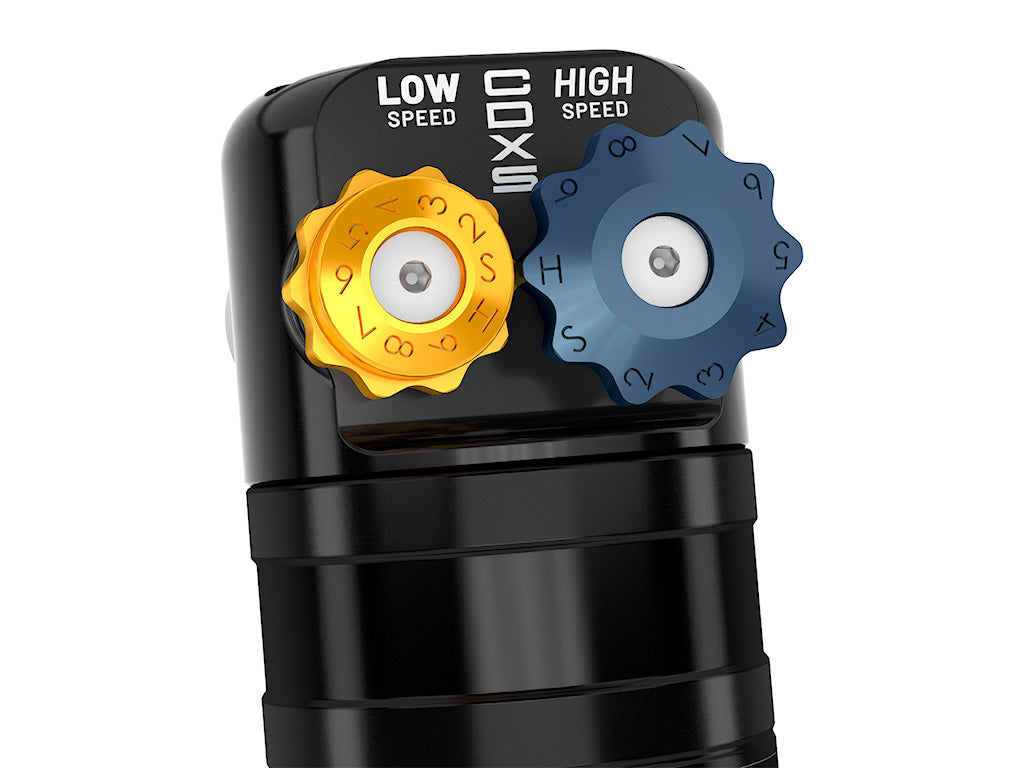

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection

Specifications

Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #169: 4WD models require front differential drop part # 55160 APPLICATION NOTE #202: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift APPLICATION NOTE #233: Length optimized for 4WD models but will also fit 2WD. Alternatively, for maximum wheel travel on 2WD models consider 2WD specific part numbers. Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range. APPLICATION NOTE #150: Shocks are fully serviceable APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

Short Description: COILOVER KIT

Invoice Description: 58795X

Definition: Coilover Set

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs
