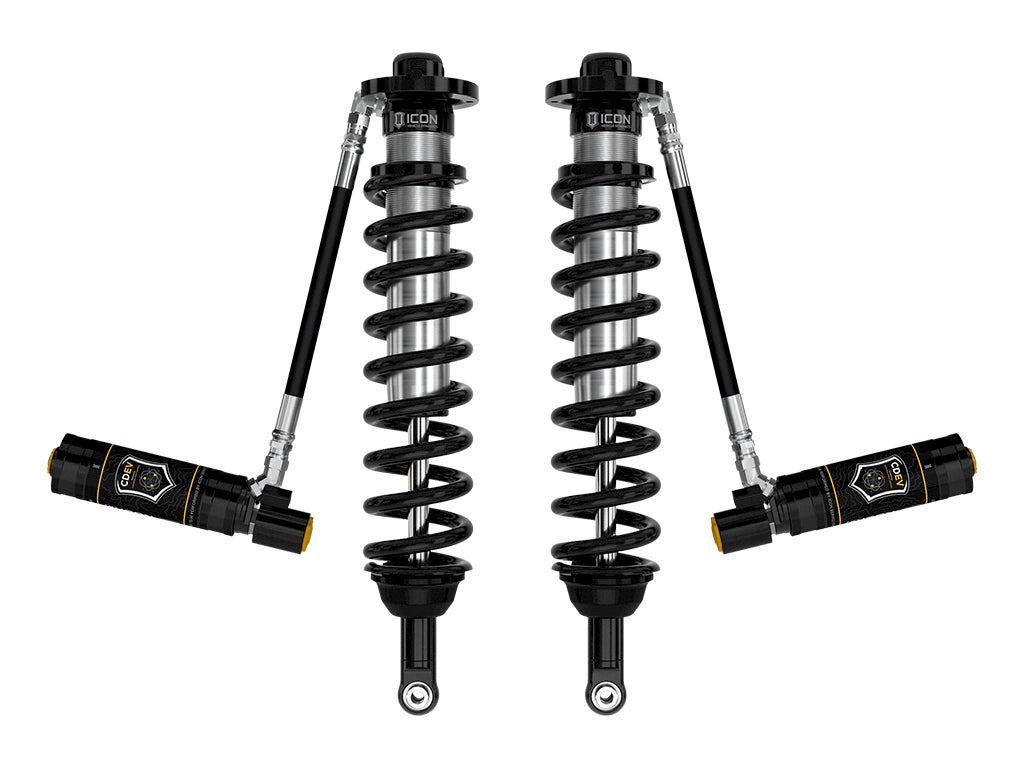

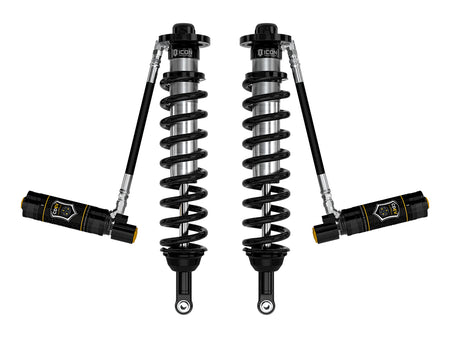

ICON Vehicle Dynamics 59730E-CB - 05-23 TACOMA/10-24 4RUNNER 2.5 VS RR CDEV COILOVER KIT W LONG TRAVEL
Product Availability Request
Fill the form and our team will contact you.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
The ICON Vehicle Dynamics V.S. Series 2.5” CDCV remote reservoir coilover shocks an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma or 2010-2024 4Runner equipped with long travel front suspension. ICON’s Vehicle-specific valving and custom, long travel length provide a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability on most models or 0-2.75” of front lift height adjustment on 2016-2023 Tacomas. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is also included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
Features

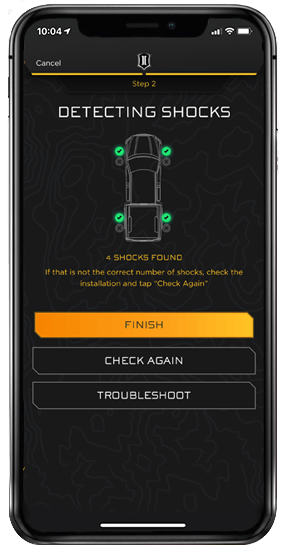

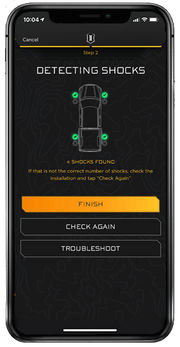

- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Fully rebuildable and re-tunable
- Vehicle specific tuned for superior shock damping and control
- Custom length for pairing with many common long travel front suspension kits
- Adjustable ride height for customization of vehicle stance
- ICON engineered Eibach Springs
- External reservoirs to attain cooler operating temperatures during extended off-road use
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- FK rod end bearings for extended longevity and minimal deflection
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Active |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.20 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Electronic |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 24.65 IN |
| Front Spring Rate | 600 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 3.5 IN |
| Maximum Ride Height Raising Distance | 3.5 IN |
| Minimum Lift | 0 IN |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 257304 - 7/8 SHAFT 14.75 OAL, 10.50 TRAVEL |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 7.46 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
Note: APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks APPLICATION NOTE #258: Fits common aftermarket front long travel kits. Will not fit stock width control arms.
Short Description: COILOVER KIT
Invoice Description: 59730E-CB
Definition: Coilover Set
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs
