ICON Vehicle Dynamics 62511 - 20-22 FORD F-250/F-350 FRONT 2.5β DIESEL DUAL RATE SPRING KIT
Product Availability Request
Fill the form and our team will contact you.
Beyond the added ground clearance, the dual rate design of ICON springs provides a softer initial rate for superb on-road comfort and a firmer secondary rate that delivers excellent bottoming resistance and superior off-road performance.

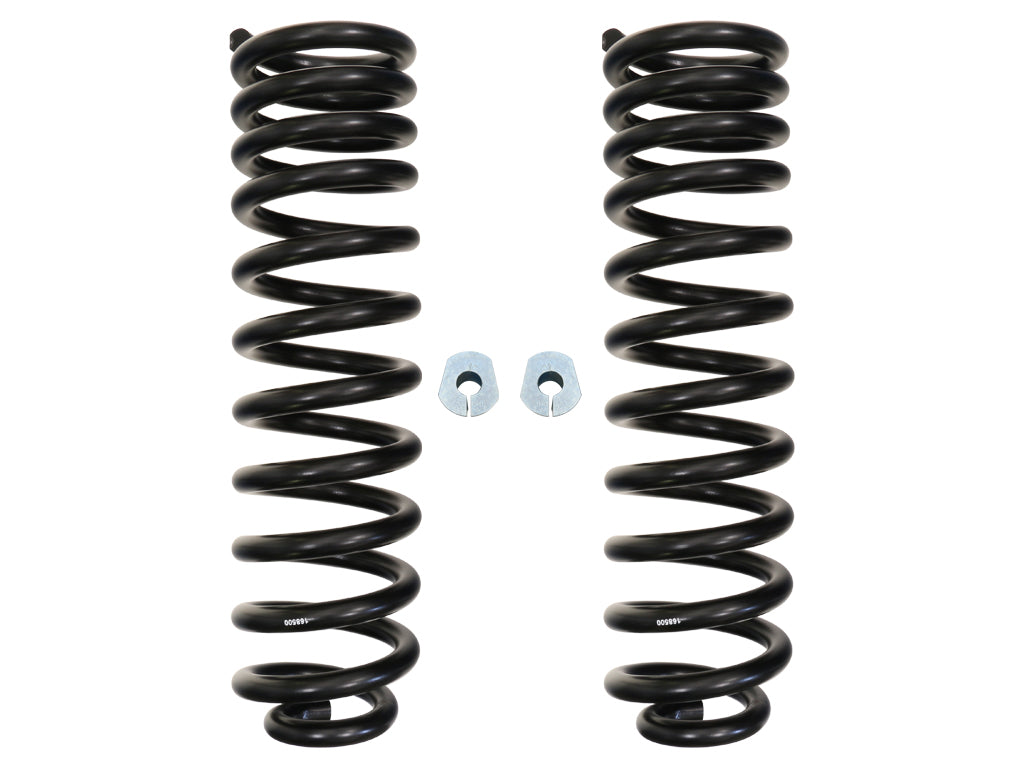

The ICON Vehicle Dynamics 2020-2022 Ford F-250 and F-350 Super Duty 2.5" coil springs are designed for drivers demanding the ultimate in performance and ride quality, while allowing for increased wheel travel (when used with ICON shocks) and the fitment of larger tires. The ICON Ford Super Duty coil springs provide 2.5" of lift height and feature a dual rate design. The dual rate design allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Caster correction cams are also included to ensure proper caster angle with the new, taller ride height. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2020-2022 Ford Super Duty.
Features
- 2.5" lift height
- Dual rate coil springs improve on and off-road ride quality over stock
- Dual-stage, semi-gloss powder coat offers excellent corrosion resistance
- Caster cam kit included for ideal caster angles with ride height increase
- 100% bolt-on system makes for an easy install
- Lifetime warranty against sagging/breakage
Specifications
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Maximum Lift Height | 2.5 IN |
| Front Spring Rate Type | Variable |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| California Prop 65 Warning | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Spring Color | Black |
| Front Spring Seat Included | No |
| Grade Type | Performance |
| Finish | Powdercoated |
| Spring Material | Steel |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25β Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5β Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25β Backspace / 6mm Offset |
| Add-On Part | 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT |
Note: Factory Wheels & Tires Fitment: Yes TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5β Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25β Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25β Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) TECH NOTE: Compatible with 4WD only TECH NOTE: Springs rates optimized for use with trucks with diesel engines TECH NOTE: Models equipped with Tremor package will have front lift height of 1.5" over stock TECH NOTE: Not compatible with F-450 or F-550
Short Description: COIL SPRING KIT
Invoice Description: 62511
Definition: Coil Spring Set
Installation Guide: Download PDF
Warranty: Lifetime
