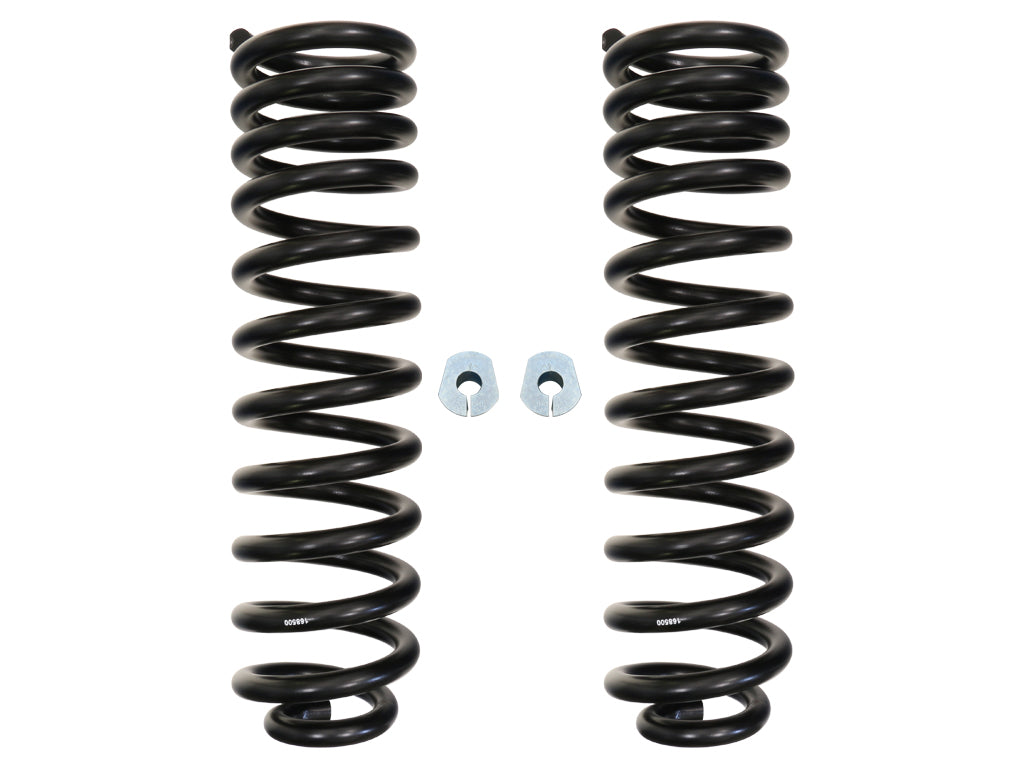

ICON Vehicle Dynamics 62512 - 23 FORD F-250/F-350 FRONT 2.5" DIESEL DUAL RATE SPRING KIT W/ CAMS

Beyond the added ground clearance, the dual rate design of ICON springs provides a softer initial rate for superb on-road comfort and a firmer secondary rate that delivers excellent bottoming resistance and superior off-road performance.

The ICON Vehicle Dynamics 2023 Ford F-250 and F-350 Super Duty 2.5" coil springs are designed for drivers demanding the ultimate in performance and ride quality, while allowing for increased wheel travel (when used with ICON shocks) and the fitment of larger tires. The ICON Ford Super Duty coil springs provide 2.5" of lift height and feature a dual rate design optimized for use with trucks equipped with diesel engines. The dual rate design allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Caster correction cams are also included to ensure proper caster angle with the new, taller ride height. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2023 Ford Super Duty.

Features

• 2.5" lift height
• Dual rate coil springs improve on and off-road ride quality over stock
• Dual-stage, semi-gloss powder coat offers excellent corrosion resistance
• Caster cam kit included for ideal caster angles with ride height increase
• 100% bolt-on system makes for an easy install
• Lifetime warranty against sagging/breakage

Specifications

Note: Factory Wheels & Tires Fitment: Yes APPLICATION NOTE #119: Rare cases require a 2.6 degree alignment cam on one side of vehicle for proper caster split APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #462: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) APPLICATION NOTE #465: Included caster cams are not compatible with models with manual locking front hub on driver side ONLY. Models without front passenger side locking hub must omit cams and instead require aftermarket radius arms or 4-link conversion for proper wheel alignment, or an upgrade to passenger side manual locking hub for compatibility with caster cams. APPLICATION NOTE #494: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry APPLICATION NOTE #519: Models equipped with Tremor package will have front lift height of 1.5" over stock APPLICATION NOTE #520: Will not fit F-450 or F-550 Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #6: Springs are rated for diesel engines only APPLICATION NOTE #30: An adjustable track bar may be needed to realign the axle from left to right, or to add additional strength APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel

Short Description: COIL SPRING KIT

Invoice Description: 62512

Definition: Coil Spring Set

Installation Guide: Download PDF

Warranty: Lifetime
