ICON Vehicle Dynamics 64012 - 23-25 FORD F-250/F-350 FRONT 4.5" DIESEL DUAL RATE SPRING KIT
Product Availability Request
Fill the form and our team will contact you.
Beyond the added ground clearance, the dual rate design of ICON springs provides a softer initial rate for superb on-road comfort and a firmer secondary rate that delivers excellent bottoming resistance and superior off-road performance.

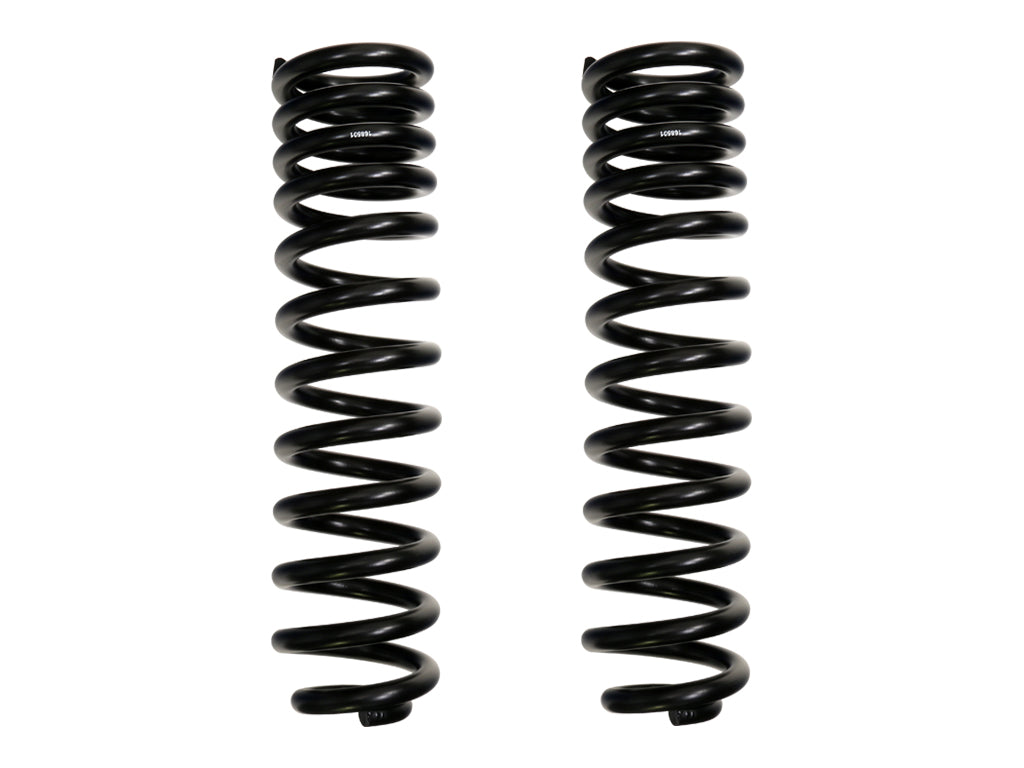

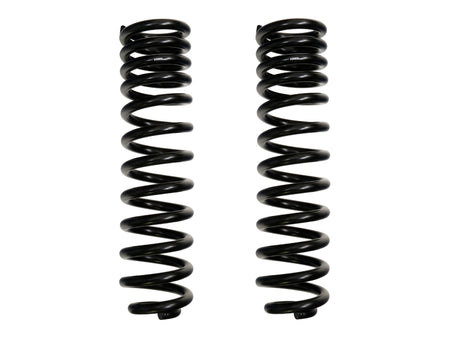

The ICON Vehicle Dynamics 2023-2026 Ford F-250 and F-350 Super Duty 4.5" coil springs are designed for drivers demanding the ultimate in performance and ride quality, while allowing for increased wheel travel (when used with ICON shocks) and the fitment of larger tires. The ICON Ford Super Duty coil springs provide 4.5" of lift height and feature a dual rate design optimized for use with trucks equipped with diesel engines. The dual rate design allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2023-2026 Ford F-250/F-350 Super Duty.
Features
- 4.5" lift height over stock
- Dual rate coil springs improve on and off-road ride quality over stock
- Vehicle specific spring rates optimized for use with trucks equipped with diesel engines
- Dual-stage, semi-gloss powder coat offers excellent corrosion resistance
- 100% bolt-on system makes for an easy install
- Lifetime warranty against sagging/breakage
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Finish | Powdercoated |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| California Prop 65 Warning | Yes |
| Add-On Part | 61110 - 17-25 FSD FRONT 4.5 & 7" EXTENDED SS BRAKE LINE KIT |
| Grade Type | Performance |
| Recommended Aftermarket Tires | 37" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Spring Color | Black |
| Spring Material | Steel |
| Material | Steel |
| Maximum Lift Height | 4.5 IN |
| OEM Wheels & Tires Fitment | Yes |
| Front Spring Rate | 460 PPI |
| Front Spring Rate | 600 PPI |
| Front Spring Rate Type | Progressive Dual Rate |
| Front Spring Seat Included | No |
Note: Factory Wheels & Tires Fitment: Yes APPLICATION NOTE #522: Brake line kit (Part # 61110) is recommended for end users who are looking for a braided stainless brake line upgrade Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #6: Springs are rated for diesel engines only APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #521: Models equipped with Tremor package will have front lift height of 3.5" over stock
Short Description: COIL SPRING KIT
Invoice Description: 64012
Definition: Coil Spring Set
Installation Guide: Download PDF
Warranty: Lifetime
