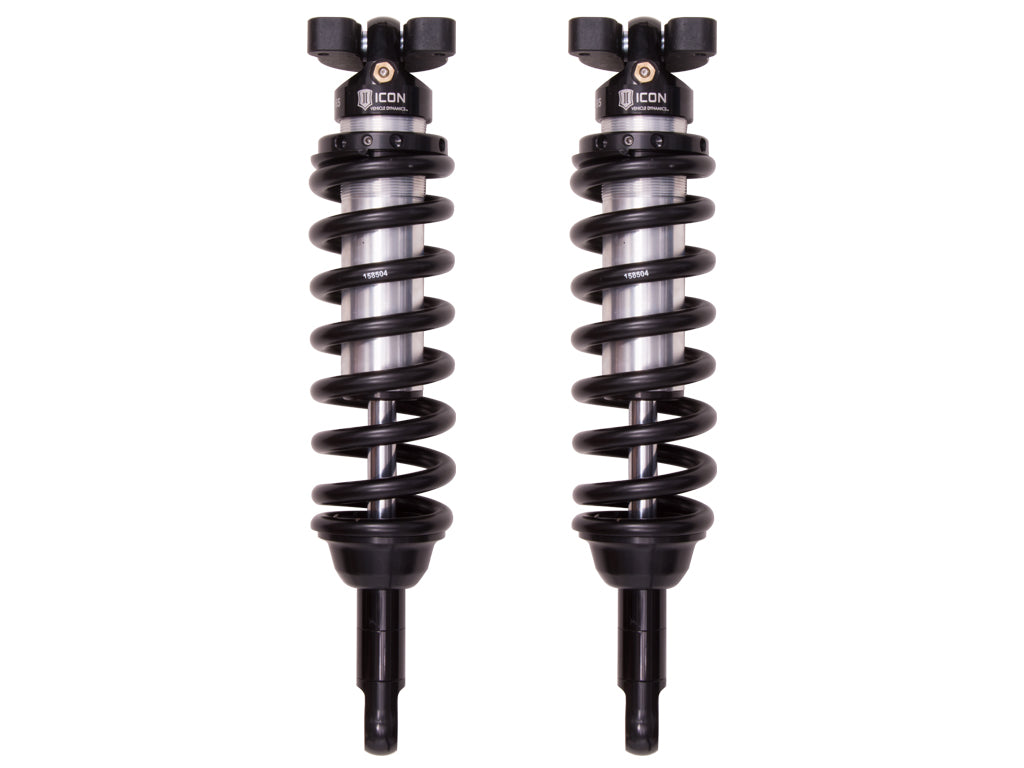

ICON Vehicle Dynamics 71010 - 15-22 COLORADO 2.5 VS IR COILOVER KIT
Product Availability Request
Fill the form and our team will contact you.
ICON’s Vehicle-specific valving provides a sport tuned feel while lift height adjustability allows the use of larger wheel and tires. The larger 2.5” shock body provides improved damping ability and outstanding ride characteristics.
ICON Vehicle Dynamics V.S. Series 2.5”coilover shocks are an incredible upgrade for the front end of 2015-2022 Chevrolet Colorado/GMC Canyon trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-3” lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Colorado/Canyon truck.
Features & Benefits
- 25% increase in wheel travel over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Improved ride quality over stock on and off road
- Height-adjustable coilovers offer 1.75-3" of lift height
- ICON engineered Eibach Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 100% Bolt-on - no drilling or welding necessary for installation
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 16.05 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 21 IN |
| Front Spring Rate | 650 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | .75 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 32" x 11.00" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate | 650 PPI |
| Spring Rate Type | Linear |
| Title | ICON 2015-2022 Chevrolet Colorado/GMC Canyon, .75-3” Lift, Front, 2.5 VS Coilover Kit |
| Travel Length | 4.95 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Active or Passive Suspension | Passive |
Installation Guide: Download PDF
