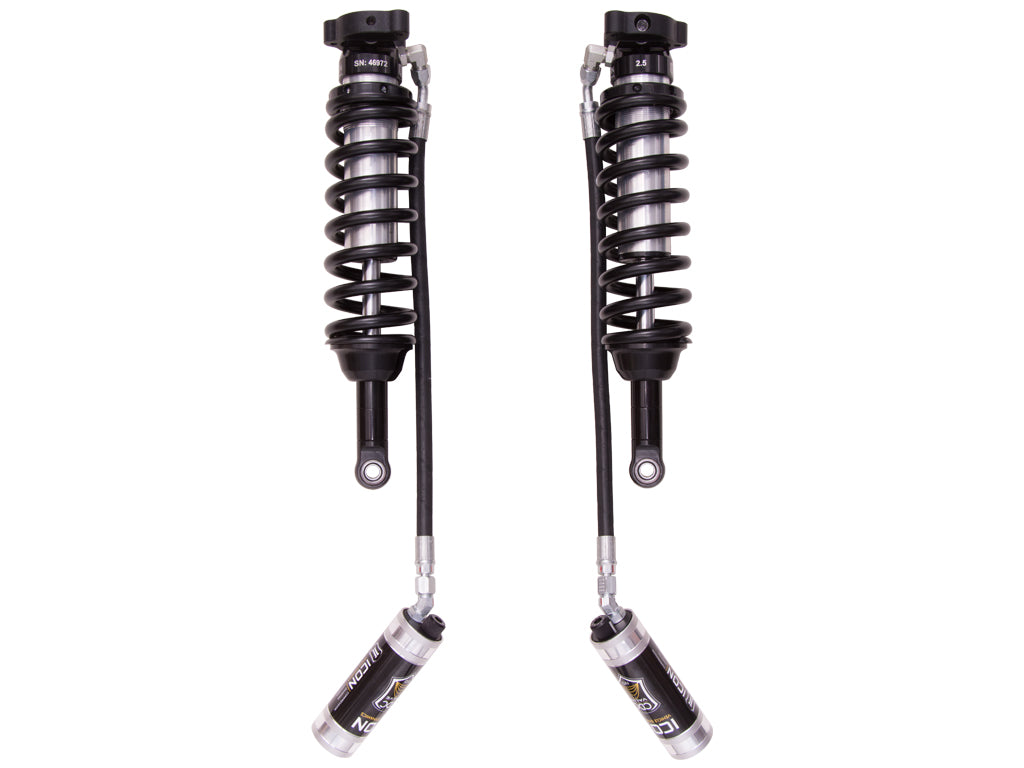

ICON Vehicle Dynamics 71510C - 15-22 COLORADO 2.5 VS RR CDCV COILOVER KIT
Product Availability Request
Fill the form and our team will contact you.
ICON’s Vehicle-specific valving provides a sport tuned feel while lift height adjustability allows the use of larger wheel and tires. The larger 2.5” shock body provides improved damping ability and outstanding ride characteristics.

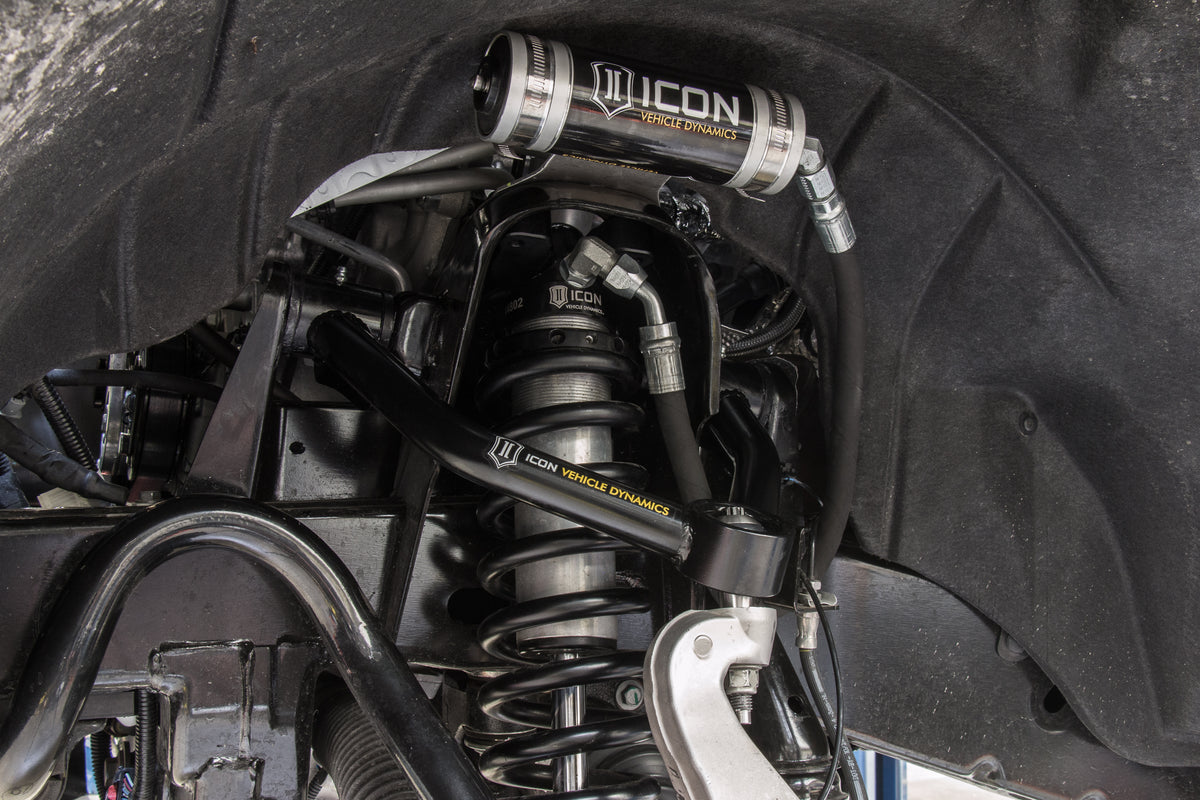

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2015-2022 Colorado / Canyon truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Colorado / Canyon.
Features & Benefits
- Increased wheel travel and ride quality over stock
- 100% Bolt-on - no drilling or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended offroad use
- ICON CDCV equipped for external tuneability of your shocks
- Height-adjustable coilovers offer 1.75-3" of lift height
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 16.05 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 21 IN |
| Front Spring Rate | 650 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | .75 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 32" x 11.00" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2015-2022 Chevrolety Colorado/GMC Canyon, .75-3” Lift, Front, 2.5 VS Remote/CDCV Coilover Kit |
| Travel Length | 4.95 IN |
| Upper Mount Type | Eyelet |
| Valving Type | Digressive |
Installation Guide: Download PDF
