ICON Vehicle Dynamics 71615 - 23-24 GM CANYON/COLORADO 2.5 VS IR COILOVER KIT
Product Availability Request
Fill the form and our team will contact you.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.

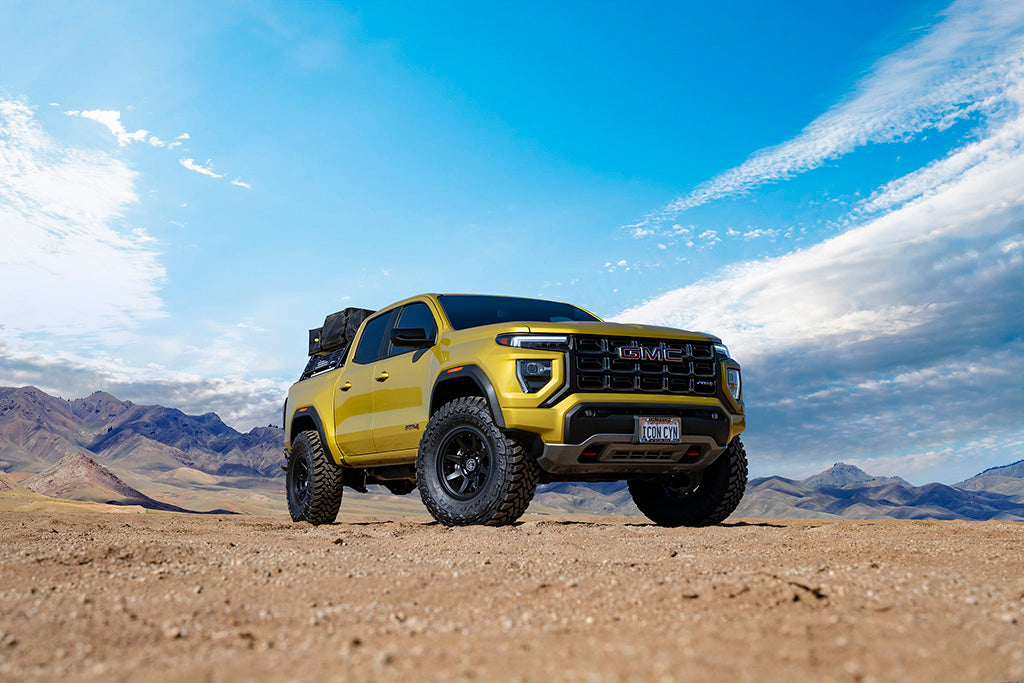

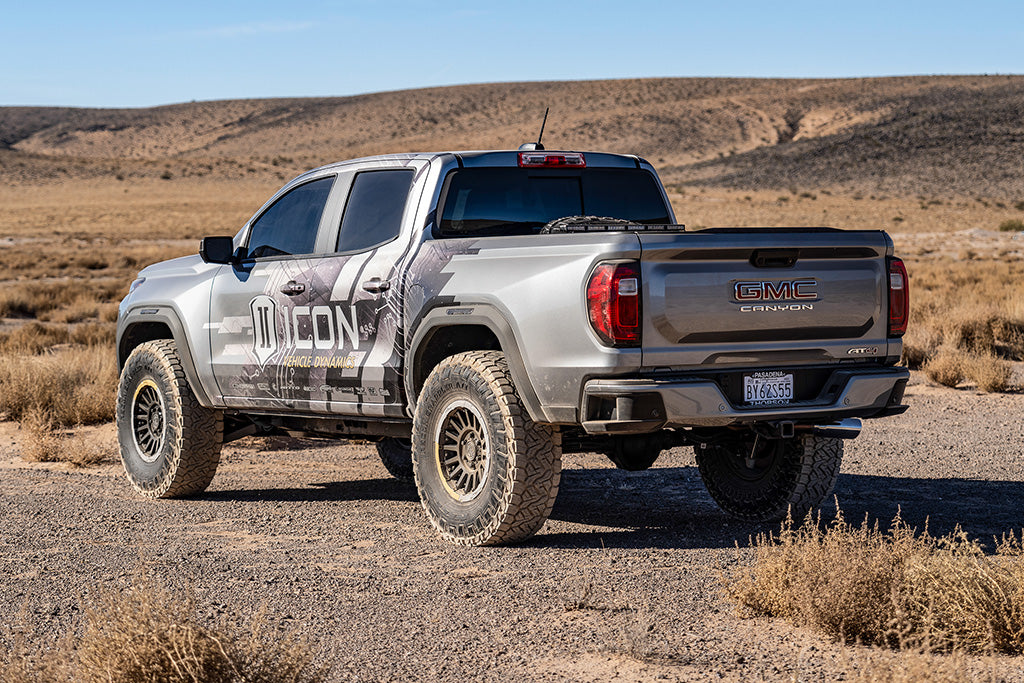

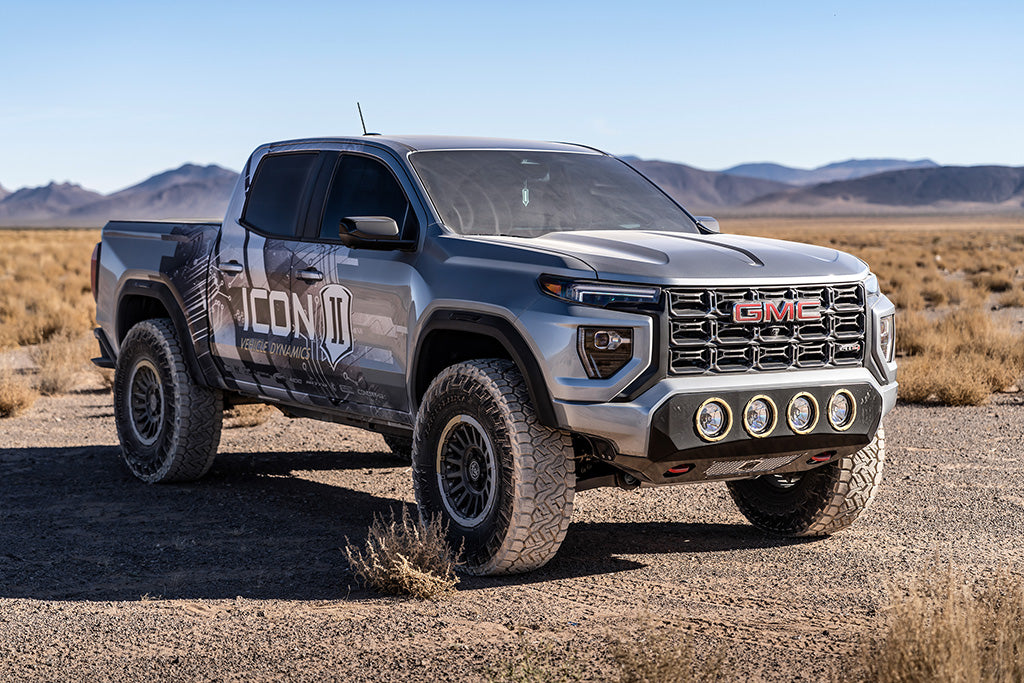

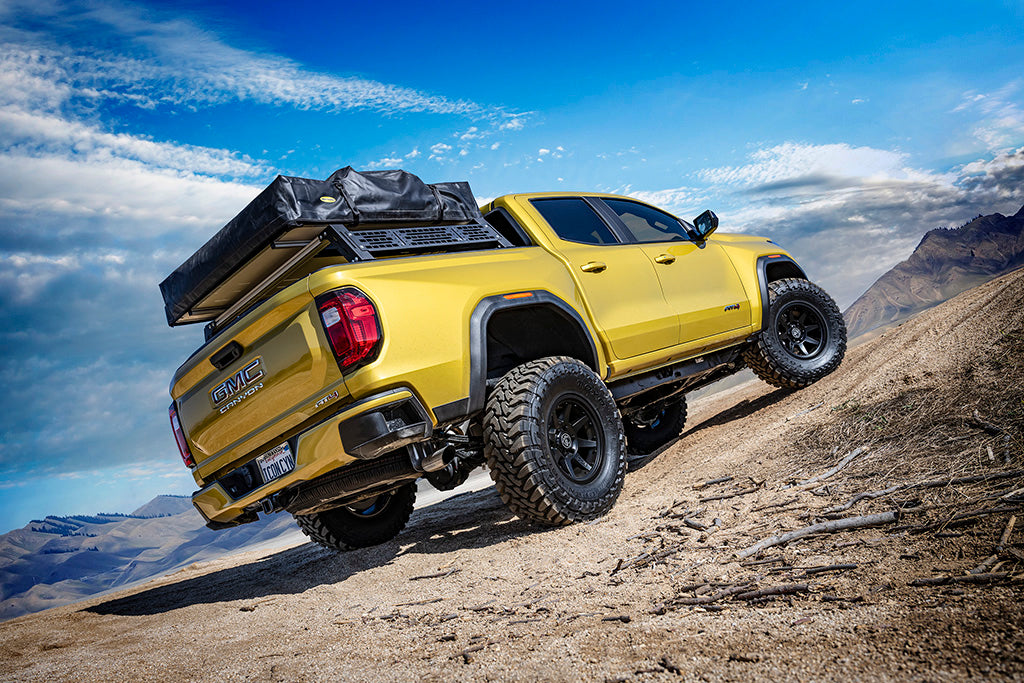

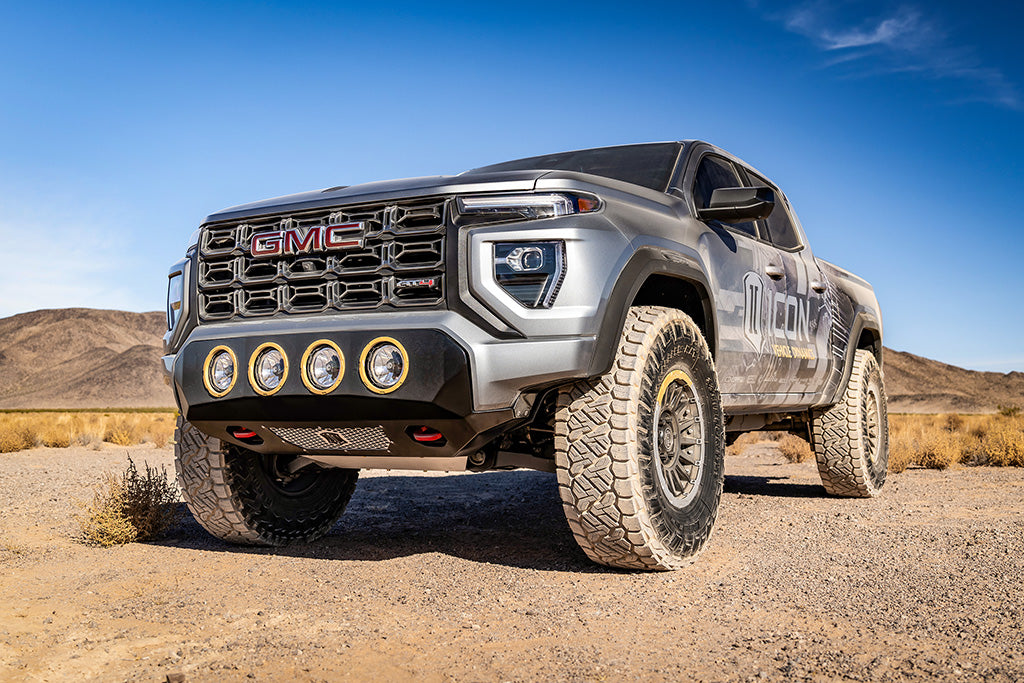

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2026 GMC Canyon and 2023-2026 Chevrolet Colorado Trail Boss and Colorado ZR2 trucks. Their longer length offers an increase in total front wheel travel compared to stock, for a total of 9” front wheel travel while still being compatible with the stock front upper control arms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GMC Canyon or Chevrolet Colorado Trail Boss and ZR2.
Features
- Increased front wheel travel and improved ride quality over stock
- High strength alloy CNC machined lower bar pin and application specific mounting hardware
- Fully rebuildable and re-tunable
- 100% Bolt-on - no drilling, cutting, or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 1.75-2.5" of front lift height over stock
- Internal nitrogen reservoir ensures consistent performance under hard use
- ICON engineered coil springs
- Corrosion resistant CAD plated 2.5” diameter shock bodies
- 7/8" diameter hardened chrome plated shafts
- 6061 Aircraft grade aluminum CNC machined components
- PTFE lined spherical bearings for extended longevity and minimal deflection
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 18.47 IN |
| Material | Aluminum |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 23.43 IN |
| Front Spring Rate | 450 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Bar Pin |
| Material | Steel |
| Maximum Lift | 2.5 IN |
| Maximum Ride Height Raising Distance | 2.5 IN |
| Minimum Lift | 1.75 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35 x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | 17x8.5" w/ 5.46” Backspace / 18mm Offset |
| Remote Reservoir | No |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Flat on Bar Pin |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 4.97 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Note: Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 17x8.5" w/ 5.46” Backspace / 18mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #158: Only fits "Ultra-Wide Stance" vehicles APPLICATION NOTE #359: Will not fit Chevrolet Colorado WT, LT, or Z71 APPLICATION NOTE #360: Chevrolet Colorado ZR2 and GMC Canyon AT4X will have front lift height range of .75"-1.5" over stock
Short Description: COILOVER KIT
Invoice Description: 71615
Definition: Coilover Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs
