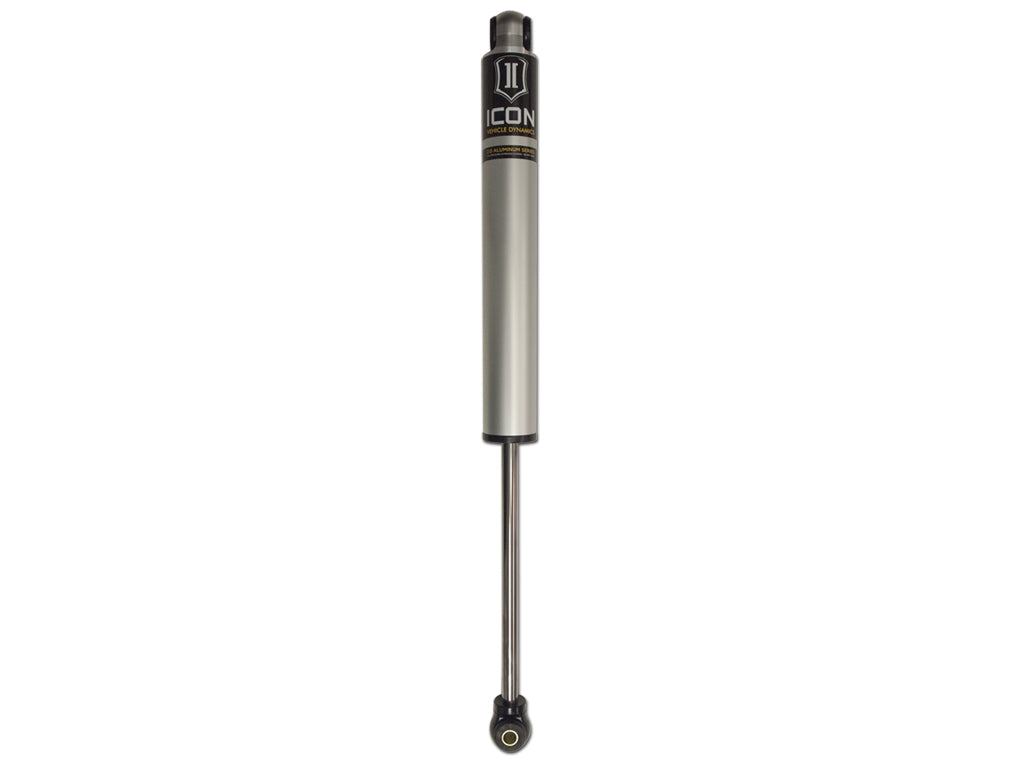

ICON Vehicle Dynamics 76526 - 07-23 GM 1500 0-2" REAR 2.0 VS IR
Product Availability Request
Fill the form and our team will contact you.
ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 100% revalveable
- Nitrogen charged monotube design with internal reservoir3
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 614700 - 2.0 SHOCK BOOT KIT (EACH) |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Coil Over Springs Included | NO |
| Coil Spring Insulator(s) Included | No |
| Color | Gray |
| Color | Silver |
| Color | Black |
| Compressed Length | 15.6 IN |
| Configuration | Performance |
| Cylinder Color | Gray |
| Cylinder Diameter | 2 IN |
| Boot Included | NO |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Finish | Anodized |
| External Reservoir | No |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Internal Rebound Spring | No |
| Lower Mount Sleeve Inside Diameter | .56 IN |
| Lower Mount Sleeve Overall Length | 1.65 IN |
| Lower Mount Type | EYELET |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2 IN |
| Damping Type | Oil |
| Dust Boot Included | No |
| Dust Shield | NO |
| Dust Shield Included | No |
| Extended Length | 25.05 IN |
| Material | Steel |
| Rod Diameter | .625 IN |
| Self-Leveling | No |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.625 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | CENTER OF EYELET |
| Shock Absorber Bore Size | 1.75 IN |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Shock Stroke | 9.45 IN |
| Suspension Type | Spring |
| Travel Length | 9.45 IN |
| Tube Outside Diameter | 2 IN |
| Type | Telescopic |
| Material | Aluminum |
| Maximum Ride Height Raising Distance | 2 IN |
| Minimum Ride Height Raising Distance | 0 IN |
| Mounting Hardware Included | No |
| Quantity | 1 |
| Remote Reservoir | NO |
| Reservoir Type | Internal |
| Upper Mount Sleeve Inside Diameter | .56 IN |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Attributed Description | ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 15.600 IN; Fully Open Length: 25.05 IN; Shock Stroke: 9.45 IN; Travel Length: 9.45 IN |
| Upper Mount Sleeve Overall Length | 1.65 IN |
| Upper Mount Type | EYELET |
| Valving Type | Linear |
| Valving Type | Digressive |
| Add-On Part | 71021 - 19-26 GM ARC ELECTRONIC SHOCK SIMULATOR |
| Add-On Part | 71022 - 19-26 GM ARC RIDE HEIGHT SIMULATOR |
| Adjustable Compression | No |
Note: APPLICATION NOTE #13: Compatible with 0-2" of rear lift on most models APPLICATION NOTE #15: Compatible with 0" of rear lift on Chevrolet Silverado 1500 Trail Boss and GMC Sierra 1500 AT4 APPLICATION NOTE #16: May require slight sanding of rear shock absorber mounts APPLICATION NOTE #327: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X submodels APPLICATION NOTE #331: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require part numbers 71021 and 71022 APPLICATION NOTE #341: Will not fit models equipped with Magnetic Ride Control APPLICATION NOTE #342: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require concurrent installation of aftermarket front coilovers
Short Description: REAR SHOCK ABSORBER
Invoice Description: 76256
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: 1 Year
